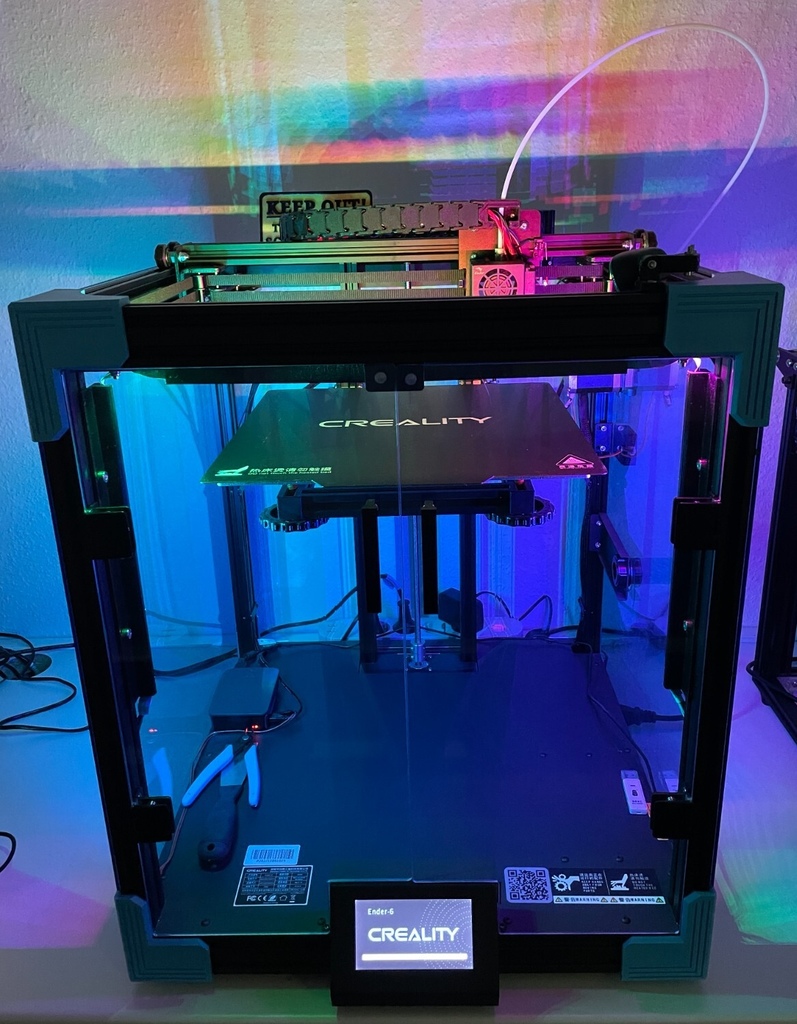

Wanted to modify my Ender 6 with some LED-lights, but I needed some mounts.
I therefore designed my own mounts for the sides and for the top.

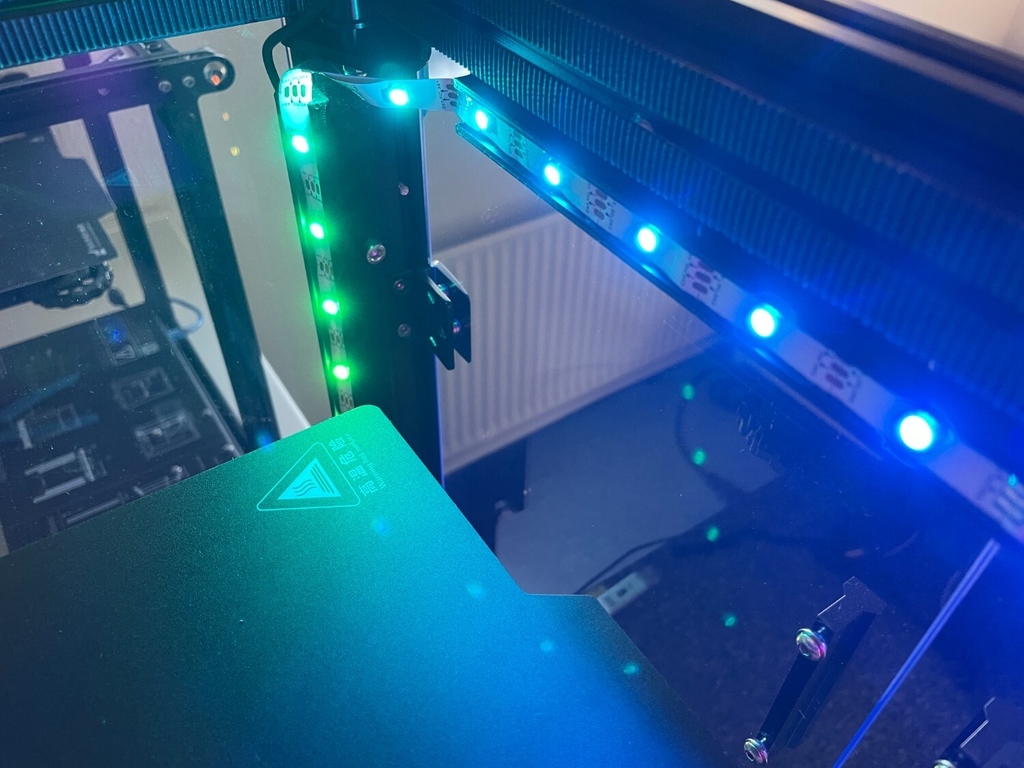

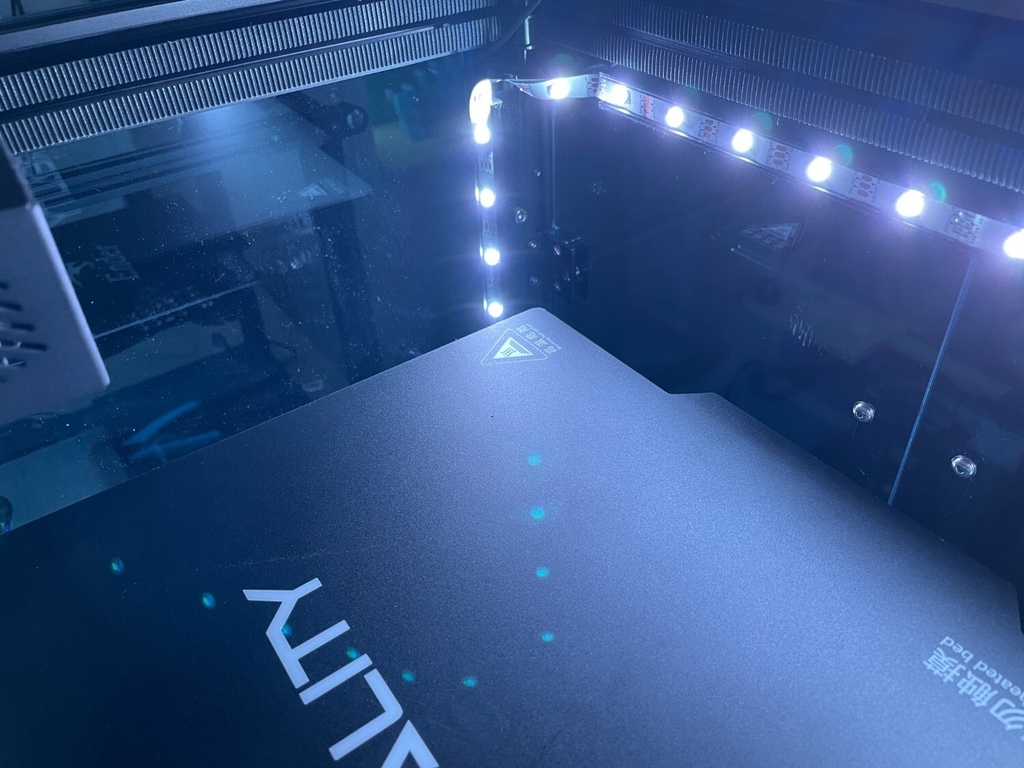

The mounts is designet to sit in the front, and the sides has an angle pointed towards the bed.
I control my LEDs via a connected Raspberry Pi with OctoPrint.
The LEDs i bought: (1m, 30led/m):
https://www.ebay.com/itm/154410642643?var=454490355183
Feel free to post your makes, and do not hesitate to ask if you got any questions.
Happy printing! :)
Notes:
INSTRUCTIONS: *What to print:*

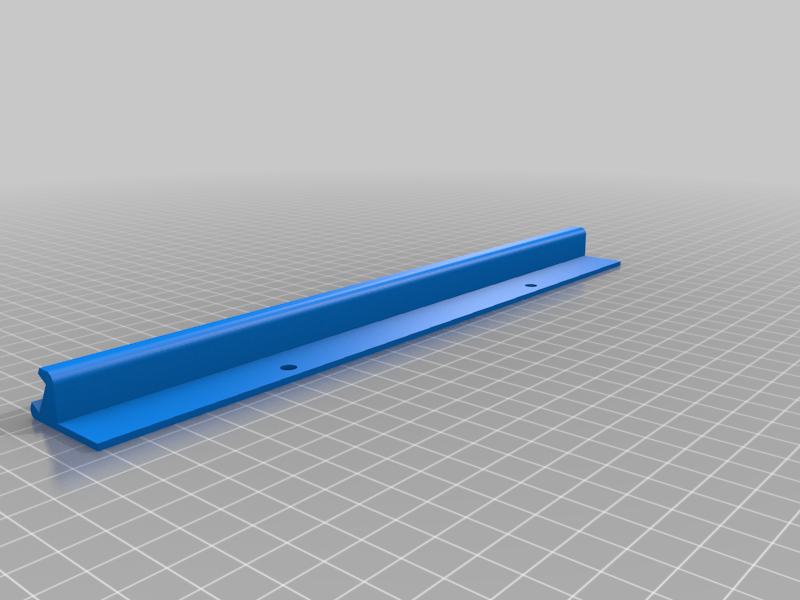

2x "_SIDE"

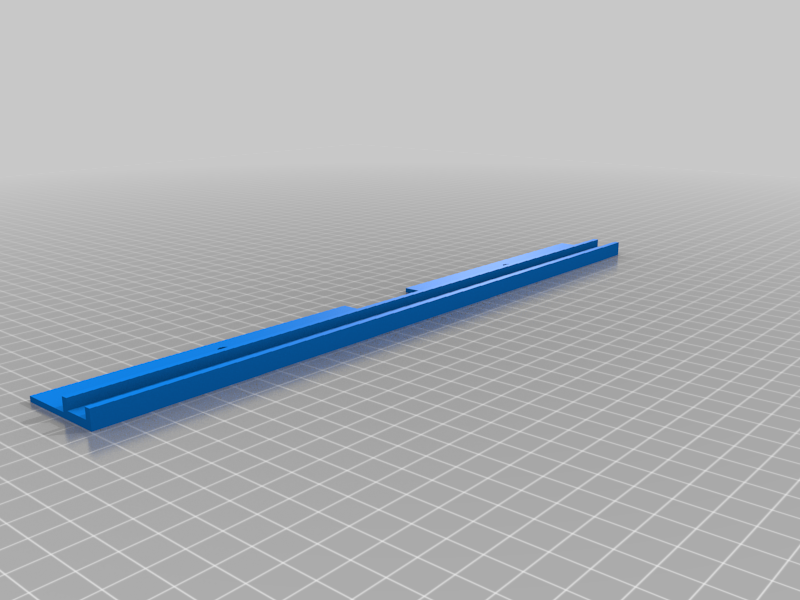

1x "_TOP"
The models can be printed without support.
*How to mount:*
6x M5 screws/bolt
6x M5 nuts
Optional: 6x washers
The "_TOP" mount is designed to fit perfectly around the bracket for the door magnets, and is therefore stationary. The "_SIDE" is up to you to place at the height you want.
