This is a reusable note system using a dry erase marker and rfid cards. Version 2 has a new and updated assembly method.
- Rating
- 4.857 / 5
- Likes
- 624
- Downloads
- 621
- Makes
- 15
- Views
- 10,485
- Reviews
- 14
Updated at source:
Model information
- Source
- Printables
- Category
- Office
- License
- Standard Digital File License
Overview:

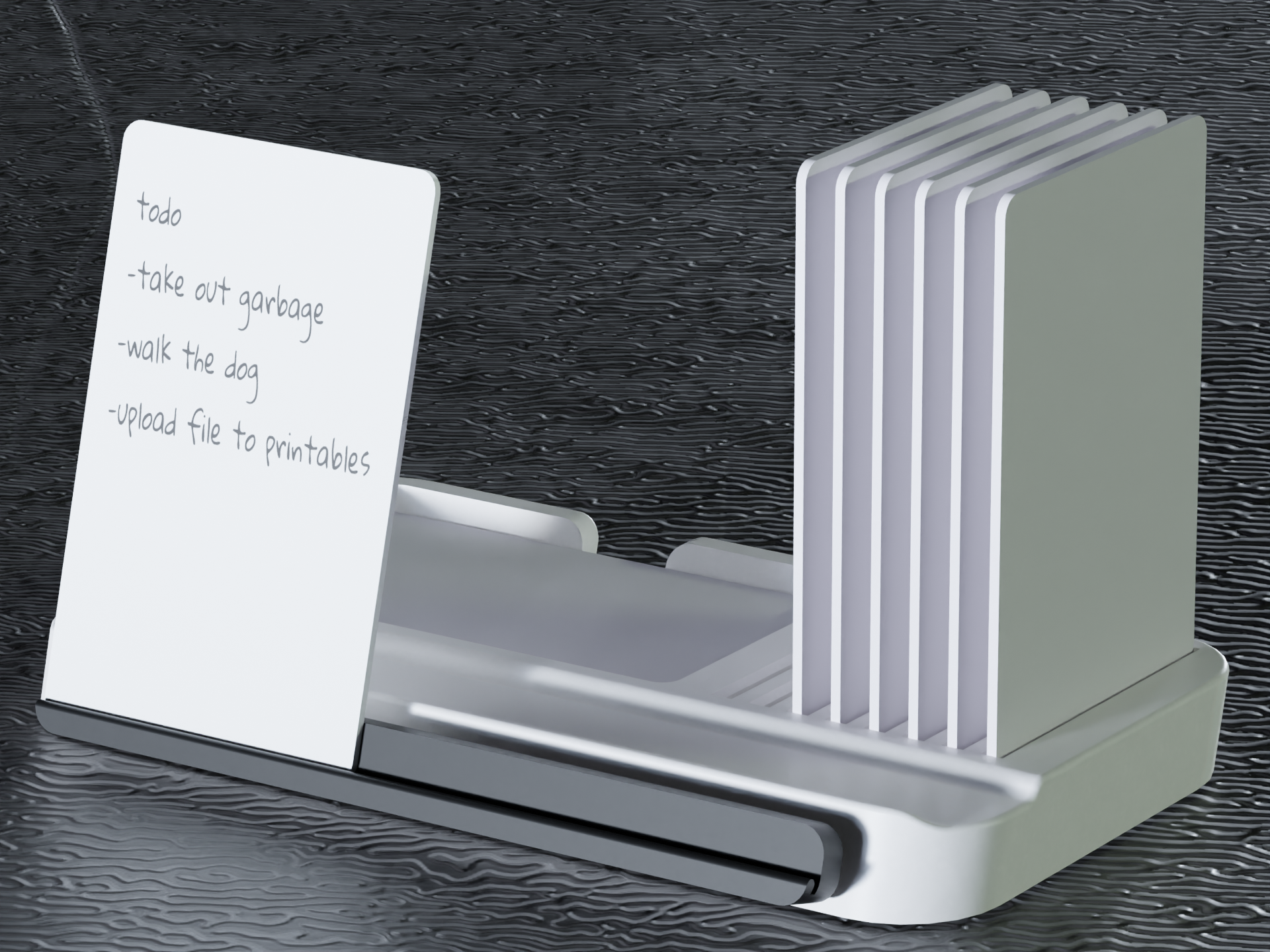

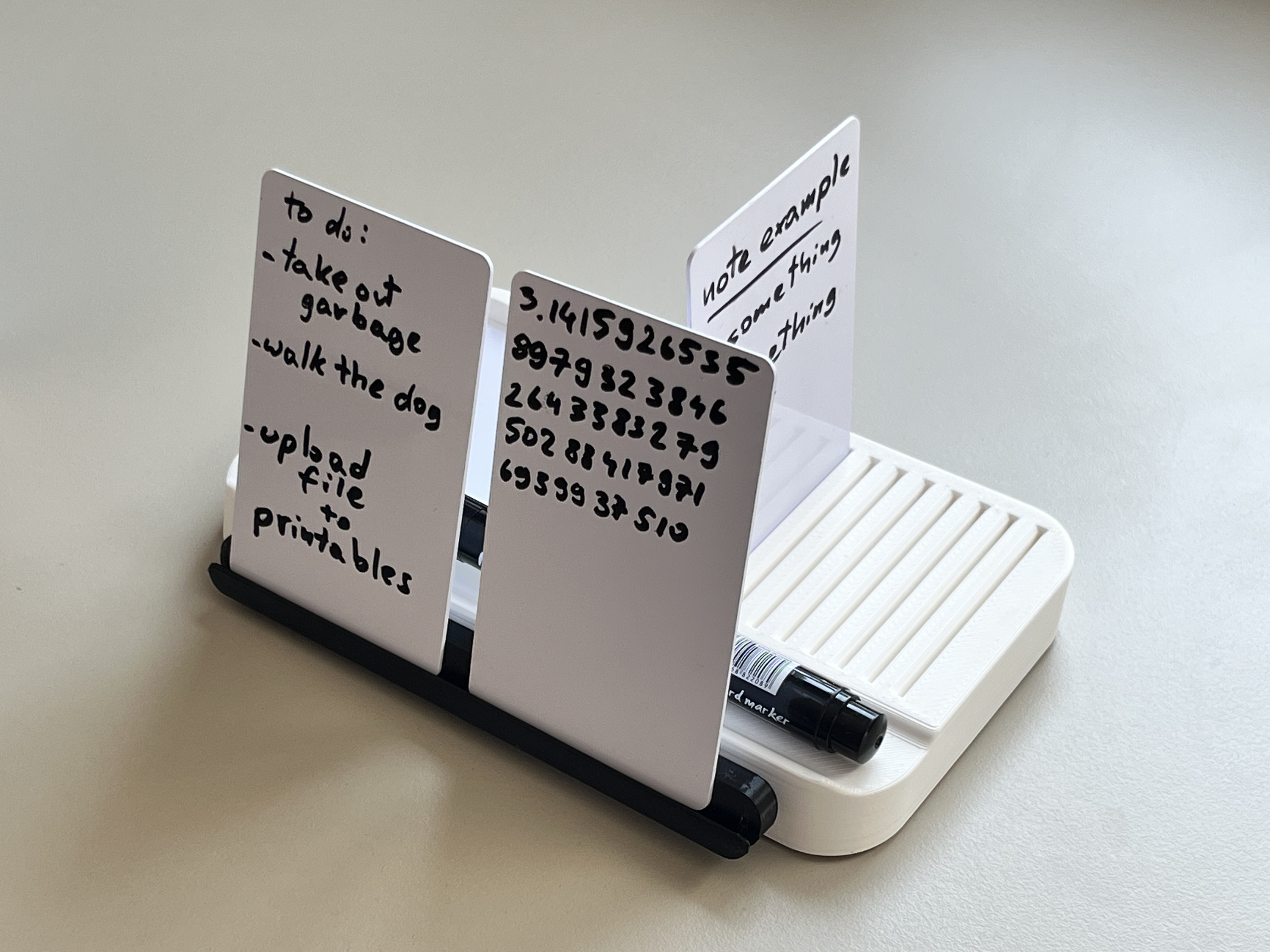

This system utilizes standard, affordable ID cards or RFID cards and works seamlessly with any dry-erase marker. For optimal use, fine tip markers equipped with an eraser are recommended.
System Features:

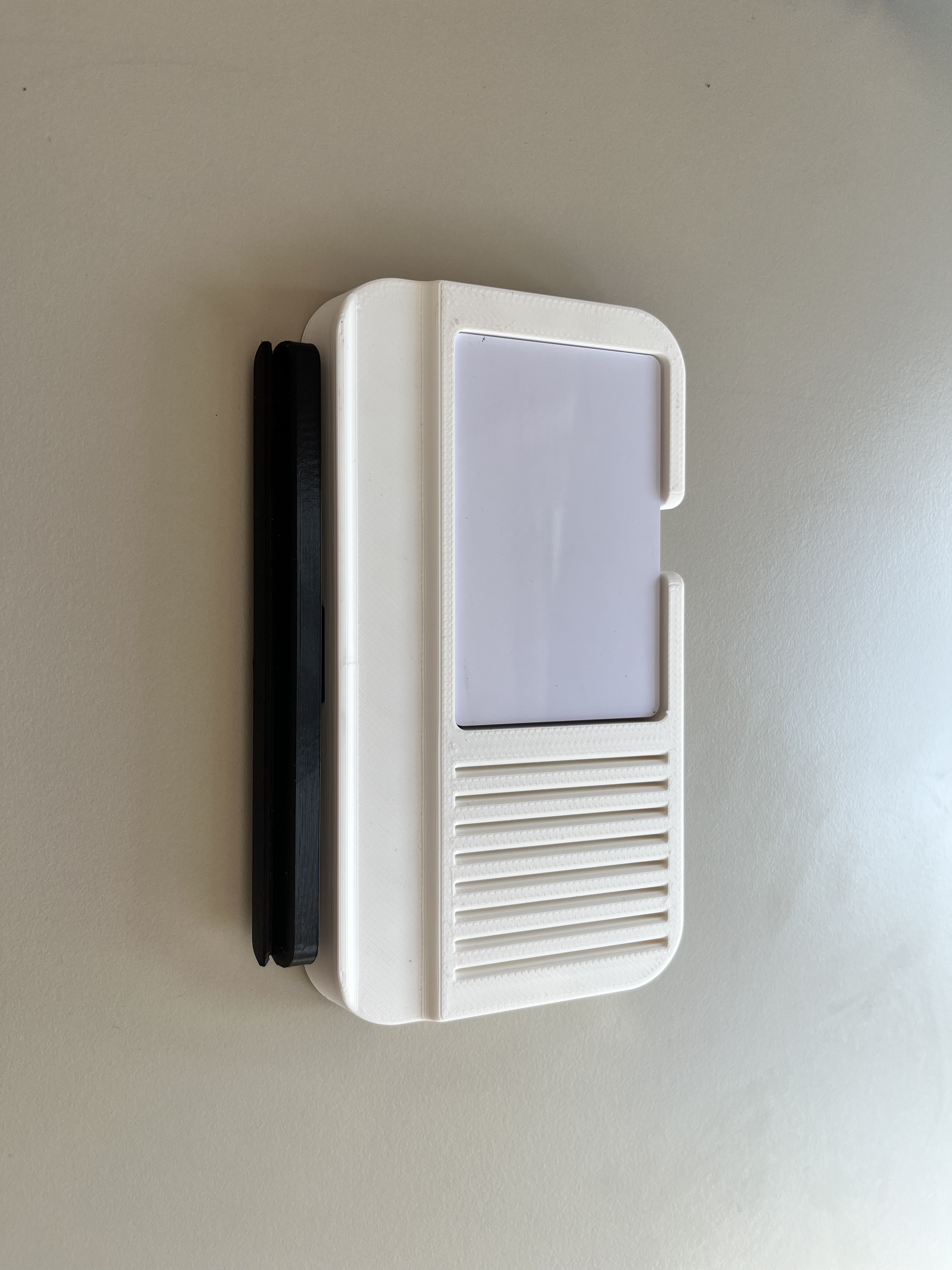

1. Card Storage: Safely store your RFID cards when not in use.
2. Note Stand: Perfect for keeping important notes handy but out of direct display.
3. Note Display: Showcase your active notes and reminders.

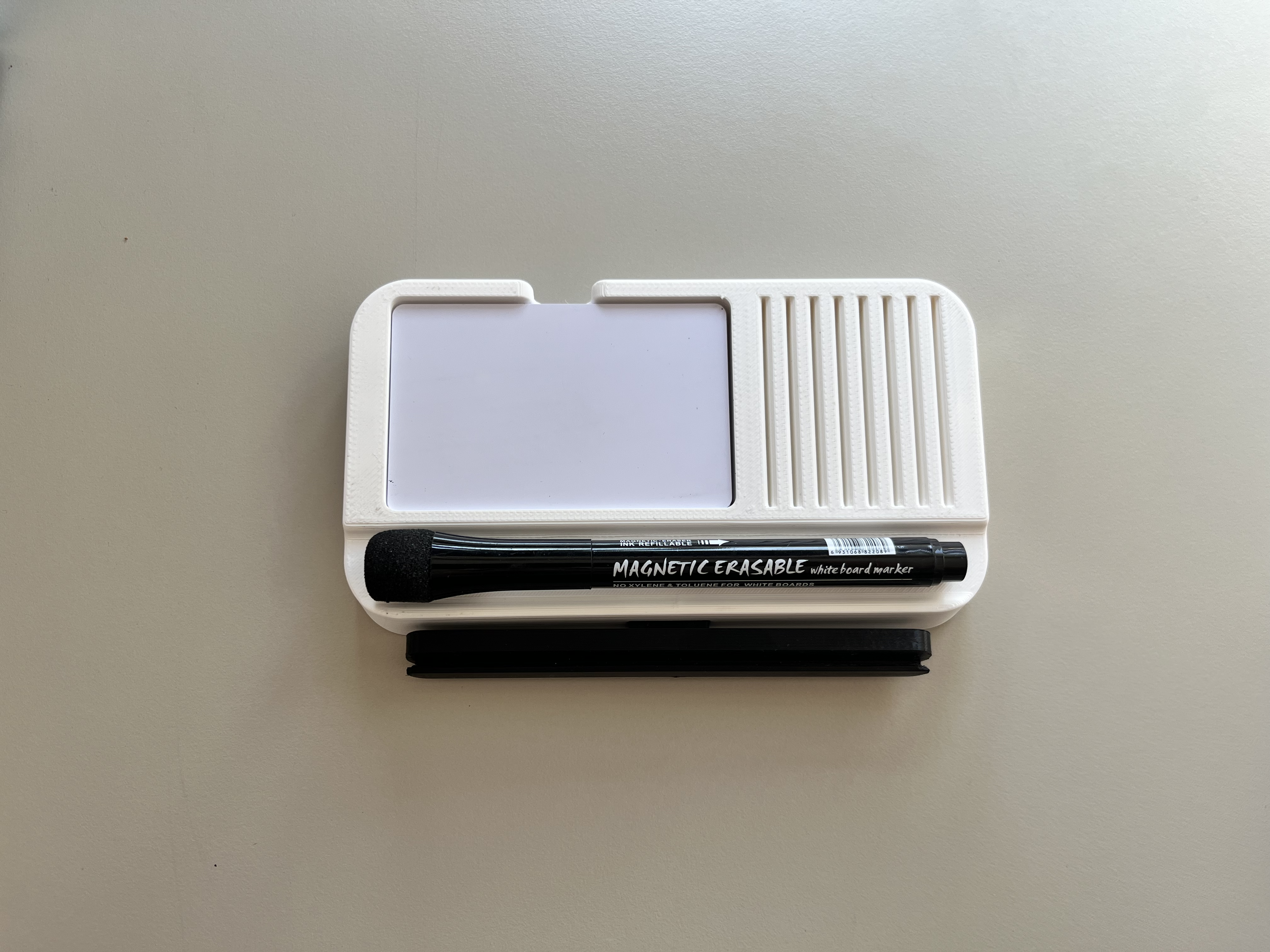

4. Marker Rest: A convenient spot to place your marker, ensuring it's always within reach.
The Two Versions:
Both versions functionally are the same, they just use different assembly methods.
- No-Screw: There are no heat inserts or screws necessary!!
- With-Screw: You need one, short m3 heat set insert and one m3 bolt. This version is a little more rugged and offers more versatility if you want to edit the file.
Assembly Instructions:
- No-Screw Note Display Assembly: There are no heat inserts or screws necessary! Just slide in the note stand's dove tail into the corresponding dove tail in the base and you're done! If the tolerances are too small for your printer, theres a note display file with bigger tolerances included.
- With-Screw Note Display Assembly: Insert a short M3 heat insert into the note display part. Secure it by screwing in an M3 bolt from the bottom, placing the spacer between the parts.
- Anti-Slip: Two cutouts at the bottom allow you to glue thin cork or a similar material. This not only prevents slipping but also adds a premium feel to the system.
Links:
You can buy the white cards here: https://www.amazon.pl/gp/search?ie=UTF8&tag=kazik03-21&linkCode=ur2&linkId=fc1f9b27e7475557118a747831aac6d9&camp=247&creative=1211&index=office-products&keywords=id card blank
Get the markers here: https://www.amazon.pl/gp/search?ie=UTF8&tag=kazik03-21&linkCode=ur2&linkId=c7ebc37e8103579cbfaba1bba4af19c2&camp=247&creative=1211&index=office-products&keywords=thin tip dry erase marker
Encountered any issues or have suggestions? Feel free to leave a comment below. I'm here to assist and continuously improve this model. Your feedback is invaluable! :)
