Cuboid Mount

🛠 Customizable in Your Browser

Adjust size, height, clearance, and more so it prints exactly how you need.
Customize it on the Lunar Prototypes website. No slicer hacks or CAD required.

Build Your Version Now

See below for more details

Overview

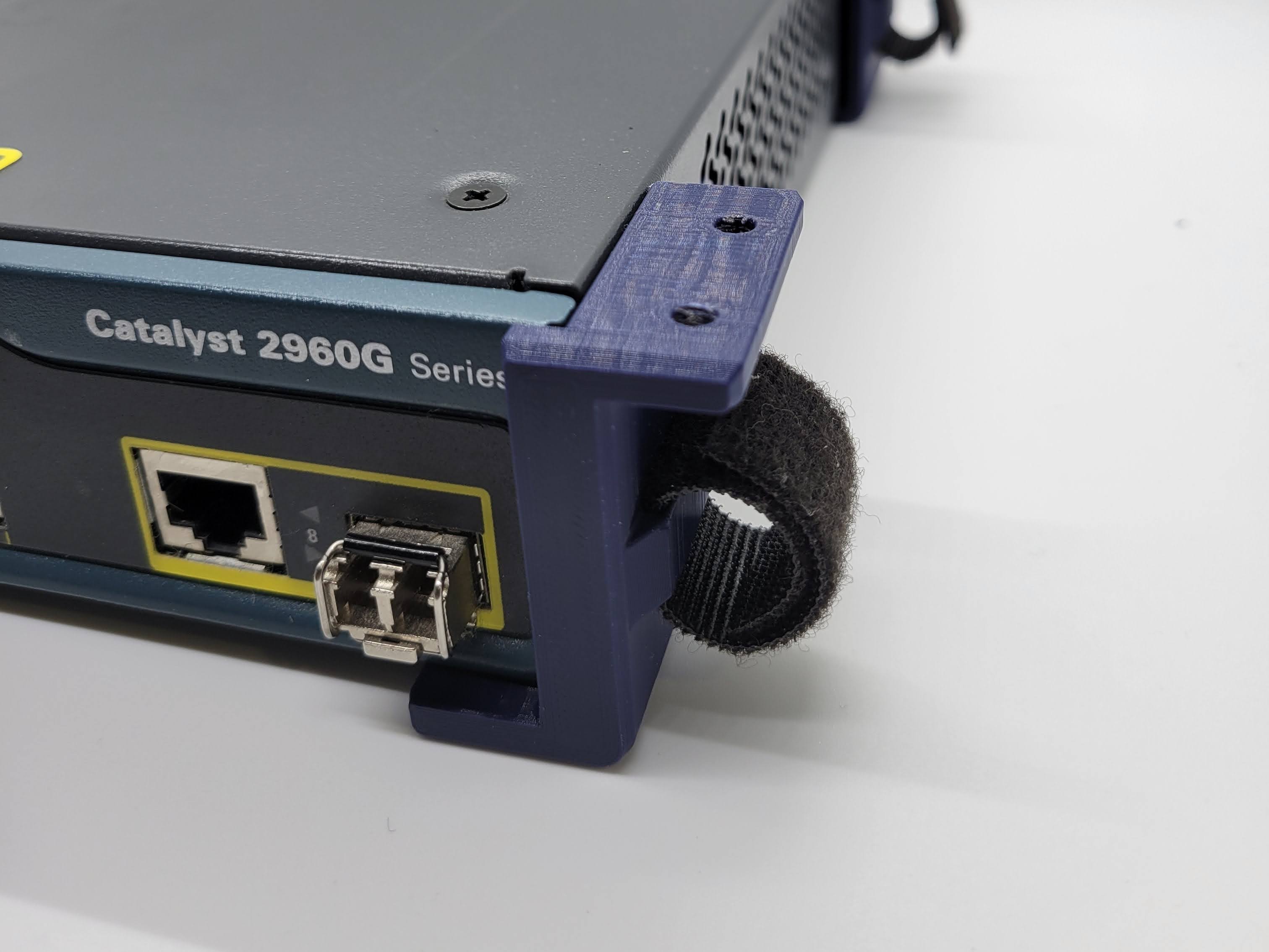

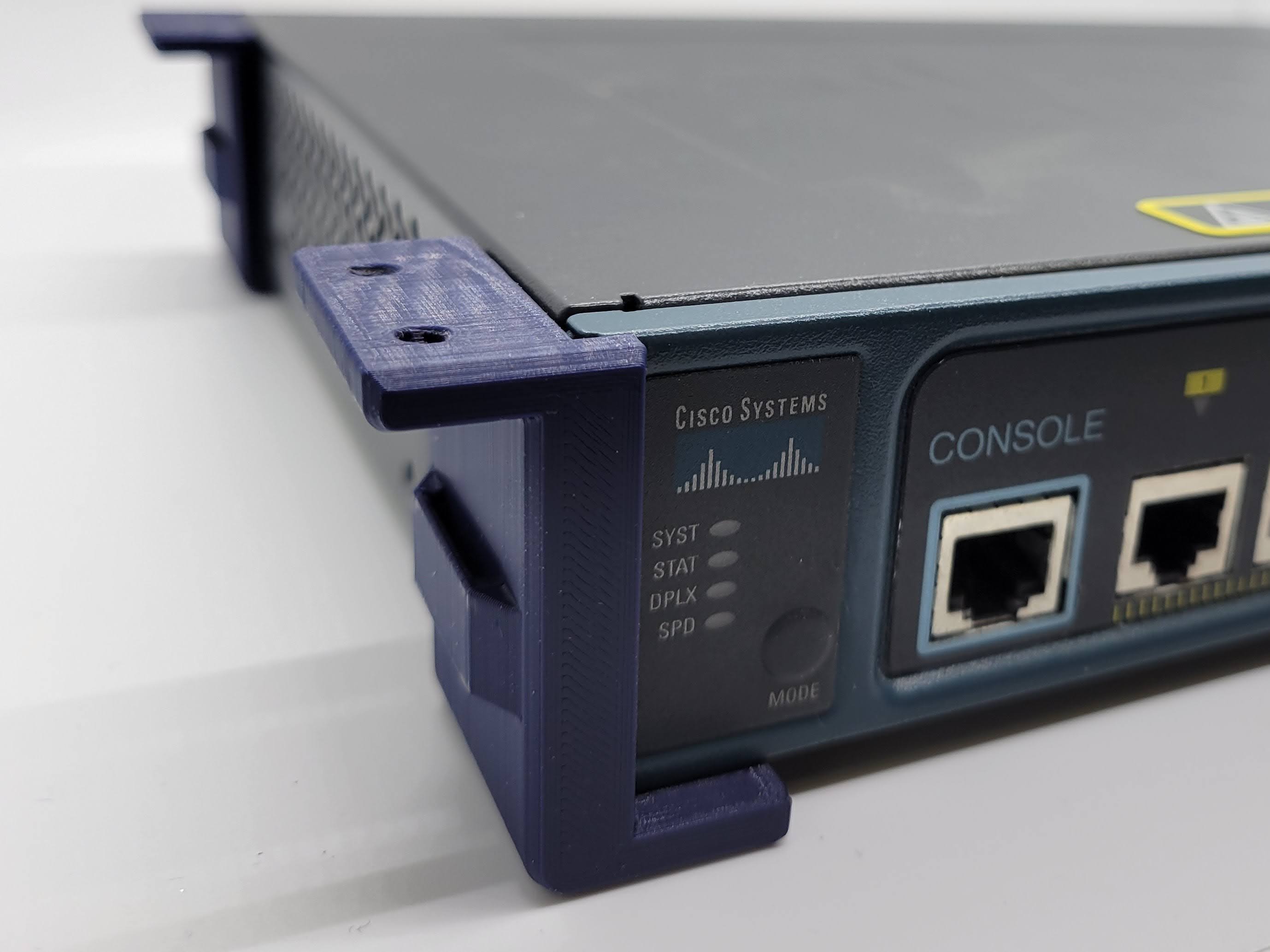

This model was designed to mount a switch under a desk but is customizable to pretty much anything cuboid shaped. Velcro loops are included on both sides.

Set your dimensions, screw sizes, bracket thickness, and plug offset, to create your perfect fit. Base design dimensions are for a 1U Cisco 2900 series switch.

Customization Instructions:

Customize your Customizable Mounting Arm directly on the Lunar Prototypes website:

Customizable Cuboid Mount

1. Click the Customize tab
2. Set your dimensions and clearance
3. Click submit—your STL will be ready in under 2 minutes

Note: The customization system is currently in beta. We are actively refining it, and your feedback is crucial for our enhancements. If you have any issues with the customizer please join our Discord for support.

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 4
Infill: 10%
Infill Pattern: Gyroid
Recommended Material: PLA, PETG, ABS
Supports: None
Support Type: None

Notes:
Orient design on print bed so there are minimal overhangs.

Assembly Instructions

Materials Needed:
8x #8 Wood Screws

Instructions:
1. Print all piece.
2. Place object to be mounted in place.
3. Piece by piece, use a marker to mark the holes for each corner.
4. Drill pilot holes.
5. Screw in back mounts.
6. Insert device to be mounted.
7. Screw in remaining mounts.
