This single watch stand display is designed for a clean, minimal presentation and is ready to print with no supports required (print it laid on its left side)
The stand features a 0.75 mm recessed watch support area, allowing you to add felt or rubber for extra protection and grip, helping prevent scratches on the watch.

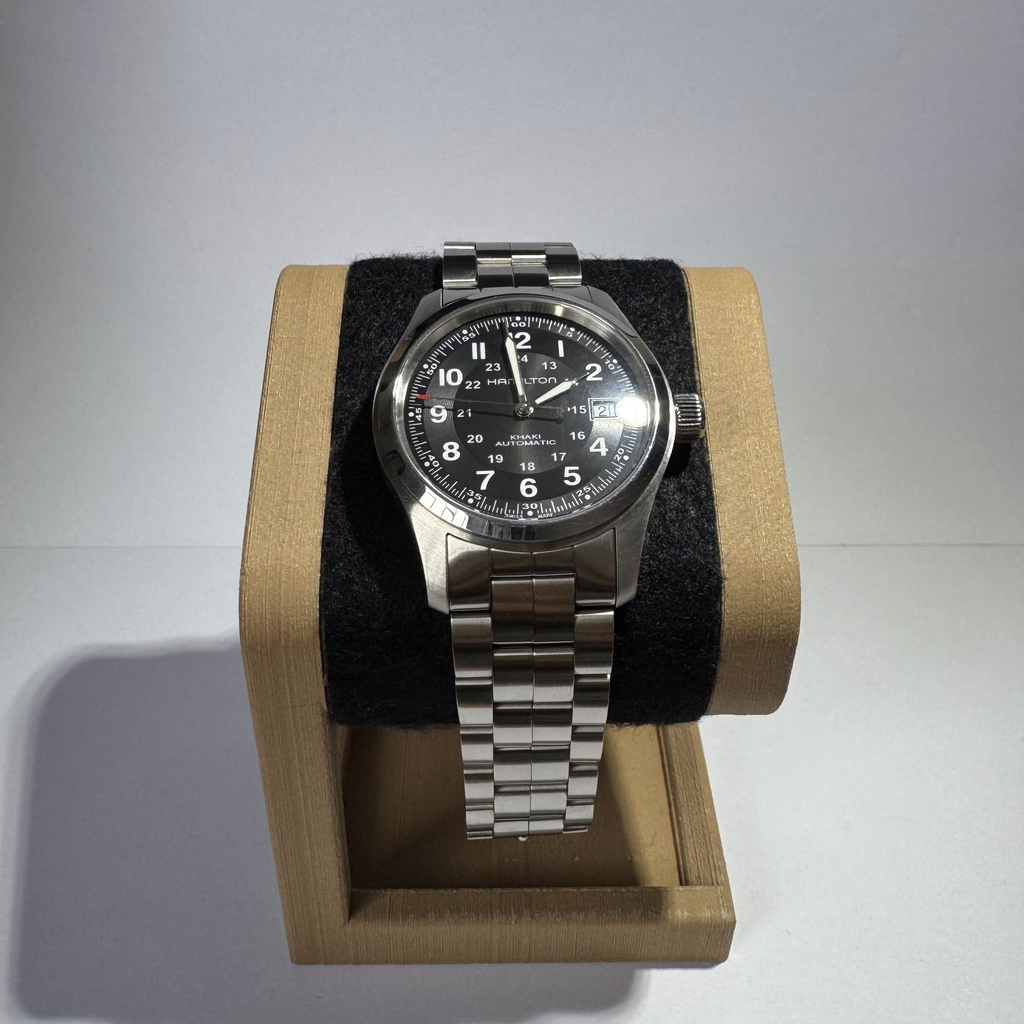

The watch shown is in the small stand. The watch is a 38 mm Hamilton watch with a 48.5 mm lug-to-lug length. The bracelet is adjusted for a 155 mm (6.1 in) wrist circumference, shown for scale and fit reference only.
The model is available in three different sizes to fit various watch dimensions and preferences.
Sizes
Small: -Front width: 60 mm -Depth: 70 mm -Height (lowest point): 35 mm -Watch support diameter: 165 mm -Felt / Rubber width: 50 mm
Medium: -Front width: 70 mm -Depth: 70 mm -Height (lowest point): 35 mm -Watch support diameter: 185 mm -Felt / Rubber width: 50 mm

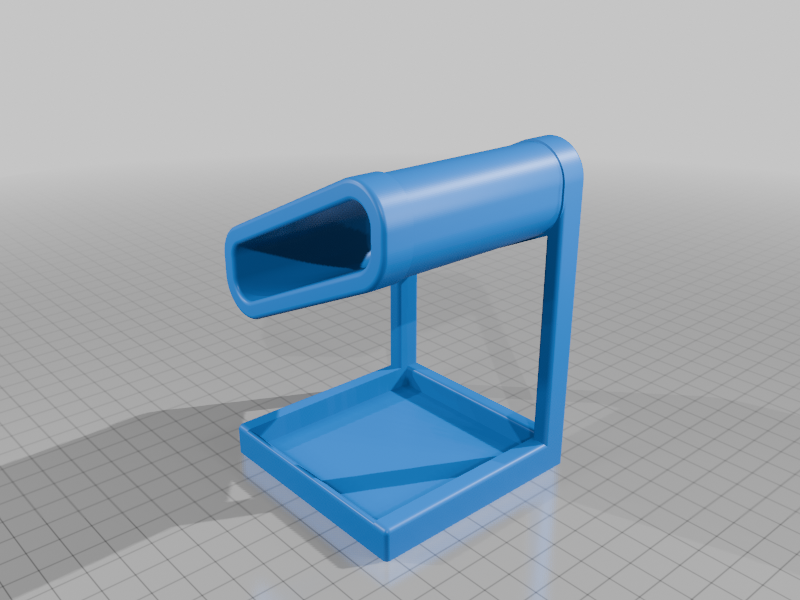

Large: -Front width: 80 mm -Depth: 80 mm -Height (lowest point): 40 mm -Watch support diameter: 207 mm -Felt / Rubber width: 60 mm
If you prefer a left-handed version, simply mirror the model in your slicer before printin
Print Settings
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
30
Notes:
For best aesthetic results, Wood PLA is highly recommended, especially if you plan to sand and stain the model after printing.
Use a 0.6 mm nozzle to enhance the wood-like texture and improve surface finish.
Print with at least 3 walls/perimeters for added strength and clean edges.
Recommended infill: 30% for a good balance between rigidity and material usage.
No supports required.
