About

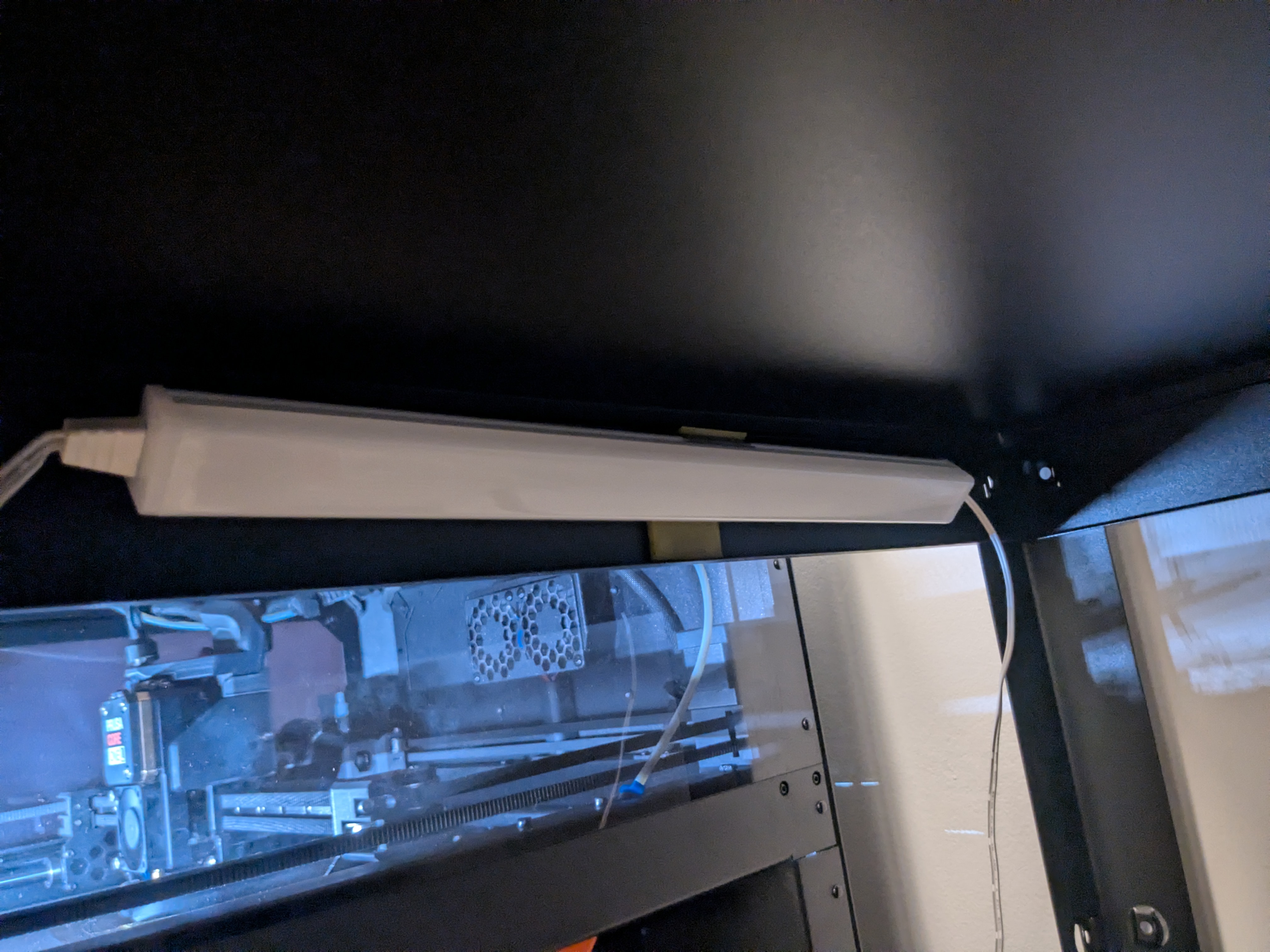

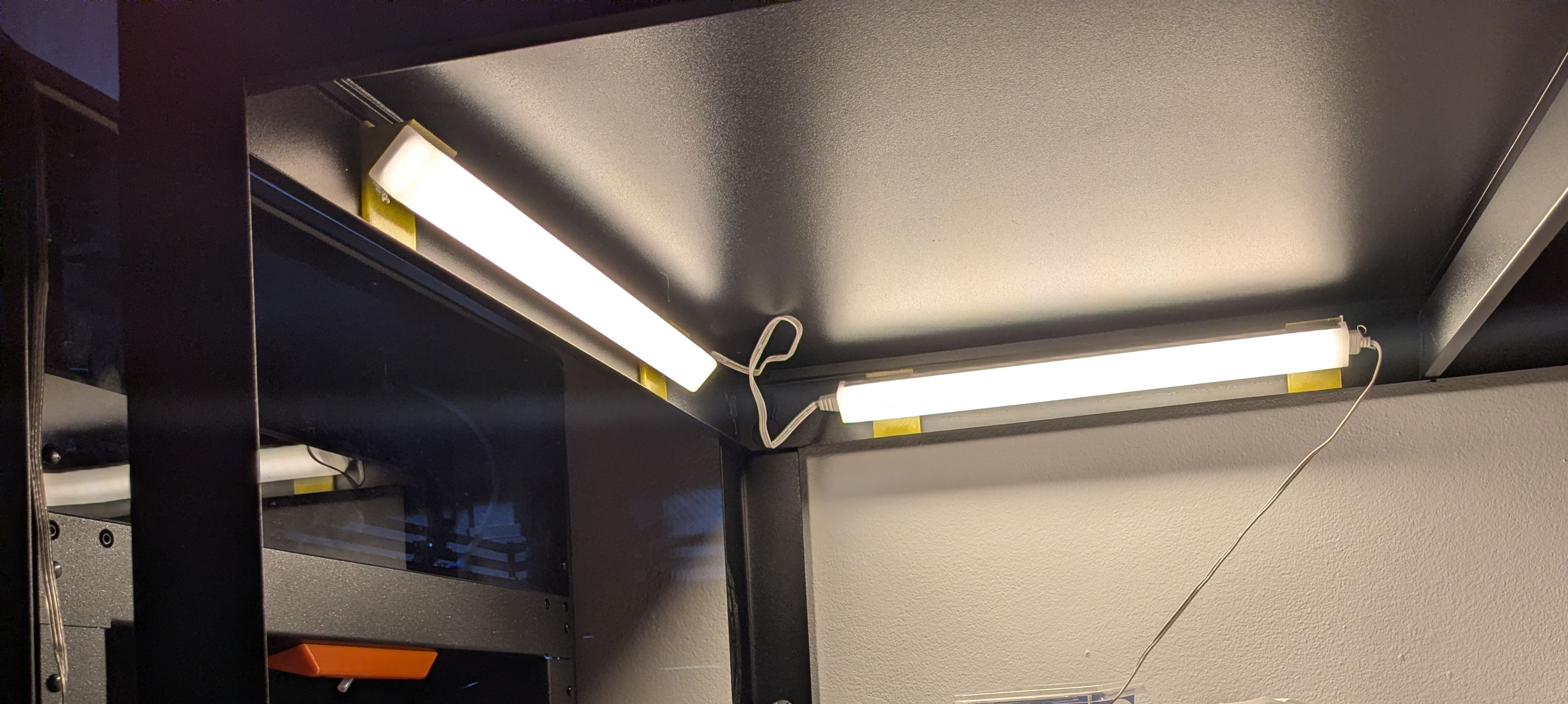

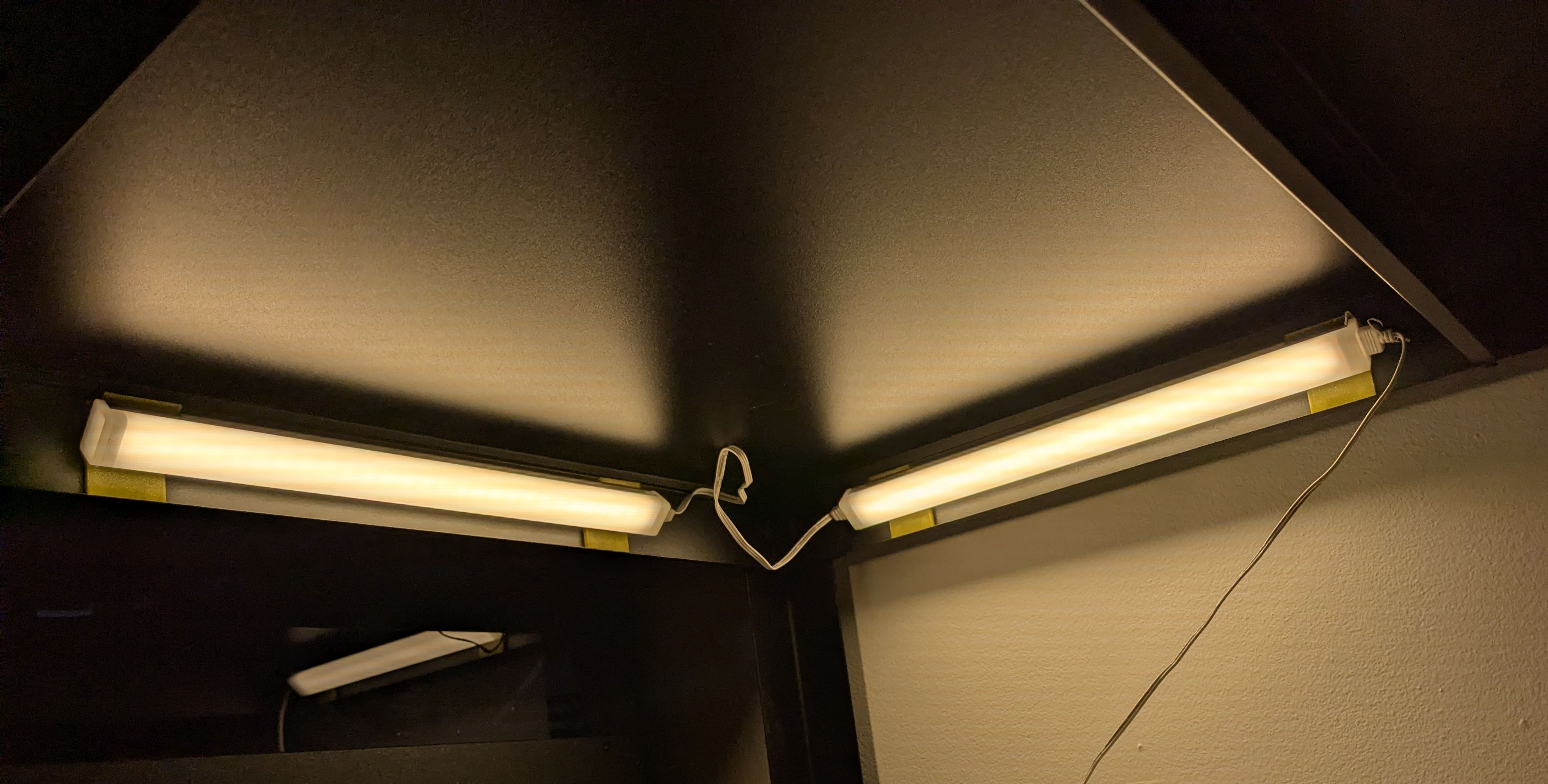

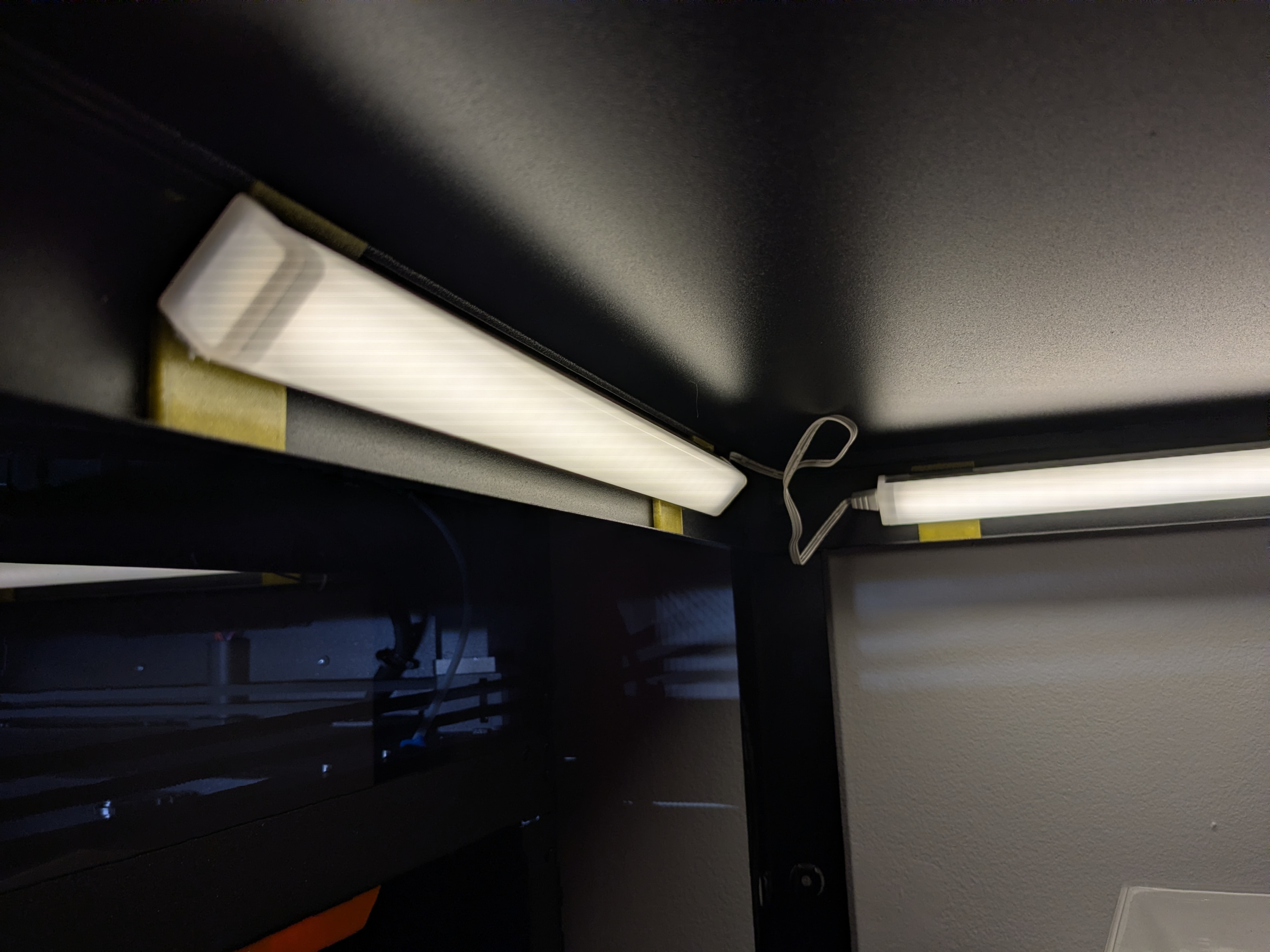

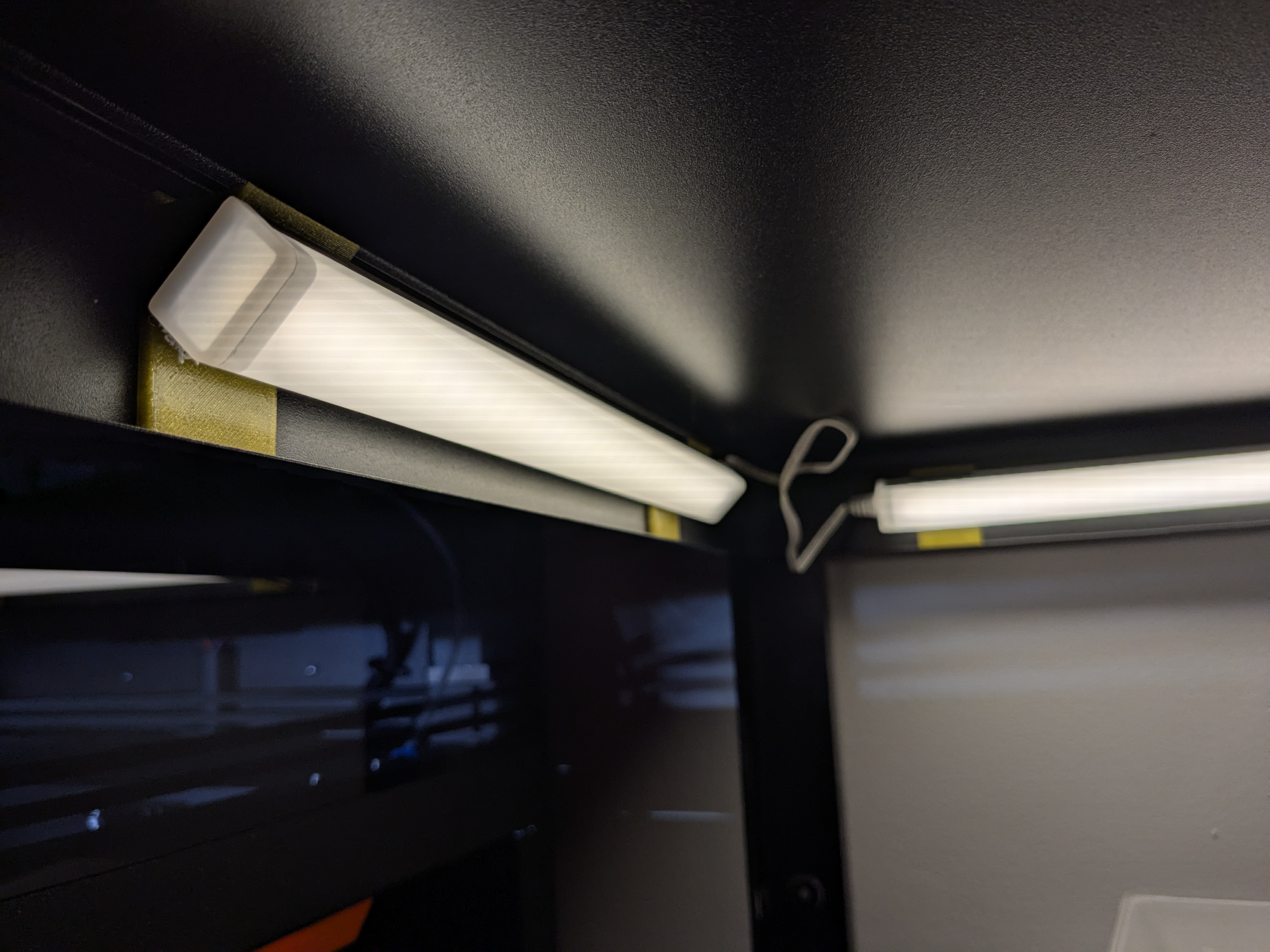

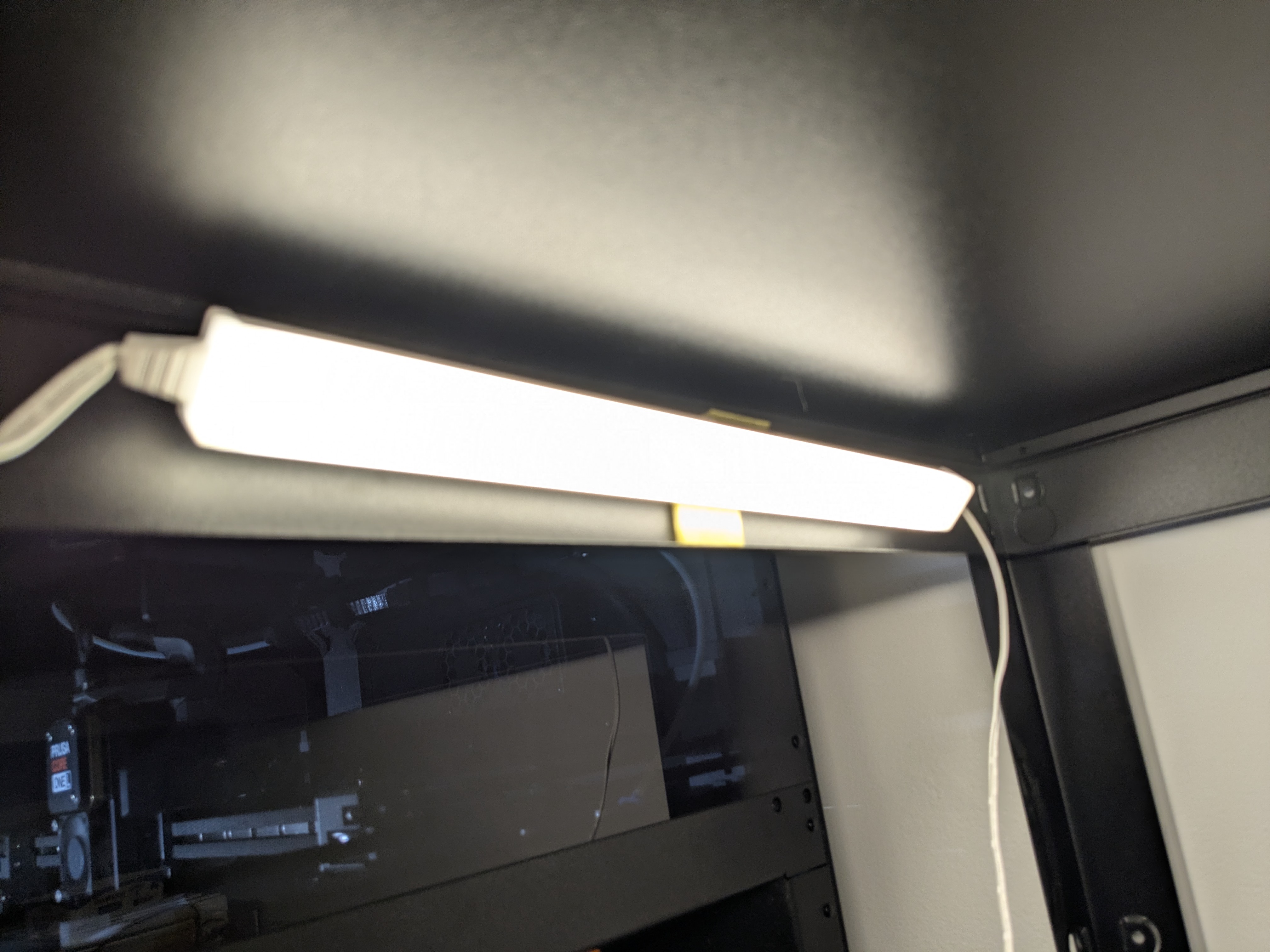

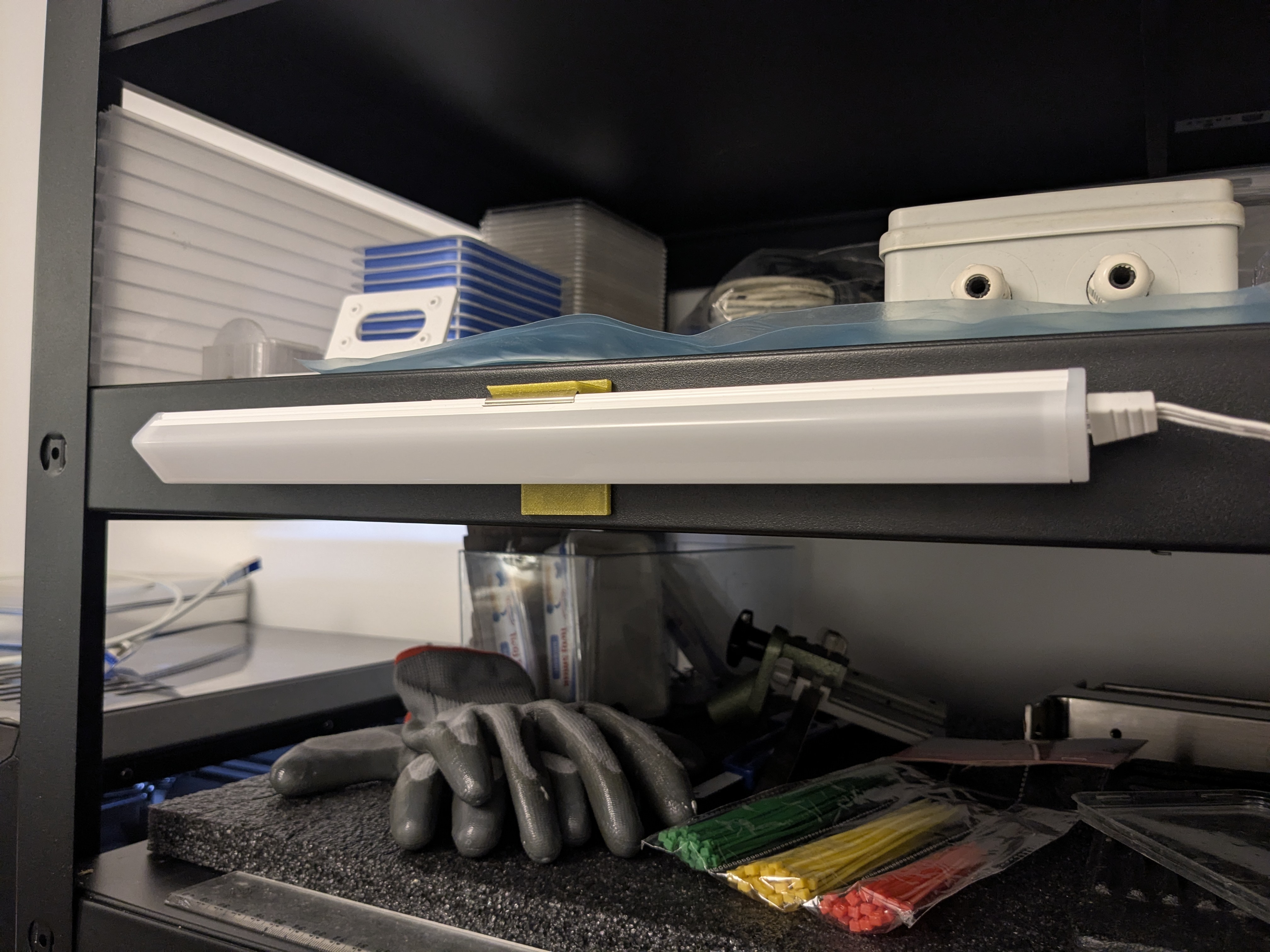

Allows mounting LED strips/bars horizontally under the IKEA BROR metal shelves. Can use a common gridfinity 6x2mm magnets for mounting or double side tape.
Different models with hole, without hole and without magnets.
Please like, create makes and add comments also to the original model, thanks!
Dimensions:
height 40mm
width 30mm
width of the area for the led strip ~25mm

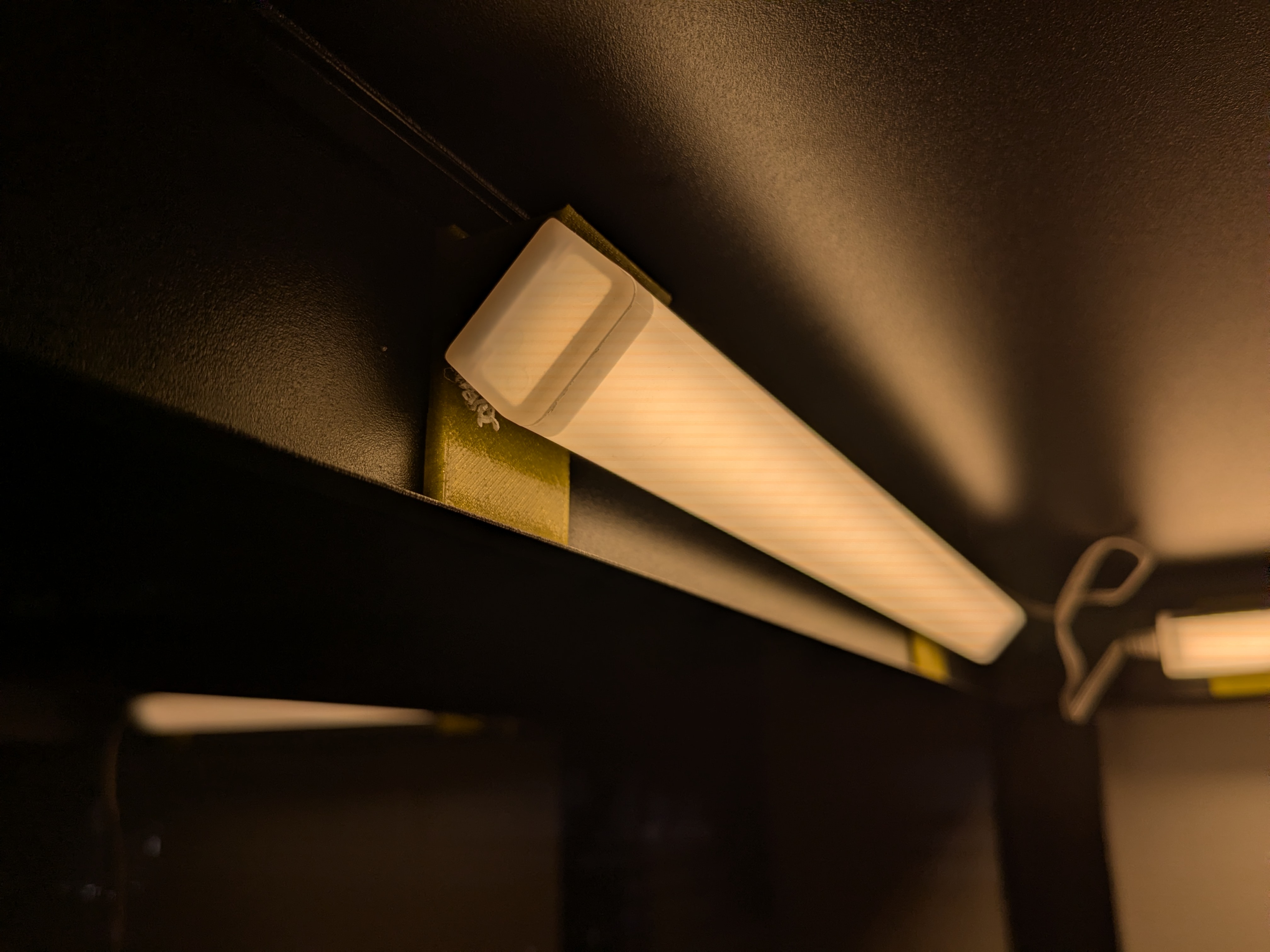

45 degrees so the led will flood the shelf efficiently

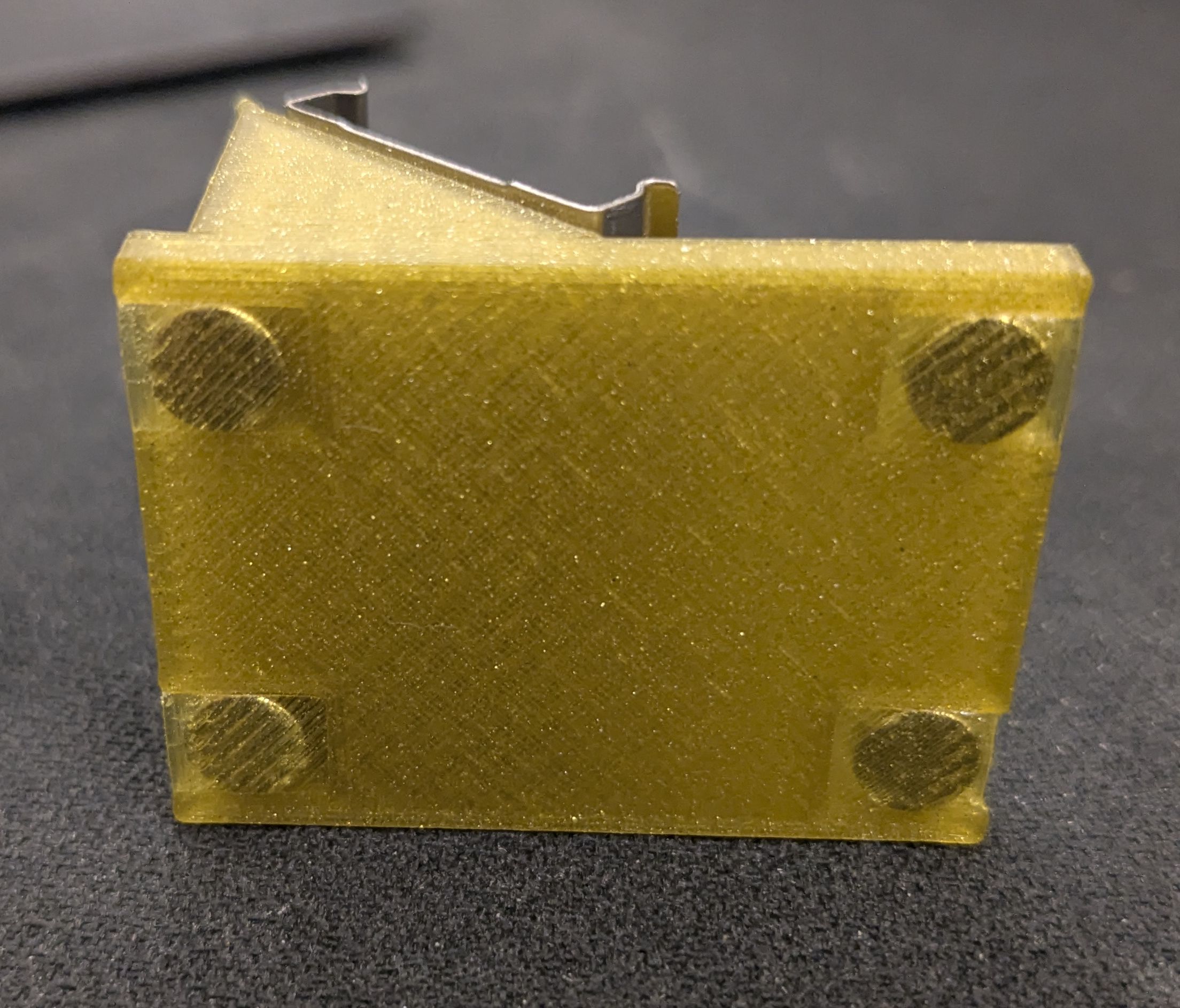

holes for 6x2mm magnets
screw hole in the middle 2mm
Changelog:
2026.06.014 - initial release
Print:
provided gcode is just for time and material estimates

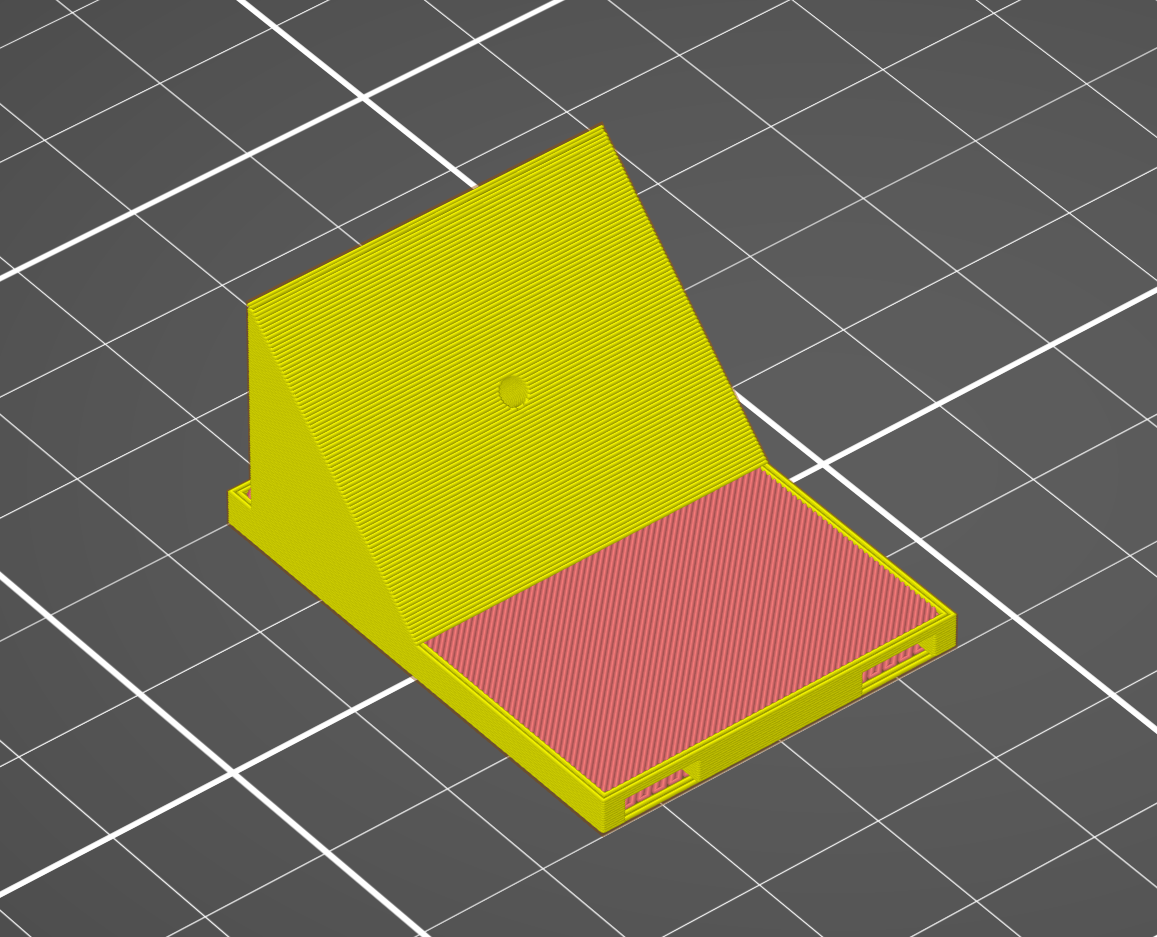

print with the triangle upwards, no brim, no supports needed.
0.2mm layer 0.4 nozzle, 2 perimeters should be enough.
PETG recommended
you probably want 2 instances per LED bar
Assembly:
optionally drill a hole
optionally mount 6x2mm magnets
optionally install double sided tape where magnets would be.. or whatever

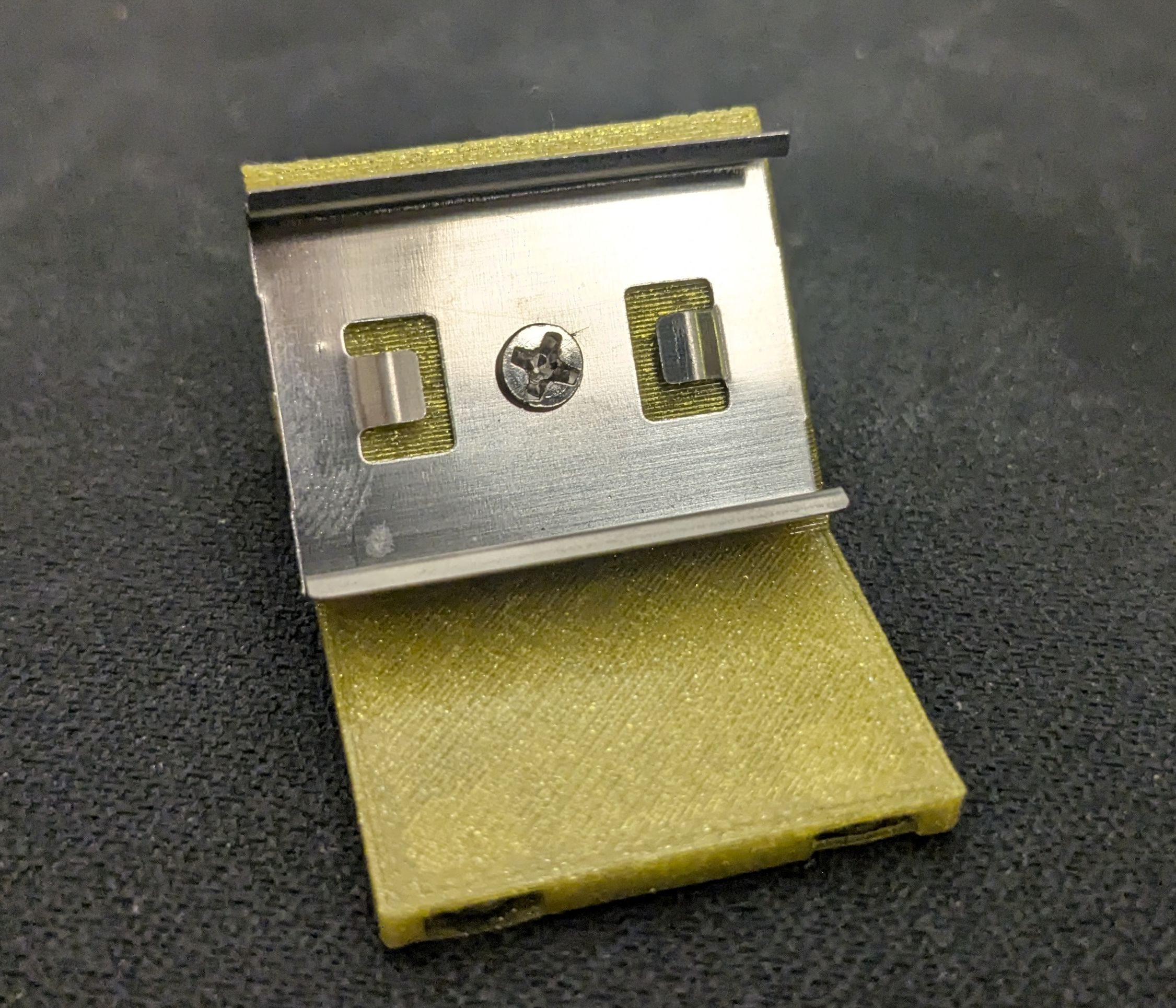

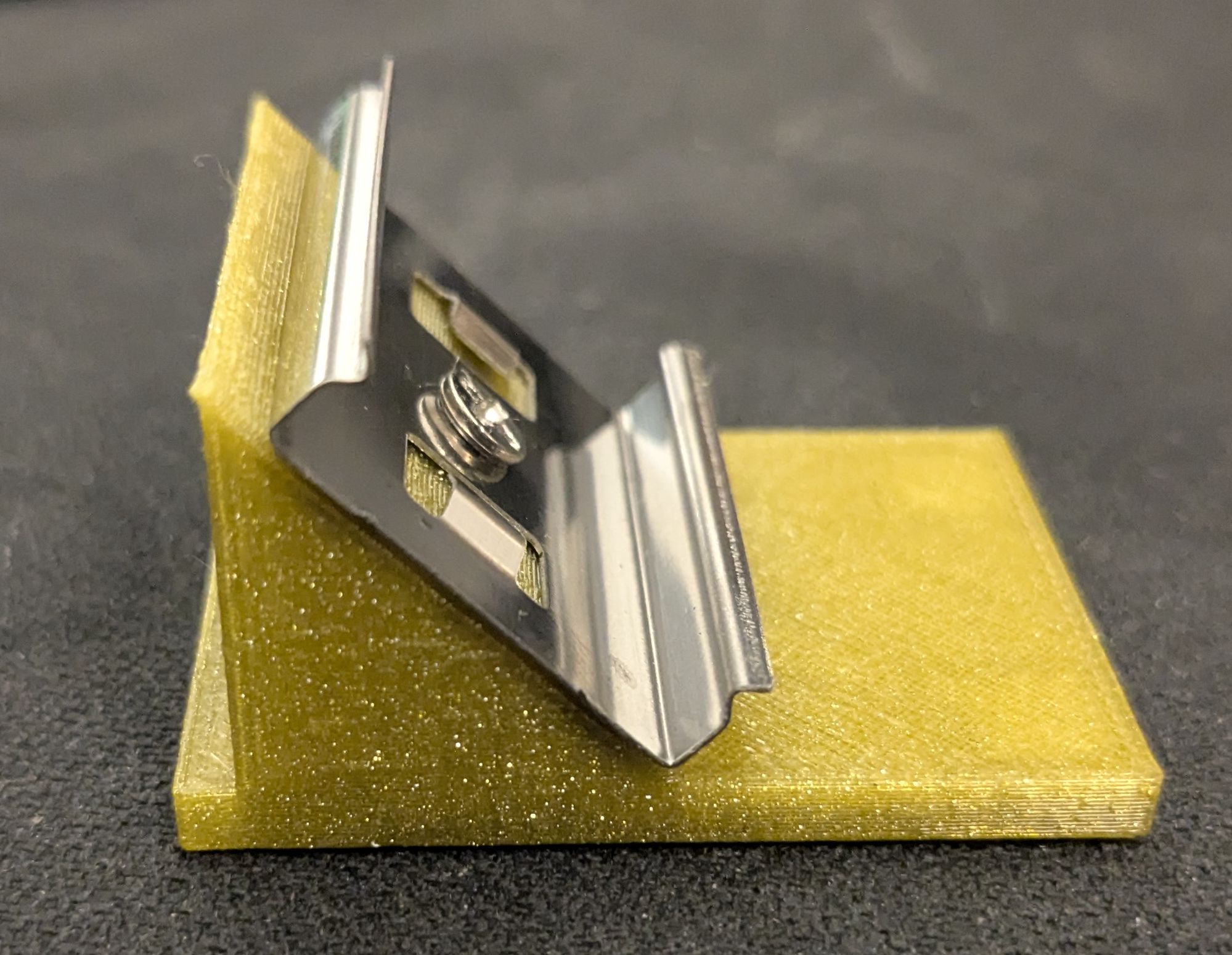

if needed mount LED bar brackets with a screw
