Crashing my Volador VX3 FPV quadcopter repeatedly caused my camera to change angle or get damaged, so I designed this thing.

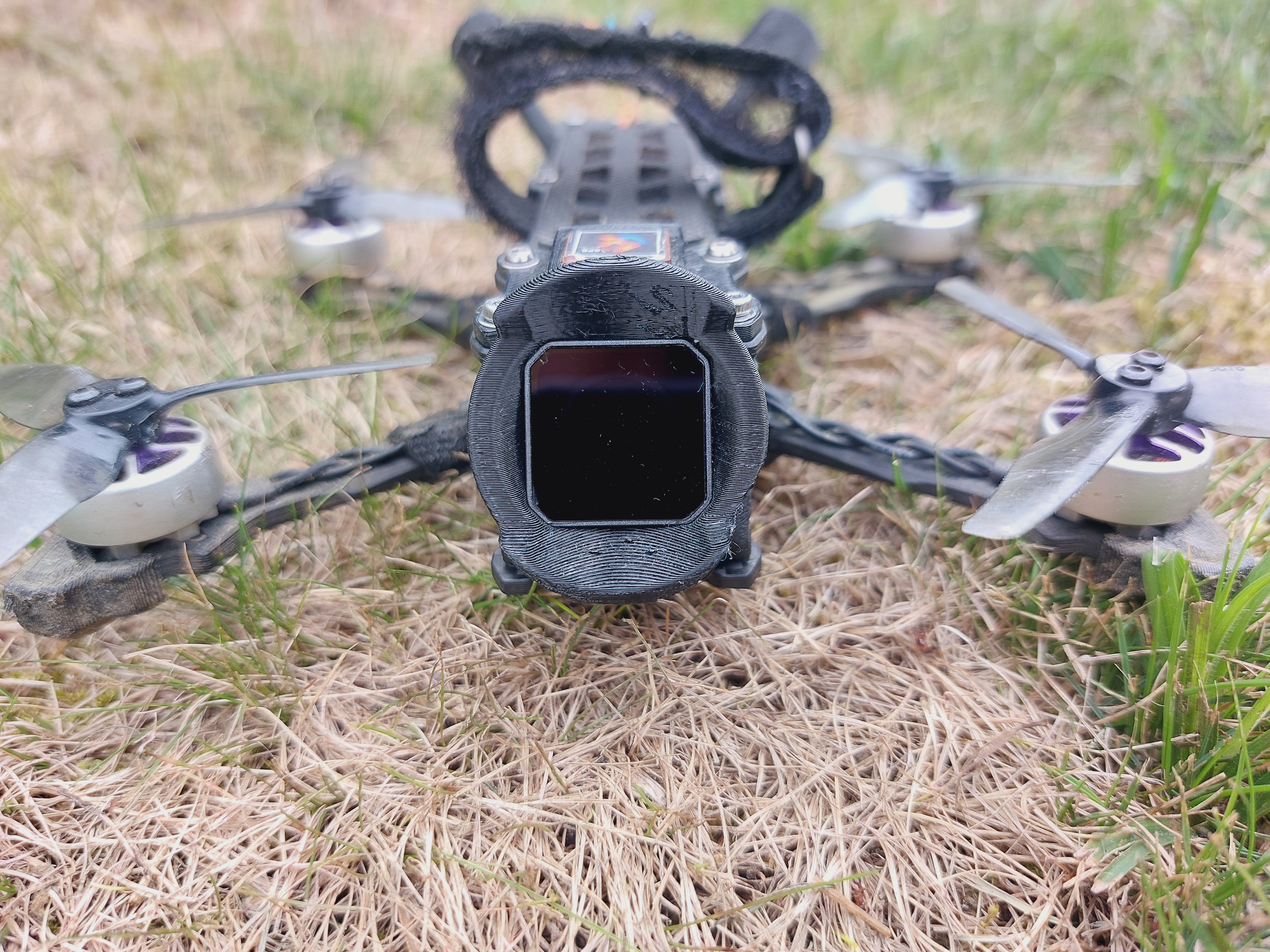

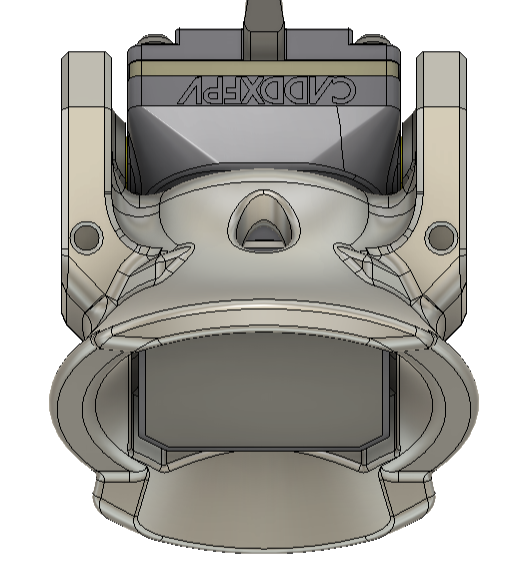

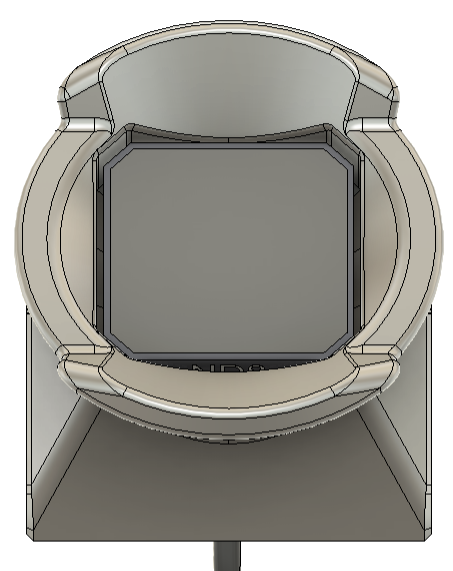

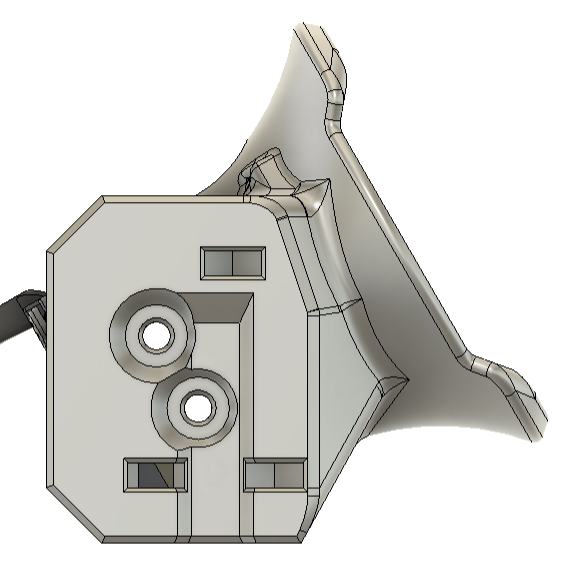

It fits Walksnail Moonlight with filter, or any other 19 mm FPV camera at fixed angle of 30°. Integrated lens protector makes it harder to damage the camera. The hole at the top is for removing the ND filter.

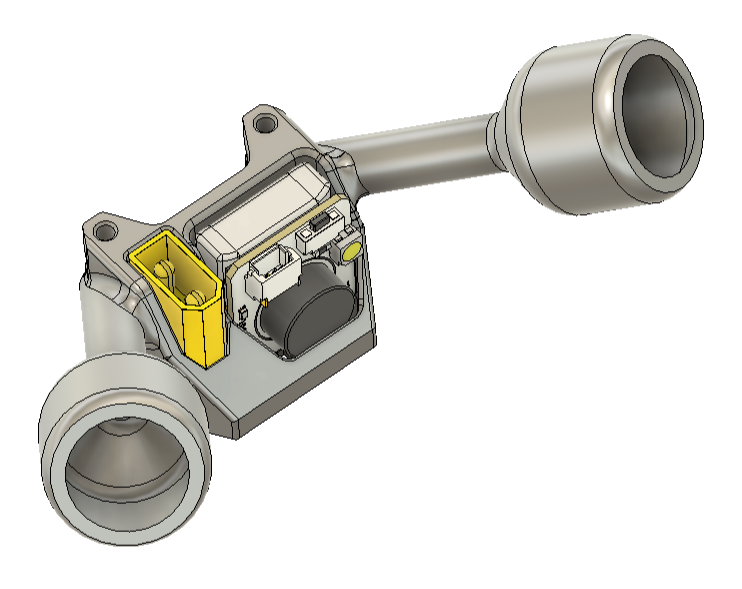

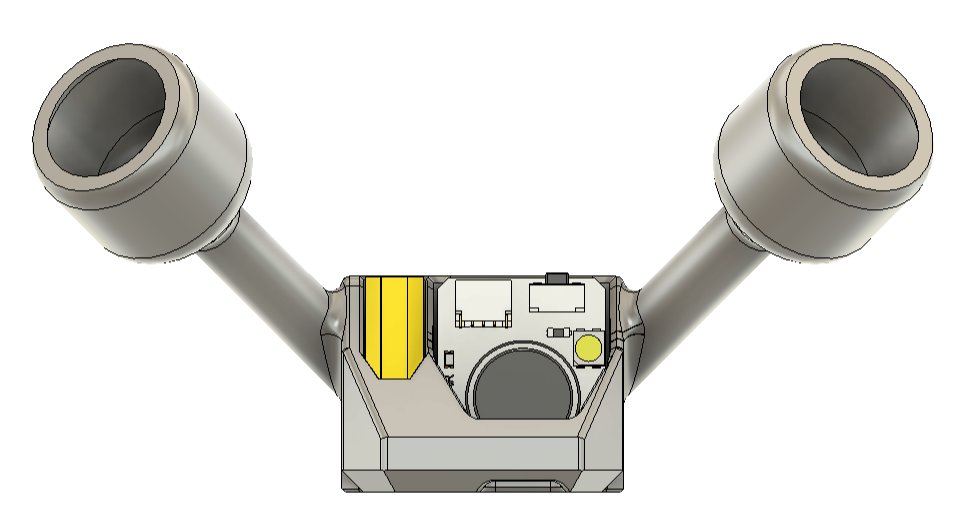

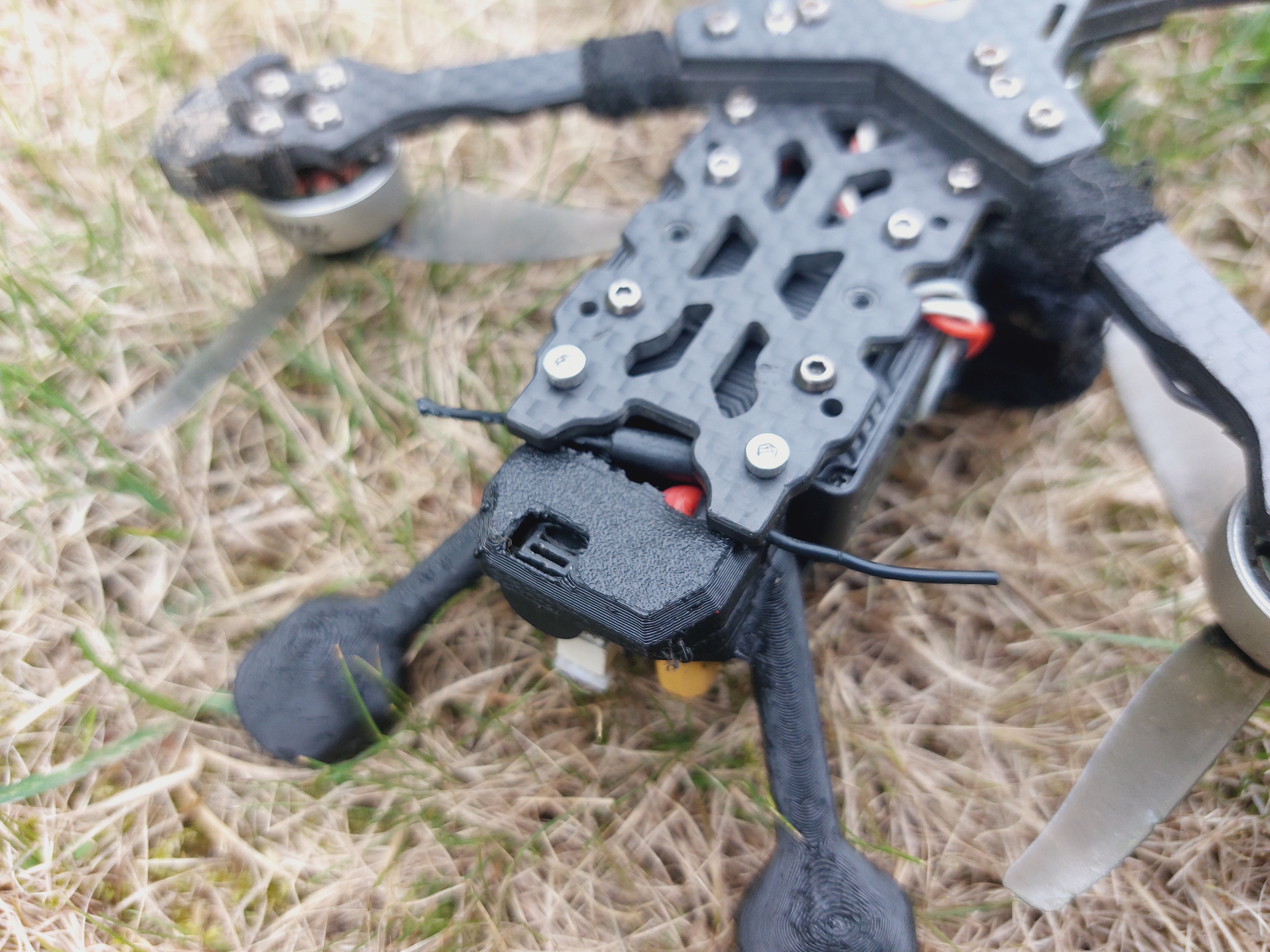

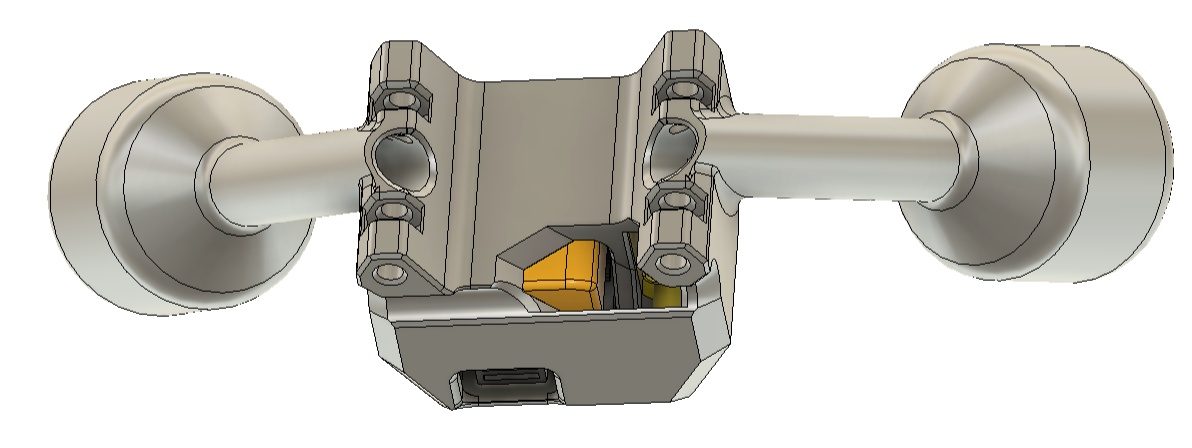

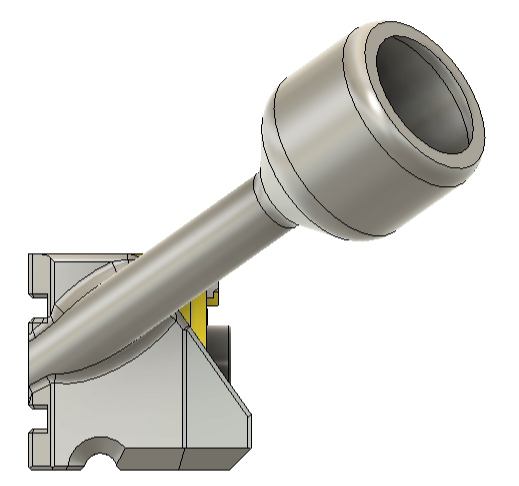

Antenna mount fits stock Caddx antennas provided with the Moonlight, as well as JHEMCU JHE42B buzzer (23x17x17 mm) and XT-30 connector. Slots in the bottom are intended to hold a T style antenna. To install the XT30 connector, solder wires to it at an angle and push it in from the top. Apply CA glue if needed. As the frame overlaps the connector, you'll have to file a bit to be able to insert the battery plug.
Print in TPU with 2 or 3 perimeters. For assembly, 10 M2 nuts and 10 M2x10 screws will be required, as original ones are too short. If you want to add additional parts such as GPS or RX mount, use M2x12 screws.
Also, check out my other RC related stuff. Fly safe and happy printing!
