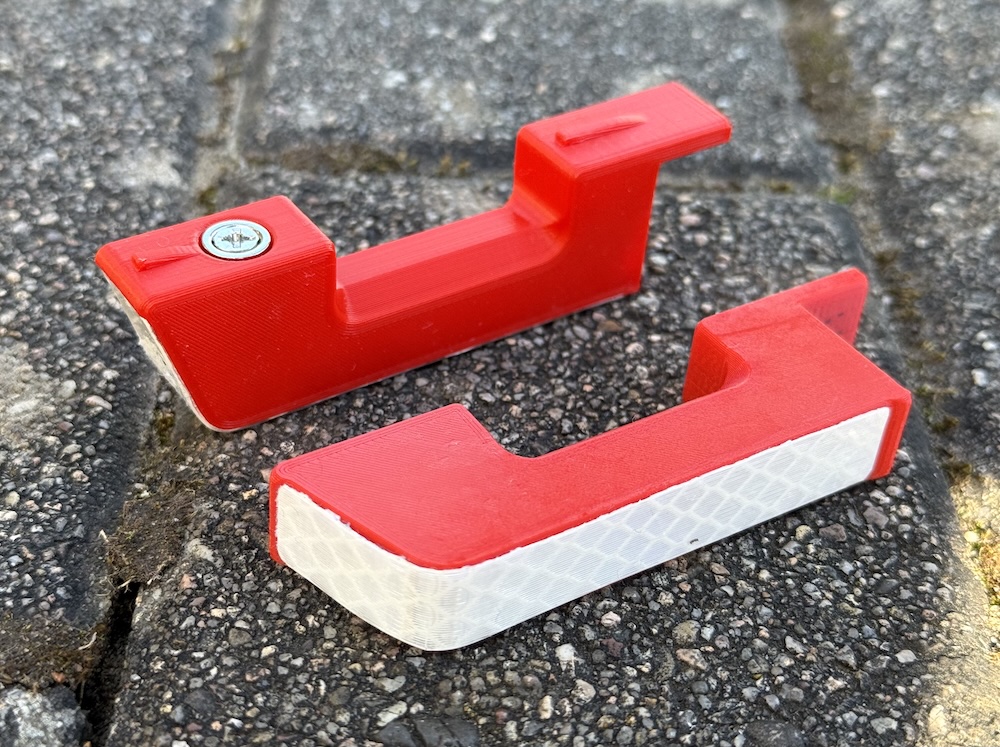

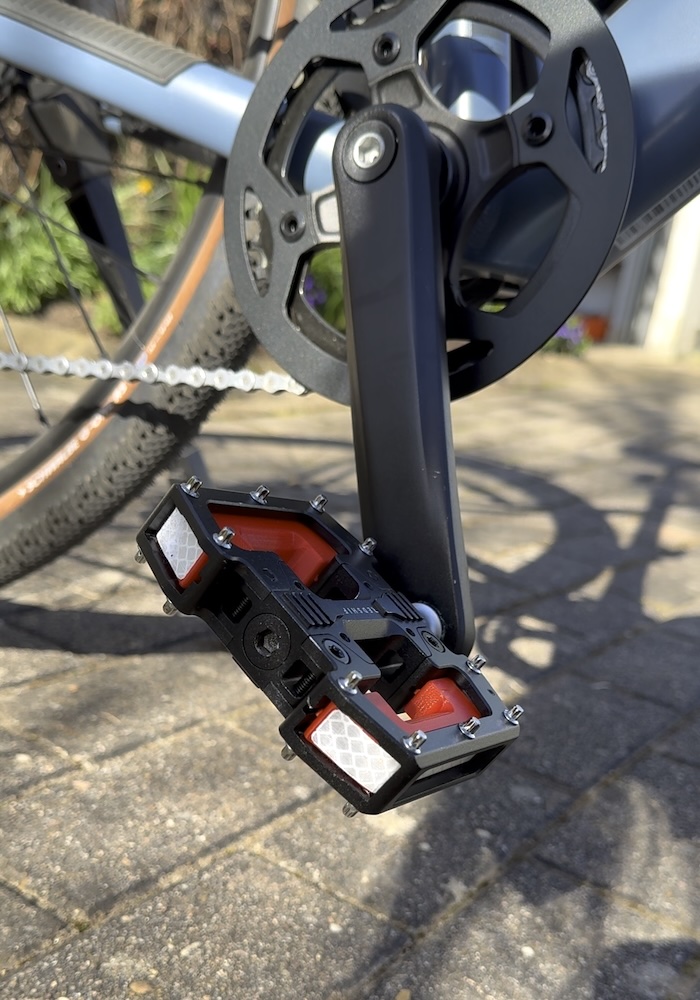

Custom-fit reflective inserts for Redshift Arclight Pro pedals, offering a low-maintenance, no-charge alternative that’s also less likely to be targeted by thieves.

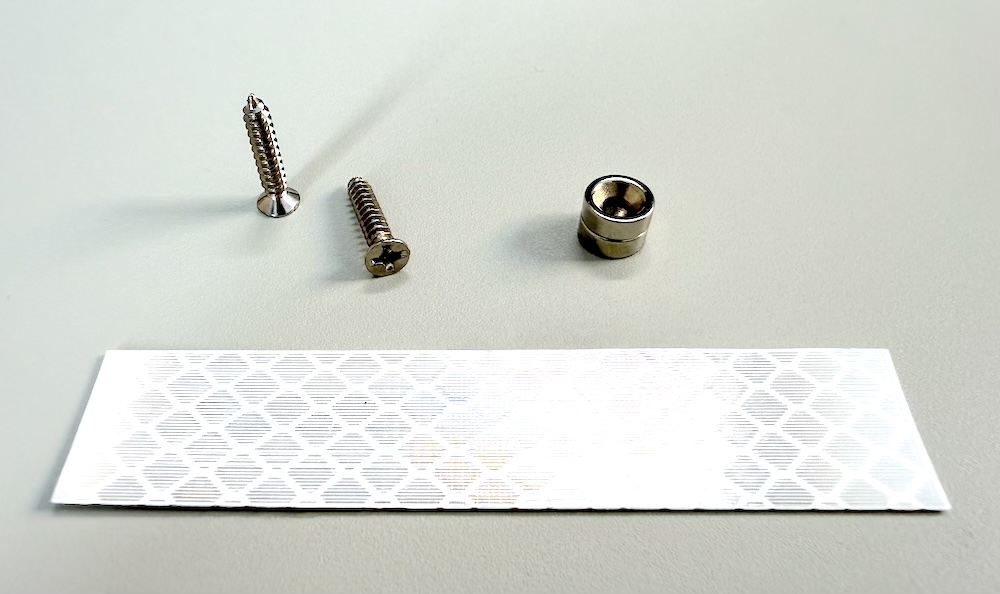

🧰 Materials (per reflector)
2x neodymium magnets (Ø 8 mm × 3 mm, with hole)
2x M3 × 10 mm countersunk screws (often included with the magnets)
1x piece of reflective sticker (e.g. 3M Scotchlite or similar), approx. 90 × 12 mm
A full setup for two pedals uses 4 reflectors (2 per pedal), 8 magnets, 8 M3×10 screws, and reflective material — either as 4 individual strips or cut from a single larger sheet.

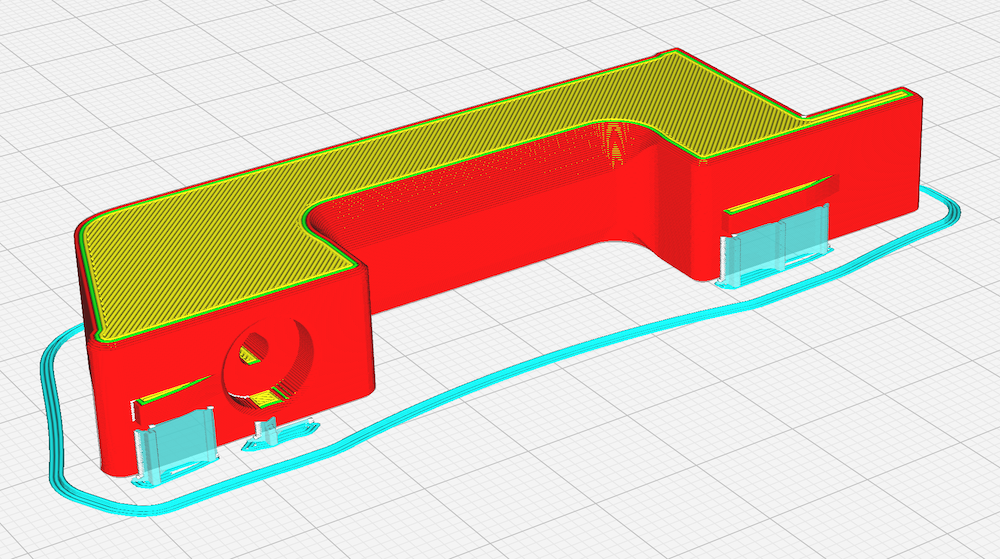

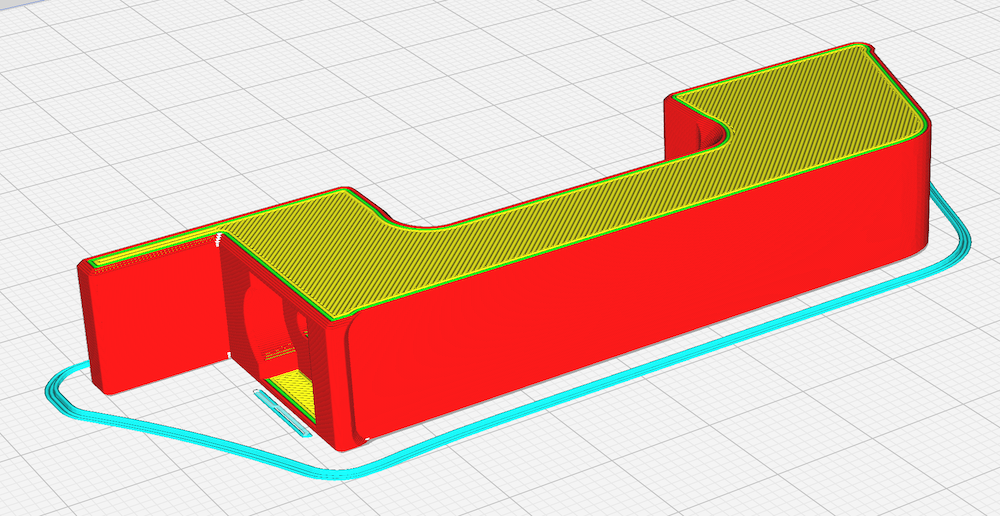

🖨 Printing
Material: PLA or PETG (PETG recommended for outdoor use)
Supports: Touching build plate only (minimal supports required)
🔧 Assembly
Pre-thread the holes in the printed part with a screw if needed.
Carefully screw in the magnets using M3 screws.
Magnets can be brittle—avoid over tightening.
Check magnet polarity against your pedals before final assembly.
If polarity is wrong, magnets can be swapped easily.
Cut the reflective material using the included printable template.
Apply the sticker:
Start at one end and gradually press it down along the surface
Lightly sanding the surface can improve adhesion
🗒 Notes
Tested with PETG prints—fit is secure, with no rattling or loosening during use
Designed as a practical replacement when you prefer simplicity over rechargeable lights
