Gridfinity Stackable Baseplate with Handle (4x4)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Public Domain
UPDATE:
I created a new and improved version of this model that nests and allows for multi-stacking. It's better than this one in every way - I recommend using it instead.
Link to updated version:
https://www.printables.com/model/1688996-gridfinity-stackable-baseplate-with-handle-4x4-upd
Original Description:

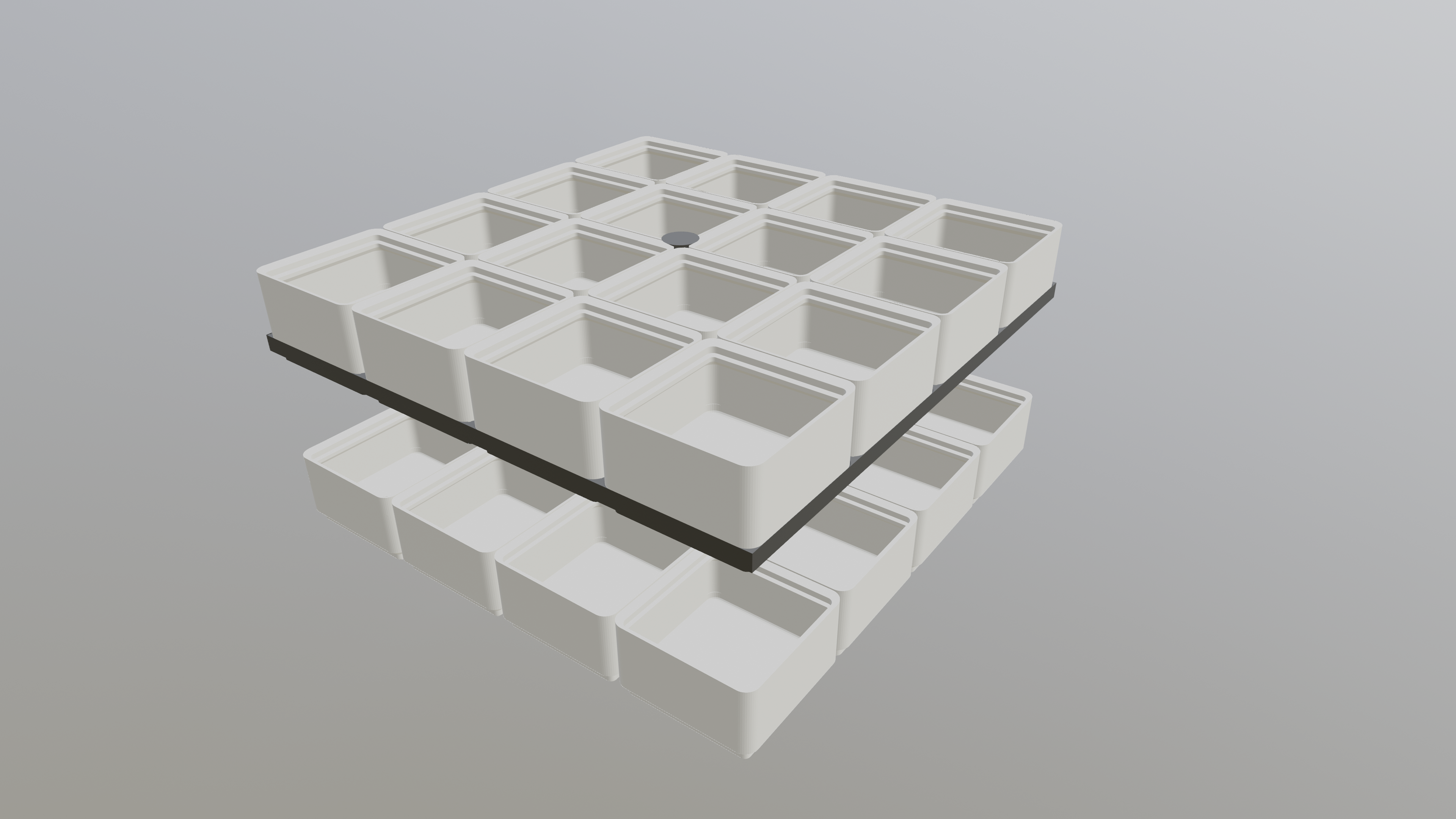

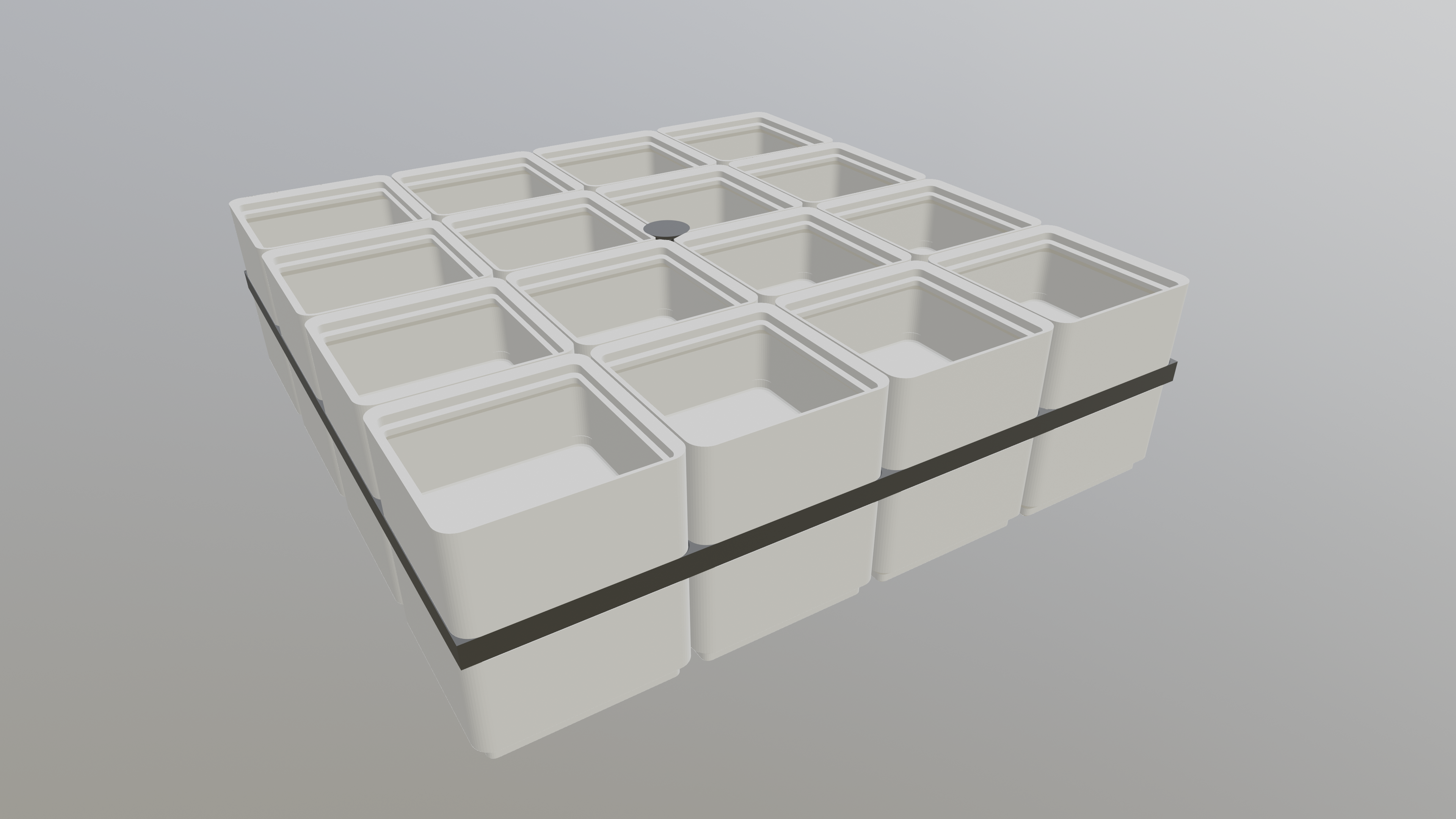

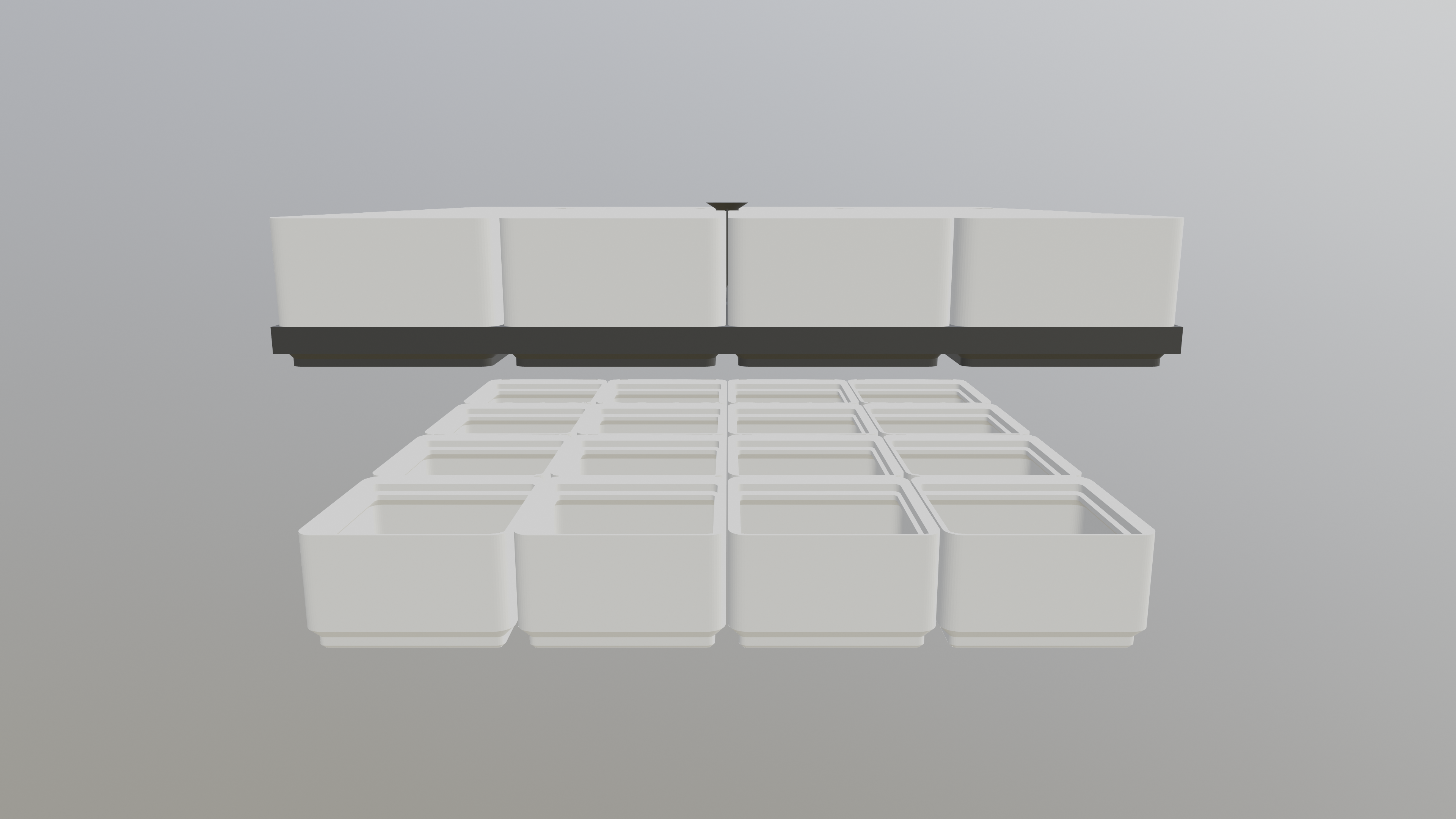

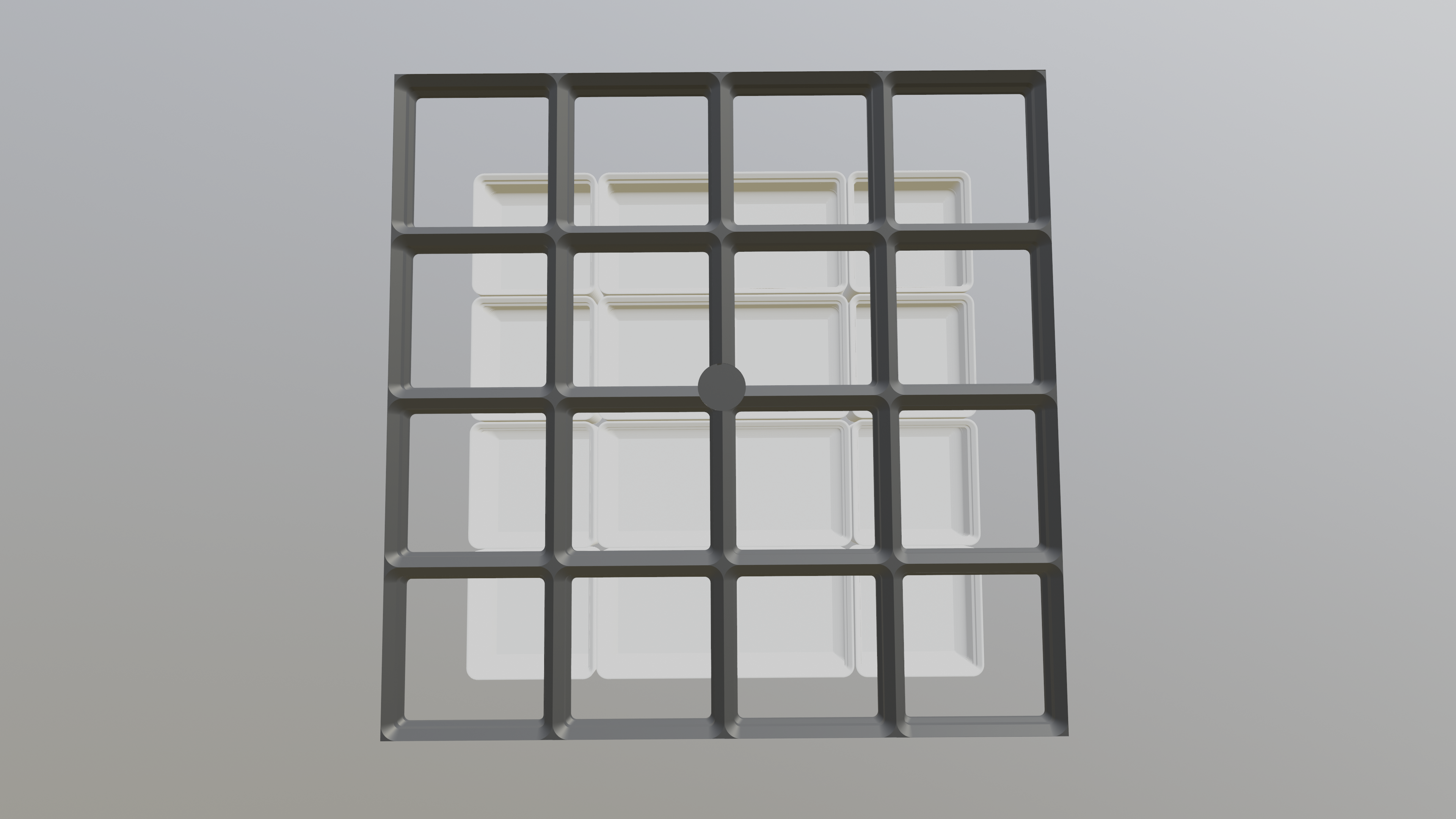

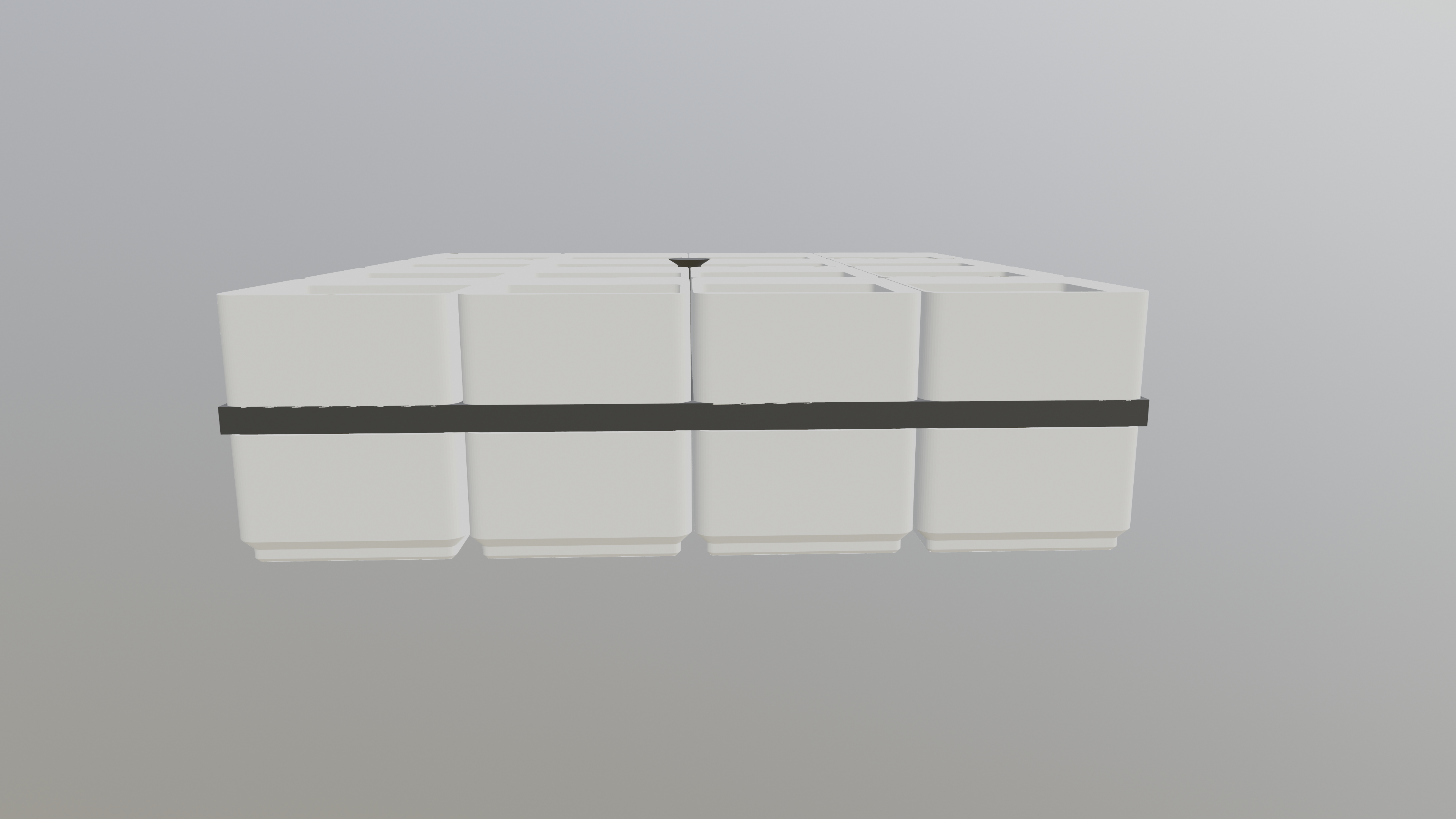

Simple modification of Zack Freedman's 4x4 gridfinity baseplate to allow for a second vertical row of stacked bins. I think I also took inspiration from audiophil's similar stackable design (it's been a while since I made this thing, so hopefully that's correct).

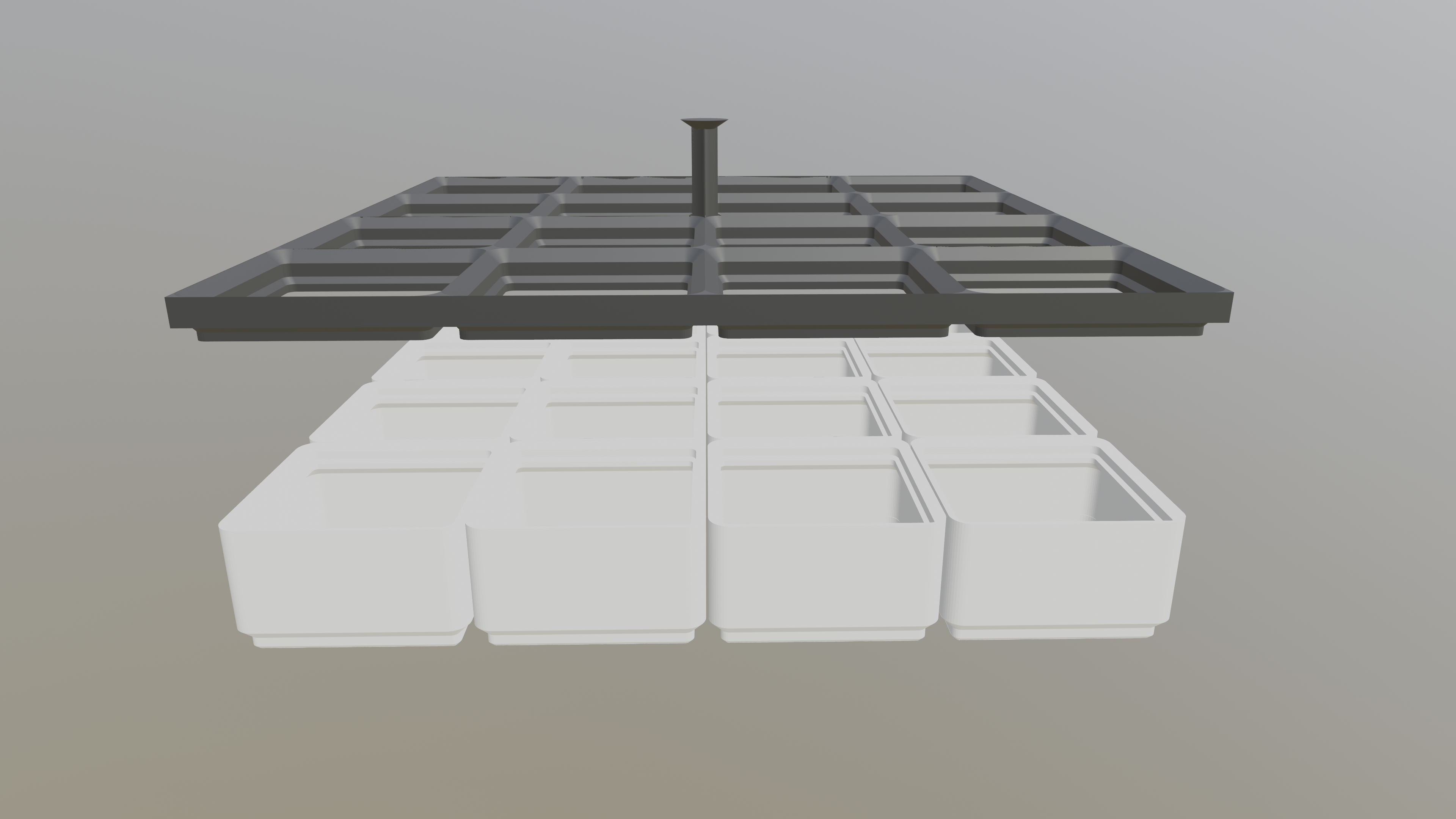

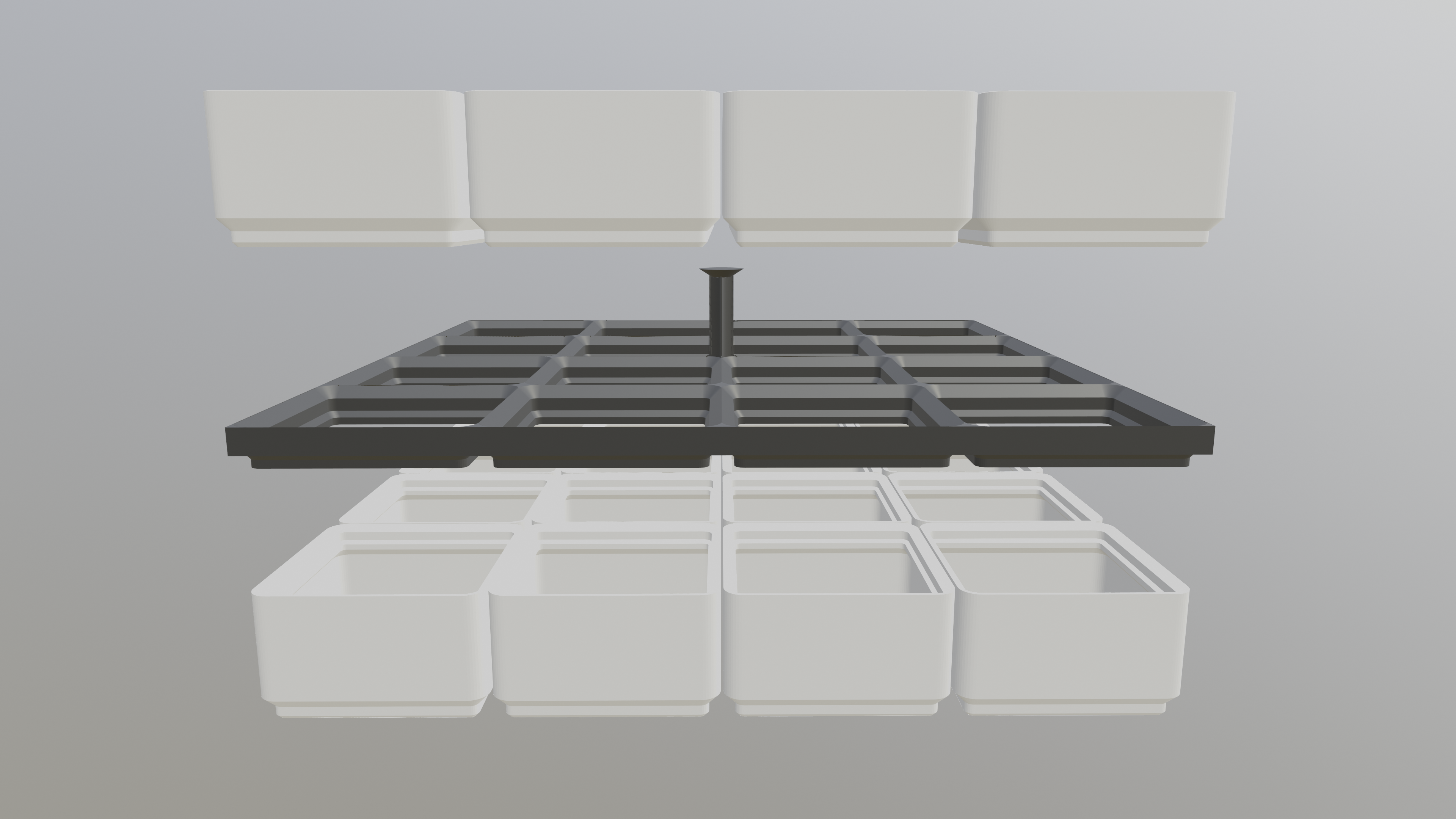

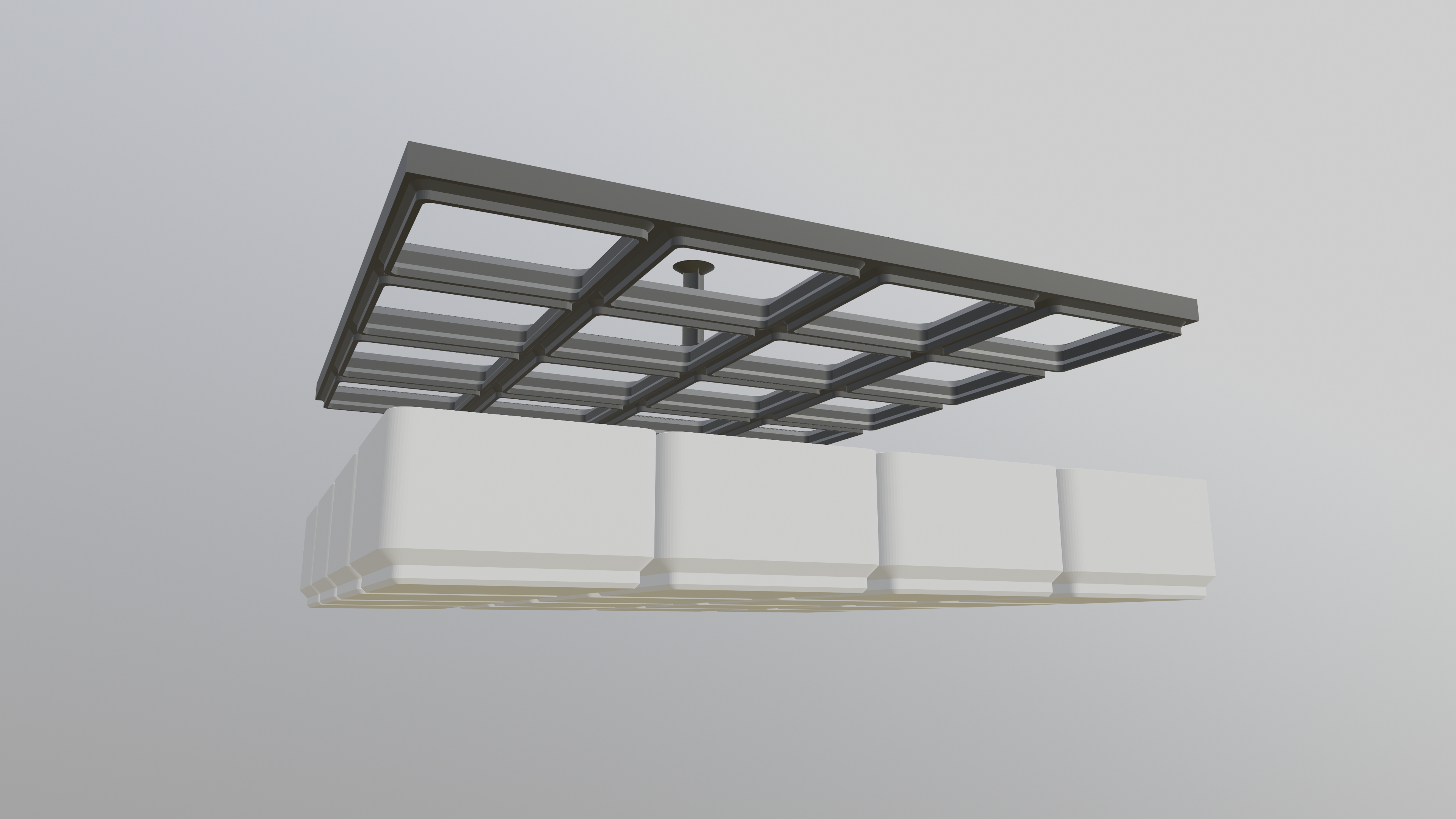

Includes 1x1 feet that fit snugly into the rims of the lower row of bins, and a low-profile handle that allows users to pick up and move the upper row of bins.
Future improvements that need to be made:
Add hollow in bottom-center of frame to fit the handle and allow nth stacked rows
Reduce the height of the handle to facilitate nth row stacking described above
I printed this in Black PLA+ 0.2mm at 212° on a Prusa Mini+. Some supports helpful for the lower portion of the frame, but no supports required for handle.
