Tiny Filament Runout Sensor
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.

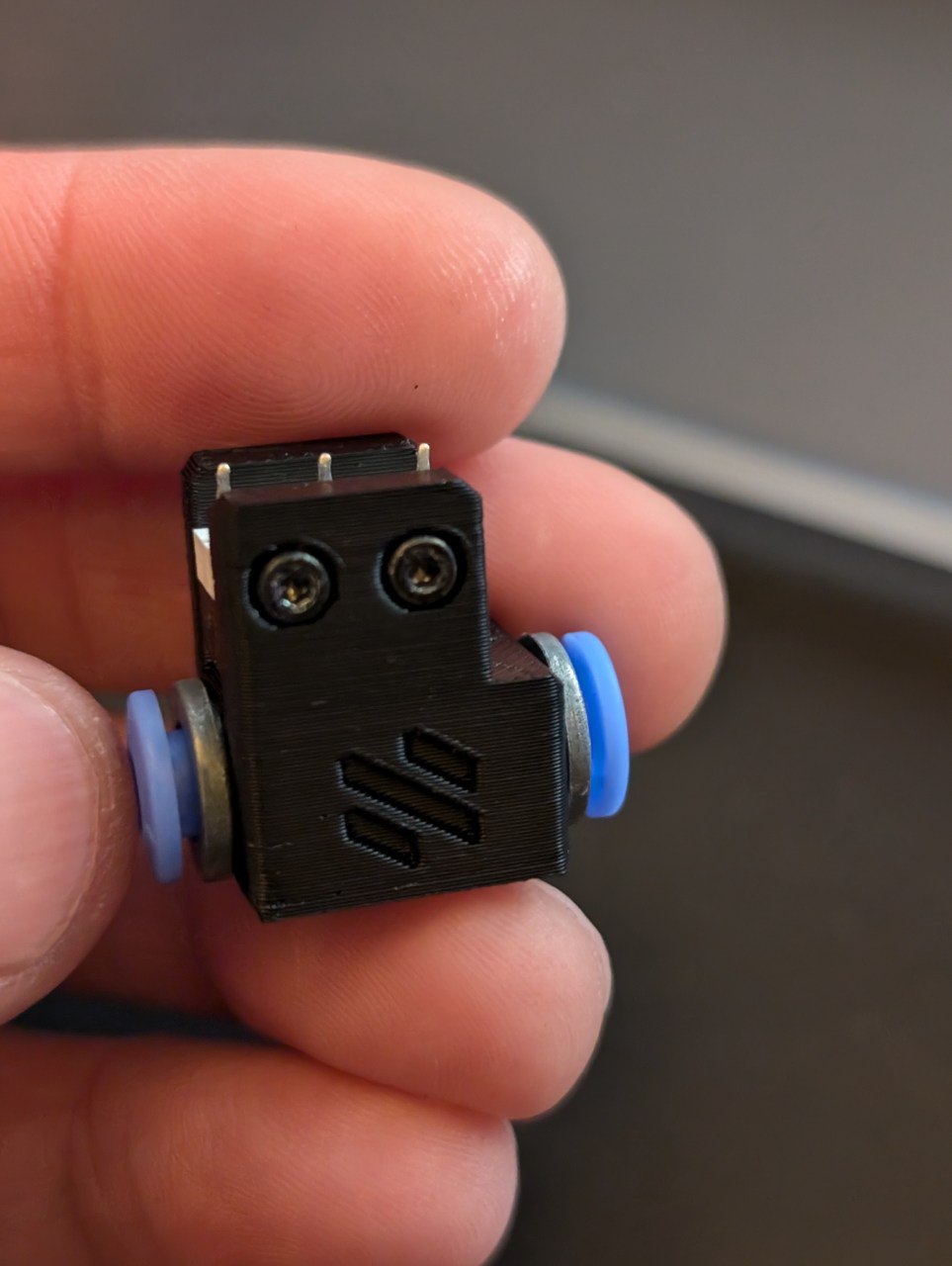

Tiny Voron logo themed filament runout sensor for use inline with Bowden tubes. Uses ball bearing, microswitch, ECAS04.
- Ocena
- 5 / 5
- Polubienia
- 250
- Pobrania
- 736
- Wydruki
- 7
- Wyświetlenia
- 4888
- Oceny
- 7
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Voron Parts & Upgrades
- Licencja
- GNU General Public License v3.0
I needed an inline filament runout sensor that I could stick inline between Bowden tubes on either end, but I wanted it to be as small as possible and require very few parts. I also wanted to only have to print a single part, and I wanted it to print without supports.
I took inspiration from the ball bearing + micro switch style runout sensor that my Voron Clockwork 2 extruder has for my ERCF equipped printer. I have found that works well for my Stealthburner so I figured I could design a tiny stand alone version. To keep the size as minimal as possible it utilizes push fit ECAS04 fittings.
Build of Materials:
- 1x 5.5mm ball bearing
- 1x SPDT 3 pin micro switch, 12.6×6.5×5.7mm (switch I used) (remove metal lever)

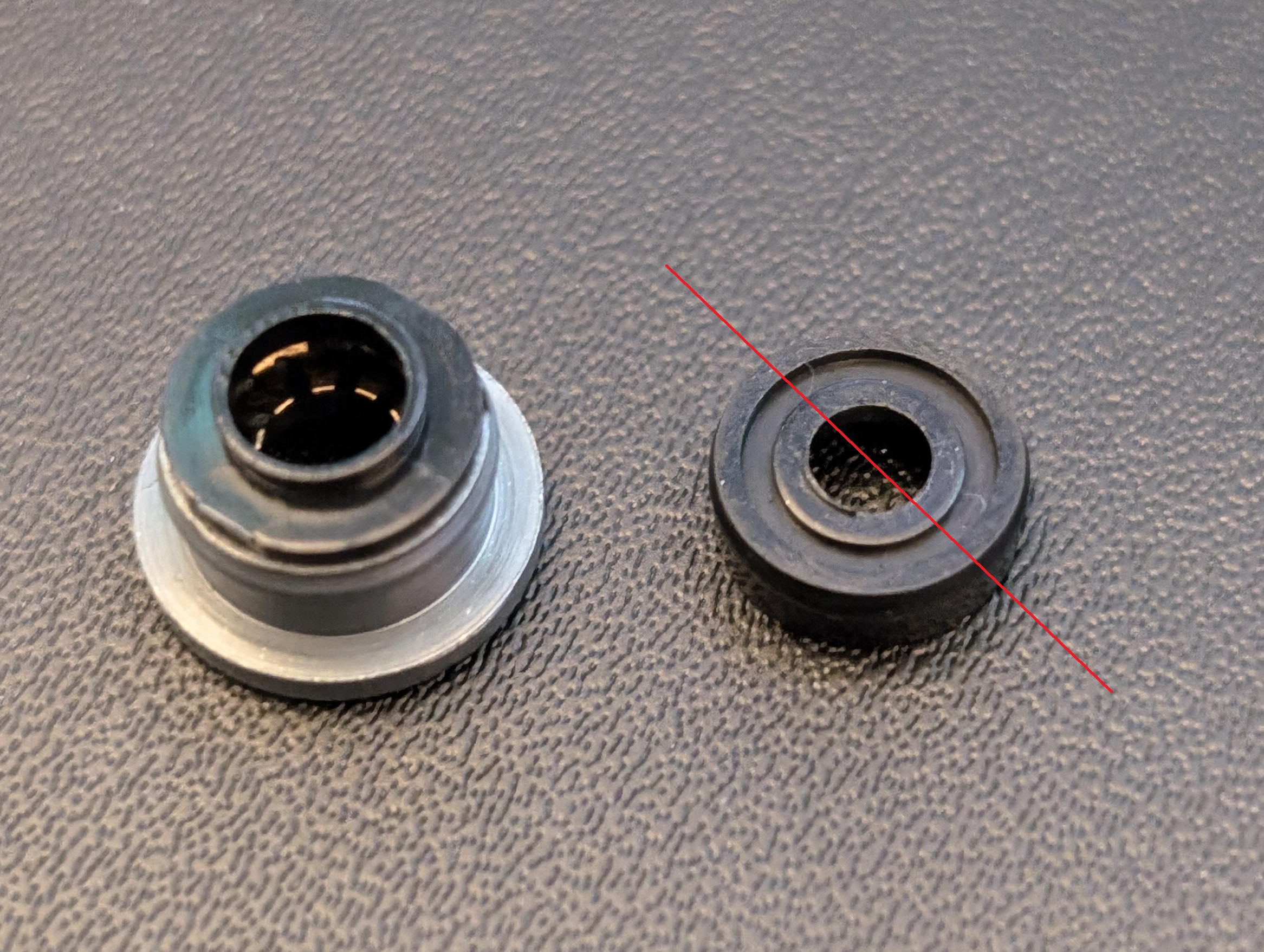

- 2x ECAS04 fittings (fittings I used) (remove the end rubber part, see picture)
- 2x M2x12mm socket head cap screws
- Wire and connector (this will ultimately depend on your build requirements and controller board)
I printed this out of ASA and using Voron spec print settings.

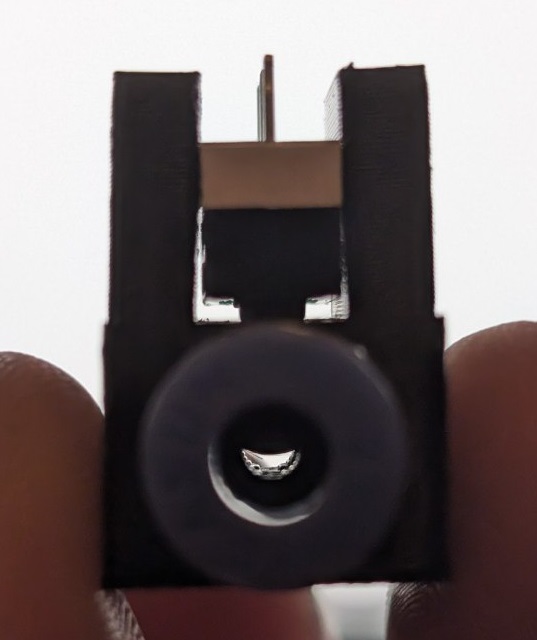

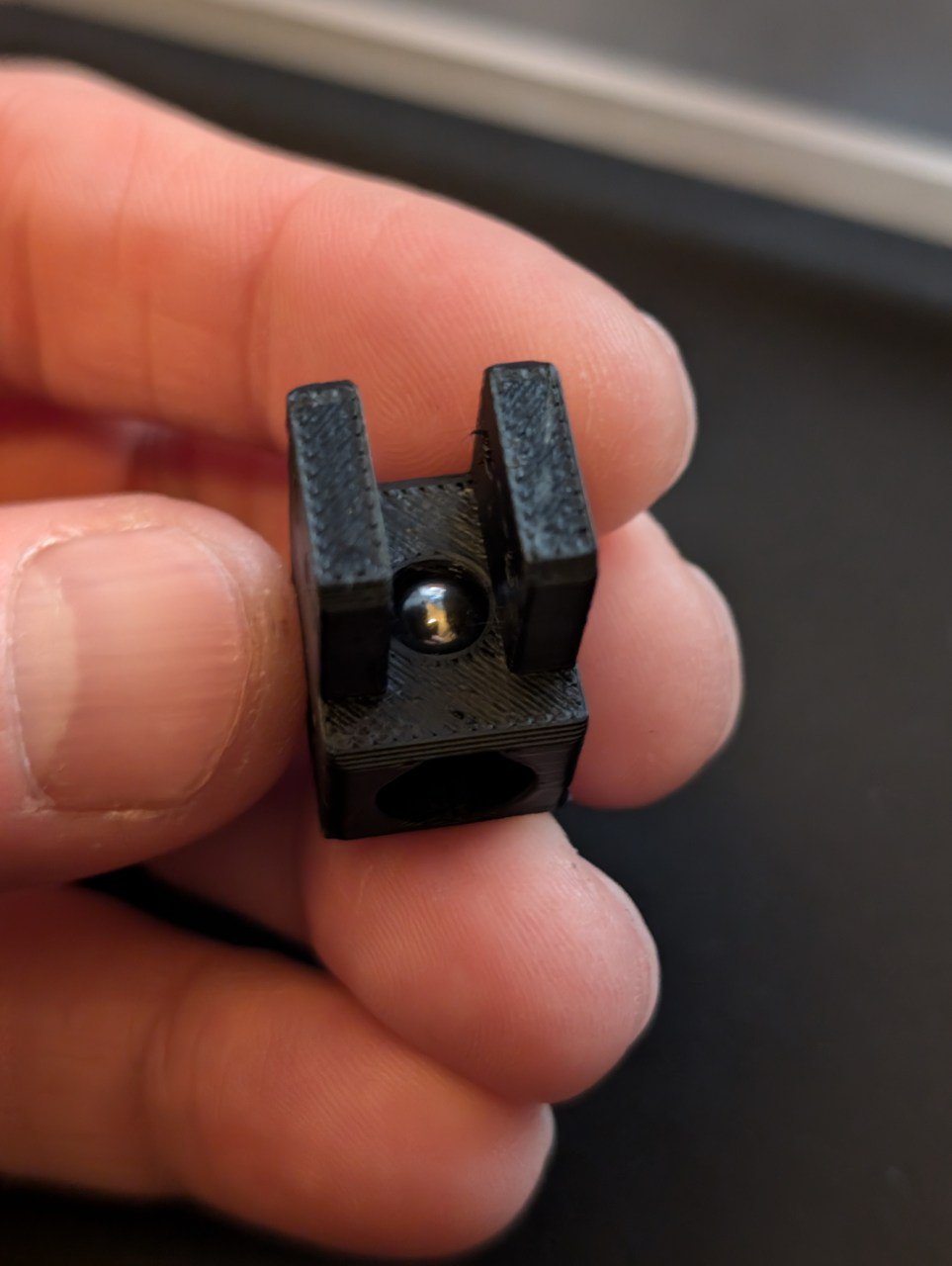

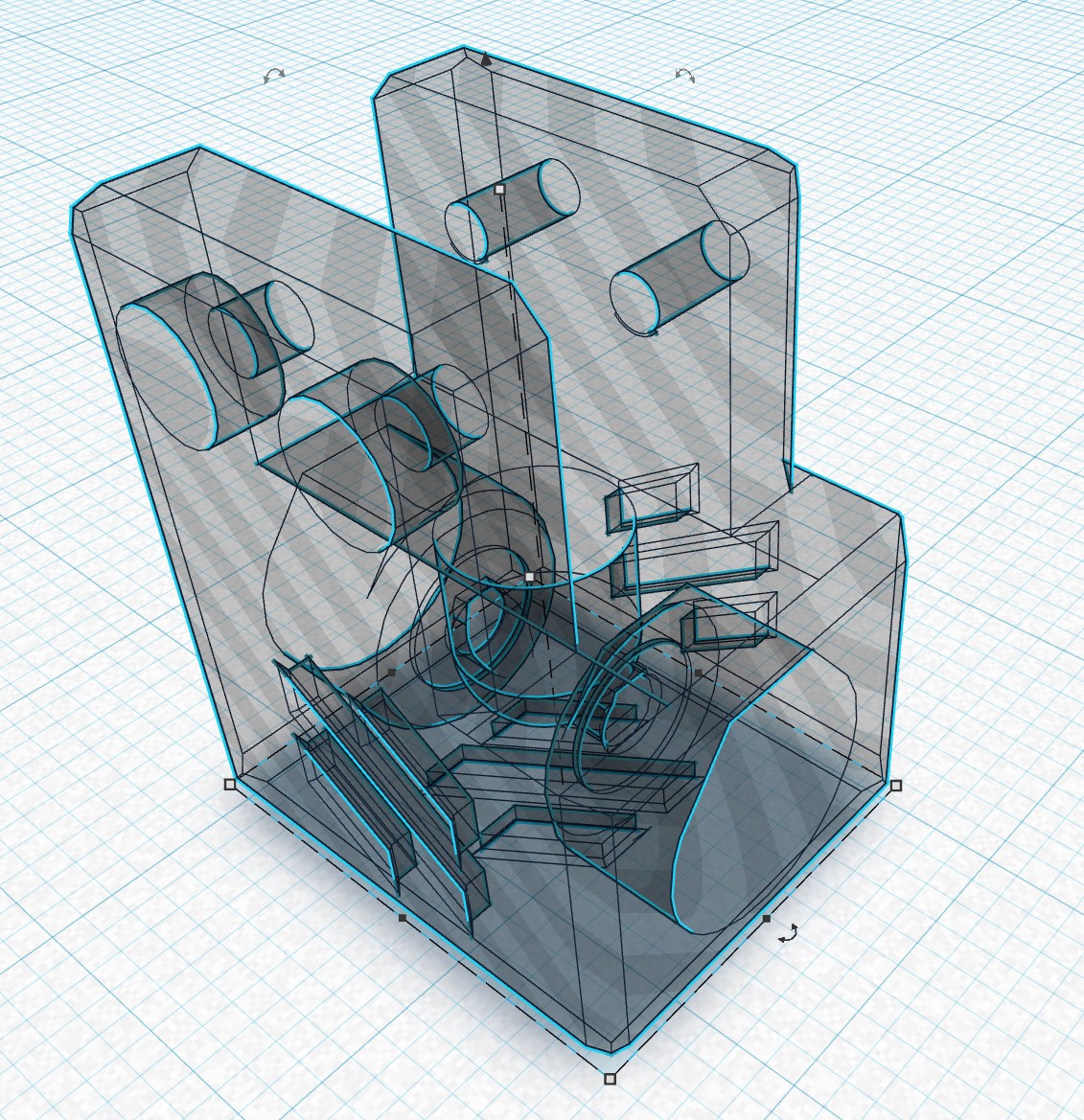

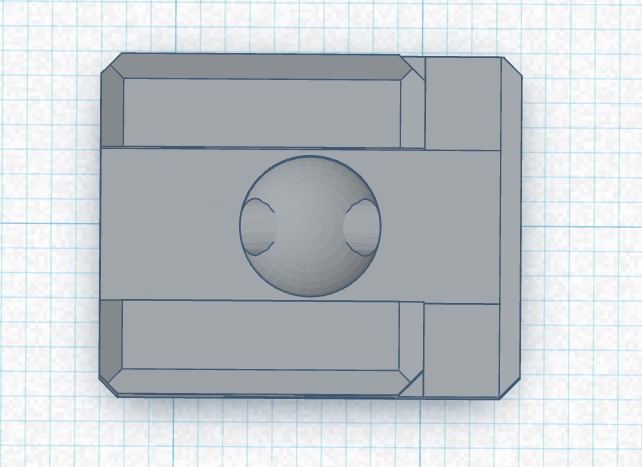

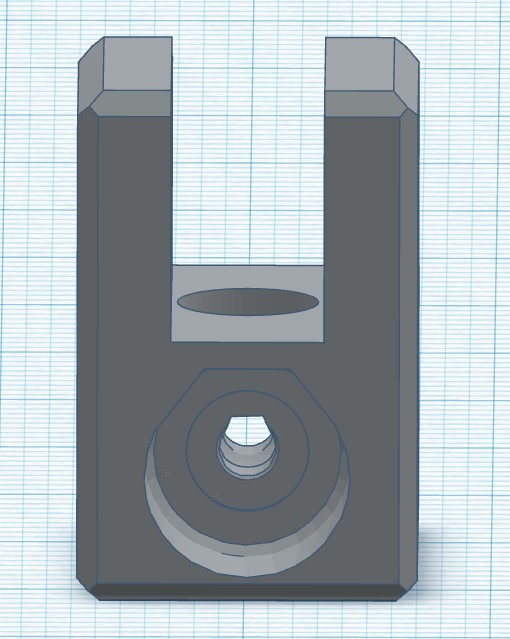

I used Tinkercad to come up with this design so I don't have a step file unfortunately, but I wanted to at least share the STL. Happy printing!
