¡Important! The 'Chassis-v5-Lid.stl' file has been updated to fix a small issue.

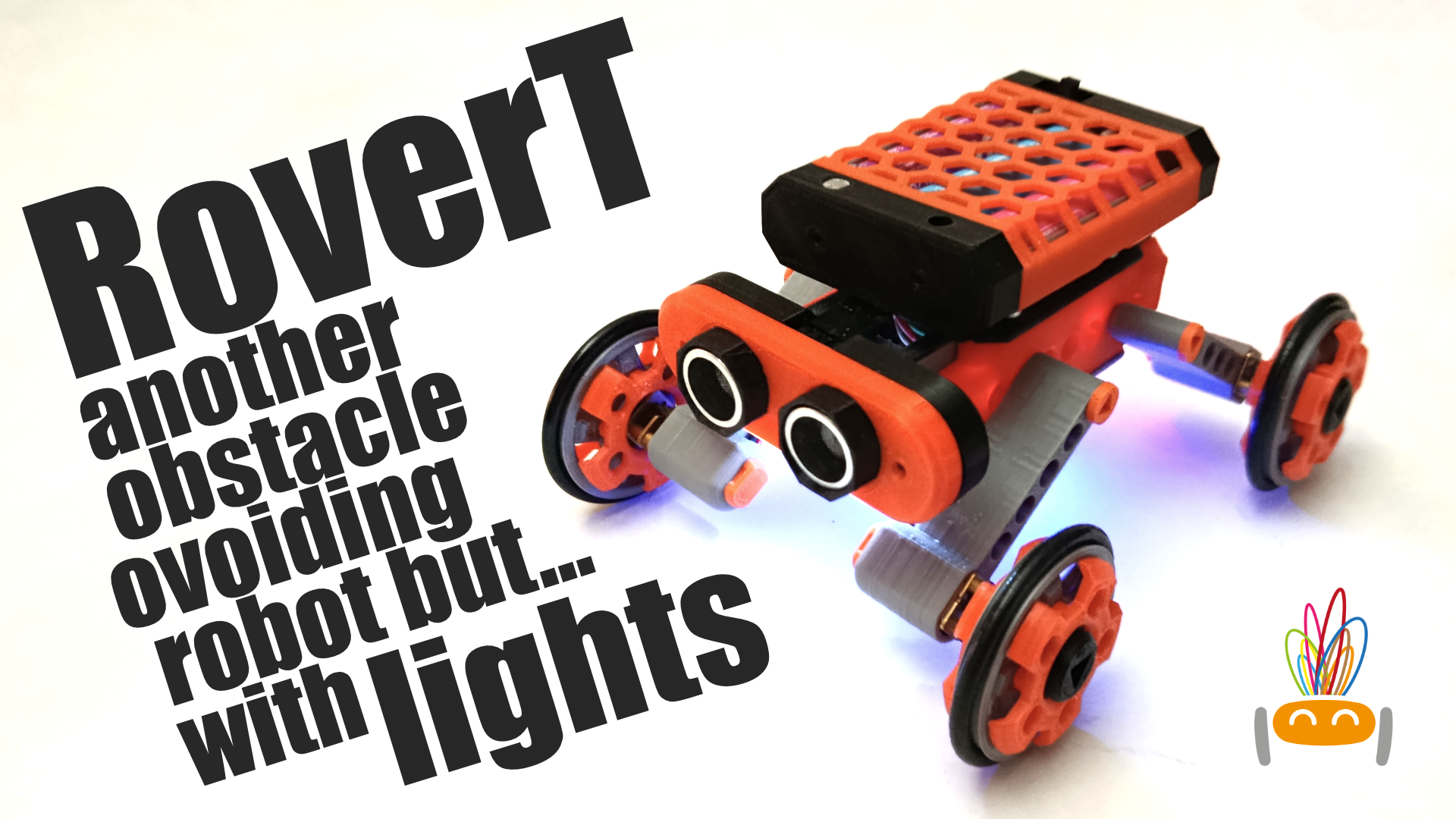

RoverT is a free robot project designed to help makers learn about Arduino, sensors, electronics, and robotics.
The robot features:
A proximity sensor for obstacle avoidance
An adjustable light sensor that activates LEDs in low-light conditions
Random direction changes for dynamic movement

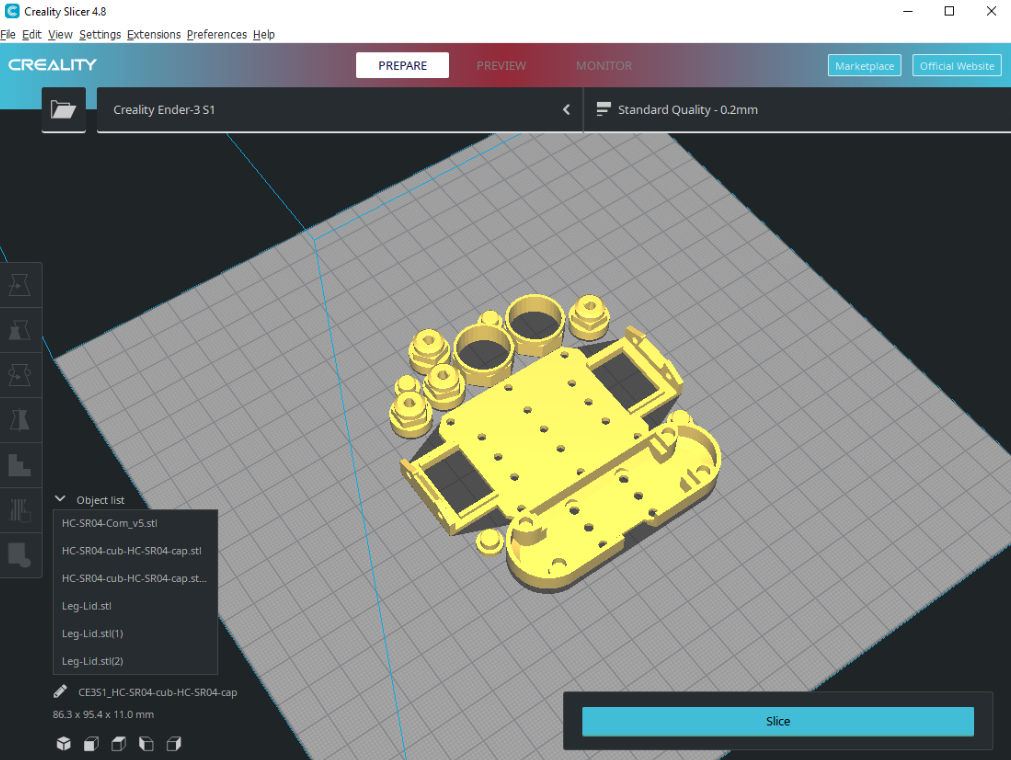

🖨 Printing is simple and beginner-friendly:
No supports needed

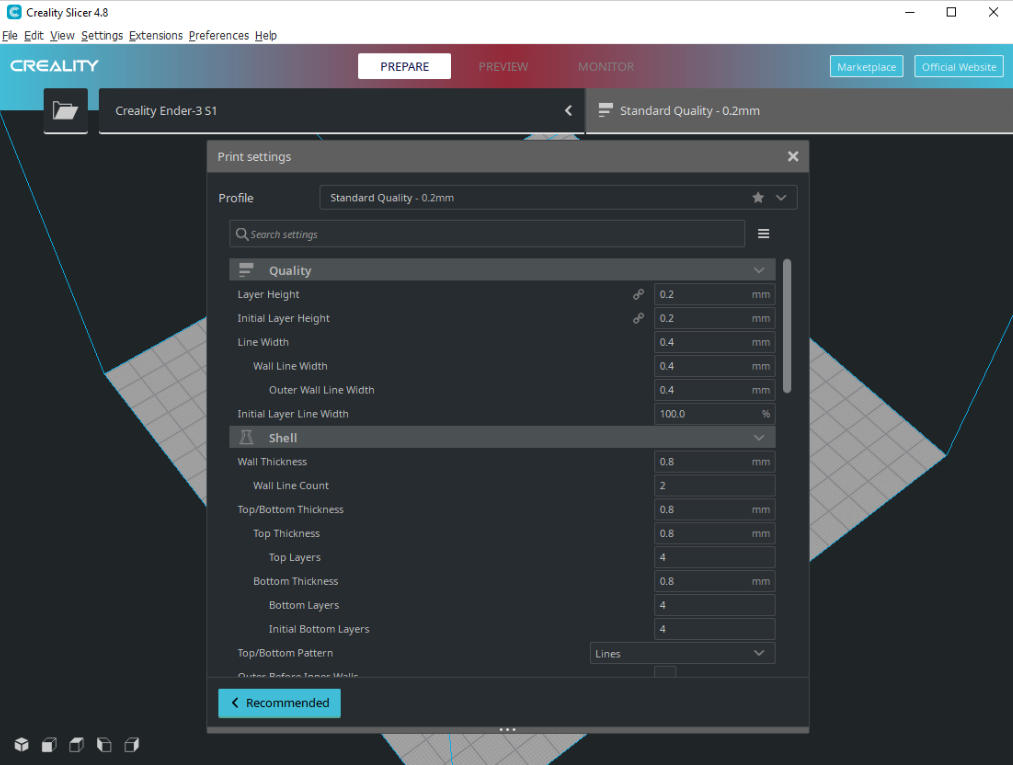

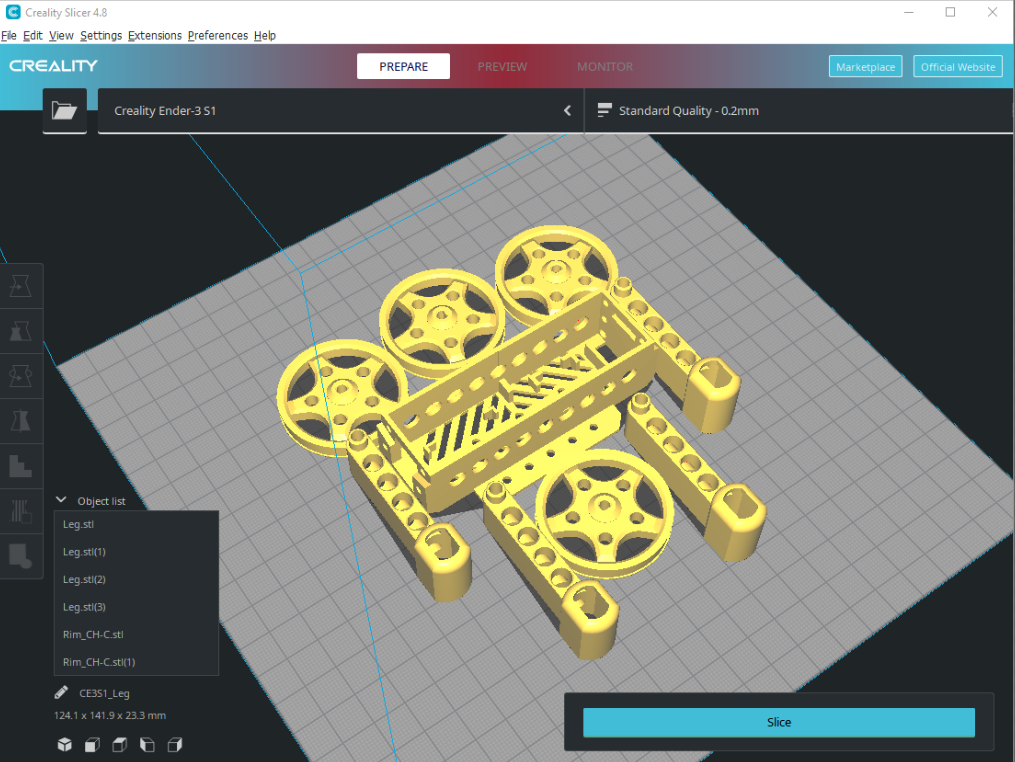

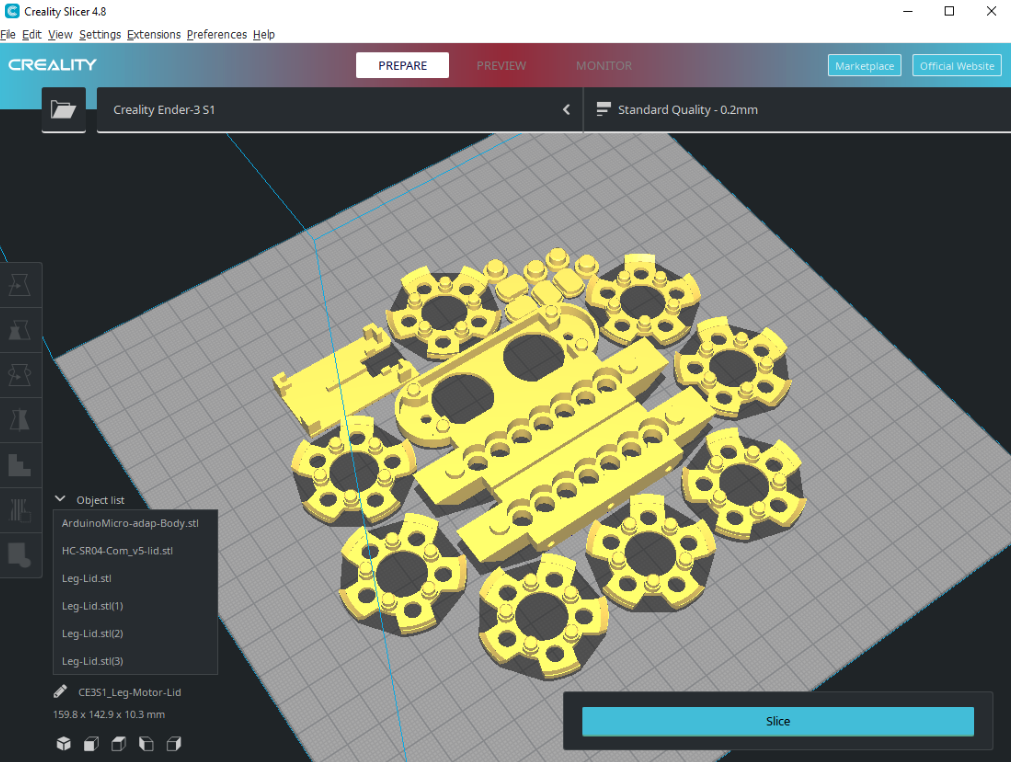

0.2 mm layer height recommended
Successfully printed on an Ender-3 S1
⚠ Voltage note (important for learning):
The circuit is designed for 3.3 V operation with this 3AA batery holder.
If you power the robot using 4 AA batteries, resistor values must be modified.
Fully commented Arduino IDE code

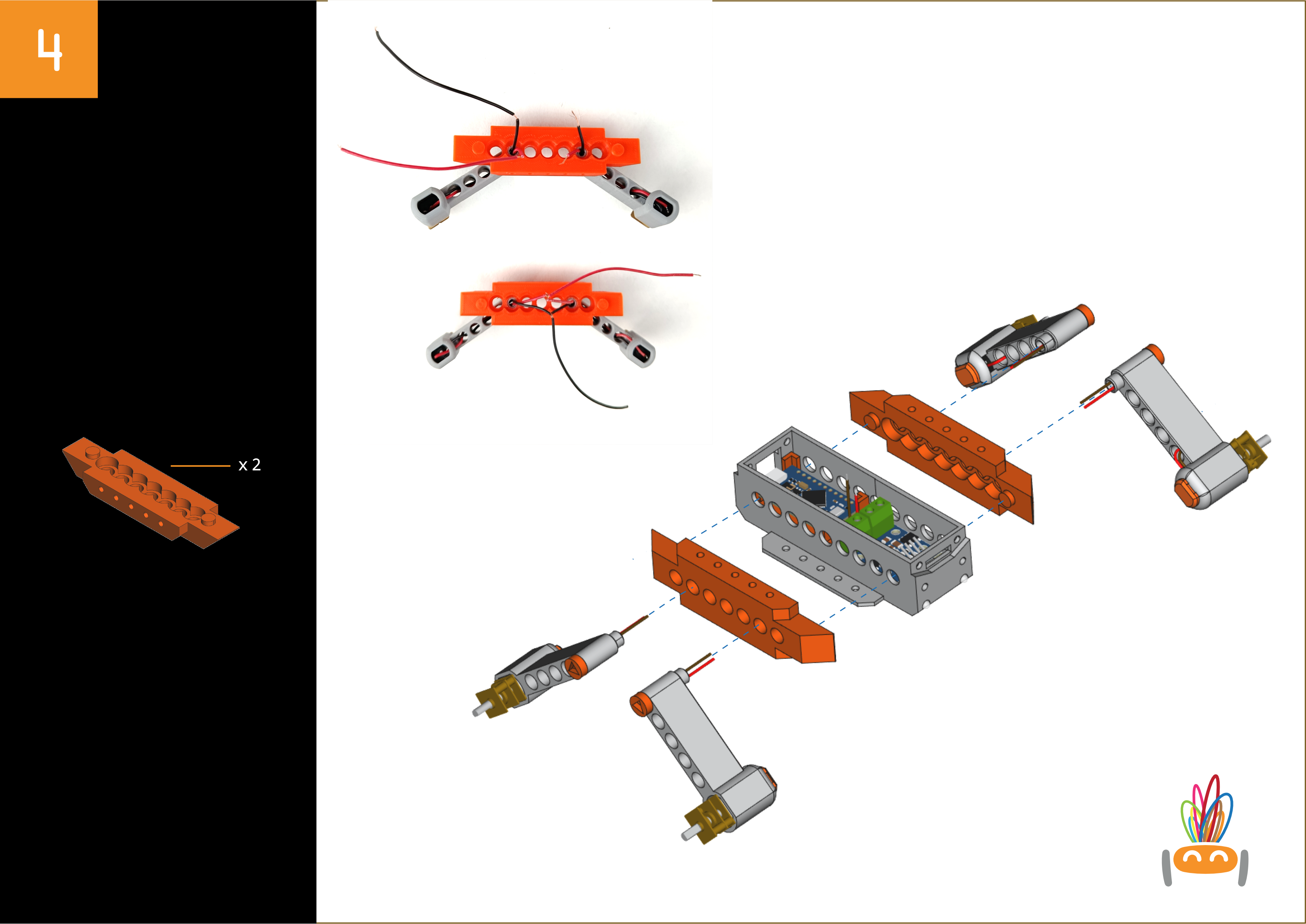

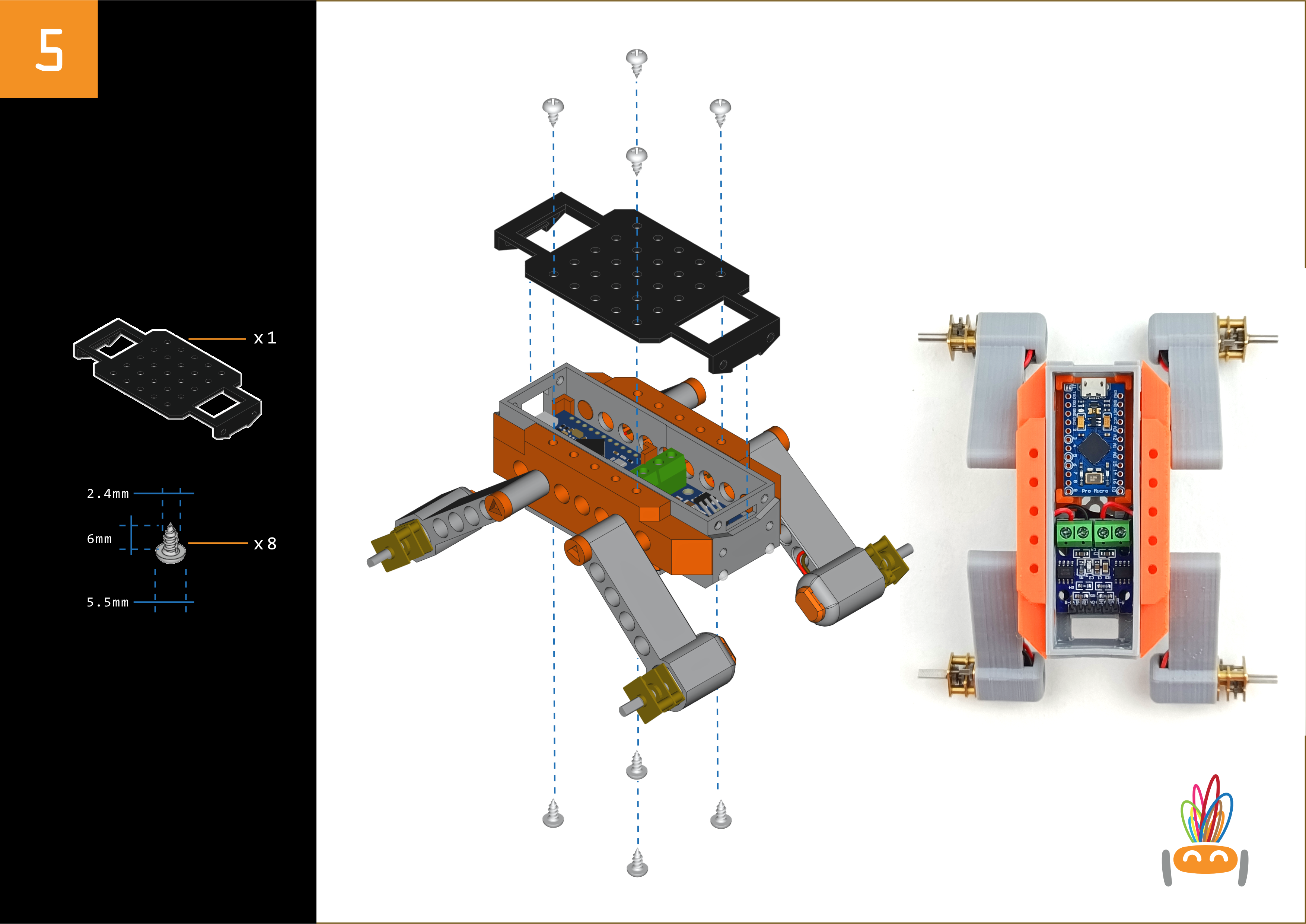

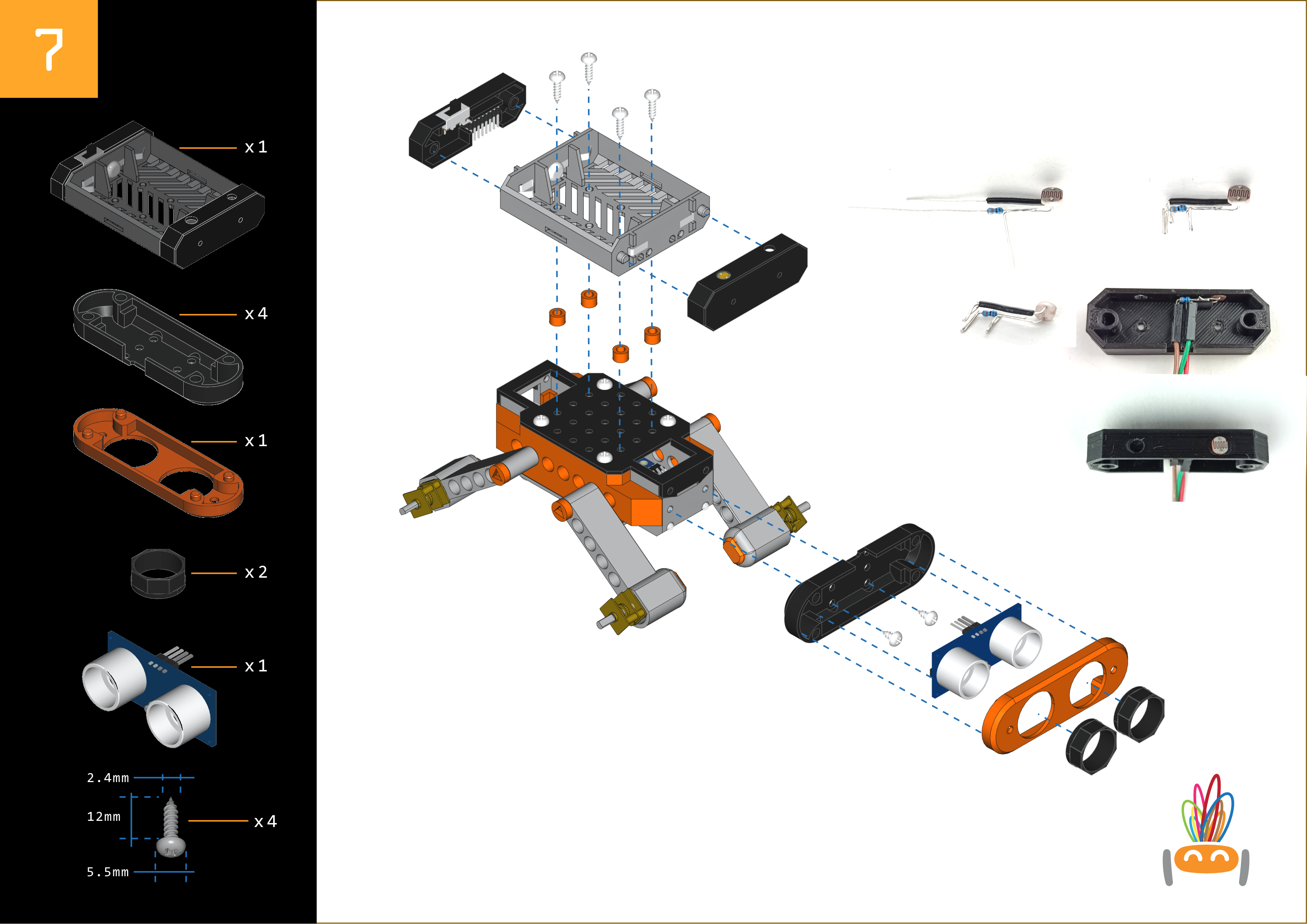

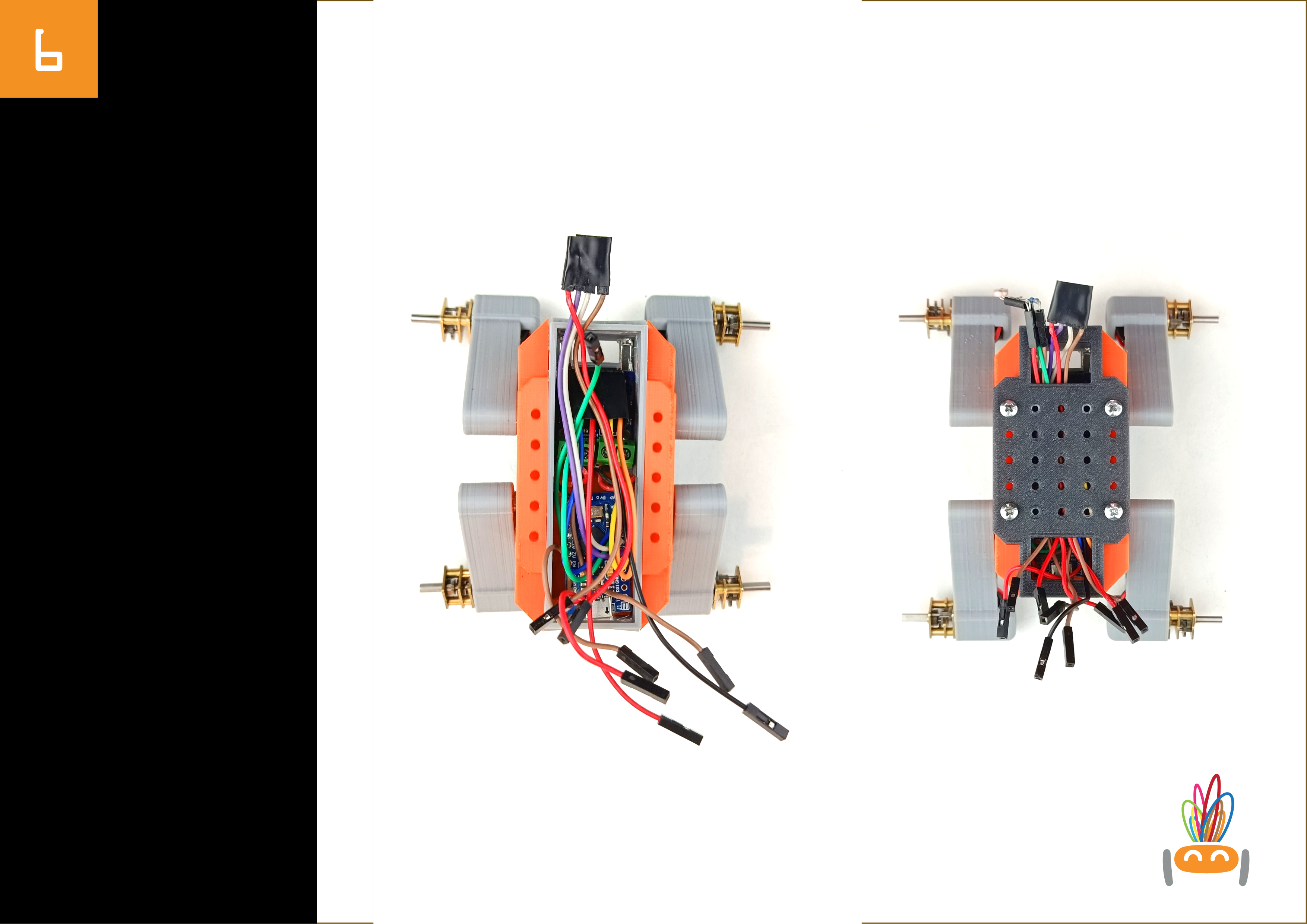

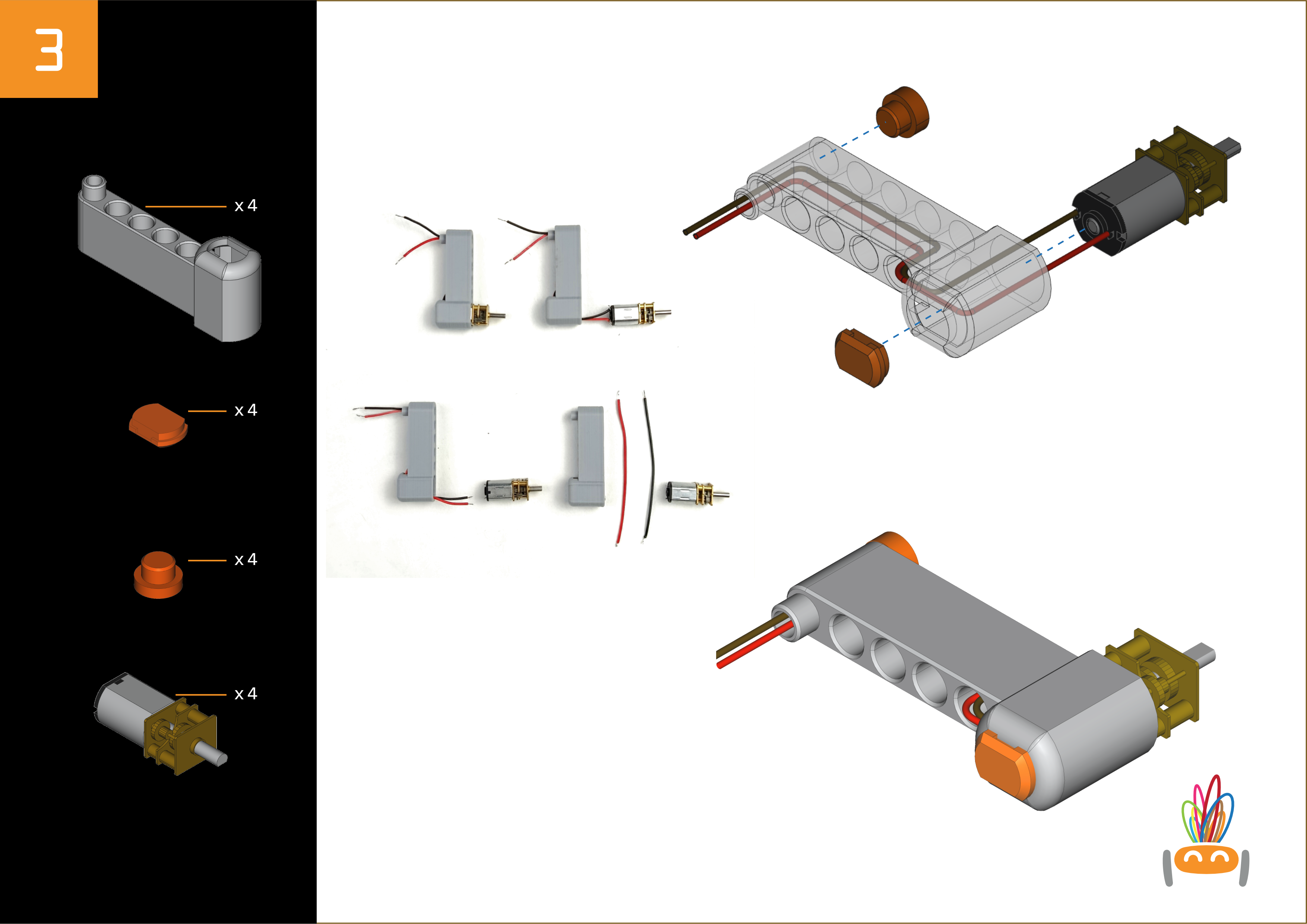

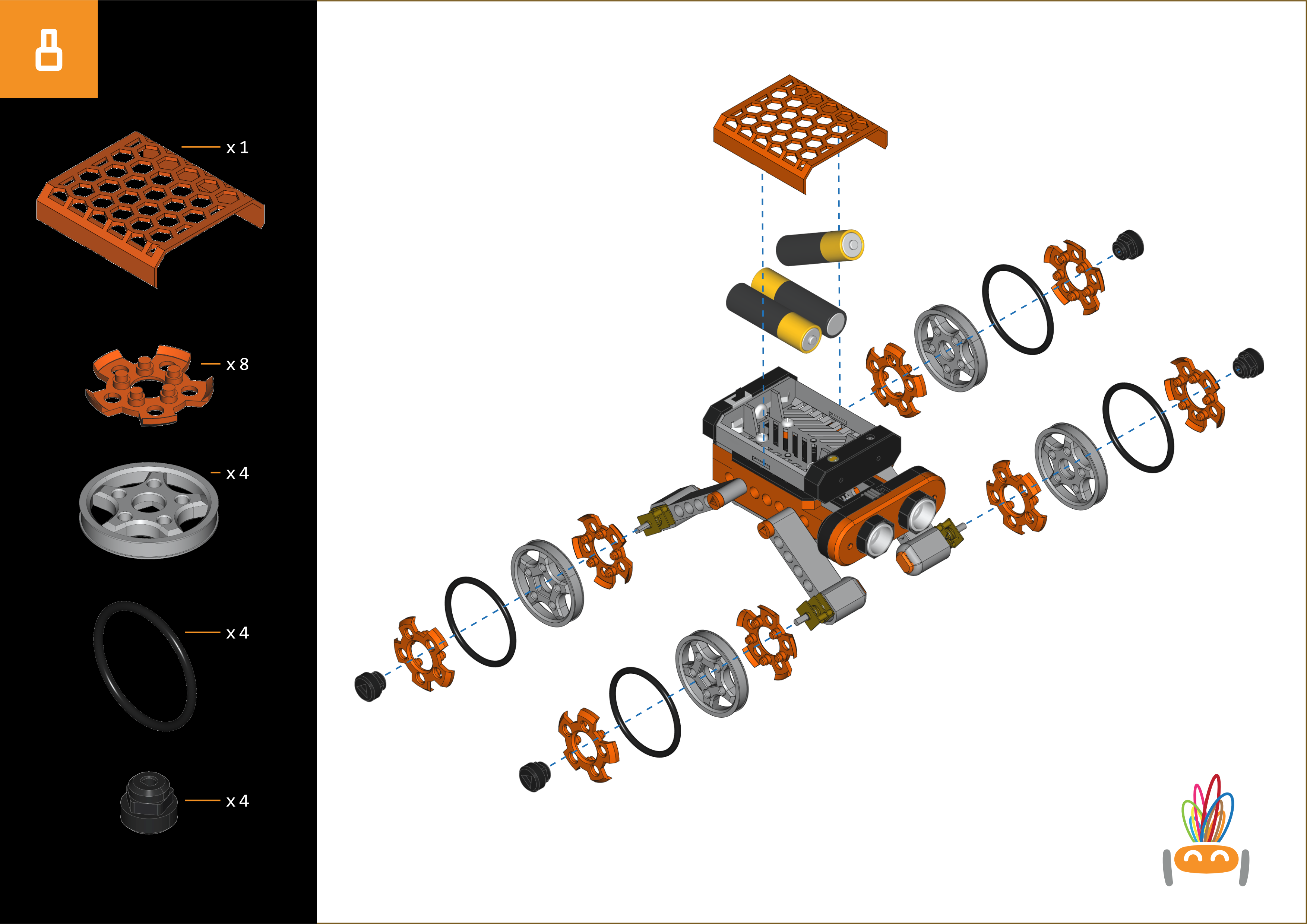

Assembly instructions

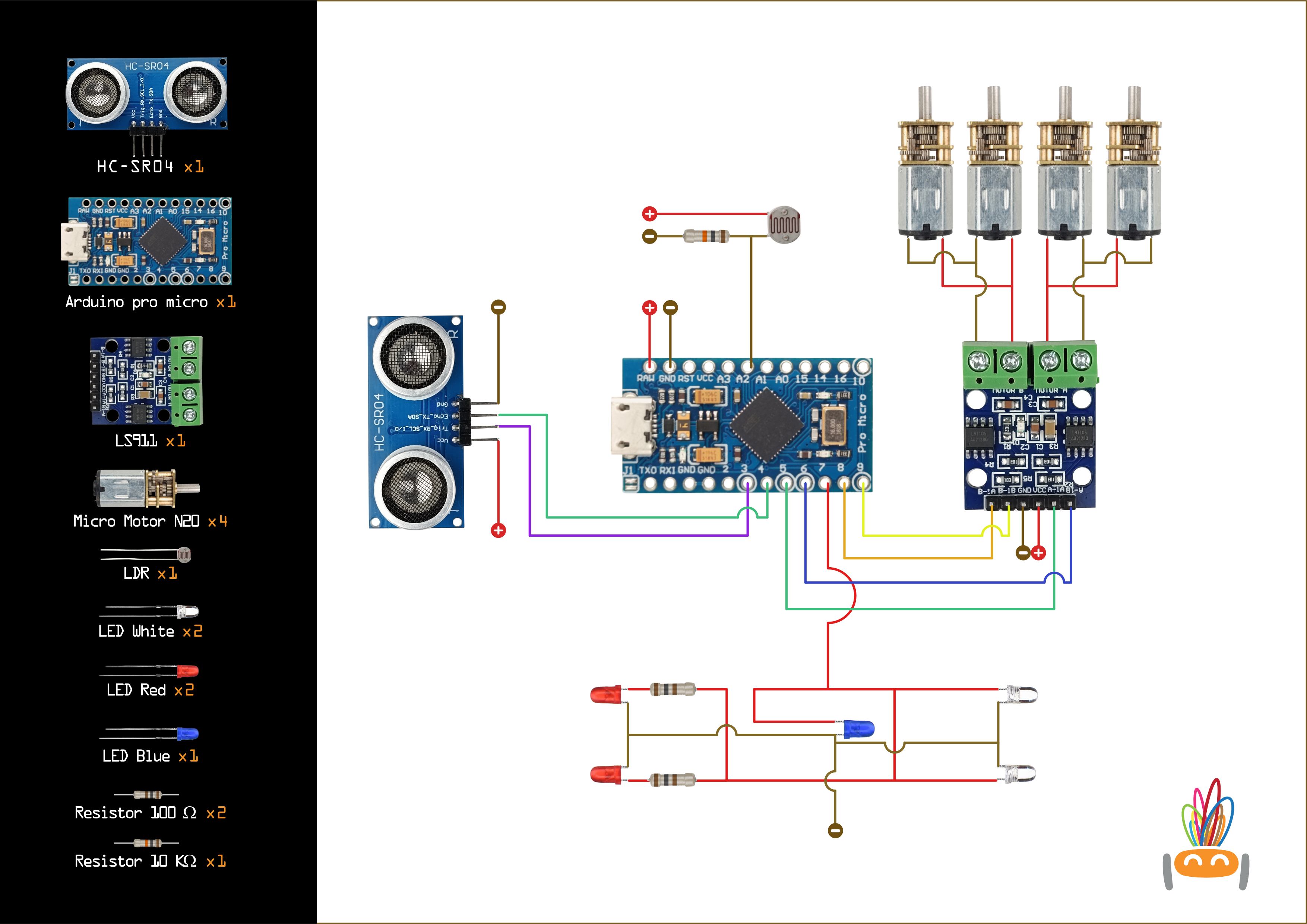

Electronic circuit diagram [Resistors values UPDATED!]

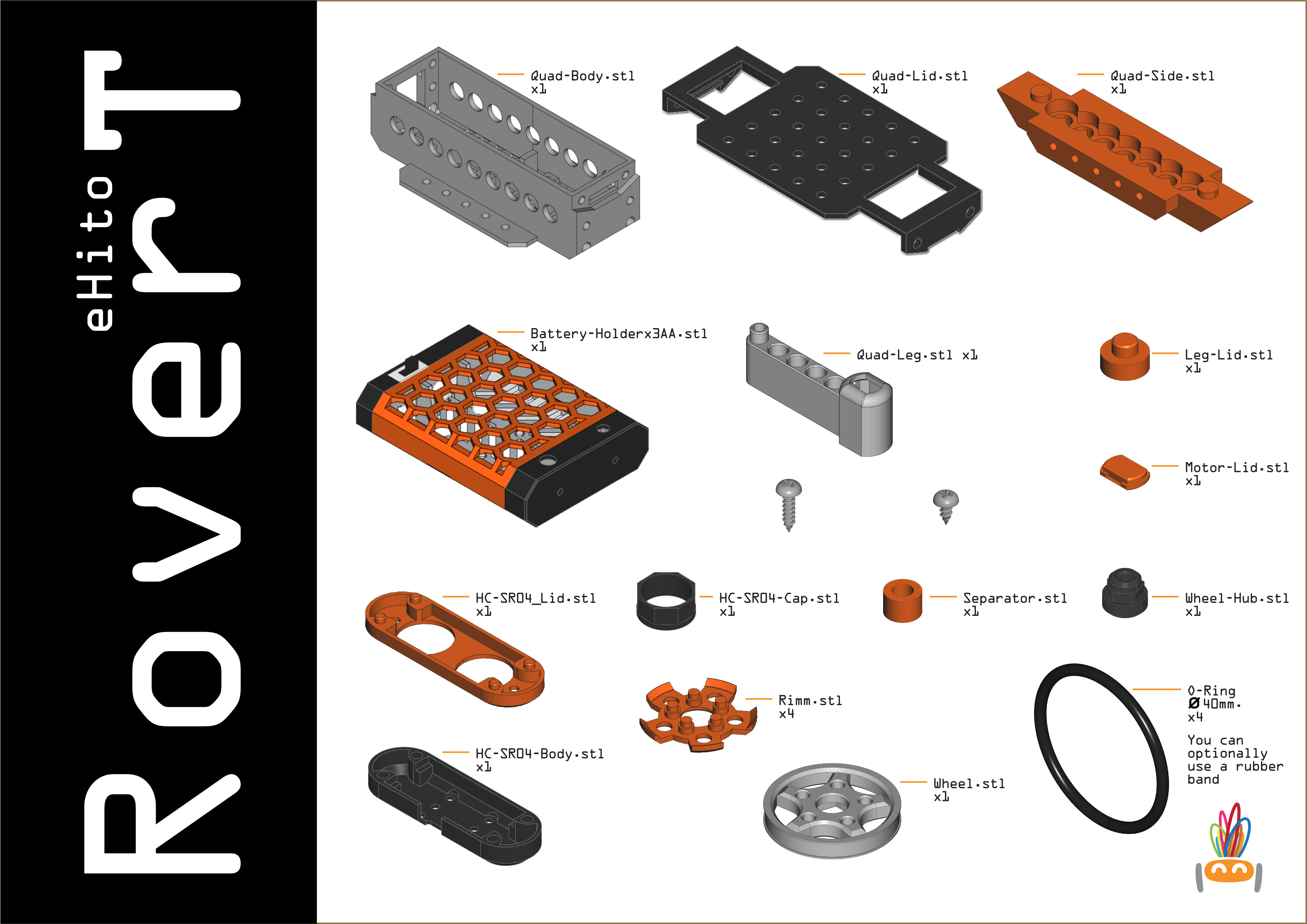

Full components list
Micro-USB Arduino adapter

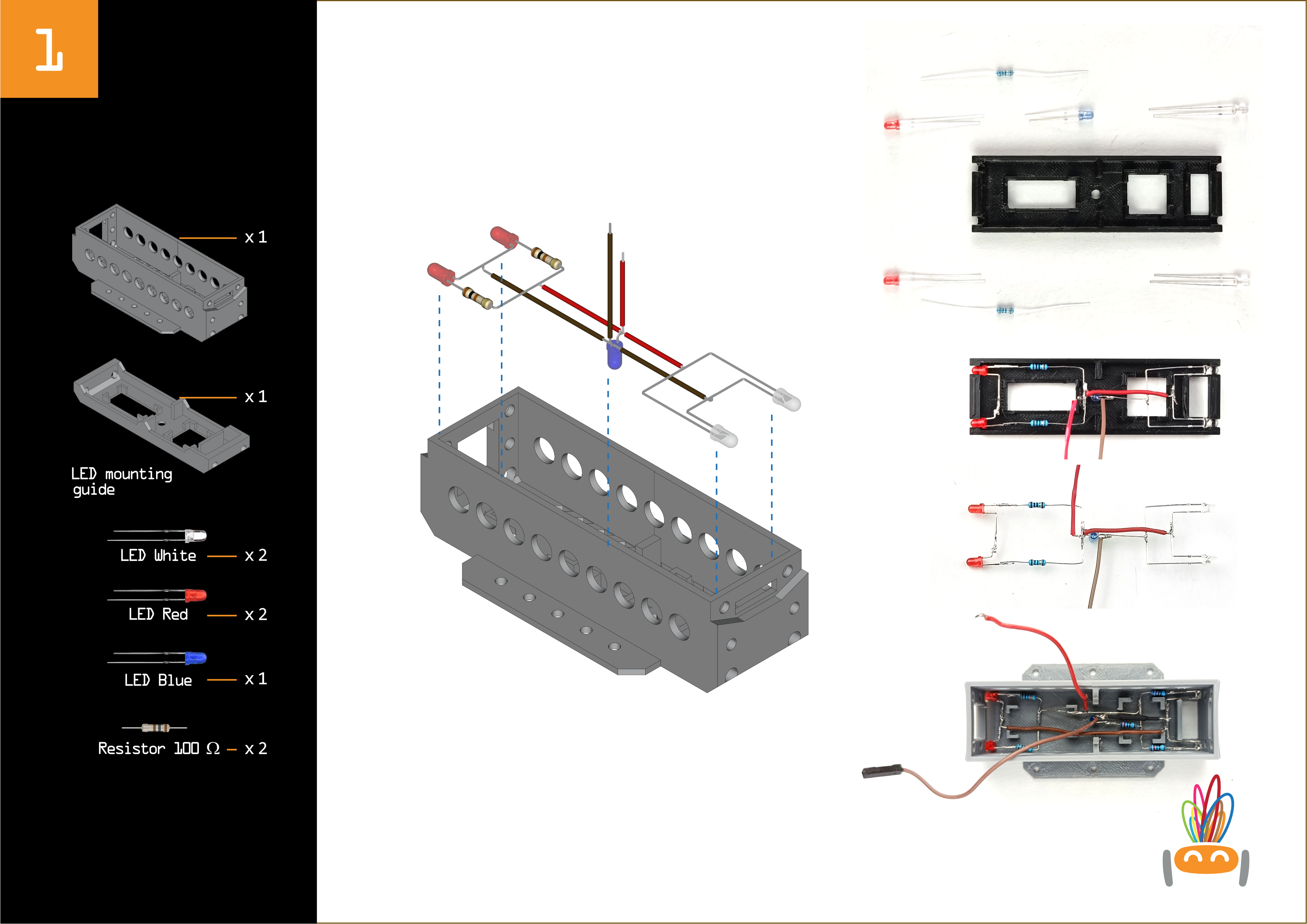

Chassis base to help assemble the LED circuit
