This is a case for a Raspberry 5 + NVMe and full size HDMI adapter
It will fit the following Adapter boards:
52Pi Micro HDMI to HDMI Multifunctional Adapter for Raspberry Pi 5, with PCIe 3.0x1 M.2 slot, Support M.2 NVMe SSD 2230 2242
GeeekPi Micro HDMI to HDMI Multifunctional Adapter with PCIe 3.0x1 M.2 NVMe 2230/2242 for Raspberry Pi 5
Thanks Andrew Denley for the original case.
I made a complete rework of that case as I had to modify it a lot. What you get here is a raw version without these modifications, as they were extremely use-case dependent. However, the enclosure itself and the STEP files are certainly useful.

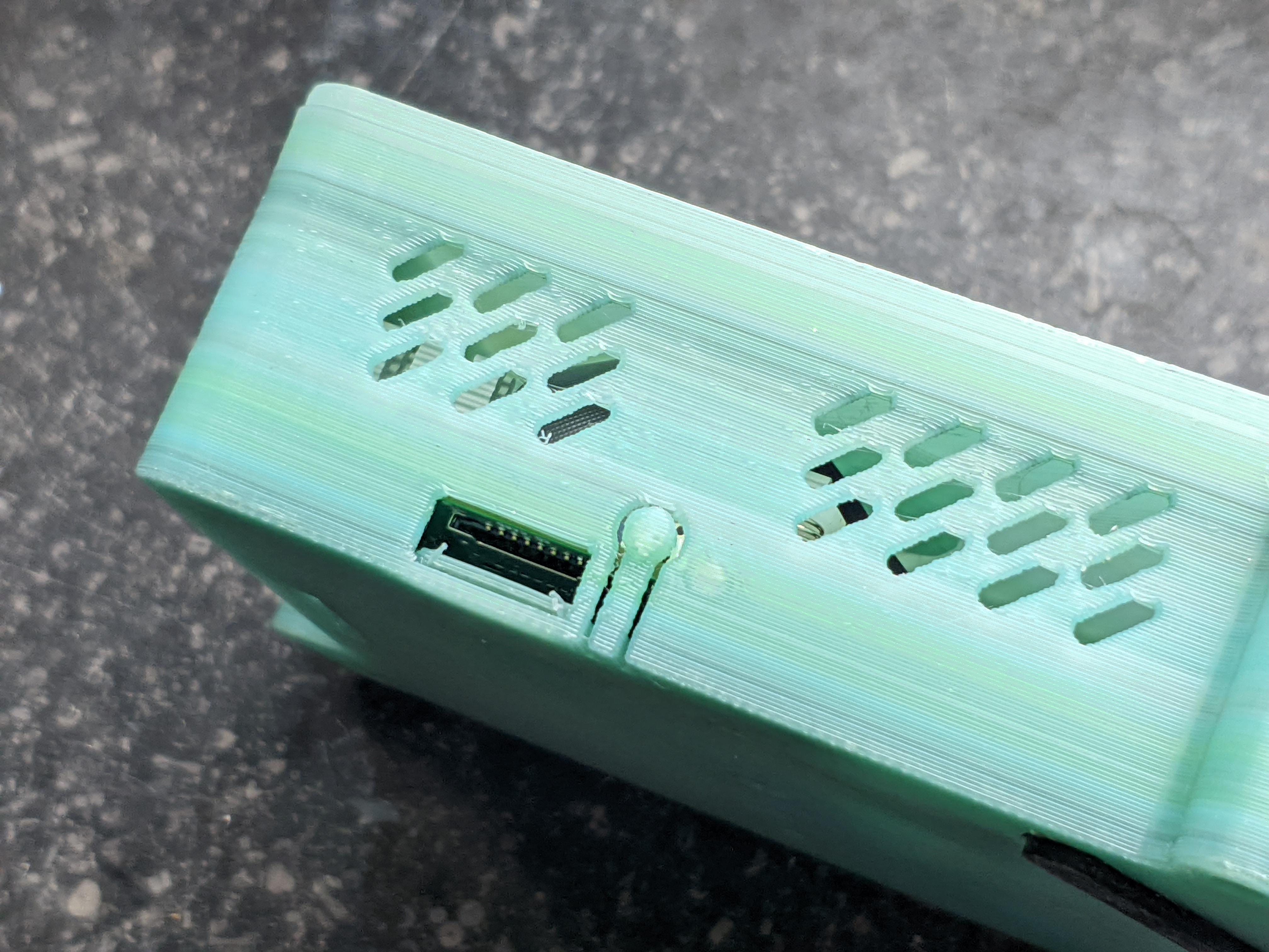

The remaining changes are: an integrated button, screwing the Raspberry Pi and the adapter board directly into the housing without nuts – easier for me ;)
