John Deere Lightbox Clock
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Wall-mounted
- License
- Creative Commons — Attribution — Noncommercial

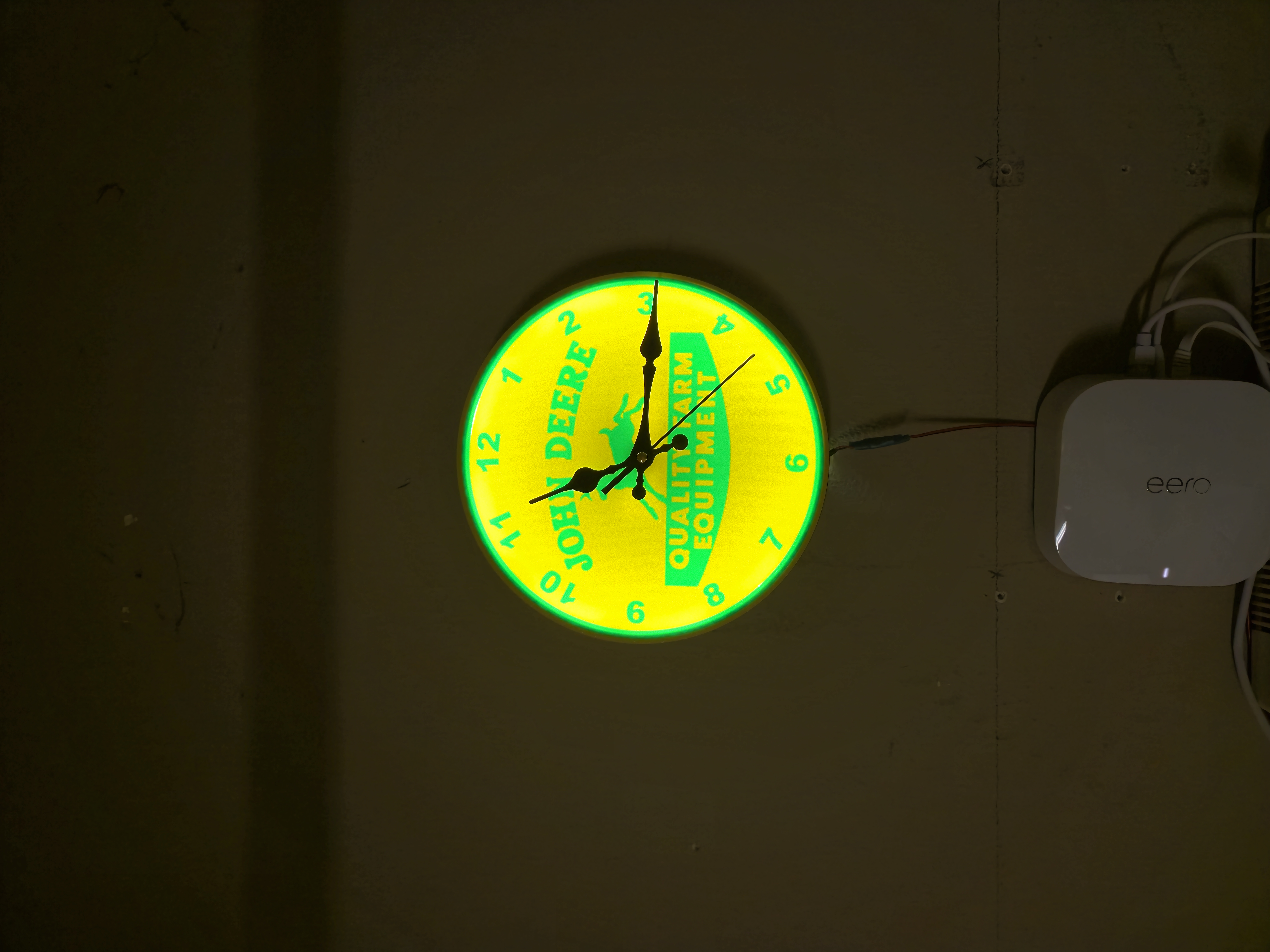

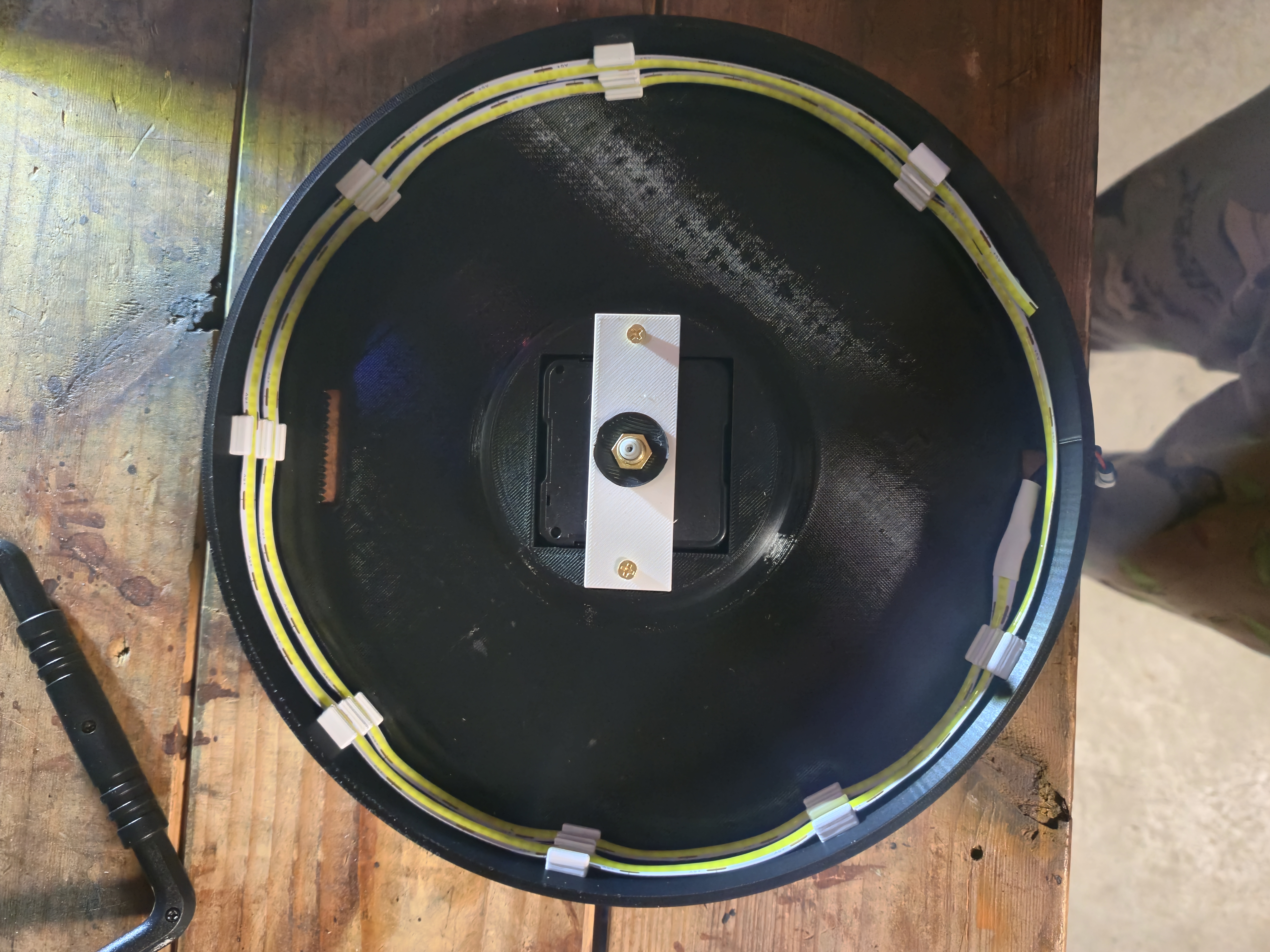

This is a John Deere light box clock. I used the shorter shafted one of the 2 from here https://www.amazon.com/dp/B09Q11KHBX?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 which is 9mm on the threads so I'm sure any other 56mm x 56mm x 15mm with 9mm threads box shaped clock motor will work. You can also use the longer one, the threads/time hands will just stick out further. Printed in Bambu PETG-HF green/yellow and black. I used 5v COB LEDs wrapped around twice for more brightness. The LED clips are from here https://makerworld.com/en/models/934411-led-light-strip-clip?from=search#profileId-898945 but I scaled them down to 82.10% to fit my LEDs.
Keep in mind this uses every bit of space on the print bed, minus the corners, so you will need to pay close attention during the purge line phase as you will need to quickly remove the purge line before the print head gets to the bottom of the build plate for the start of the print.
