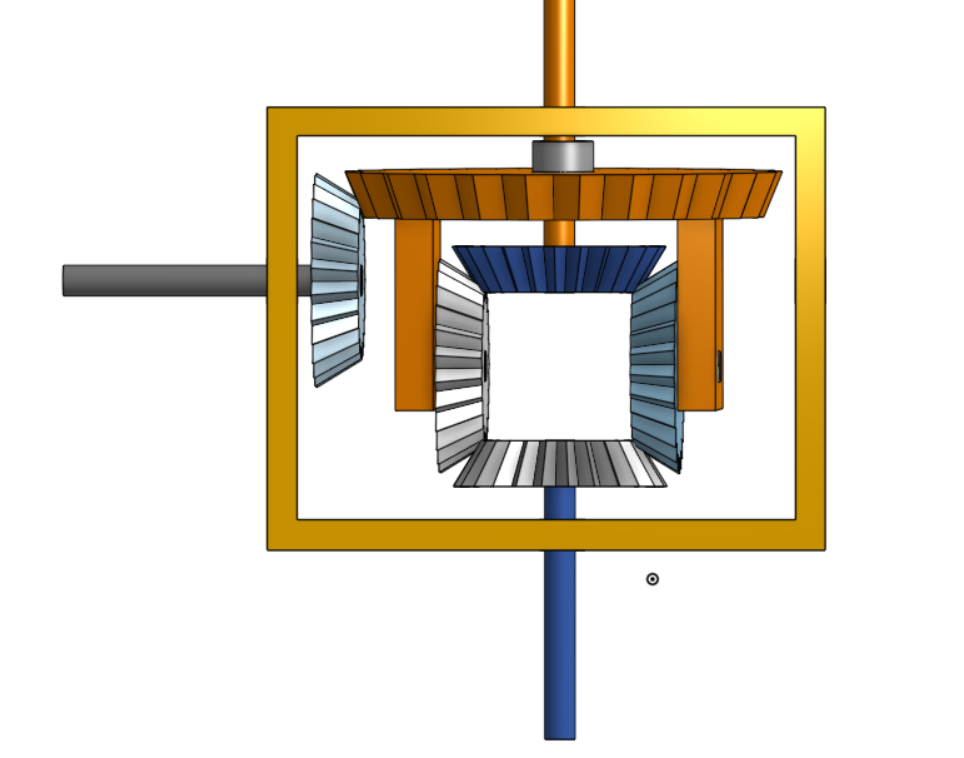

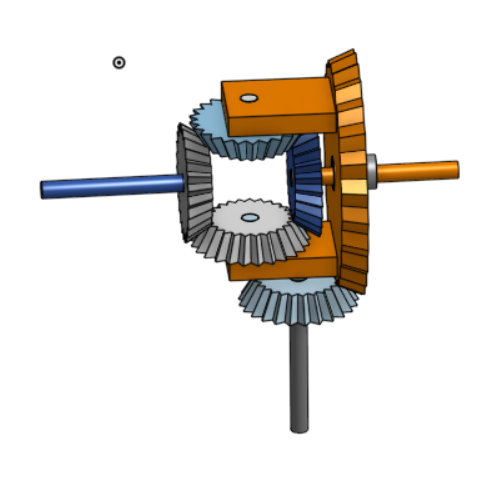

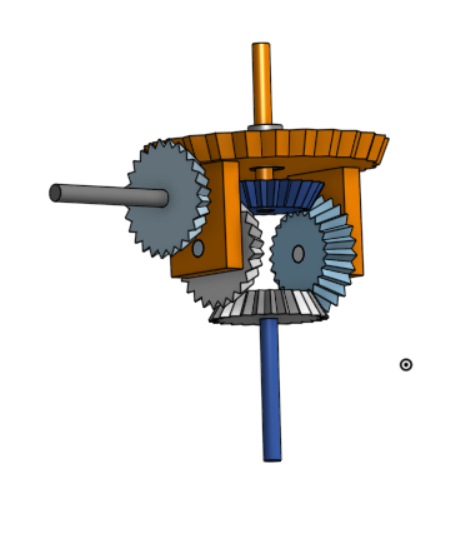

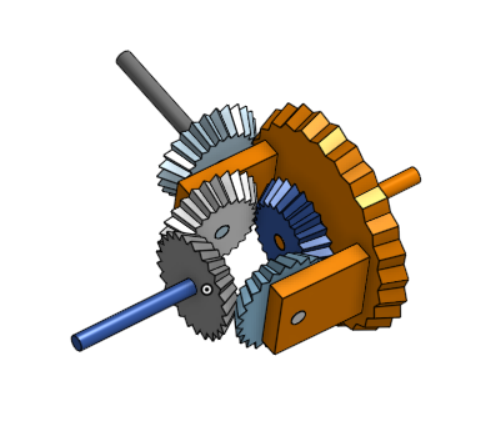

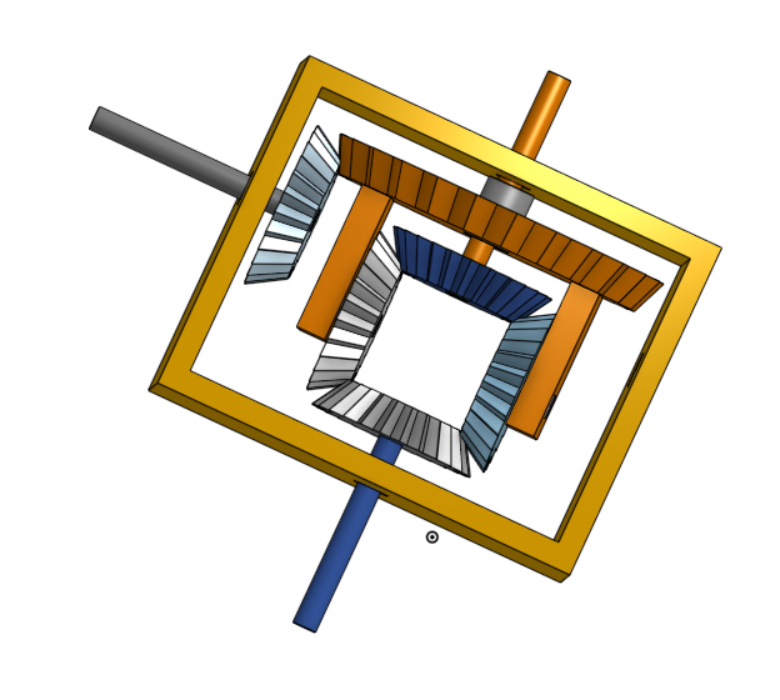

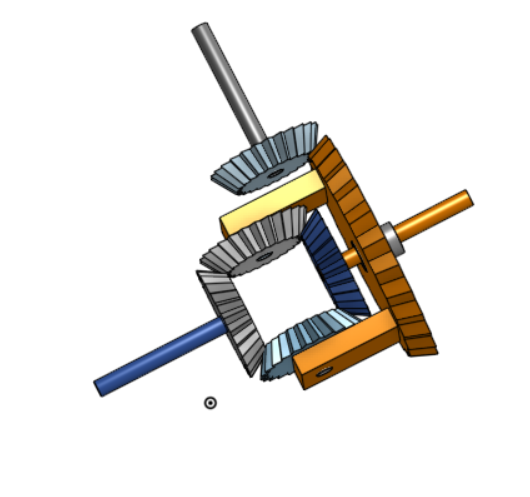

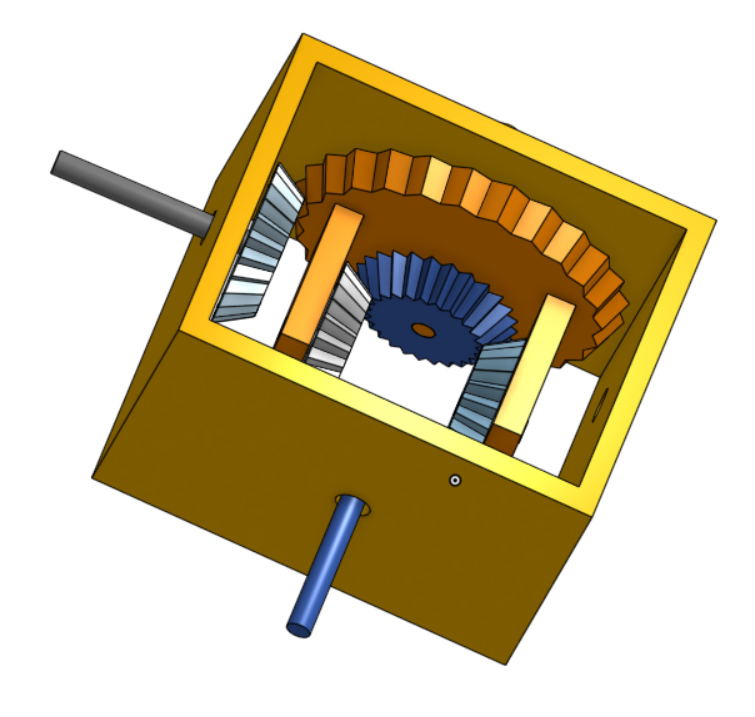

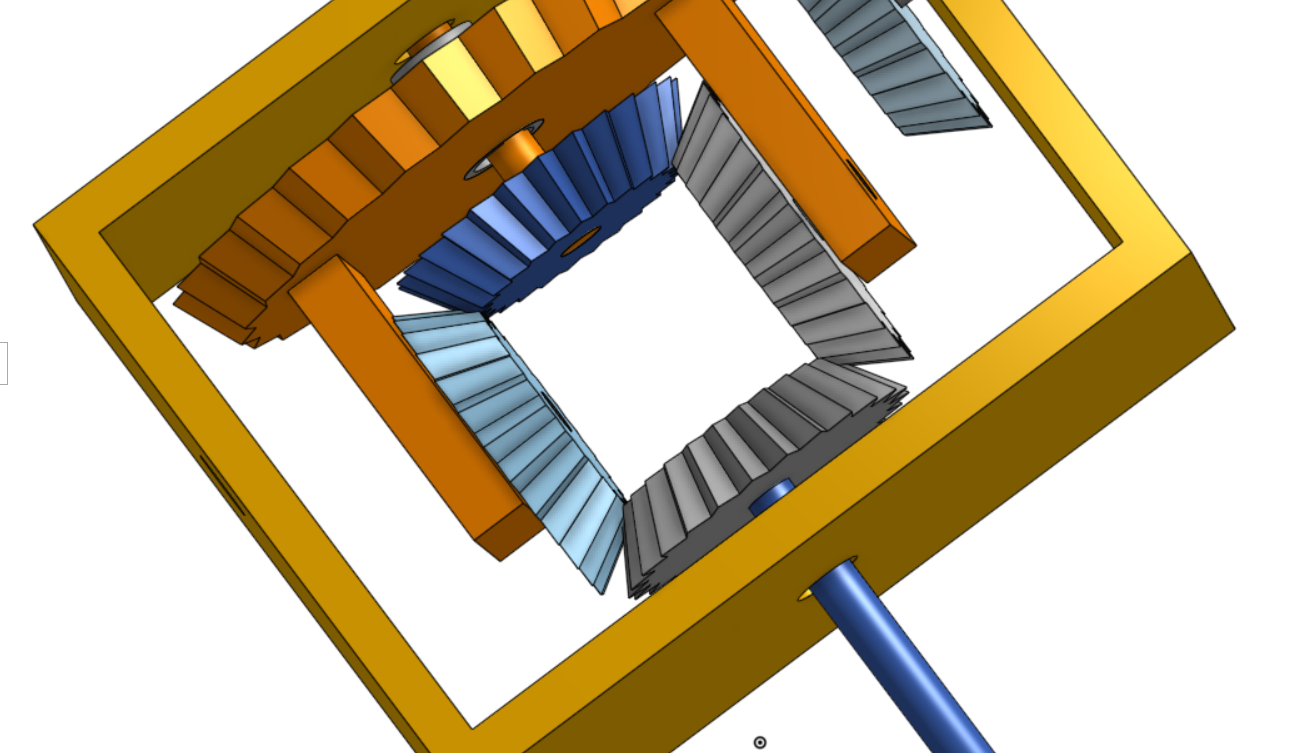

This design showcases a compact multi-bevel gear drivetrain system, built to transfer rotational motion across multiple axes within a reinforced housing. It demonstrates how bevel gears can be arranged to efficiently redirect power in tight spaces while maintaining smooth operation.
🧠 Design Features
Multiple bevel gear pairs for 90° power transfer
Integrated axles and supports for stable rotation
Rigid outer frame for alignment and durability
Compact layout ideal for custom RC drivetrains and robotics
Fully 3D printable structure
🔄 Functionality
Transfers motion between perpendicular shafts
Demonstrates multi-directional drivetrain concepts
Designed for smooth meshing when properly aligned
🖨 Print Details
Recommended:
30–50% infill
3–4 walls
Print gears with high precision for best performance
