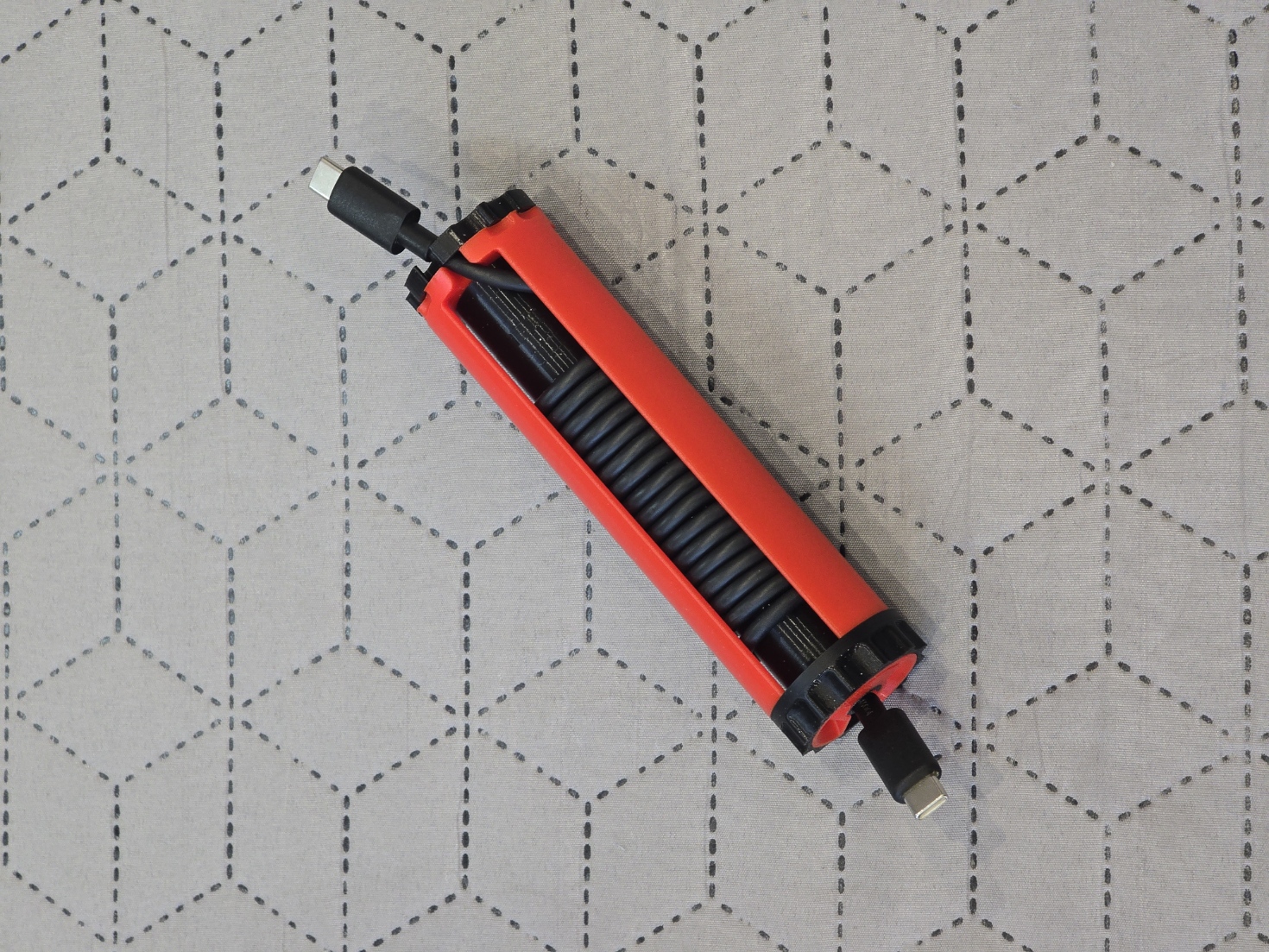

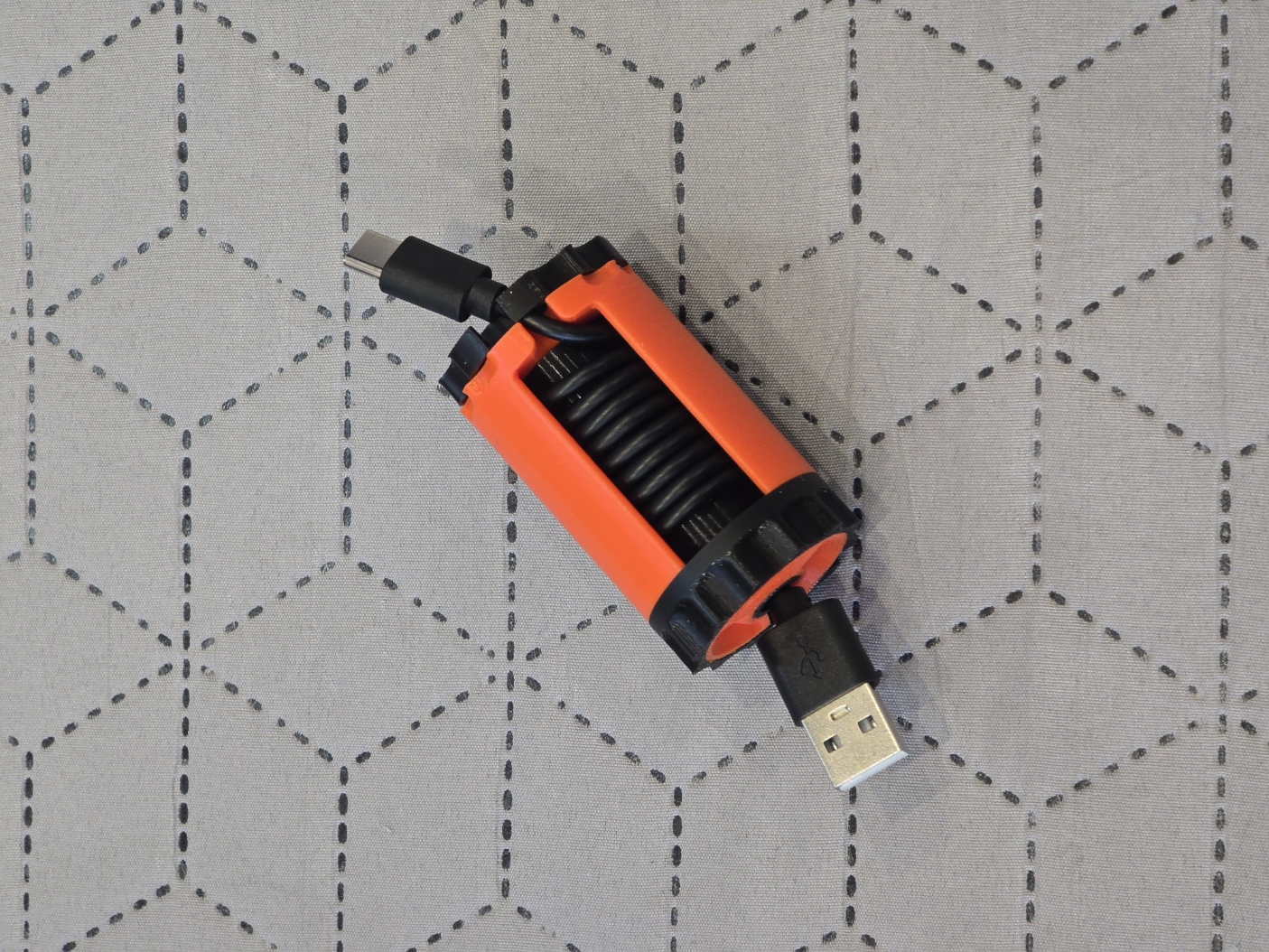

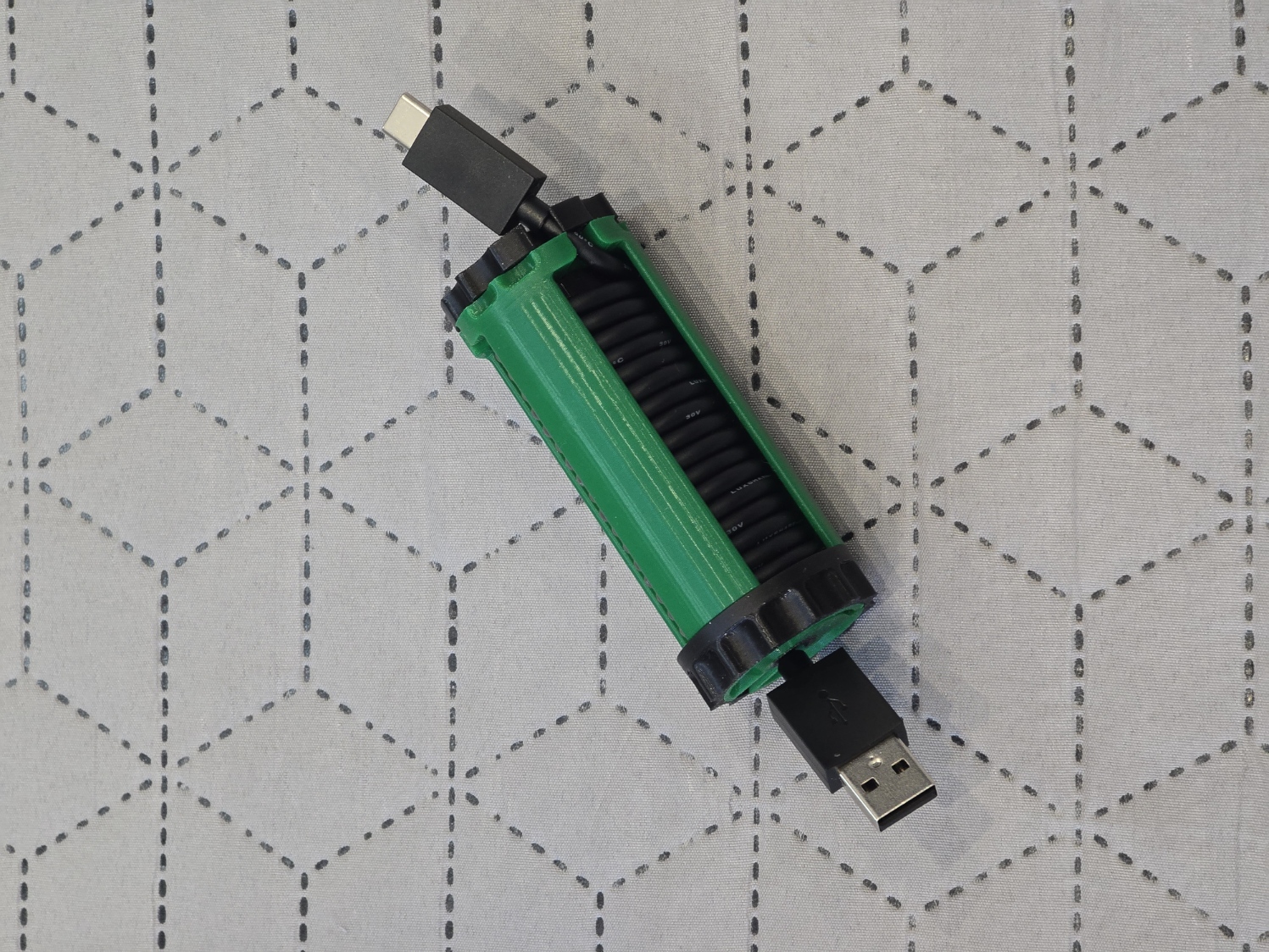

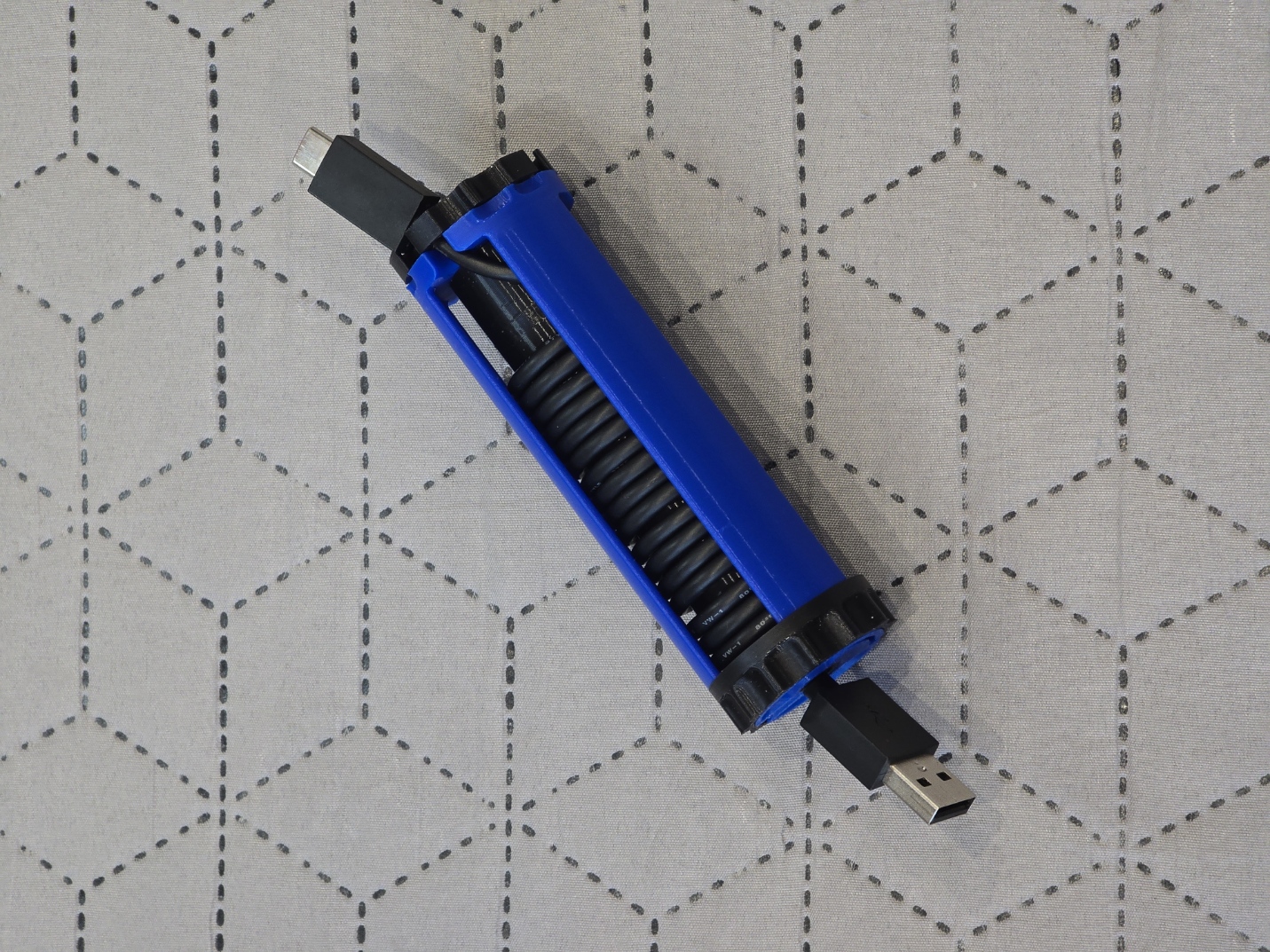

An upgraded version of the compact cable reel, redesigned to securely store cables without damaging their insulation.

Unlike traditional cable clips that constantly squeeze the cable jacket, this version features a mechanical locking system that keeps the cable in place without excessive pressure.

Perfect for organizing charging cables, USB, Type-C, Lightning, HDMI, and other small electronic cables.

🧩 Smart 4-Part Construction

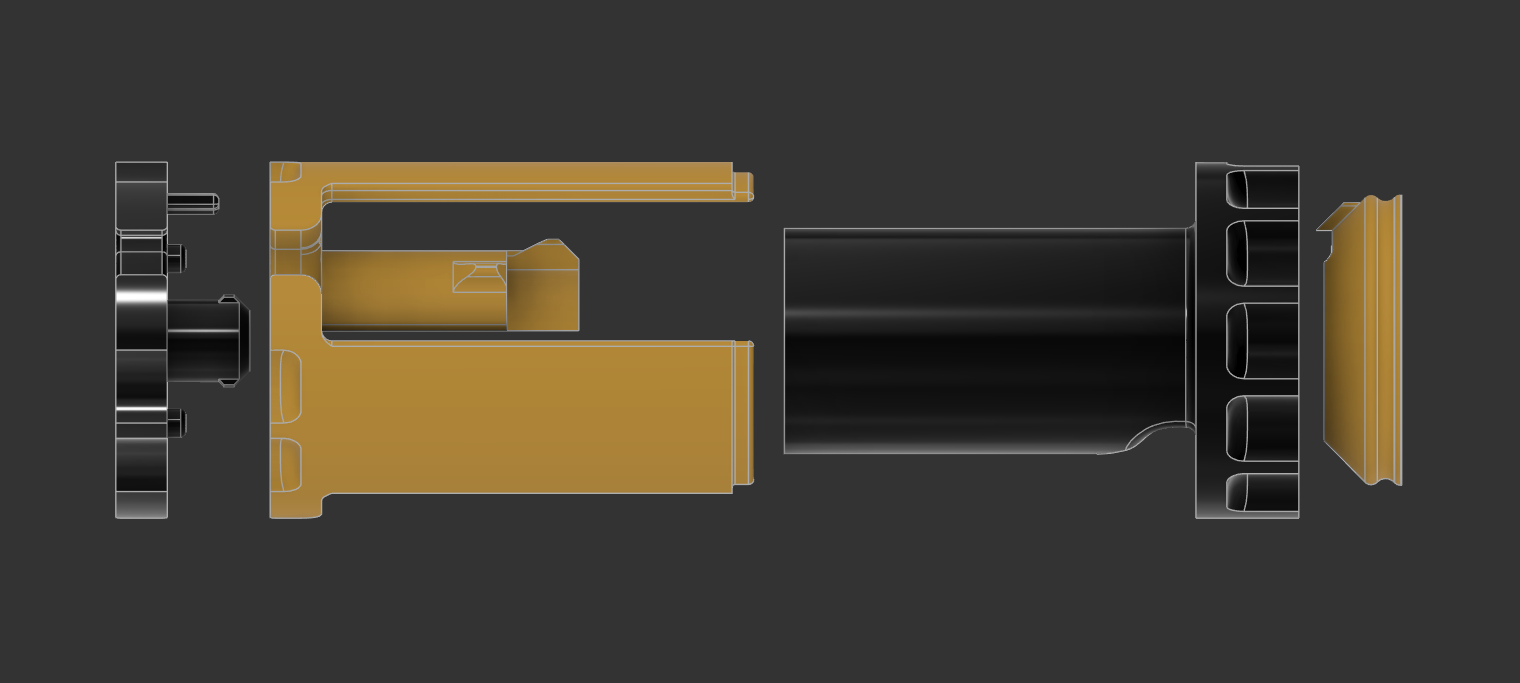

Each reel consists of:

  • 2 main interlocking body halves

  • Lower rotating locking ring (secures cable start)

  • Upper rotating locking disc (secures cable end)

All parts snap together securely and form a compact, durable unit.

🔒 Dual Locking System (Cable-Safe Design)

Bottom Lock (Cable Start)

The cable enters the side wall of the reel and is secured by a rotating internal ring, preventing it from slipping out while avoiding constant compression.

Top Lock (Cable End)

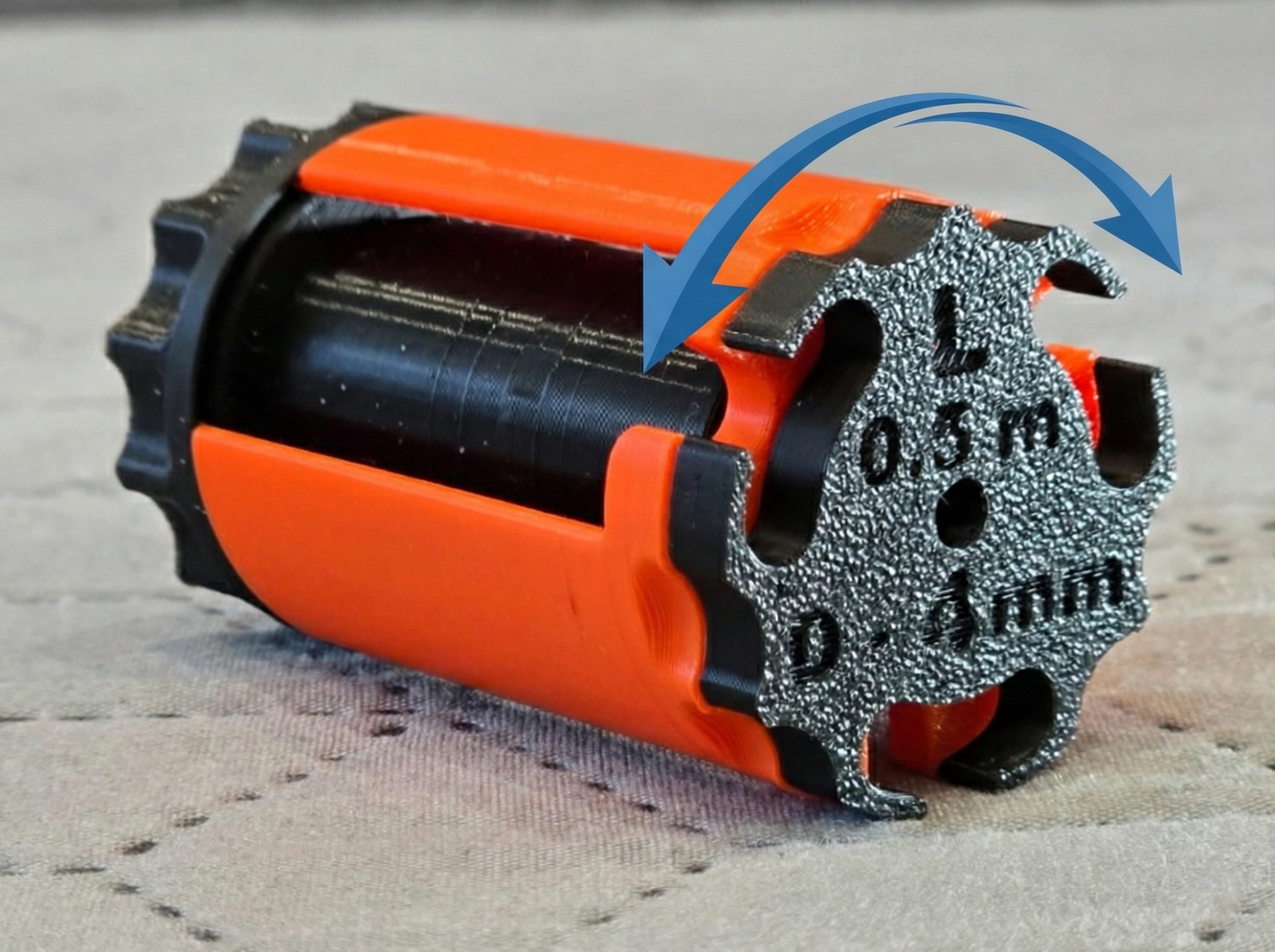

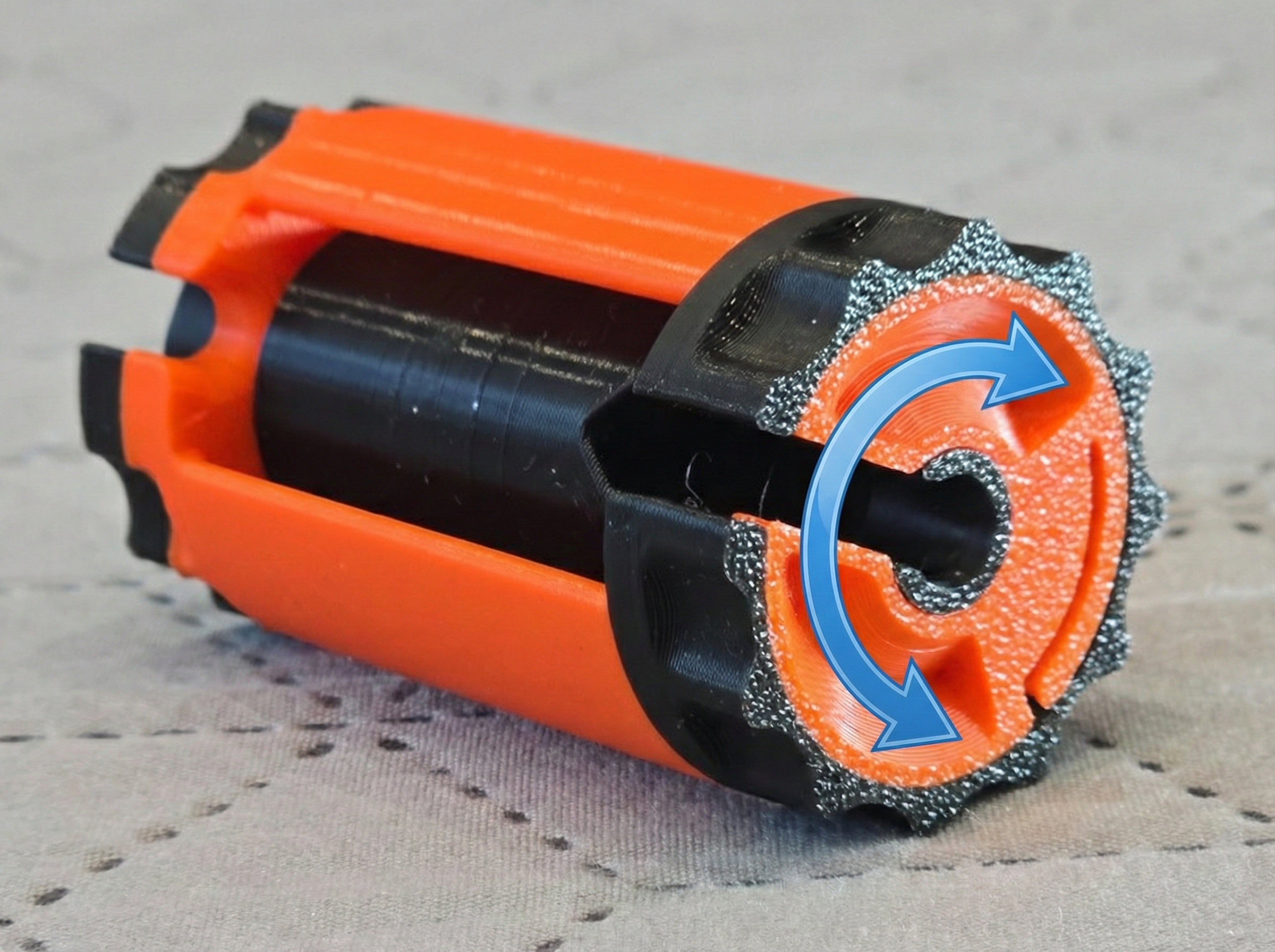

The outer side features a split rotating disc with precision slots.
Once the cable is inserted, the disc rotates and locks it in place using a small retention tab.

This design:

  • Prevents cable damage

  • Eliminates forced bending

  • Reduces wear on insulation

  • Keeps cables firmly secured

📏 Capacity & Sizes

Designed for cables up to 4 mm diameter.

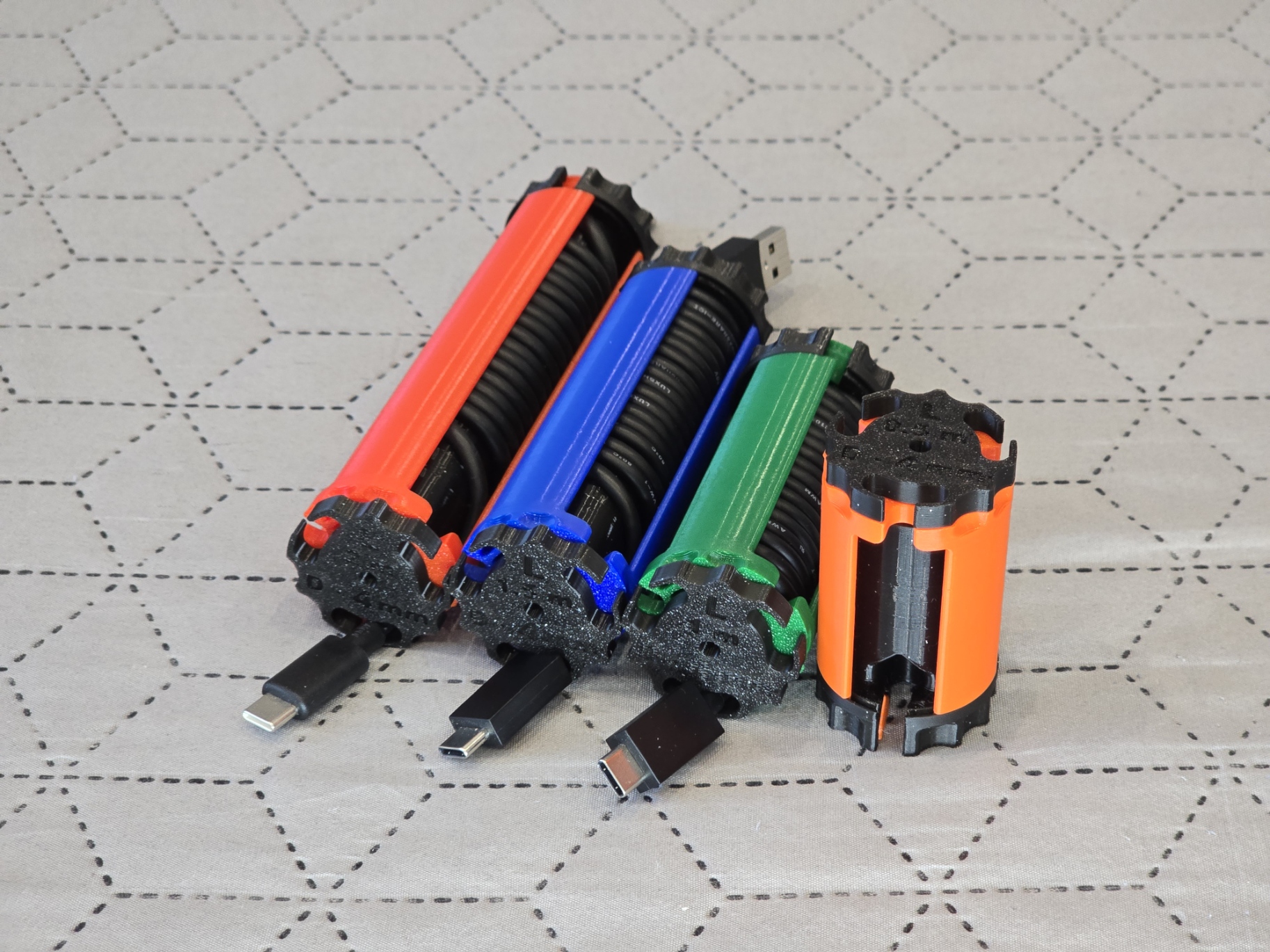

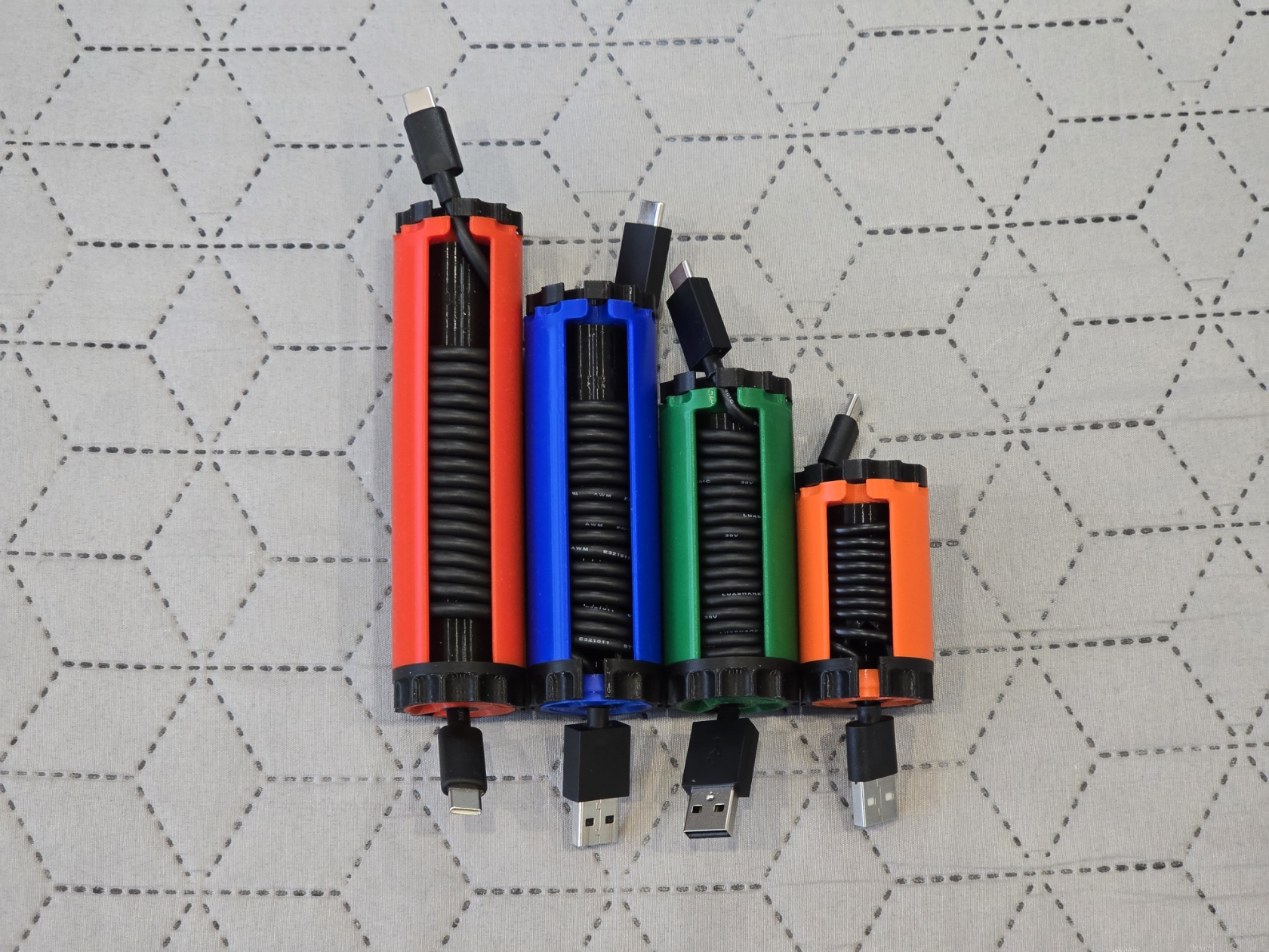

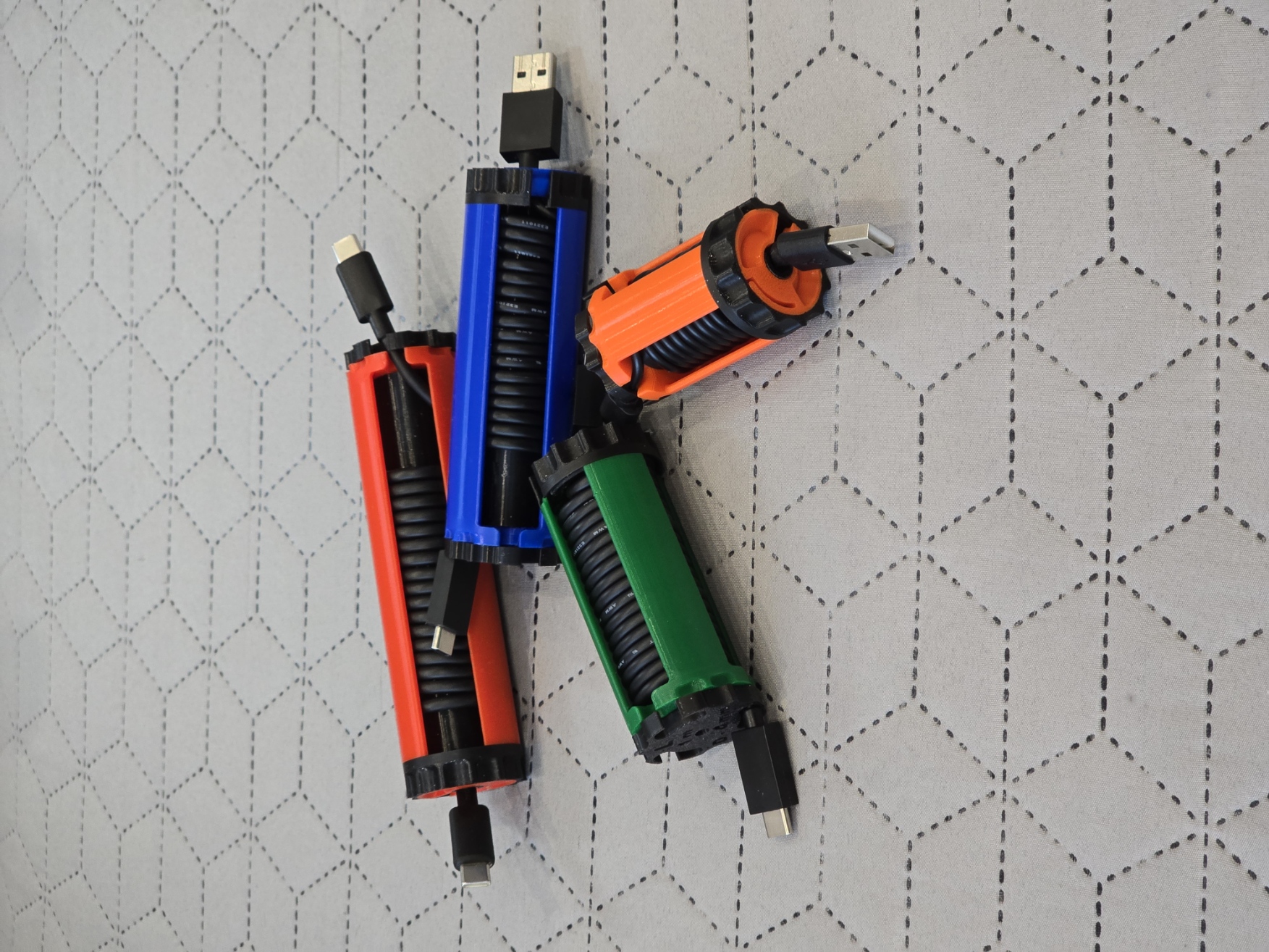

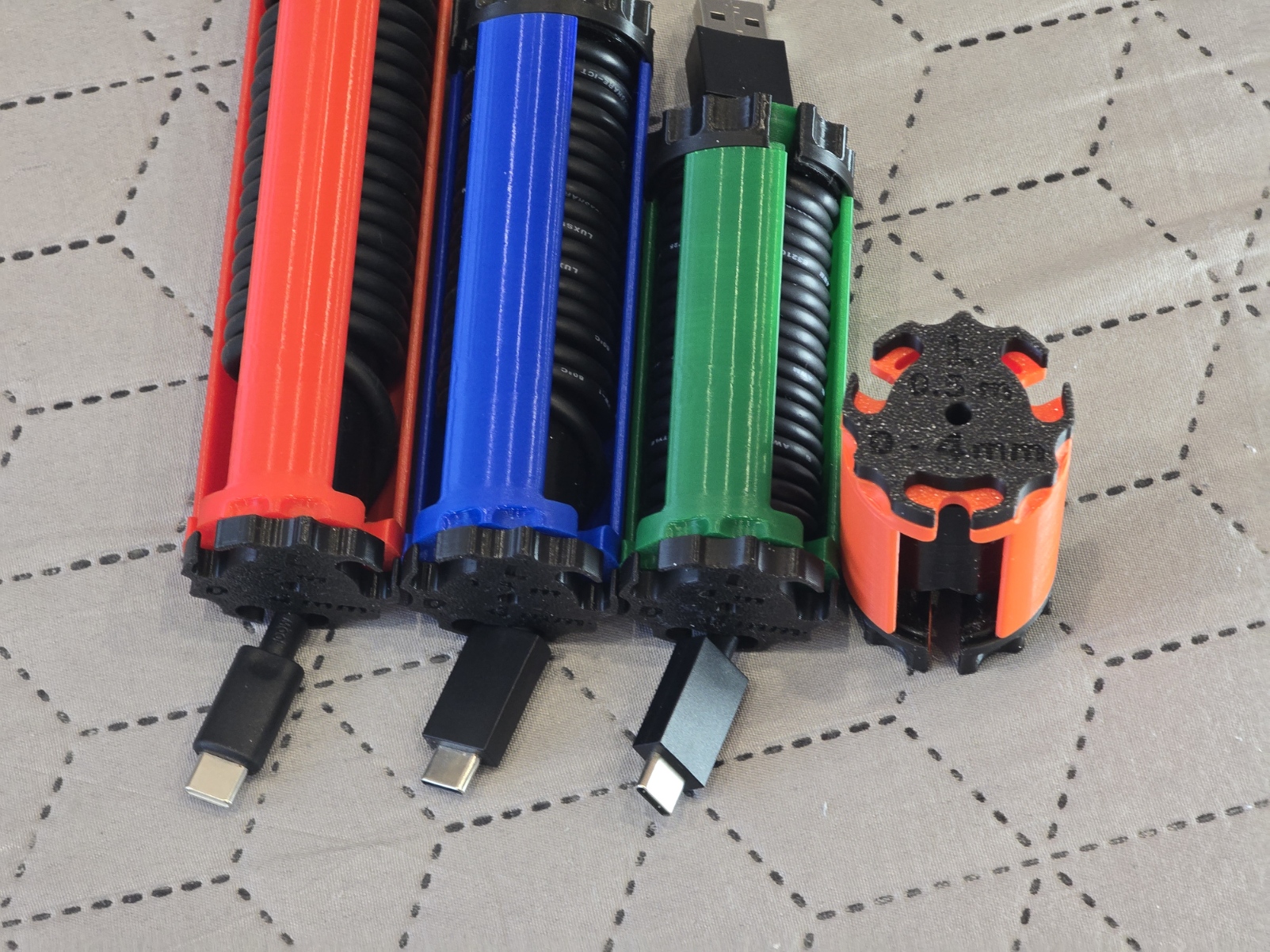

Available in four optimized sizes:

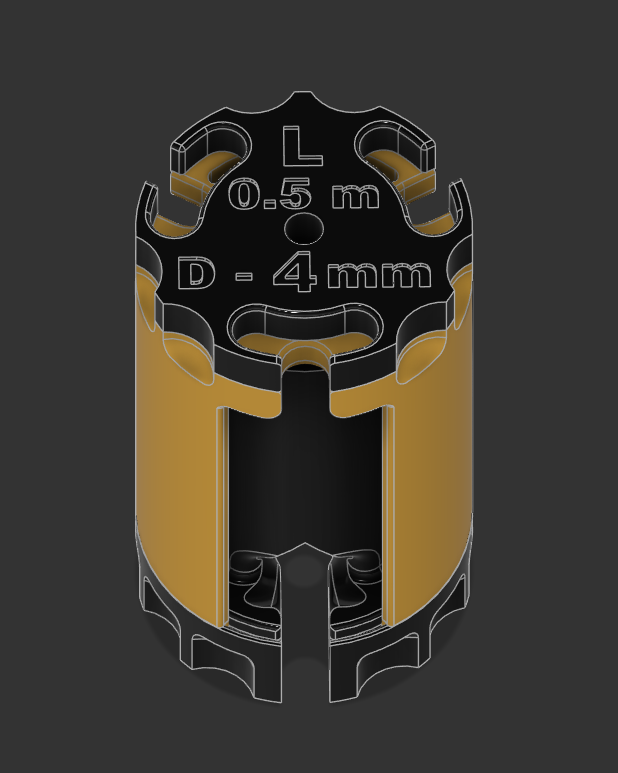

  • 0.5 m

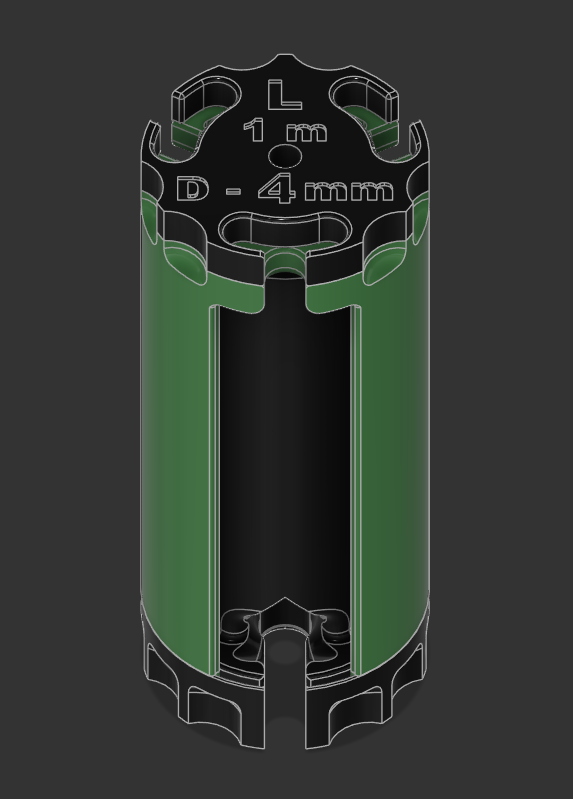

  • 1 m

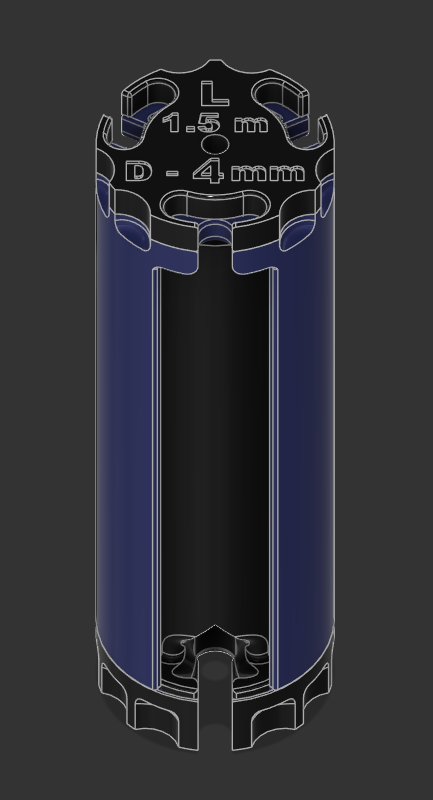

  • 1.5 m

  • 2 m

Capacity is calculated for 4 mm cable diameter.
Thinner cables (3–3.5 mm) may allow significantly longer lengths.

Approximate extended capacity:

Reel Size

4 mm

3.5 mm

3 mm

0.5 m

0.5 m

~0.65 m

~0.9 m

1 m

1 m

~1.3 m

~1.8 m

1.5 m

1.5 m

~2.0 m

~2.7 m

2 m

2 m

~2.6 m

~3.5 m

(Actual capacity depends on cable flexibility and connector size.)

🎨 Dual-Color Friendly Design

The reel was designed for two-color printing:

  • Upper half + bottom lock (accent color)

  • Lower half + top lock (contrast color)

This creates a modern, premium look — especially ideal for multi-material systems like AMS.

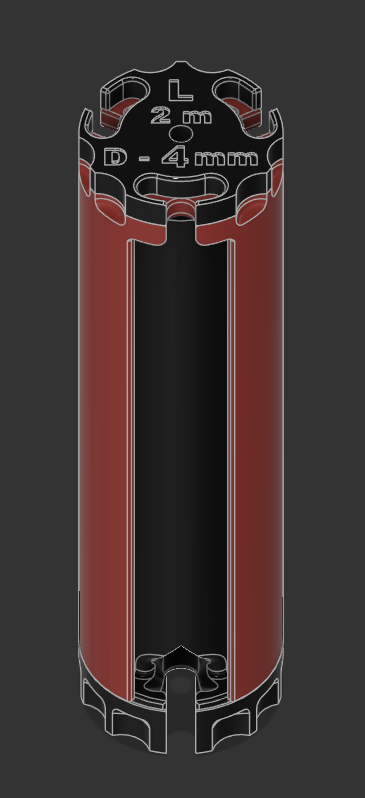

Each reel includes engraved size markings indicating:

  • Cable diameter

  • Cable length

This makes organization simple and visually clear.

🖨 3D Printing

  • No supports required

  • Snap-fit assembly

  • Optimized for precise printing

  • For best results ensure clean print bed and proper adhesion

Recommended materials:
PLA / PETG / ABS

✨ Key Features

  • Compact redesigned form

  • Cable-safe mechanical locking system

  • Size engraving for easy identification

  • Modular 4-part construction

  • Travel-friendly

  • Durable and reusable

  • Professional, minimal aesthetic

🎯 Ideal For

  • Phone charging cables

  • USB / Type-C cables

  • Lightning cables

  • HDMI cables

  • Desk organization

  • Travel kits

  • Everyday carry setups

Video of assembly and winding uploaded to Google Drive:
https://drive.google.com/file/d/1Y2DVmKNlFG_HJo61nI6rjUblpT0-Wu03/view?usp=sharing

❤ Enjoyed this print? All my models here are completely free for personal use. If you like my design and want to show your appreciation — or help me buy more filament for testing new projects — you can support my work by purchasing this model on Cults3D: https://cults3d.com/:4041094
