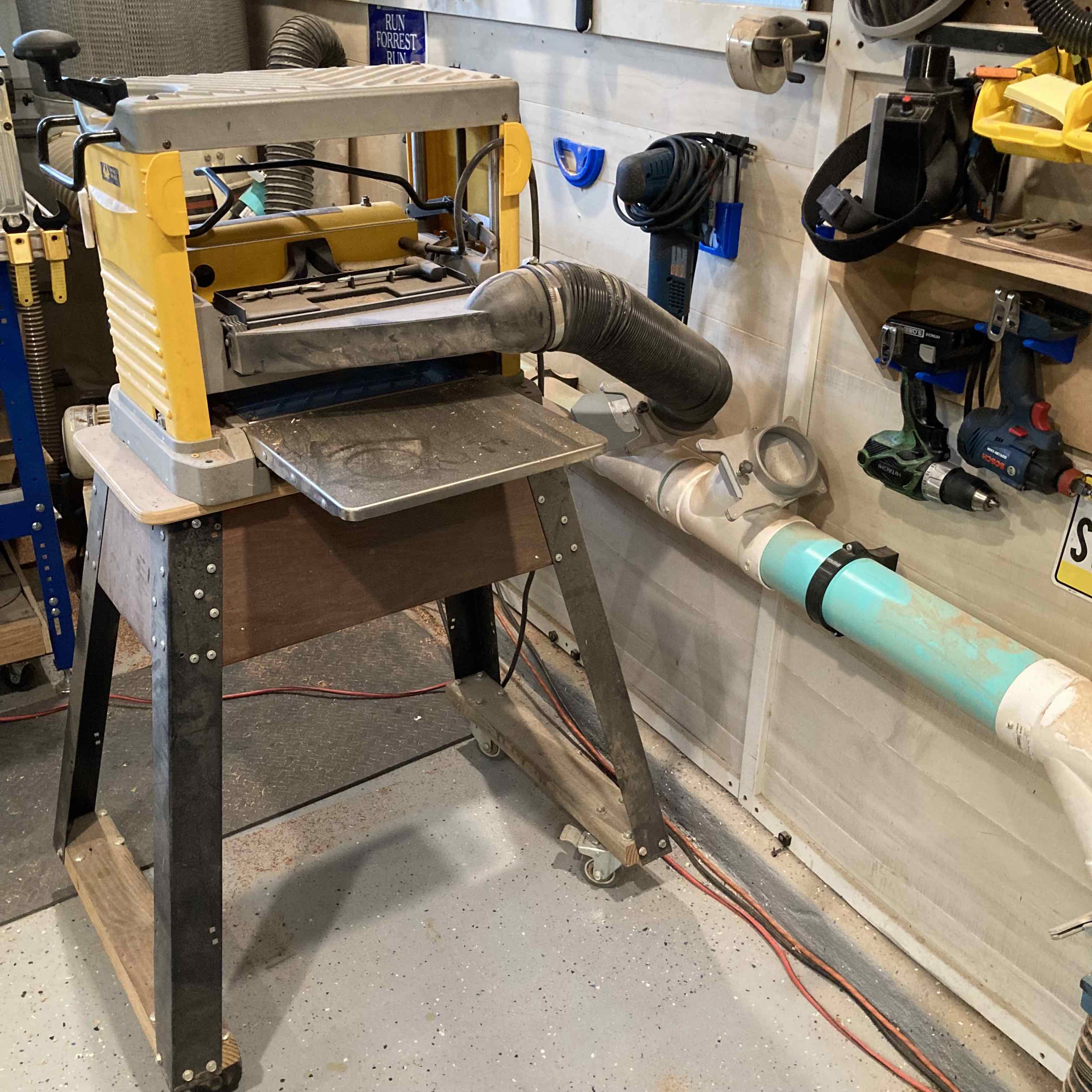

I designed these simple brackets to mount 4'' sewage/drainage pvc to the wall for use in my shop dust collection system.

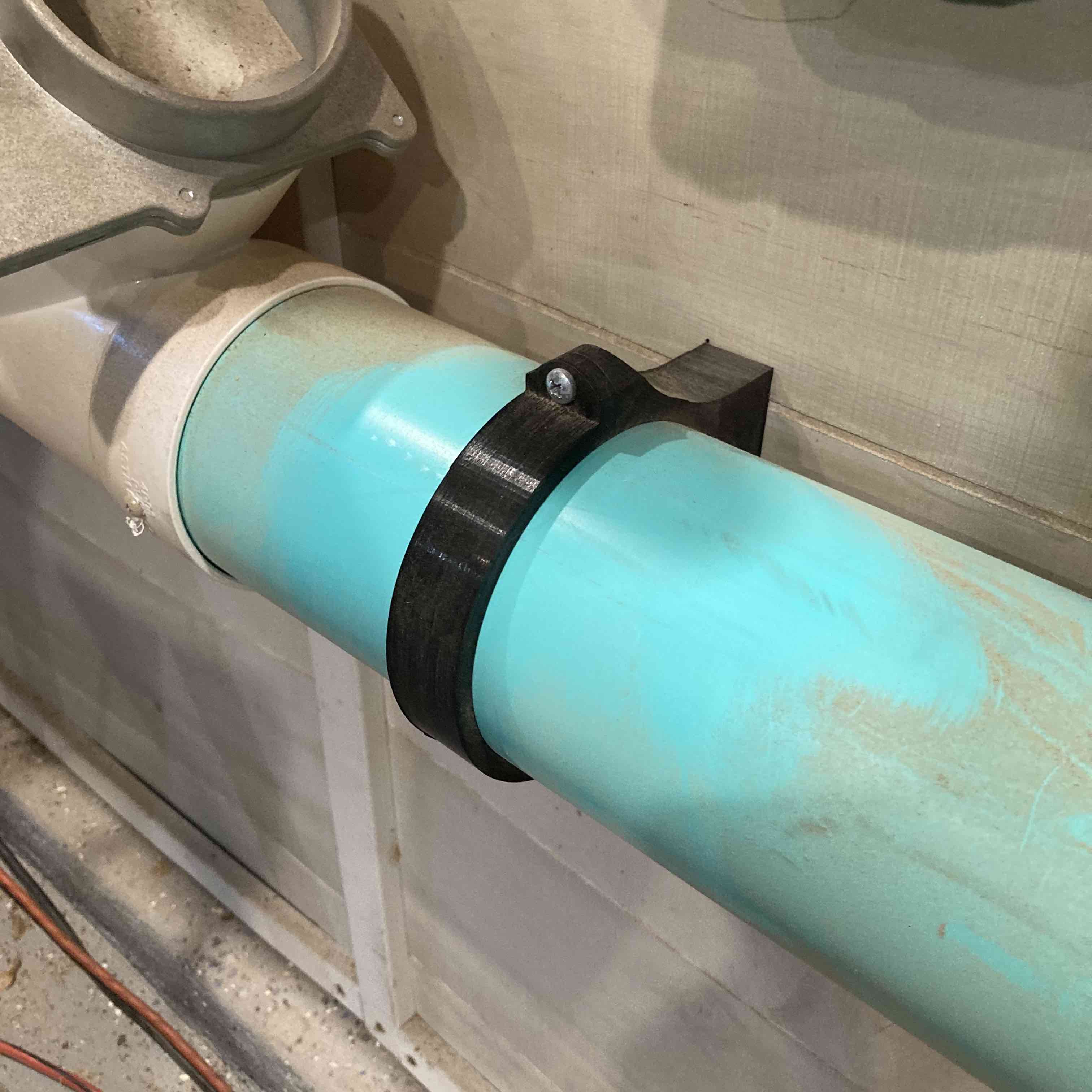

The bottom part of the bracket is screwed to the wall, then you simply attach the top piece over the PVC using a #10-24 machine screw.
These brackets have been holding up my small dust collection system for over a year with no issues.
I have included the fusion 360 file so you can edit the threads on the base if needed.
Printed in PLA
Print both pieces laying down on there sides
No supports required
6 walls with 50% infill at .2mm layer height
