I needed to move the bed forward quite a bit when changing to a vzbot gantry, so I designed these rod clamps to hold the upper rod ends. Clamping style allows for easy mounting without removing the rods from the frame completely. mounts…
I'm on a mission to upgrade my Tronxy X5SA into a truly great machine. This adapter lets you combine all the hardware from a Voron Afterburner kit with the existing Tronxy components to make the installation seamless. It let's us reuse…
After suffering for days thinking I had a severely warped bed I finally noticed my Y rails were sagging due to a combination of pressure from the shorter than ideal Z axis linear rods, unsupported Z axis lead screw and probably just the…
To proof, if a expensive rail mod is worth the upgrade, this is a minimal-invasive mod. i wanted the cheaper MGN12H carriage but it not fit between the v-slot holes. So, MGN12C is the way. Use M4x6.5 thread inserts and M4x10 screws. if a…
Tronxy X5SA Pro Voron Toolhead mount to fit Afterbumer , stealthburner and other voron toolheads. you have to cutdown the orginal plate for the xy belts to clear the motor and the front plate as shwon in photos. the clockwork 1 mount has…

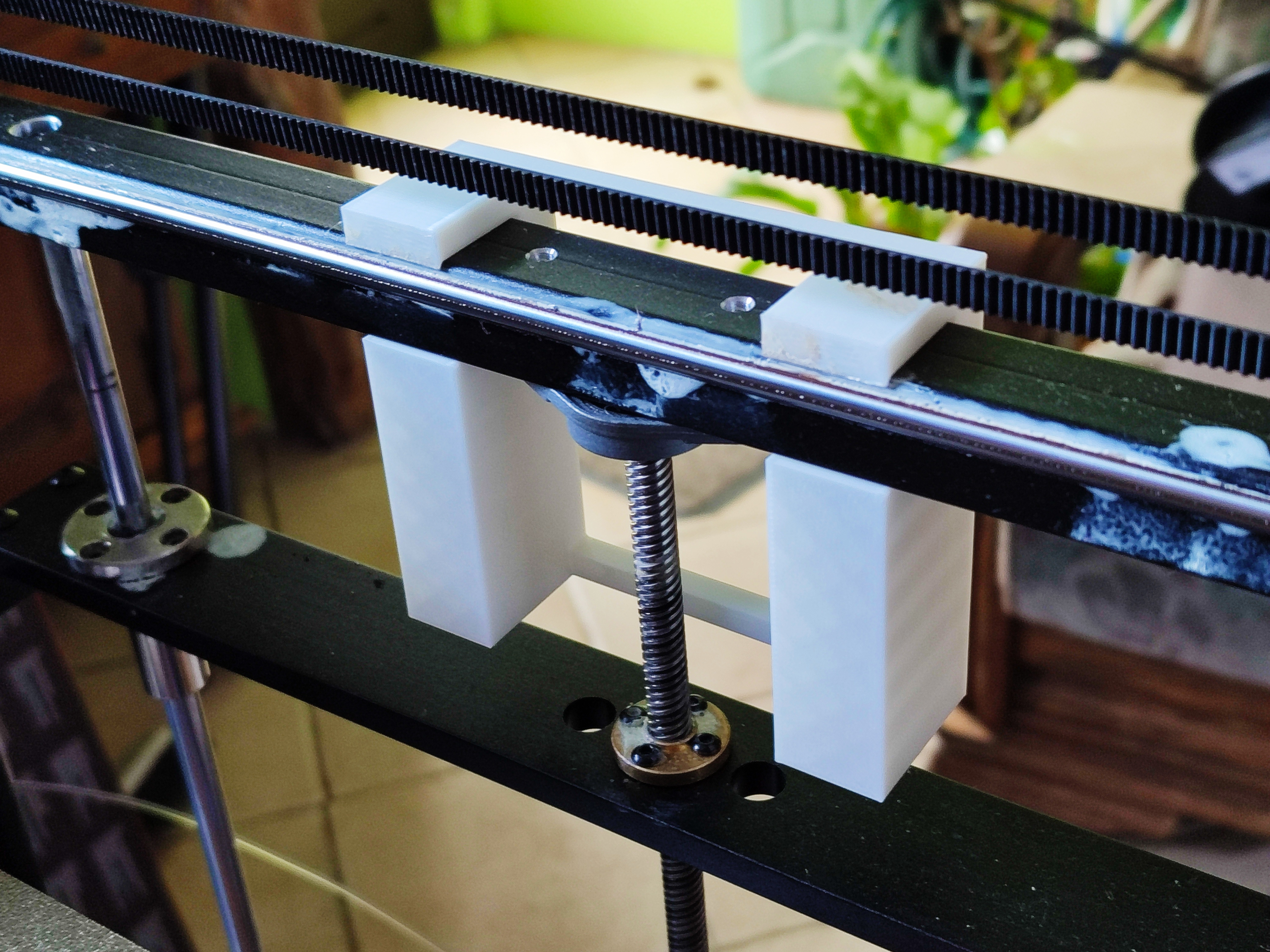

Upgrading abutment support plate x5sa 400 pro. Upgrading support plate. 1 Extruder position Home, 2 Place the stops on either side of the screws T8 and the upper frame. 3 Undivide the pressure screws of the pulley of the Axes…
Thanks to CroXY3D and Sivis for the Salfin extruder and Leo DIY for the Volcano holder. GitHub page by CroXY3D: https://github.com/CroXY3D/Sailfin-Extruder The remaining Salfin parts from:…
This isn't really a complete remix, but more of an add-on. I figured this would be the best way for people to see it. I picked up a Tronxy X5SA Pro 400 for a project, and price was great. I did however want to give it a bit more…
The Tronxy X5SA bed just keeps loosing the aligment betwen the two Z screws... And sometimes likes to crush the nozzle on the bed. This simple Z stoppers works like a charm to reset the aligment, just rises de bed manually with the motors…
This is a mount for the extruder and the filament sensor for the TronXY X5SA. It replaces the stock mounts. This mount was designed to move both the extruder and the filament sensor in the middle of the back side of the printer. You can…
This is a remix of 794832-fanduct-tronxy-x5sa-pro. I modified it to fit with a volcano heat block. And works good!
look at my other uploads for fan mounts and ebb42 mounts if needed
Required Parts: Screws - 6x M5x10 - 21x M3x8 - 16x M3x25 (for Fans) - 12x M3x12 (for accents on feets) - 4x M5x16 MINI Variant - 6x M3x12 - 1x M3x40 Nuts - 6x M5 VSlot Nuts - 21x M3 VSlot Nuts - 16x m3 (for Fans) - 4x M5 MINI Variant - 4x…
Remix of https://www.thingiverse.com/thing:4592391 Now supports BLTouch sensor Category: 3D Printing
HeroME Gen 5 Gantry adaptor and baseplate for TronXY X5SA Pro(2020) remixed using my own X5SA pro 2020 edition printer to model after. Confirmed that it fits, uses all original screws and the stock ABL sensor(using the…
The Co-Print Chroma multi-color printer conversion kit I had kickstarted finally arrived, and I needed a way to mount it on to my heavily modified TronXY X5SA-400 without interfering with the X-End Stop switch on the carriage (I have no…
I was looking for solution to automate the nozzle cleaning on my TRONXY printers converted to Klipper. Searched a bit and could not find any solution for using a silicone brush. The Bambu A1 silicone brushes are very cheap on AliExpress…
Utilizes M4 screws and M4 nuts the for the socket and M3 or M4 screws with T-nuts to attach it to the 2020 extrusion, but I've included .step file to modify it for your needs.
NOTE: This model is a piece of actual crap. I'd recommend you drop it into fusion, trace it out and make your own (I don't have any design files for it). If you are like me and are fine with absolute ghetto trash on your printer, please…
This is My Limit Switch for Y Axis, after Linear Rail Mod... Print Settings Printer: Tronxy X5SA Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: 0.2 Infill: 20% Filament: Geeetech PLA Orange Notes: Any material does the trick.…
Using this cause Discord doesn't let me upload a big file. untested. do not use this. ignore the name
A Baseplate for The Tronxy X5SA. Compatible with my Voron Grill conversion. MAde to use with these brackets: https://www.printables.com/model/934527-2020-extrusion-corner-brase/files (the large ones). to secure use you will need: 4x m3x10…
Update: 9 July 22 - Added a new extruder design. It's designed to work with an LGX Lite and Dragon (and maybe Mosquito) hotend. It's designed to be ultra-compact and will enable you to scrape in a 400x350 bed if you wish (I run and…
The 10x11 Cable chain delivered via german Amazon had a smaller space betweeen the holes and so i designed it new. this chain: Zeberoxyz 10x11mm Schleppkettenlänge 1Meter offener schwarzer Kunststoff-Kabelträger R18 mit 1Kit Endverbindern…
I thought I was modifying the up-to-date Baseplatte.stl from the supplied stp files, but after I printed my mod, it didn't align up. The original Voron Revo printhead (printhead_rear_revovoron.stl) from the Afterburner github has…
This model is a deep modification of a Tronxy x5sa-400. I printed all the top green parts with Prusament PC. i bought mainly on Ratrig's website: -M5 Countersink Screws 10mm -M5 Countersink Screws 14mm -M5 Countersink Screws 30mm -M5 Low…
I created this to extended how far out the bed chain was from the support bar. This was to prevent the toolhead from hitting the bed chain when running a mesh calibration. The bottom support for the bed chain needs to be moved to the…
This is a spacer for the filament run out sensor of the TronXY X5SA. It straighten the filament between the sensor and the extruder. You will need to replace the screws with some M4 x 16 mm. Support material is not required. An infill of…
This a box for distribution board (PCB) of the " Direct Drive Upgrade Kit " for the TronXY X5SA Pro printer.**** I needed this because the gantry holder/gantry plate of the upgrade kit, which holds this PCB originally, cannot be used with…
The original design is for a X5SA, the X5SA pro has a different mounting plate for the filament sensor, so in order to replace it there is an additional flat extension of the new part needed (as the original X5SA plate cannot be used in…
Tronxy X5SA PRO 330 Top Bearing mount for Z Axis replaces the orginal metal one that isnt long enough. uses 608ZZ bearing. im using this with Wobble X by Marage C and its working fantastic.
I'm on a mission to upgrade my Tronxy X5SA into a truly great machine. This adapter lets you combine all the hardware from a Voron Afterburner kit with the existing Tronxy components to make the installation seamless. It let's us reuse…
A basic brace for the TronXY X5SA series (or any printer using 20mm extruded aluminium for the frame). Mount in a corner and use tslot nuts and screws to secure. Ideally you should choose to print "with support touching buiold plate…
You need 2 M3 40mm and 2 M3 5mm screws. Print it in ABS or ASA at 100% infill. Make sure to have your supports tuned or youll find yourself drilling the 35mm holes. The supports released perfectly fine for me.
box for BTT EBB42 CAN v1.2 board for Tronxy XY X5SA Pro printer I upgraded my X5SA Pro to Klipper and got rid of the cable nonsense from Tronxy by using CAN, in the case the BigTreeTech/BTT/Biqu EBB42 CAN v1.2 board. This is mounted to…
After suffering for days thinking I had a severely warped bed I finally noticed my Y rails were sagging due to a combination of pressure from the shorter than ideal Z axis linear rods, unsupported Z axis lead screw and probably just the…
Just my modified capacitive sensor bracket for my TronXY X5SA PRO. I drilled new holes above the stock bracket location to give some adjustability to the sensor and found that the bracket blocked the stock fan shroud mounting bolt. I used…
This is a simple guide that strengthen the PTFE tube at the extruder output of a TronXY X5SA printer. You will need a M4 x 12 mm screw along with a M4 T-nut. Support material is not required. An infill of 20% is recommended. This object…
To proof, if a expensive rail mod is worth the upgrade, this is a minimal-invasive mod. i wanted the cheaper MGN12H carriage but it not fit between the v-slot holes. So, MGN12C is the way. Use M4x6.5 thread inserts and M4x10 screws. if a…
Tronxy X5SA Pro Voron Toolhead mount to fit Afterbumer , stealthburner and other voron toolheads. you have to cutdown the orginal plate for the xy belts to clear the motor and the front plate as shwon in photos. the clockwork 1 mount has…
I wanted to keep the original Endstop switch position on the left, but the black ABL sensor as well. The “HMG7.2 Hallon Medium ABL Left Mount.stl” in the Hero Me 7.4 kit is too short so i remixed it. Its about a third longer now, so…
This is a gantry conversion kit for the TronXY X5SA 400. It should work with the other X5SA models however you'll need to adapt the length of the linear rail (450mm for X5SA 400). Check out the installation video here:…
This is a direct drive extruder and other modifications to support a direct drive extruder mounted to a MGN12H linear rail on the X-Axis of a TronXY X5SA. There are mods for this extruder to support a number of different bed leveling…
As all owners of TronXY X5SA are aware, it can be very difficult to keep the bed level. The lead screws are attached directly to the shafts on the dual-Z steppers and with just a light touch one side can slide out of sync with the other.…
This is my design for a direct drive extruder setup on a TronXY X5SA (400 in my case) utilizing a linear rail (MGN12H) mounted on the bottom side of the X-axis 2020 extrusion. This gantry can use the supplied stepper, extruder, X…
The TronXY X5SA series printers come with basic acrylic motor mounts and poorly aligned CoreXY cables leading to the Y carriages. In CoreXY it is important that the cables leading to the Y carriages are parallel to the Y axis, otherwise…
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4976173 . The Tronxy X5SA is a very cheap printer with some pretty serious problems. The factory belt path is far from ideal, the motor and pully mounts are…
This spacer was created to be printed without supports. This is meant to be put in the two holes near the Z axis thread rod. The spacer goes around the bearing at the top of the axis making it flush with the frame. When making your Z axis…
This is a quick remix in OpenSCAD to make the mount compatible with the original X5SA (non pro version). The plate's thickness can be configured in OpenSCAD I attached a bltouch and reused the stock cooling fan. Those parts were taken…
Advanced triple z system for Tronxy X5SA printers. Currently no assembly instructions.
Front Panel & Corner Stiffeners for Tronxy X5SA PRO / "Mantis-Bot" Hello everyone! This is a custom-designed front panel modification for the Tronxy X5SA PRO (specifically tailored for the "Mantis-Bot" conversion). It features integrated…
Ecco una descrizione dettagliata, pulita e ben strutturata in inglese per le tue Belt Guards , completa di tutti i link, i crediti ai designer originali e i requisiti tecnici. Front Belt Guards for Tronxy X5SA Pro (Moggi_112631 Pulley…
Lightweight X Axis Bar for Cocoanix Printer Zero G+. Weighs 80 grams when made from Aluminium 6061. Should be used as a template because my printer is unique and isn't really even compatible with the printer mine is based from. Use with…
This is a replacement of the stock Z Axis Cable Chain Holder of the TronXY X5SA. The straight design is inappropriate because of the nuts on the extrusion side. I have design one that works perfectly. Support material is not needed if…
I wanted additional stiffening of the frame in the Y direction. Since the x5sa pro has the linear profiles, I had to create something new for this. The bracing can of course also be used on the corners with v slot profiles. Instead of the…

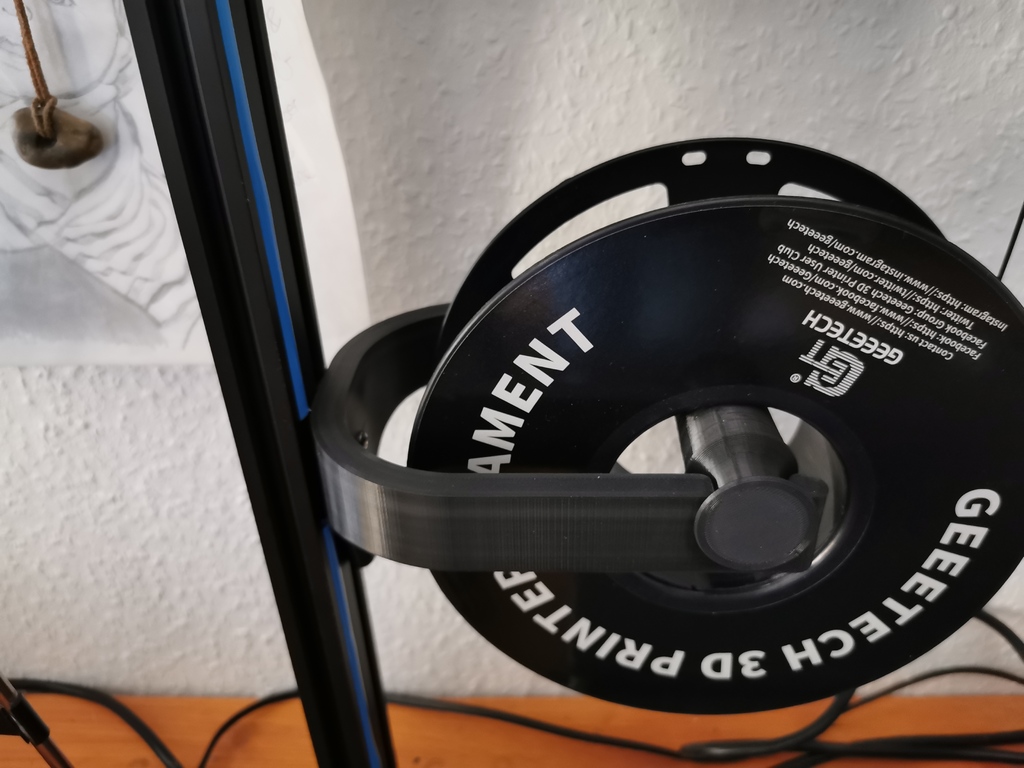

I wanted a filament holder for the X5SA Pro that I could also fit from the front. so a little bit drawn and here it is. Update 13.03.2021 I made a revised version of the holder. The roll holder is now slightly angled to avoid pulling out…
Relocated the Y End Stop to the back left for better cable management. I use Klipper so made the stepper_y - position_endstop to 316 (since I lost some dimensions with the AfterBurner mod). Use 2 m3 x 6mm bolts to install the end stop and…
I liked the case for the Duet 2 board. But I wanted it to be bottom like the old electronics case and with lids that lift up so you can rearrange it without having to move the printer. so a little redrawn and here it is. Category: 3D…
Printed in PETG. This is remixed from https://www.thingiverse.com/thing:3247870 and is compatible with https://www.thingiverse.com/thing:2494642 Basically i loved this guy's mount, but i wanted my printer to remain direct drive on the…
I made this as a modification for Grahm01's design for the original X5S printer. This is for the X5SA. You will need Longer M5 screws than the ones that came on the original gantry plate. Also this does not screw through the cross bar, It…
Update 15.05.2022: Provided upgraded version of the Plate (1.1). better alignment of the belts holes added additional mounting holes for different (shorter) Tronxy leveling sensors slightly better alignment of the FS above the Hemera…
Stock, acrylic brackets provided by Tronxy are weak and crappy, tending to bent under the tension of the belts. Additionally, they are forcing the Y motor pulley to be positioned unnaturally high, creating a lever effect and bending both…
I designed this mount for the biqu h2 because all the other mounts were not compatible with my metal plate. And/or were not easy to assemble. You will need 4 threaded m3 heat insert and some m3 screws. Note: I have no probe mount in this…
Remix from: https://www.thingiverse.com/thing:4251612 Add a Hole to mount it on a Tronxy X5SA Only tested Version 1. The Hole i add was move a bit to the left at Version 2 Category: 3D Printer Parts
these motor mounts were designed to lift the right motor to relieve the stress belt tension put on the motor shaft in the factory mount design mount to frame is all with m4 bolts and twist lock T nuts

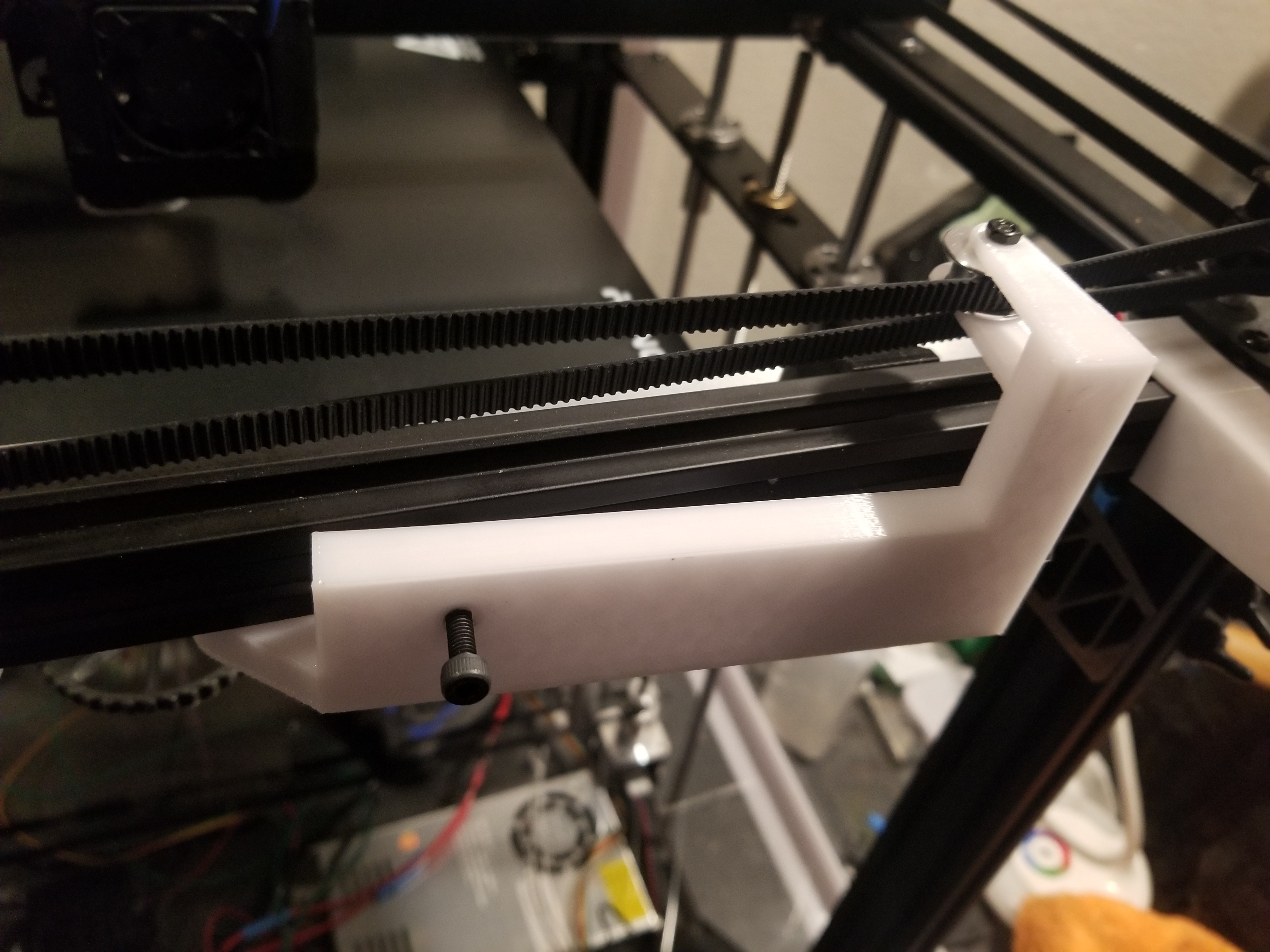

these are for precisely adjusting the tension on your drive belts, they pivot from under the front frame bar various hardware is required m4 bolts, t nut, and hex nut smooth pulley and m3 bolt and nut (perferably a round top bolt they sit…
I find this solution ( https://www.thingiverse.com/thing:4892480 ) very good, however I like to be able to move the endstop further to the front, hence I shifted the holes closer to make it more compact. Also changed the mounting holes…
A remix from the original, on my model of X5SA Pro I was having issues with the X endstop placement, and the ABL sensor not fitting due to the mounting plate being a bit bigger. My printer already had mounts that worked for X Endstop, so…
Eine detailierte Anleitung liegt diesem Projekt in PDF-Format bei. Support wird nicht benötigt. Drucken am besten in ABS/ASA. PETG und PLA sollte aber auch gehen. Druckausrichtung (nicht ganz unwichtig) ist in der Anleitung erklärt.
Umfangreicher Umbau am Druckkopf des Tronxy X5SA 400 Pro. Das ist die neue Version vom 01.09.2022 incl. optionale Halterung für einen BMG-Extruder. Kann aber auch mit dem originalen Extruder umgebaut werden. Weitere Infos kannst Du in der…
My original extruder mounting system failed after a day and a half so I quickly threw this together. The screws TronXY used only went in about a third of the way and it caused the extruder lever to strip the threads on the stepper motor.…
The Tronxy X5sa has a little gap on the linear rods for the z axis, and if you miss a little info on the assembly instructions you can end with a slightly bowing Y axis that will make bed leveling highly annoying. Since I forgot the…
This is a model of the Tronxy X5SA CoreXY 3D printer. I designed the model in TinkerCAD.
Dieser Halter ist für ein Micrometer (Neotec) am Tronxy X5SA 400 Pro. Die Messuhr nehme ich ab und an mal um das Druckbett zu leveln. Die Messuhr wird mit einer M6 x 20mm Schraube am Halter angeschraubt. Jetzt kann der Halter auf die…

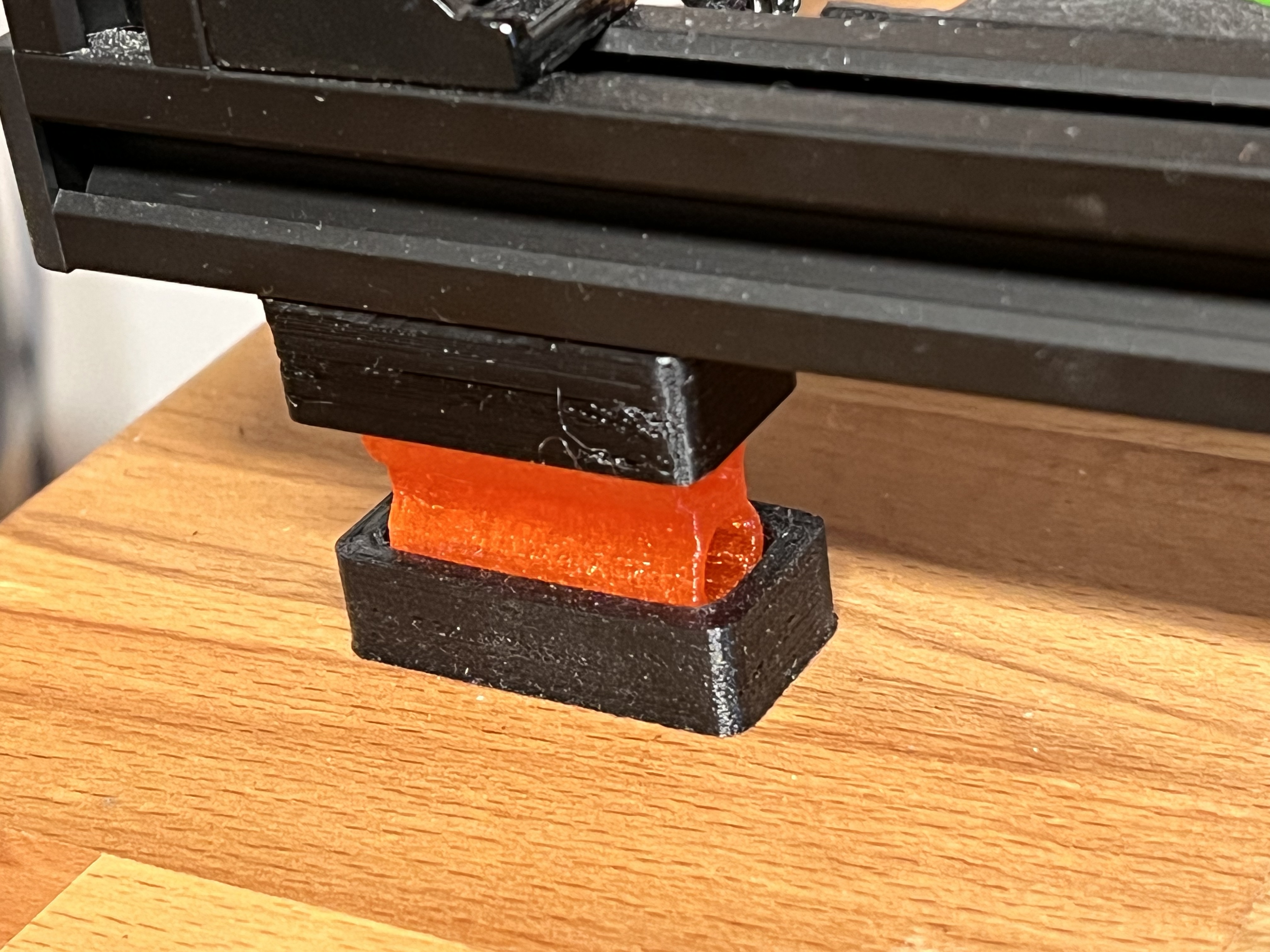

Die originalen Füße an meinem Tronxy X5SA 400 Pro waren nicht gut. Die Füße haben sämtliche Geräusche an den Schreibtisch weiter gegeben. Da mußte dann etwas her, was tatsächlich dämpft. Ich habe den Dämpfer absichtlich nicht rund…
In the absence of any information online and despite the terribly incomplete video by Tronxy, I installed their direct extruder kit. I wanted a way to mount the filament spool above the printer in order to avoid the Bowden tube and its…

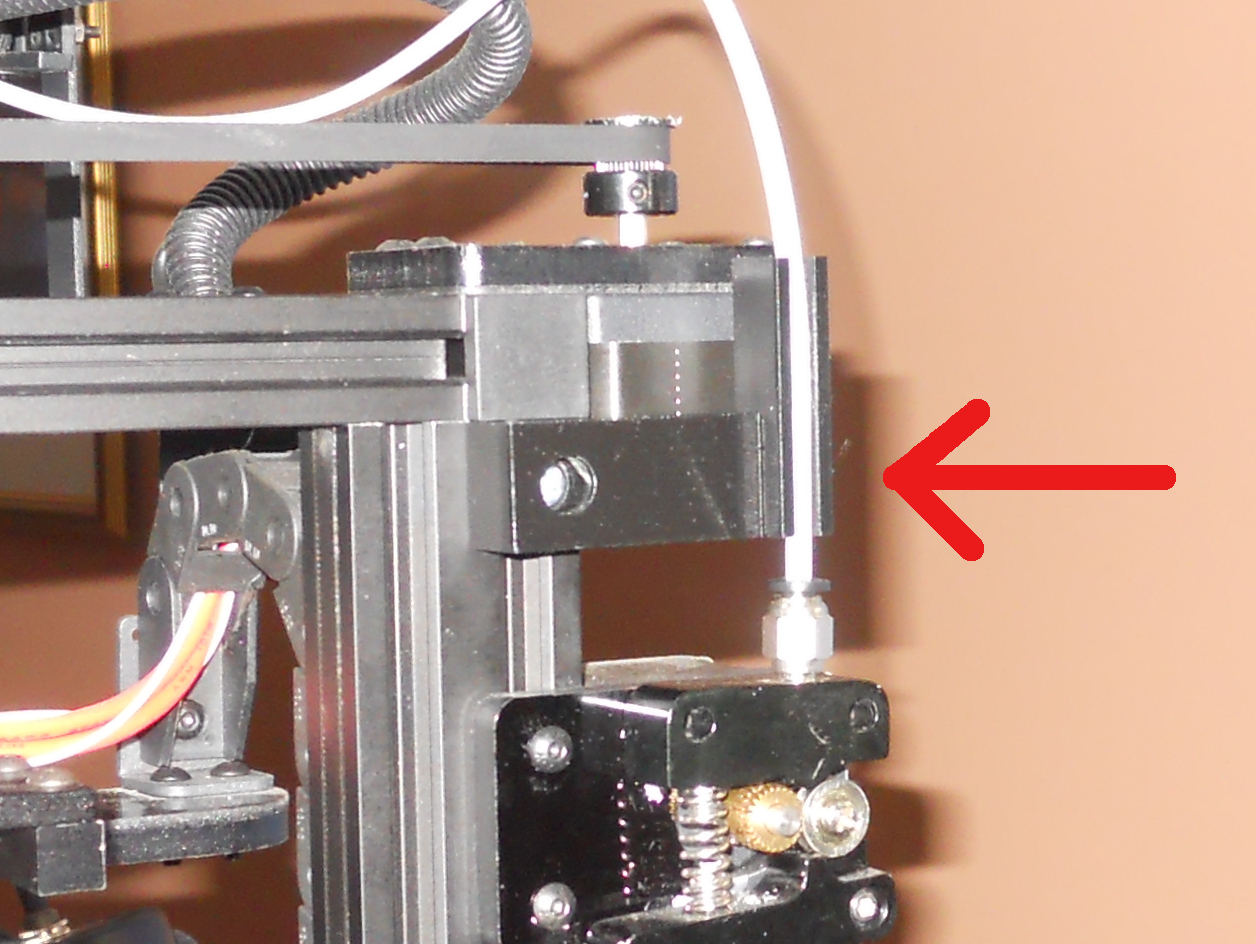

This is the version 2 of a simple guide that strengthen the PTFE tube at the extruder output of a TronXY X5SA printer. You will need a M4 x 12 mm screw along with a M4 T-nut. Support material is not required. An infill of 20% is…
Update: Jan. 10th, 2022- Corrected length of filament block bearing shaft screws. Was 12mm, they are actually M2.5x10mm. Revised bearing block model and added a 20mm length of PTFE tubing to the build. Without the tubing to guide the…
Update: May 20, 2024 Over time I've discovered that there is not enough airflow to the heat sink, and jams occur more often than they should. A hole on the level sensor side of the enclosure should be sufficient. Some other shortcomings:…
Somehow this model got double-posted. Please see the following thing for the most current version: X5SA PRO Bondtech Direct Drive V6 with BLTouch Mount by Jax225 | Download free STL model | Printables.com Print Settings Printer Brand:…
I needed to move everything closer to the breakout board after upgrading to the BTT SKR 1.4 Turbo mainboard. These brackets use some of the M4 holes on the electronics enclosure and power supply to mount everything to the side of the 2040…
This is an easy and fast mod to Synchronize the Z-Axis motors of the Tronxy X5SA-400. I've not tested this but this mod should also be compatible with the standard X5SA with 300x300 bed, you'll need a shorter belt. This mod is not…
Extruder Halter für einen VORON M4 Extruder. (Die Bilder mit der Montage am Drucker zeigen den älteren Mobius 3.1 Extruder. Den Halter für den neuen Voron M4 Extruder habe ich nicht am Drucker angebaut und deswegen die alten Fotos als…
Z-Riemenspanner mit Federarm für einen X5SA (Pro) Das ist eine neue Version meines Z-Riemenspanners mit einem Federarm anstatt einem Feststellarm. Die Riemenräder müssen dabei auf den 5mm Motorachsen sitzen. 1 x Endlosriemen: GT2 1150 mm…
Z-Riemenspanner für einen X5SA (Pro) ACHTUNG: Ich habe eine neue Version mit einem federgespannten Arm als Remix hochgeladen: https://www.printables.com/de/model/290599-tronxy-x5sa-pro-z-feder-riemenspanner-belt-tension Die Riemenräder…
X5SA Pro BIQU H2 v2 mounting plate you will need 3 m3*h3 heat inserts and 2 m3x12 countersunk screws to mount this, works best with the fan mount, duct and bltouch mounts from here: https://www.thingiverse.com/thing:5202213
X5SA Pro BIQU H2 v2s Lite mounting plate you will need 3 m3*h3 heat inserts and 2 m3x12 countersunk screws to mount this, works best with the fan mount, duct and bltouch mounts from here: https://www.thingiverse.com/thing:5202213 use the…

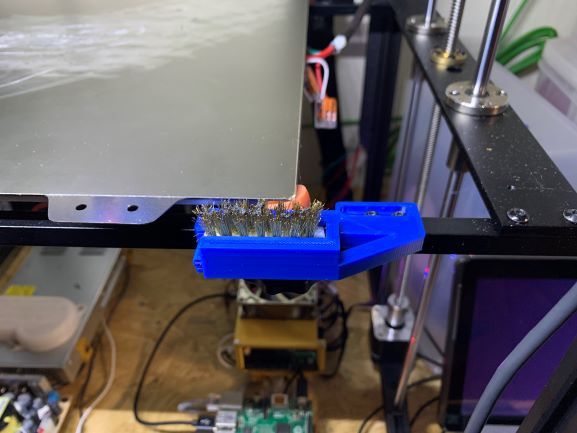

I was using the brush holder from TacticalElk when I had my stock printhead. However, it no longer reaches with the upgraded printhead that I recently upgraded to (nozzle just sits right between the bed and brush). However, it can now…
In my plans of slowly upgrading my TronXY X5SA to a VZBot, I wanted to upgrade the wheels to a linear rails. Since the VZbot BOM uses a MGN9 linear rail for the X gantry, I remixed marcelshiffer's main carriage (since I have to keep…
Stütze für Kabelkette Die Kabelkette vom Druckkopf meines TronXY x5sa Pro hängt sehr durch, schleift auf den Zahnriemen und ist sogar schon mal an einer Führungsrolle hängen geblieben. Dieser Halter legt die Kabelkette etwas höher und…
Update 30.08.2020 (Sensorhalter V9) Sensorhalter hinten etwas gekürzt, weil er manchmal mit der Schleppkette vom Druckbett kollidiert ist. (alte Version wurde entfernt) Halter und Geber für einen optischen Endstopp. Ich habe meinen Tronxy…
If you want a belt tensioner, this one will work and help to align the wheels better on the X carriage. The belt will be able to be adjusted using a m3 screw, I used 2 x 30mm m3 screw. The belts is tie rapped on the sliding pieces. You…
The Tronyx X5SA have few problems, one of the problem is the Y carriage, The wheels are not completely straight due to the design, this upgrade make the wheels straight so all 4 wheels touch well the VSLOT. I have 2 part, one bottom (the…
The Big Plans Three Motor Z Gantry (https://www.printables.com/model/240093) is made to work in most cube style printers - the X5SA included. These additional parts make adapting the OEM X5SA to the Big Plans Triple Z gantry as cheap and…
Installation instructions Adapted parts to use EVA 3 on a TronXY X5SA Pro. This is for the heat insert version. You will need 4 m5 x 25mm or 30mm bolts and 4 m5 nuts and washers to support the OSG wheels used on the X5SA Pro. This was…
Using idea from Martin_au I made direct drive conversion kit to convert stock Tronxy X5SA Pro to direct drive with Volcano V6 hotend, reusing Titan extruder that came with the printer and smaller “pancake” nema 17 motor. Cooling duct is…
it is for x5sa pro sensorless homing Y endstop and spacer Category: 3D Printer Parts
Nov 07, 2022 updated x5sa_5015_part_fan_back_mount resolved vibration when fan runs on high speed base on klemco v6 mount base, and remix with 3 sources below https://www.thingiverse.com/thing:5330379…
This mount retains all the stock endstop locations and reuses the Tronxy Z sensor. This results in no loss of build volume and the only firmware that needs to be changed is the max hotend temp. This still uses the Re-tweeked Claw duct…
