18650 Battery Spacer Grid | Octagonal (4-14 Cells)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution
BOM: Printed with ROSA3D High Speed PLA Dark Blue
This is the "Double Wide" expansion of my octagonal battery holder system. While the single strips are great for flexibility, these 2-row grids provide much more structural rigidity for building larger rectangular battery packs.
Key Features:
Wire Management Channels: Just like the single version, the octagonal shape creates perfect diamond-shaped gaps between the cells. This allows you to run series connections, BMS wires, or temperature sensors through the center of the pack.
Rigid Grid: Connecting cells in a 2-wide block minimizes flexing and keeps your pack perfectly square.
Cooling: The open corners allow for vertical airflow between the cells.

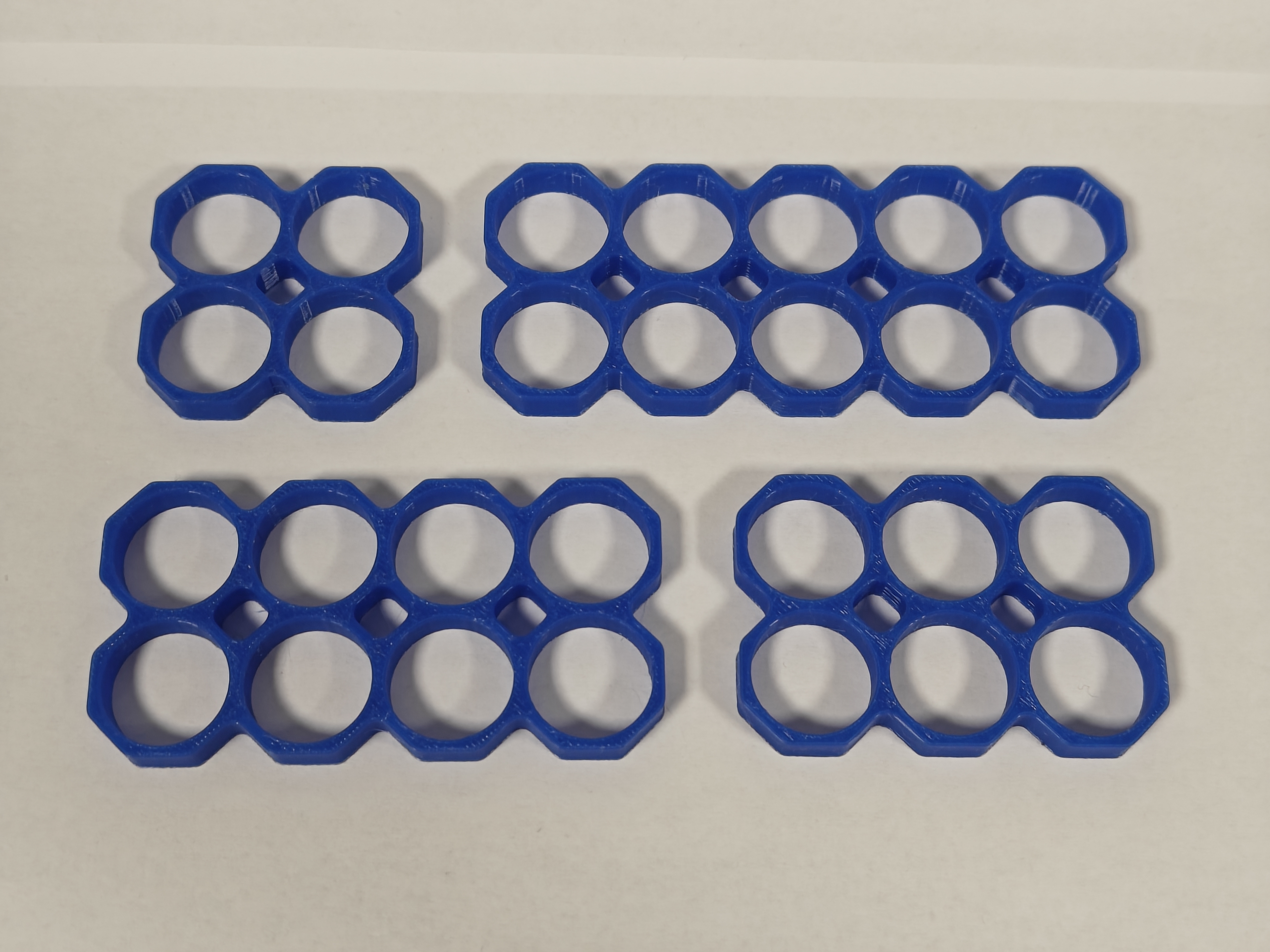

The Set Includes (Grid Sizes):
2x2
2x3
2x4
2x5
2x6
2x7
Printing Instructions:
Material: ABS, ASA, or PETG is mandatory for safety in battery packs (PLA deforms at too low a temperature).
Fit: Designed for a tight friction fit to hold cells securely without glue.
