RaspiCam V2 Mount that can be fixed to any Flat Surface. You can drill small holes in the bottom to fix it with nuts and bolts Print instructions PLA/PETG 0.2mm layer height 20% Infill 4 Perimeters 5 Bottom/Top Layers No Rafts/Supports…
Wydruk około 1,40 €–1,72 € nettoWstępna wycena jednego wariantu

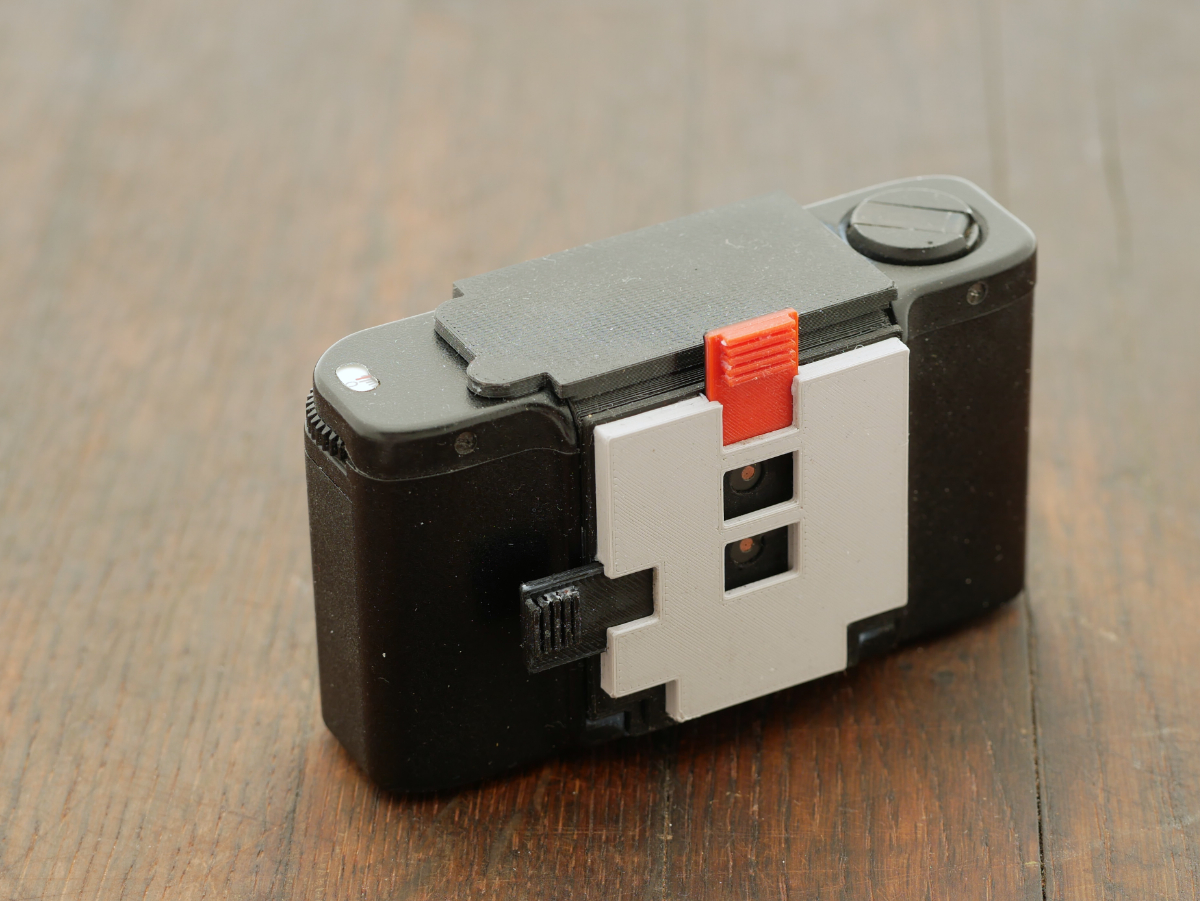

Conversion of a Minox 35 body to a pinhole camera. Please, read the pdf for details. NOTE: The assembly pdf file is found among the stl-files or you may try this direct link . Tools and material needed PETG filament black Loctite Super…
Pi Cam 90 degree mounting angle Print Settings Printer Brand: Prusa Printer: I3 MK3S Rafts: No Supports: No Resolution: 0.1mm Infill: 15% Filament: Prusament PLA Galaxy black Notes: Let's you mount the CMOS module of the raspberry pi cam…
Rapsberry Pi picamera micro case. Designed to be mountable on flat surface or using self adhesive tape on smooth surface ie window. Best printed on ASA although my builds are on PLA for the test. The files: ✅ Front ✅ Gasket ✅ Rear ❌ No…
UPDATE V5 - Added RIGHT Brace to support Logitech Cams - Brio100, C270, etc UPDATE V4 - RaspiCam Case - Added one more version that is flipped 180 degrees to have slightly more height - 5mm approx and added a ribbon guide UPDATE V3 - for…
Adjustable pole for RaspiCam on Y buildplate Dagoma Other necessary parts are available here:…: http://www.thingiverse.com/thing:1738064 Requires an M3 lg 16mm screw + 1 nuts + 4 washers. Print Settings Printer: Dagoma Discovery 200…
Articulated modular camera mount for the Raspberry Pi Camera. I made this to mount a PiCam to my Ikea Lack enclosure. The brackets screw together to form modular articulation links allowing flexible orientation in 2 axes. Each bracket can…
I really liked the two designs linked below but obviously they would not work together... But wait, yes they will! Introducing the PIcamcableclamp :) This is a remix/combination of two things: The main support arm is from:…
Just screw in the mount in one of the cornerpieces and the rest should be self explanatory. I recommend to print this with a rather high resolution because of the small parts. The “spring” on the cap isnt really needed, since the housing…
Printed on MK3S with Prusament PETG, PLA should also work fine. Requires: 1x M3x30 screw 2x M3x6 Screw 3x M3 Nut

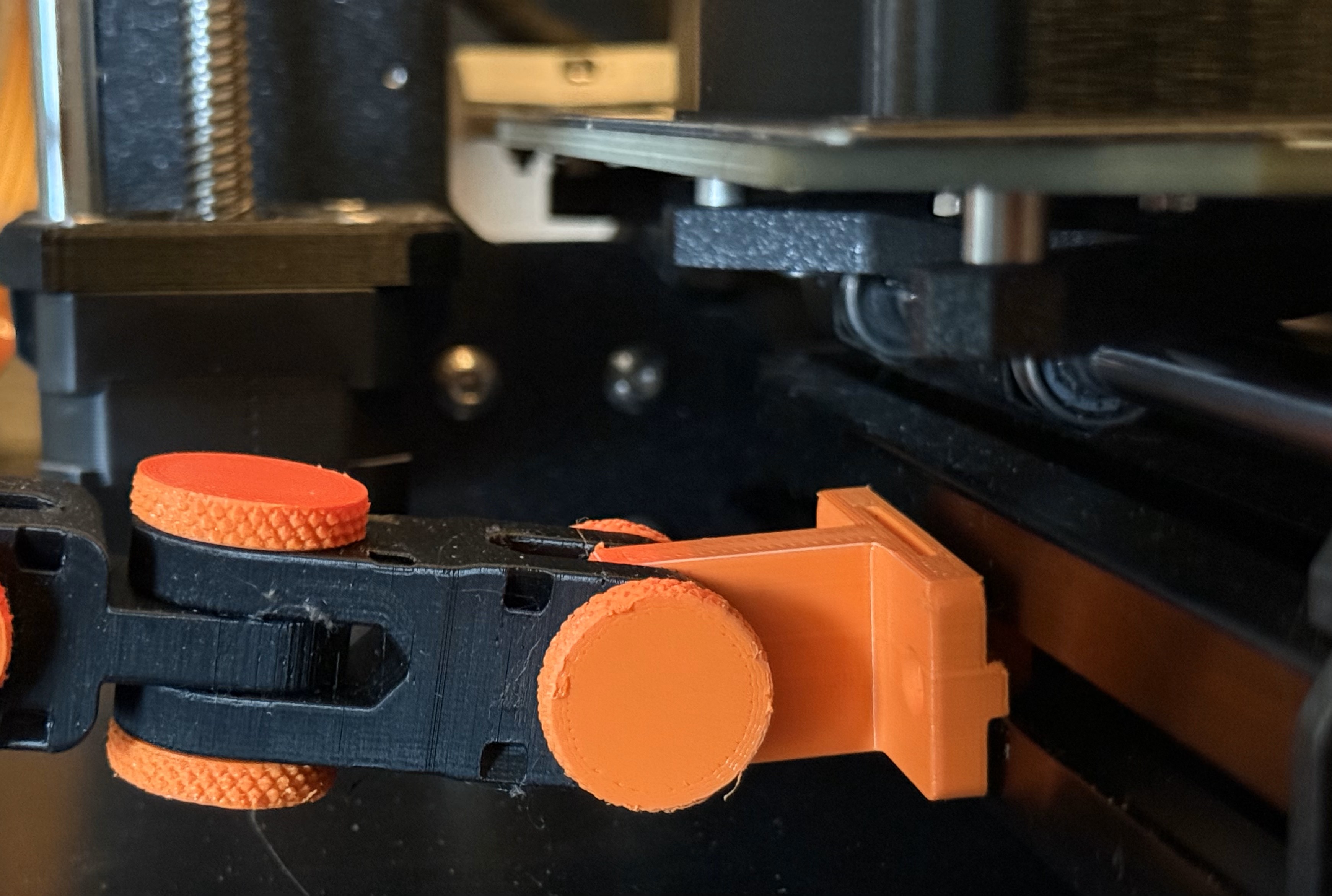

This is a rather quick modification to the original creator's 2020 extrusion model that introduces a twist-tab style mounting system that eliminates the need to disassemble your printer to insert the mounting nuts. Recommended Settings…
Inspired by @WhatWouldAnEngineerD. --- I redesigned the Ender 3 handle to include an anchoring ball in the center and a 12.6 diameter articulated arm to fit the camera body I'd already used (thing:5108053, I didn't have the cad file to…

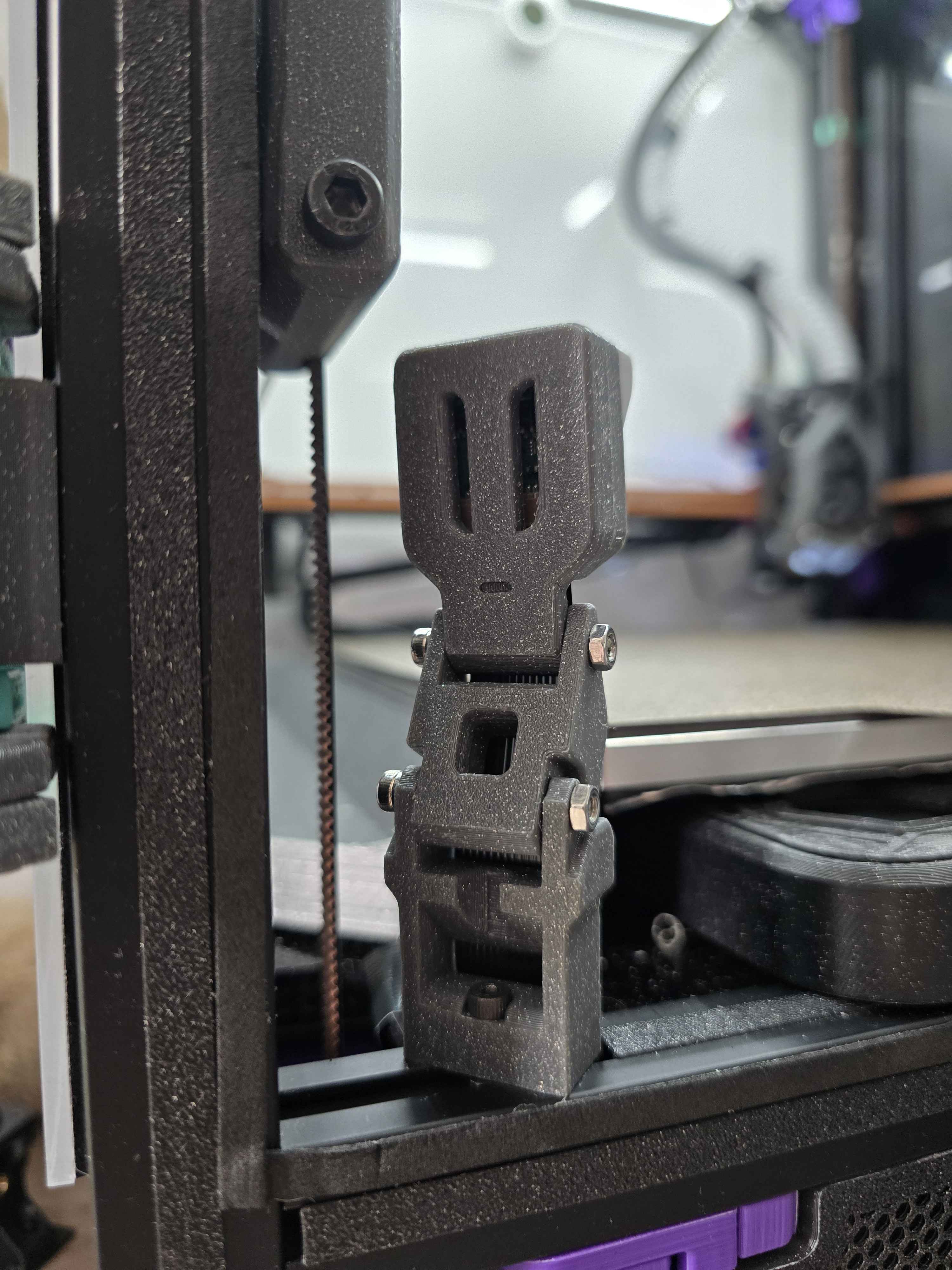

I needed a Picam3 Mount that wasnt boring and doubles as a feature. I made it look like a little alien. Some key Features include: Alien Esthetics 3 parts for extension Takes Pi5 and Regular Pi cables. has tabs to hold your ribbon cable…
This is my first make (not remix/custom :) ) for my personal use in first time with my Longruner Camera Module LSC15 & COM-FOUR vent . You can find the model for fit the Longruner Camera here : https://www.thingiverse.com/thing:2921682 .…

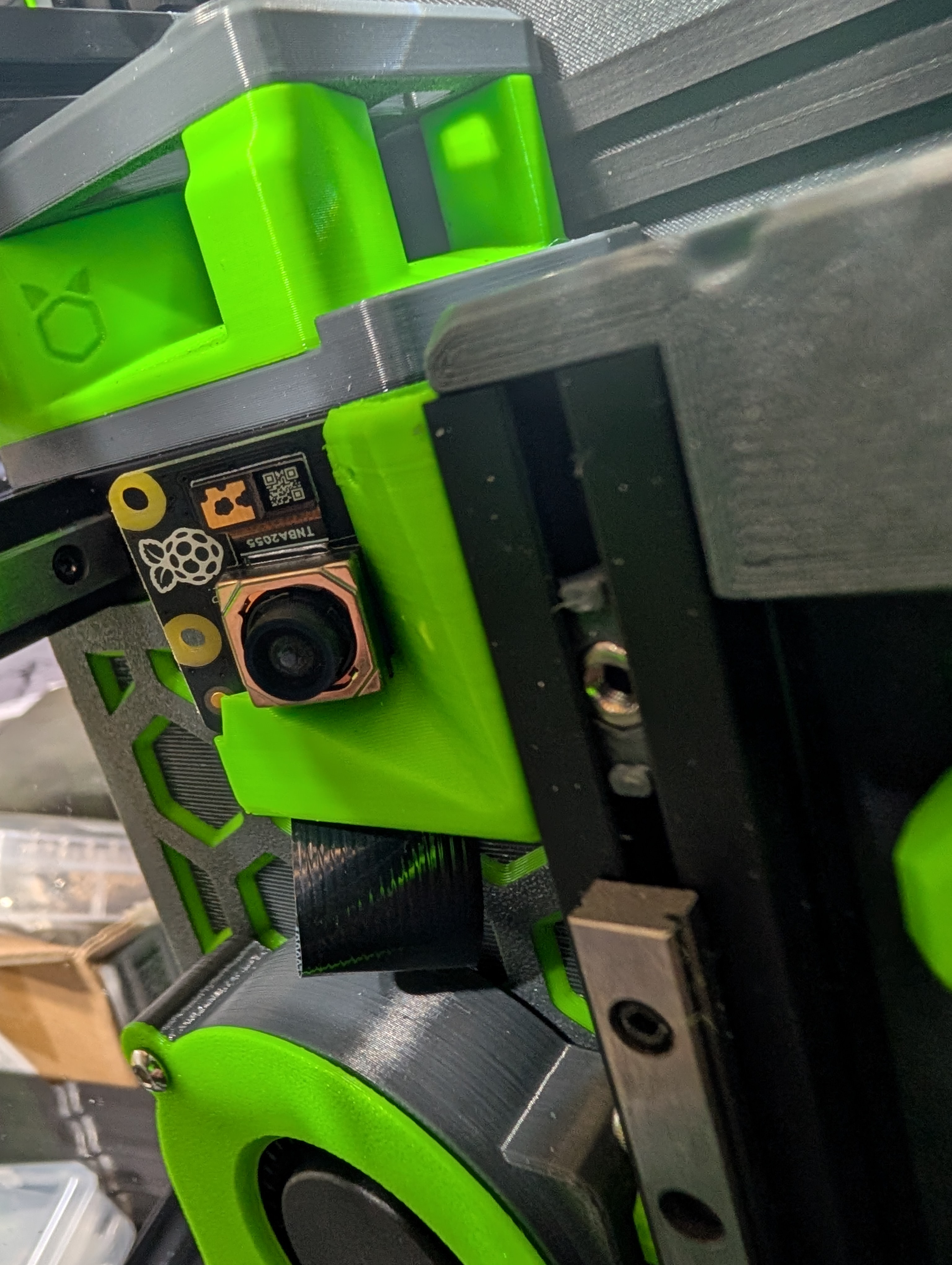

A v0 picam v3 mount for people that forget to load nuts in their extrusions

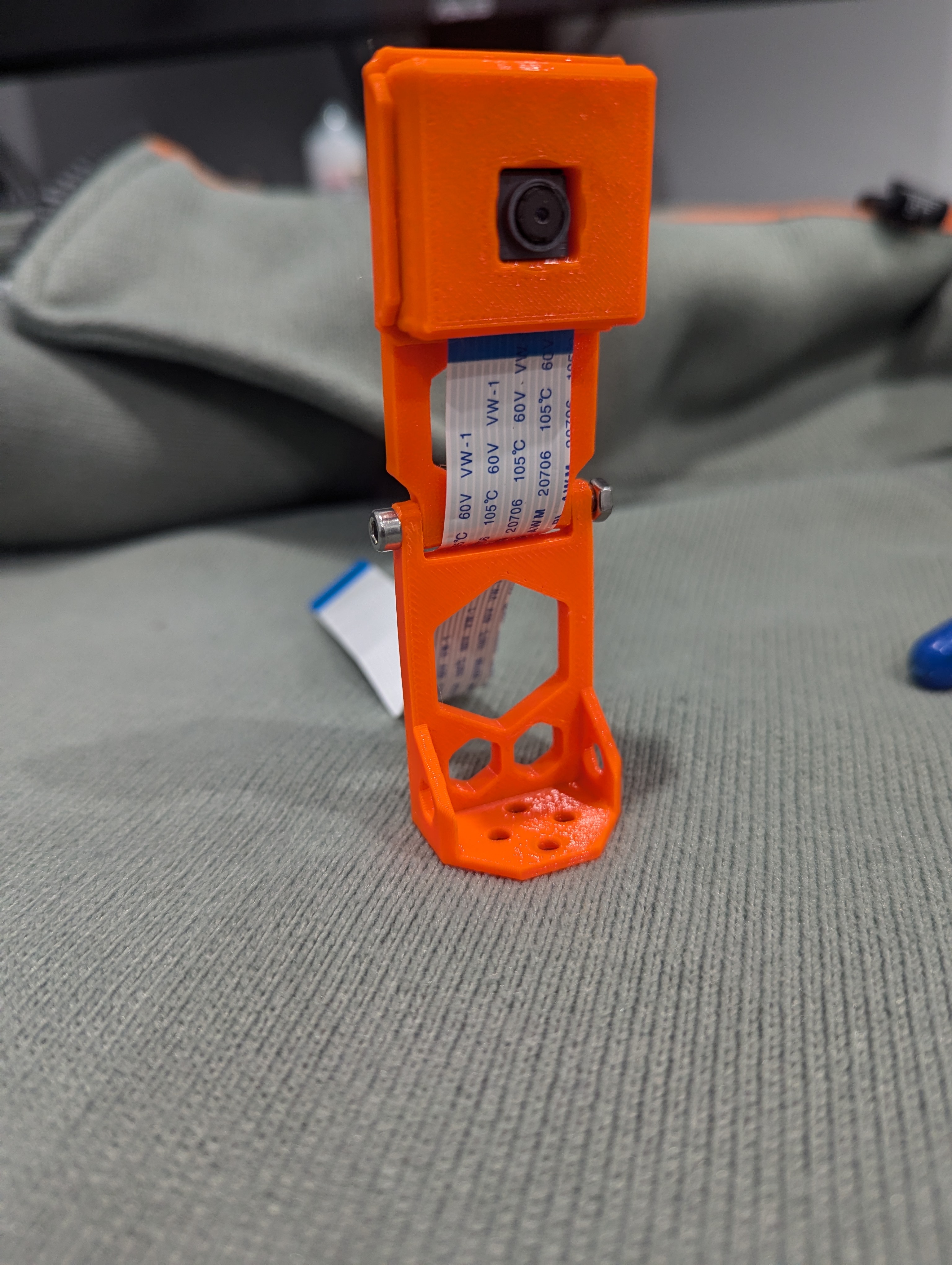

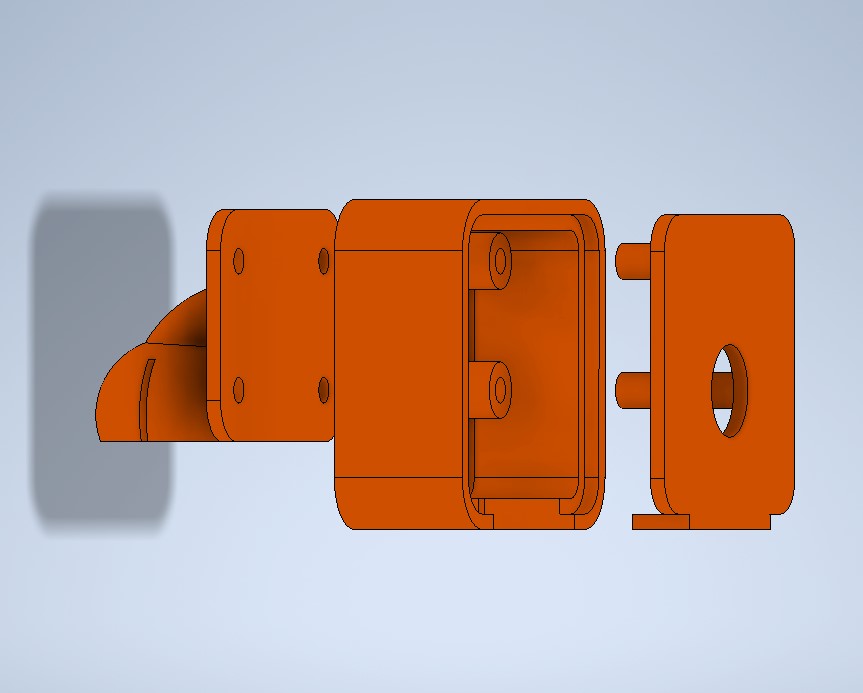

Stable housing for a PiCam with joint to rotate. Mounting on aluminum profile Height adjustable Rotatable Camera tiltable
This is a case for a raspberry pi 3 which can be used as a hotspot for picamtracker device. It has space to include 2 buzzers and 1 LED, as well as 2 switches to be able to safely shutdown the pi. Edit : Added the F3X version of top…
I like to use my raspicam for my 3D printer, but the CSI cable is not so handy. So I bought these CSI to HDMI adapter (amazon link), to use regular flexible HDMI cables. Finally I've made a cover mod for Sneaks incredible highly…
Snap fit enclosure for RPi Camera module v2 with m3 mount on back so you can attach it to whatever, whichever side up you please. m3 nut 8mm m3 screw for the tripod mount, if you have too long a screw you can reverse it so the nut is…
Rapsberry Pi picamera micro case. Designed to be mountable on flat surface or using self adhesive tape on smooth surface ie window. Best printed on ASA although my builds are on PLA for the test. The files: ✅ Front ✅ Gasket ✅ Rear ❌ No…
UPDATE V5 - Added RIGHT Brace to support Logitech Cams - Brio100, C270, etc UPDATE V4 - RaspiCam Case - Added one more version that is flipped 180 degrees to have slightly more height - 5mm approx and added a ribbon guide UPDATE V3 - for…
This is complete solution to mount a Raspberry Pi PiCam IR camera to the Y axis of your ender 3. The mount does not need any tools or screwing to mount to the printer. You'll need a couple of M3 screws for camera enclosure. IMPORTANT:…
This is a remix of three models Camera bracket: https://www.printables.com/en/model/157687-ender-3-v2-gantry-adjustable-pi-camera-bracket Case: https://www.thingiverse.com/thing:1167846 Camera bracket mount:…
yet another Pi Camera case. i made this because i wanted a case and mount to be usable with several of the DogBone based mounts. but i also wanted to be able to change where i mounted it without any effort. you can have mounts all over…
Holder for Raspberry pi camera. Fastening holes are spaced for 40mm wide V-slot rail (20mm), holes are for M5 screws, arm is fastened under screen holder. Camera cable has room between two side planes behind the arm. Camera case is…
Remix of the Mount for https://www.thingiverse.com/thing:3147295 PiCam mount to align the camera better for my printer. Refer to the original thingiverse page for PiCam enclosure and assembly instructions.
This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/auHrX9N8Hdy this is a remake of the camera mount swivel piece to accomodate the SainSmart Fish eye camera at…
A bracket to mount your Rasberry Pi 4 and PiCam with standard length ribbon cable to an Ikea Lack table. Designed to print with no supports. Additional parts required: 2x M4x30 button head screws (with 7.7mm head) 2x M4 washers 2x M4…
a tiny holder to connect the Pi-camera to the OneNineDesign touchscreen case. The case has a slot to mount the camera, but only in one angle and way to low for my Ender 3 printbed. There are two versions, one for a normal Ender 3 and one…
Case for the PicamV2 for use with octoprint to remote monitor your printer in the dark. All parts can be printed without supports, depending on the accuracy of your printer all parts fit tight together without any afterwork, additional…
The Stuva cabinet from IKEA is the ideal starting point for building an enclosure for your 3D printer. This mount allows you to attach your PiCam to the inside of your enclosure. Its designed to use two of the factory pre-drilled holes in…
I needed a way for a Picamera to take pictures of highly reflective surfaces. Conventional lighting created too much glare, so I went with a different solution; a microscope light. This item is available at this link:…
print in 0.2 layer, Can use gopro accesories, and ideal for short cables ti comes from bottom instead of top, also this prevents need to flip image.
This is a adjustable camera holder for the 3D Scanner FabScanPi (Model 2016 - ) The standard camera is the RaspberryPi Cam V1.x or V2.x You can adjust the x- and y-Axis (about +/- 1 cm) and you can correct the angle by adjusting the three…
This is a camera holder for the FabScan and FabScanPI. It fits for the raspberry camera module (Version 1 and 2 will fit). It was created for the FabScanPI Sandwich Box ( http://www.thingiverse.com/thing:1604281 ) but can also be used for…

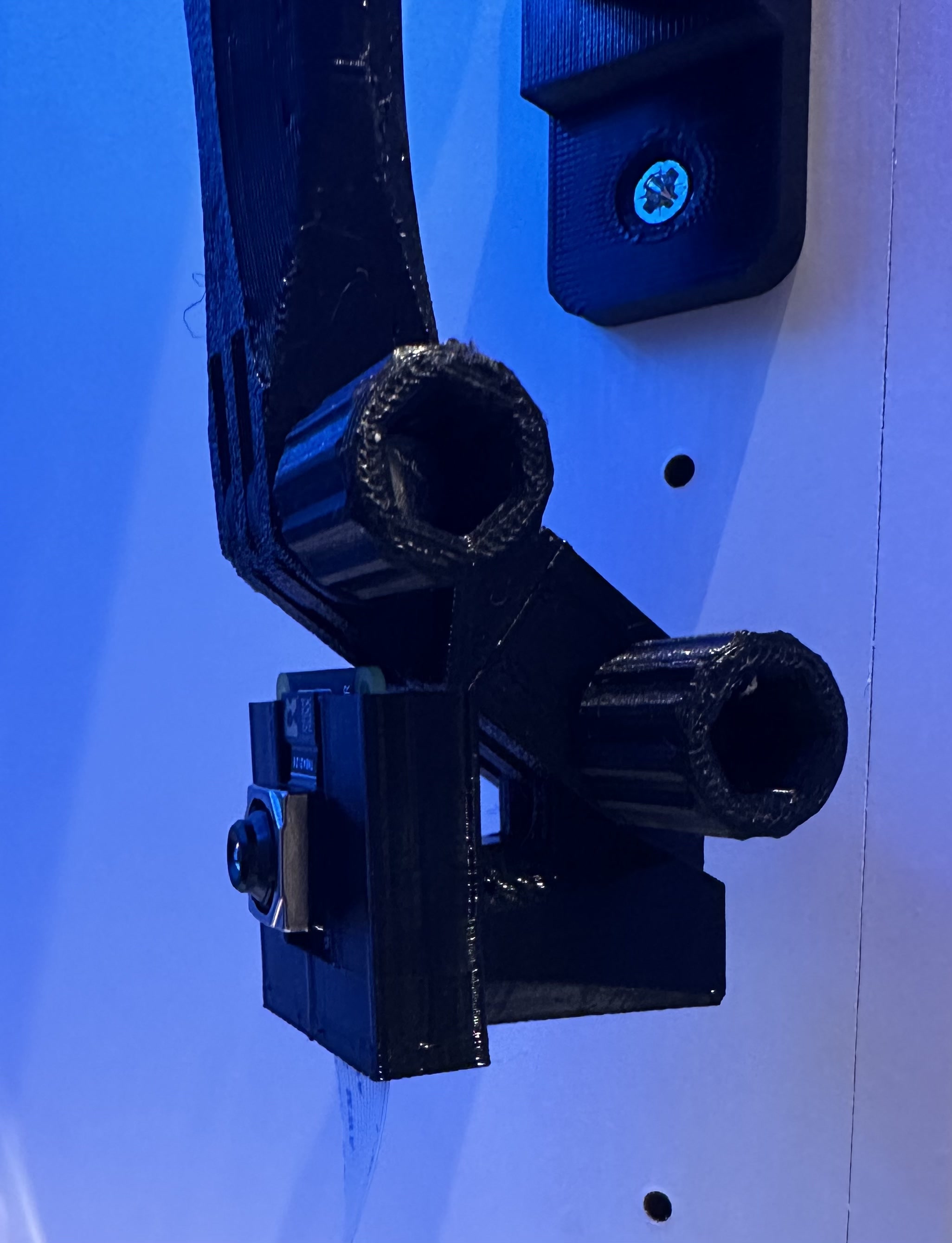

GoPro mount combined with Raspberry Pi Cam mount to allow for a versatile selection of mounts and such. Dimensions taken from the following two links: Specs page Mechanical Drawing Re-created the relevant part of the design in OpenSCAD,…
Remix of [Rotated Extrusion Clip for Articulating Pi Camera Arm](https://www.printables.com/model/58730-rotated-extrusion-clip-for-articulating-pi-camera-/files) to include ribbon cable chain mount [Raspberry Pi Rapicam Camera Ribbon…
Modular base for a Raspberry Pi - most large models... RPi 1, RPi2, RPi3 and RPi4 (tested). Extra additions can be made using a screw-on system. This set includes a PiCam Case with a small extension (reach is approx the reach of the…
THIS IS PART OF AN OVERALL Lack Enclosure design: https://www.thingiverse.com/thing:3129929 Designed to mount IR Raspberry Pi Cam…
Description A case for the standard Raspberry Pi Camera often used with Octoprint. It can be attached - using balljoints - to the printers' 20x20mm aluminium extrusions that most Ender 3 clones have. If you like check out my Raspberry…

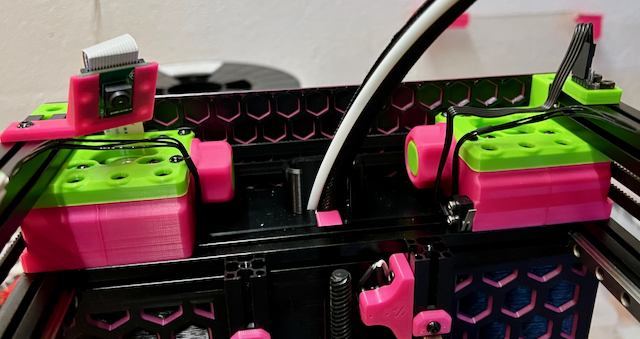

Voron 0.1 PiCam mount Please post a make and leave a rating if you print it. :)

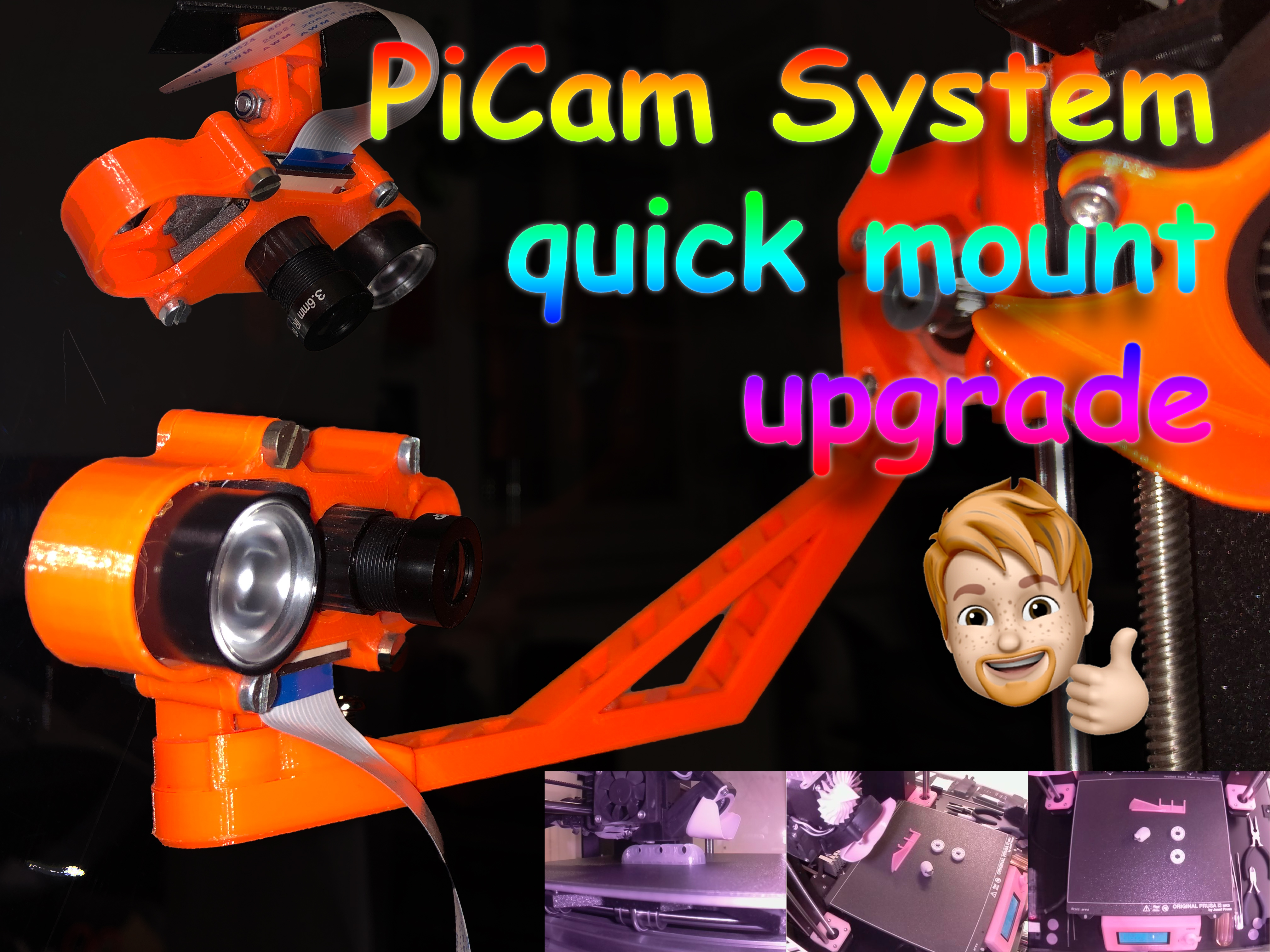

this quick mounts are for a well-known Pi camera mounting system “IR-Pi Cam Prusa i3 MK3/MK3s Camera mount Swivel Package” I wanted to quickly mount the Pi Camera from one place to another without having to screw it all the time. The…
2024-01-19: Ajout d'une version de la face arrière avec fixation pour le rail des boîtiers de Printer-Box . (absent des photos) Pour la version Wide (grand angle) du RaspiCam V3, je n'ai pas testé avec la version normale (je crois que…
Here is a simple articulated and adjustable heatbed mount for the Raspberry Pi cam V2. It was an iterative process to get all of the angles dialed in to give a good field of view across the print bed. I have attached a picture showing…
Ok, so what your going to want to do it. Go to harbor freight and buy two of the blue oval shaped flash lights they are around 2$ per. Then open them up and desolder the long LEDs' from each and also the resistors that is on the PCB. Then…
Bracket adaptor for mounting a PiCam V2 onto a Dynamixel digital servo
Prusa i3 MK3 PiCam v2 X-Axis Motor Mount What is this? The goal here is to mount a Raspberry Pi Camera v2 to the X-Axis motor of the Prusa Research Prusa i3 MK3. This will allow the camera to move up the Z axis as printing, which should…

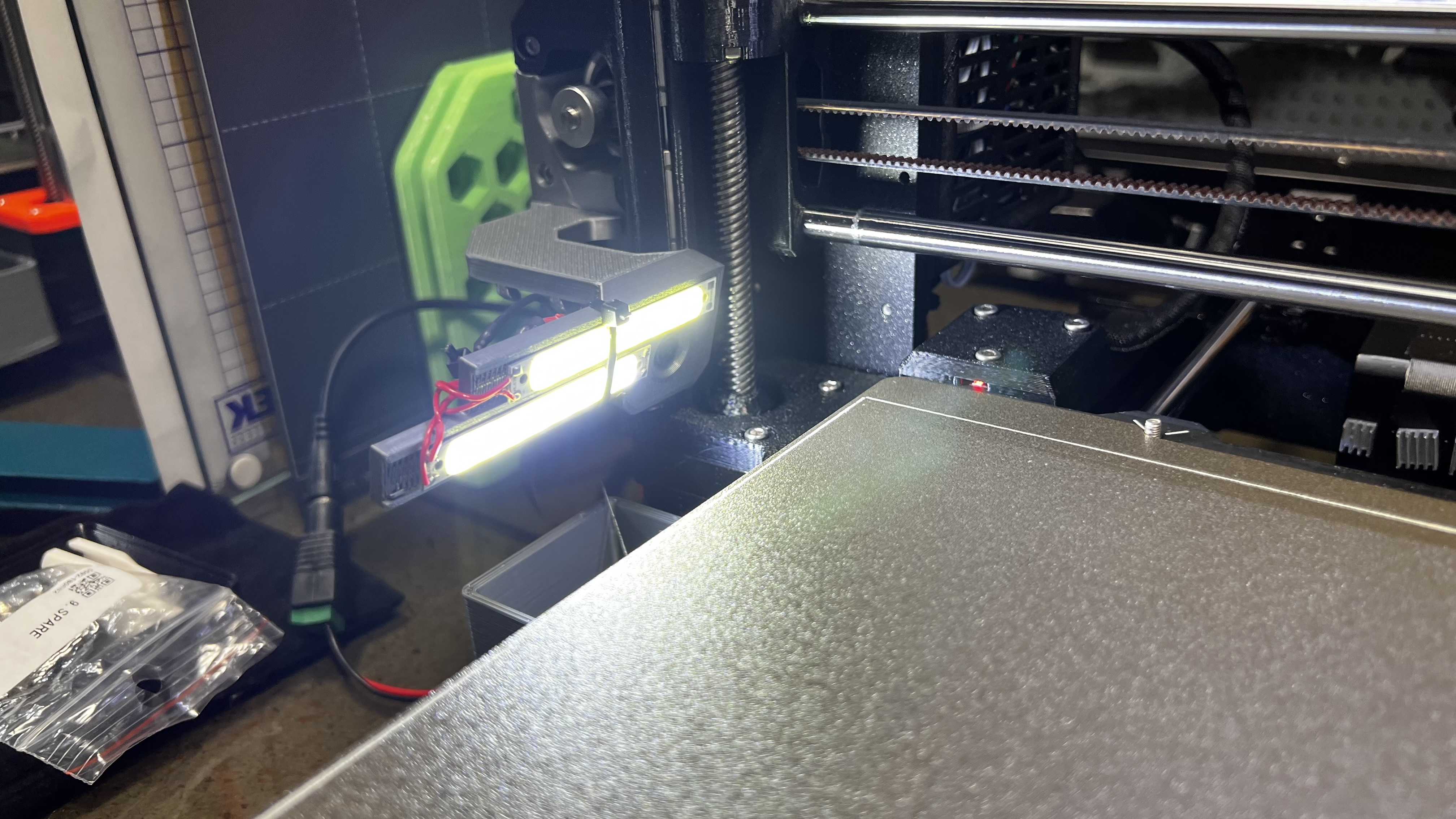

This is a relatively simple remix of my previous X-Axis motor mounted PiCam mount to include a diffuser. Following the instructions from the original should do you just fine for this: https://www.thingiverse.com/thing:3069717 Some extra…
For this build you'll need 2x M3x25mm SHCS or Panhead screws, 2x M3x14mm screws, 1x M3x10mm screw, 3x M3 nuts, and 2-4 M2 screws.
My Raspberry Pi4 case running with SSD https://www.berryterminal.com/doku.php/berryboot designed to control my Prusa Mk3 through Octoprint https://octoprint.org and record also many thing in slow motion. The small articulated arm…
This will allow you to use the Pi cam v3 wide with its bigger Lense. You can get the bottom of the case here. https://www.printables.com/model/138663-raspberry-pi-zero-w-with-camera-case-for-octoprint
Includes holders for PiCam v2 as well as the version with infrared lights. Mounted to a 7.6 mm rod from a soldering gun support.
I used the step file from the original model to adapt it to fit the PiCamera V3 module as well as the Arducam 16MP module. I also lifted the camera position by 40 mm, because I did not want the frame extrusions under the print bed in the…

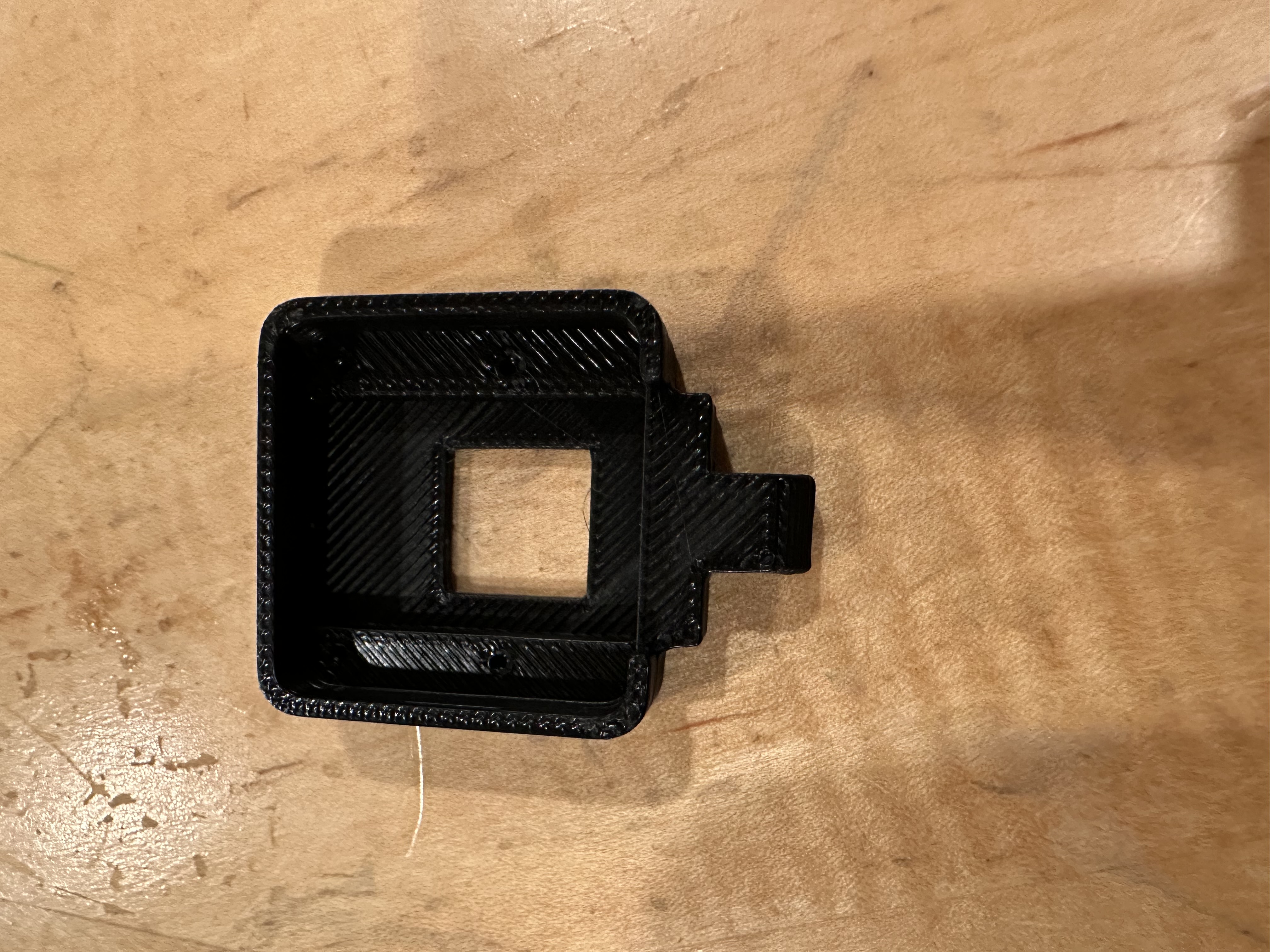

remixed diyshifts raspicam/arducam mount for the larger 8mp version, added a little voron symbol, widened the hole for the larger lens, aswell as change the bracket mount to make the camera raised a bit, among other QOL addons NOTE: this…
Based on the wonderful idea of tinkr3d ( https://www.prusaprinters.org/prints/46866-prusa-mk3s-pi-camera-v21-mount-with-optional-x-axi ) as well as various X-axis cable protection variants, I created a design that combines the advantages…
A compact ball and socket mount designed to hold various objects. This model comes with a holder for a Raspberry Pi Camera module, but it is versatile. You can attach other holders or adapters using an M5x0.8 thread at the end of the rod.…

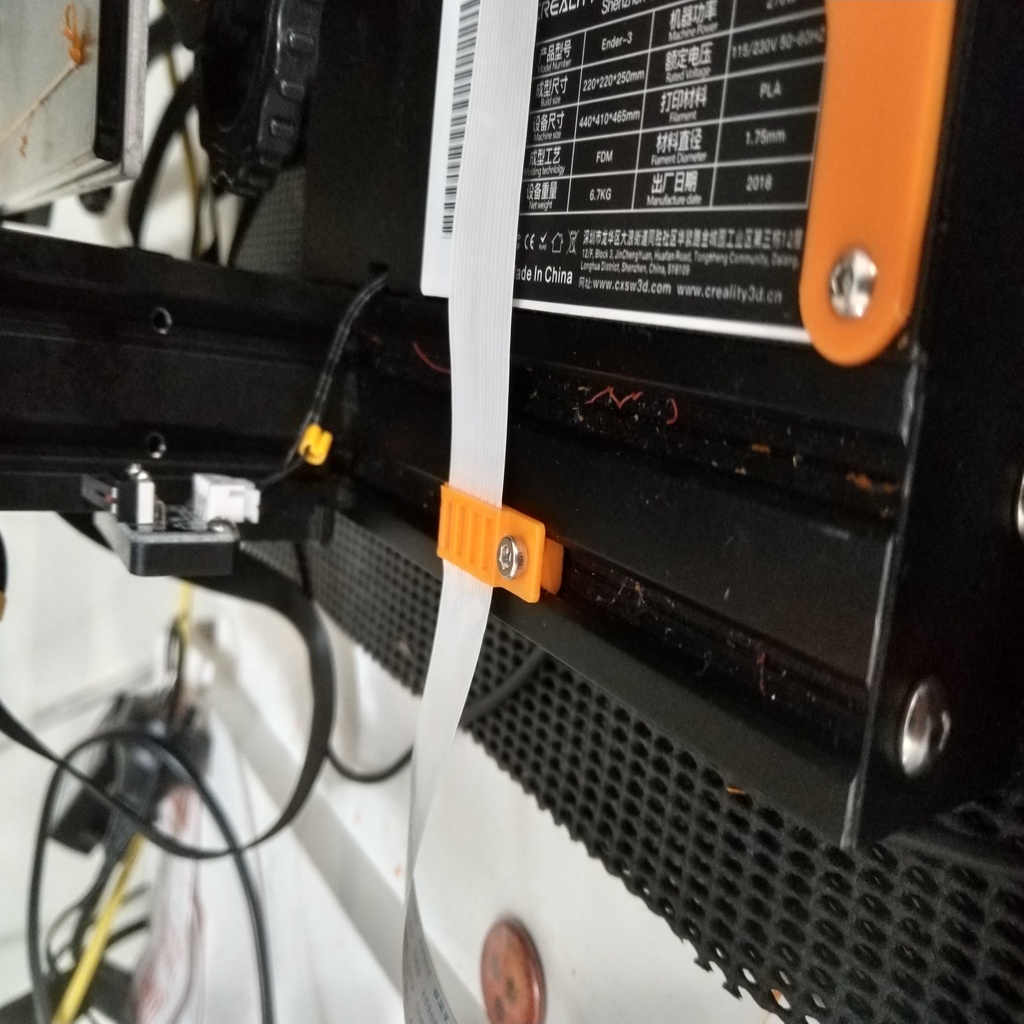

This 3D printable LED strip and PiCam ribbon cable support can be used in any 3030 extrusion, but it's tailor-made for RatRig VCore3 with Enclosure 1.0. This 3030 extrusion mountable model addresses the space constraint issues for LED…
This plate is modified around the picam v1.3 in order to allow its use in https://www.thingiverse.com/thing:4761307 by crsn00
Permet de fixer un raspberry et sa cam, sans percer le bois de UMO+, fixé avec 3 vis déjà présents. Le support à rotule est simplement "pincé" sur la tranche. J'ai fais 2 version du boitier pour la raspicam, fermé et ouvert. Category: 3D…
Since the original cover was made for Camera Module 2 it didn't fit the newer version, so I made some adjustments on it.
Still prototyping this design. This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/5GDrlIpBeia Print instructions Category: 3D Printer Parts Summary Still prototyping this design. This thing was made with…
Its a Remix of https://www.thingiverse.com/thing:3147899 and https://www.thingiverse.com/thing:2873677 With the help of the two designs above, I designed a camera holder for the CR 6-SE that exactly meets my requirements. Suitable camera:…

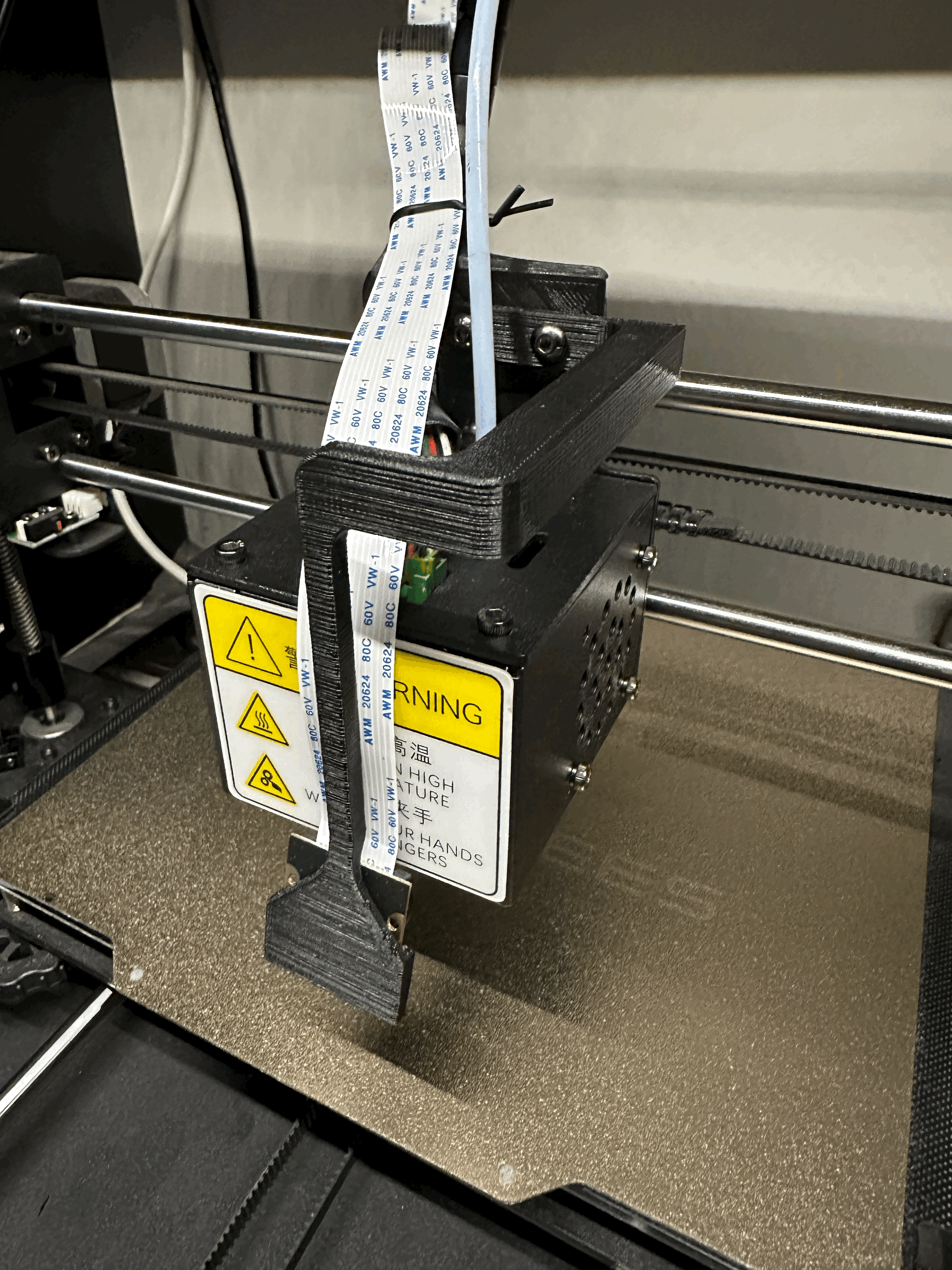

Small holder for the raspicam so it can be screwed into the head of the Anycubic Mega Pro. Camera sits just barely above the printbed - if the nozzle sits higher than in my case it might be too low, if that is the case - you might need to…

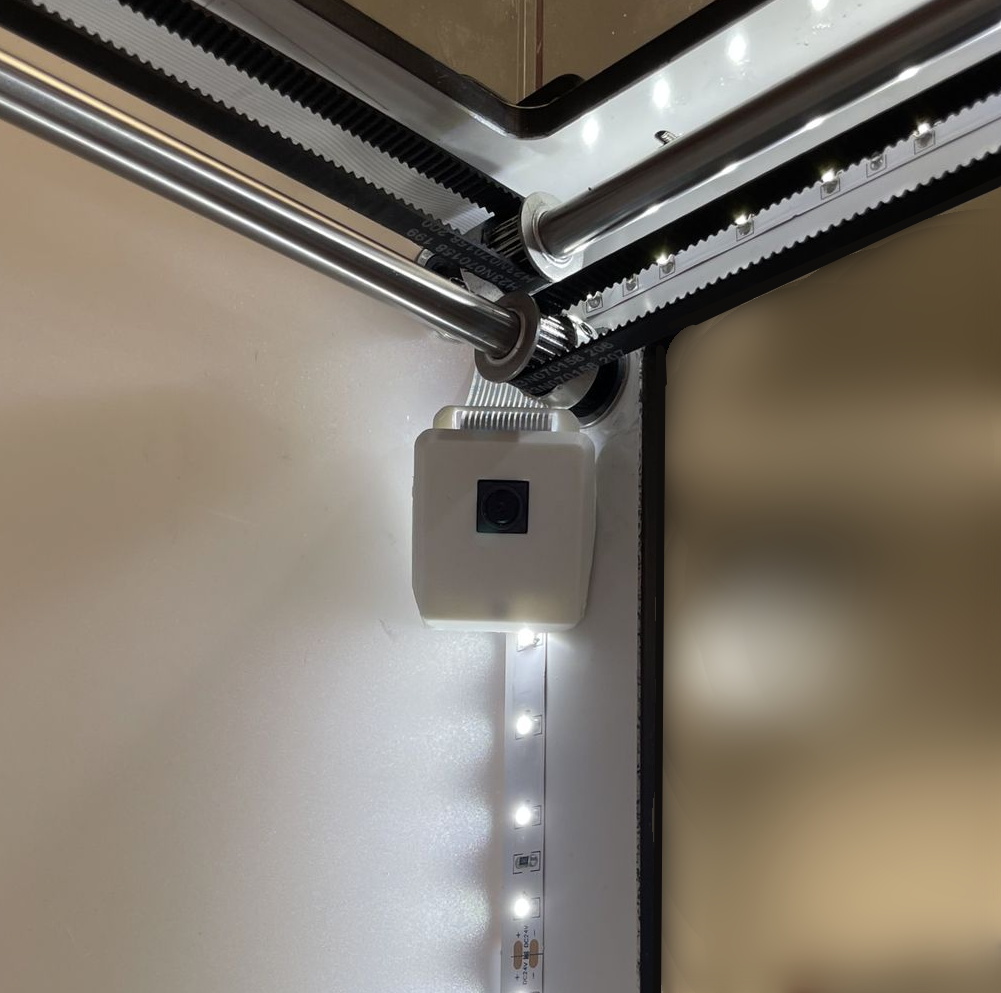

Two parts case for adding a Raspicam (for Octoprint or Klipper, or anything else...) to an Ultimaker 2/2+/extended. (Should be compatible with other Ultimaker printers, except if there is already a cam at the same place ;-) ). BOM : 1x…
Key for adjusting sharpness of Raspberry Pi cameras V2.1 original lenses. This part can fit and can be hold in the window of some existing cases. Otherwise, it can also be manually holded. Layer height 0.1 or 0.2 mm, infill 15-30%
BIQU B1 mount for the ingenious https://www.thingiverse.com/thing:3114849 It doesn't limit my Y max position. If you have a problem with the design, please take a picture of it. I can then design and post a second STL which may fix this…
Adjustable pole for RaspiCam on Y buildplate Dagoma Other necessary parts are available here:…: http://www.thingiverse.com/thing:1738064 Requires an M3 lg 16mm screw + 1 nuts + 4 washers. Print Settings Printer: Dagoma Discovery 200…
I've been working on and designing new parts for my TwoTrees SP5 lately, and I needed a mount for my PiCam, so I've made this "Universal mount". It's turnable both up, down, and sideways. It should fit both T-slot and V-slot extrusions,…
Ein Halter mit Gehäuse für die PiCam bestehend aus 3 Teilen, Gehäuse und Arm. Einfach zusammen schrauben und fertig. Keine Supports nötig

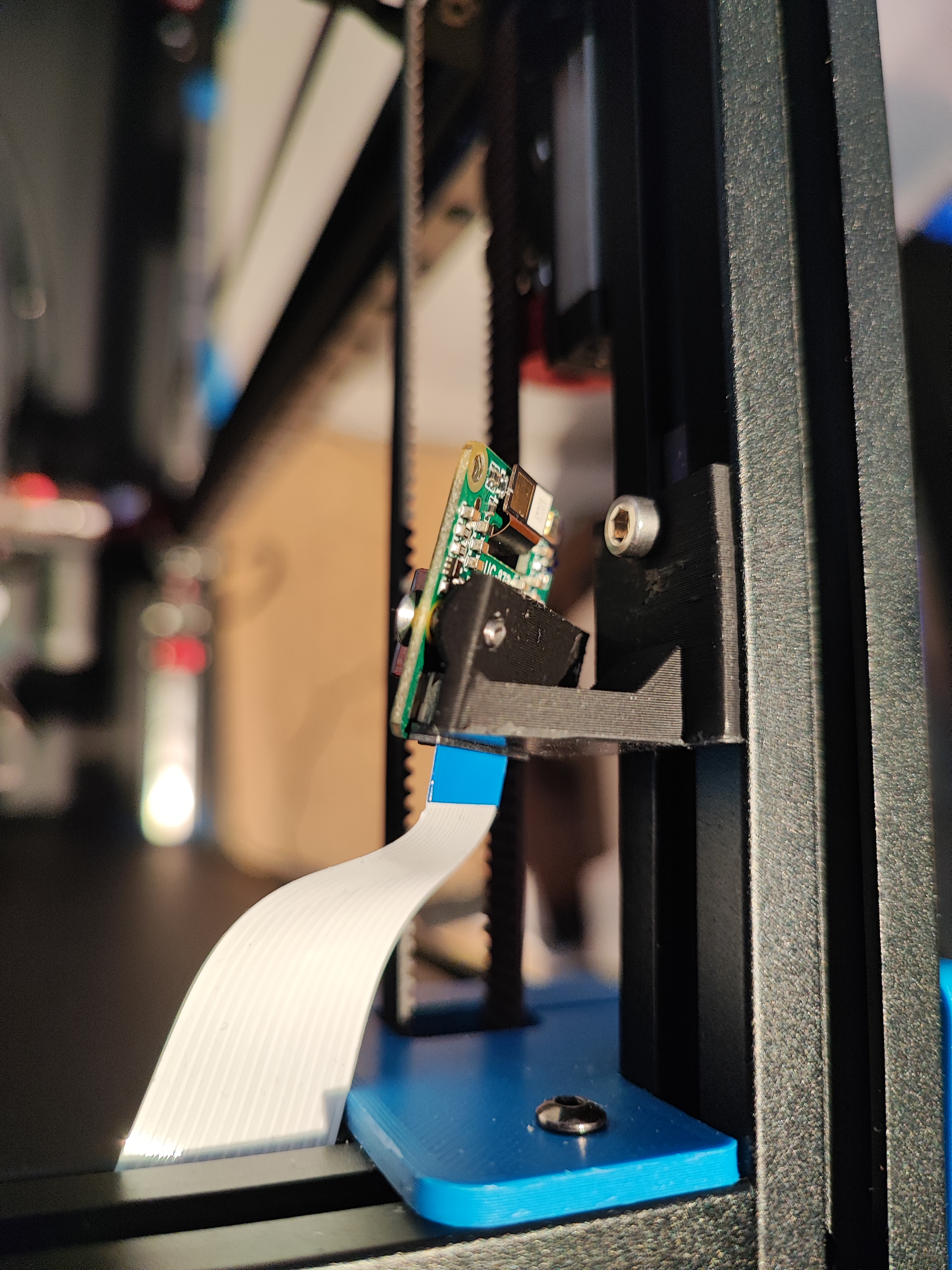

I love the clip, but since i was wanting to mount to a 2020 extrusion, I remixed this to add an M3 hole so I could use a t-nut mount. My no nuts required t-nut mount works really well: https://www.thingiverse.com/thing:3953884 I found…

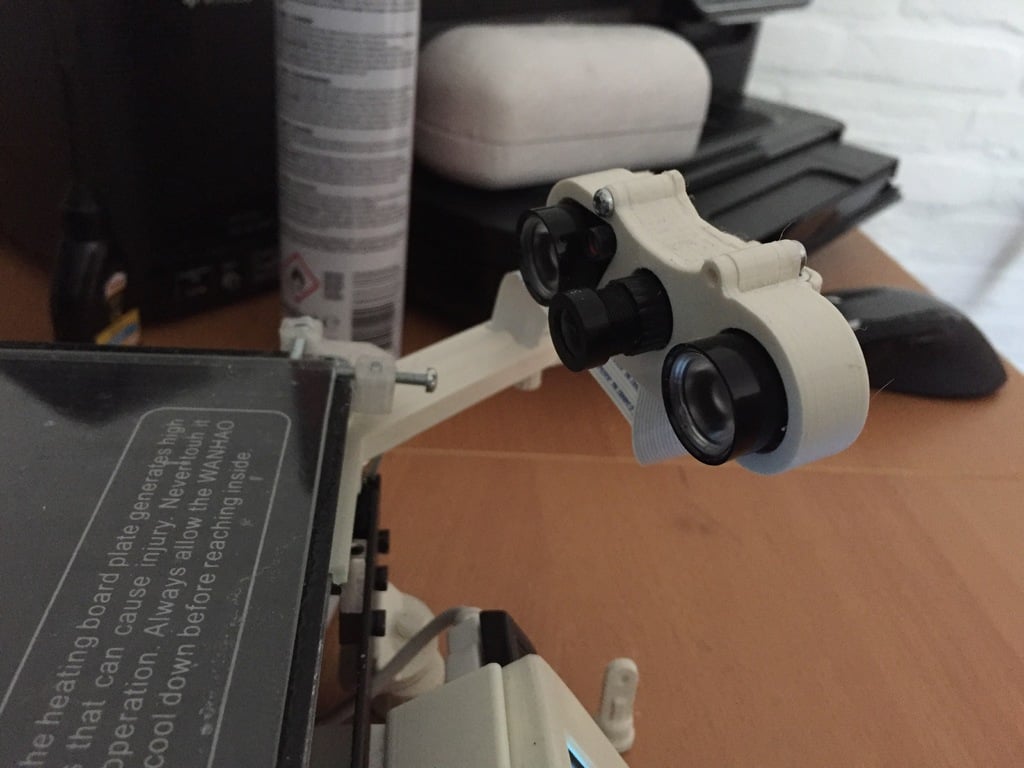

PiCam case, and two arms for top or bottom PiCam Boitier caméra PiCam avec 2 bras de fixation au rail nappe haut ou bas J'ai repris le fichier de PrusaBox du rail et de la fixation. J'ai dessiné deux bras et le boitier pour y mettre la…
All the parts you need for the Prusa MK4 and Raspberry Pi Camera Module Version 3. As with the original, the bracket (the piece holding the arm to one of the Z-mounts) requires one M3 x 16 mm cap screw. The Raspberry Pi 4 mount I chose…
Both pieces are in the same Step file. I find this easier when making models that need to fit together. The Step file will need to be split into the separate parts. The model uses M5 bolts and nuts, same as Gopro. The swivel has an…
The original cover cap worked well to keep the Sprite cable out of the way, however I wasn't thrilled with the logo and it blocked the use of the X cover clip-over PiCam holder I had been using prior to this last round of upgrades. I…
Provides a mounting point for a PiCam on the Prusa XL Y-Axis arms. Requires a 3030 T-nut and an M3x10mm socket head screw. If you do not have a T-nut you can print one of these,…

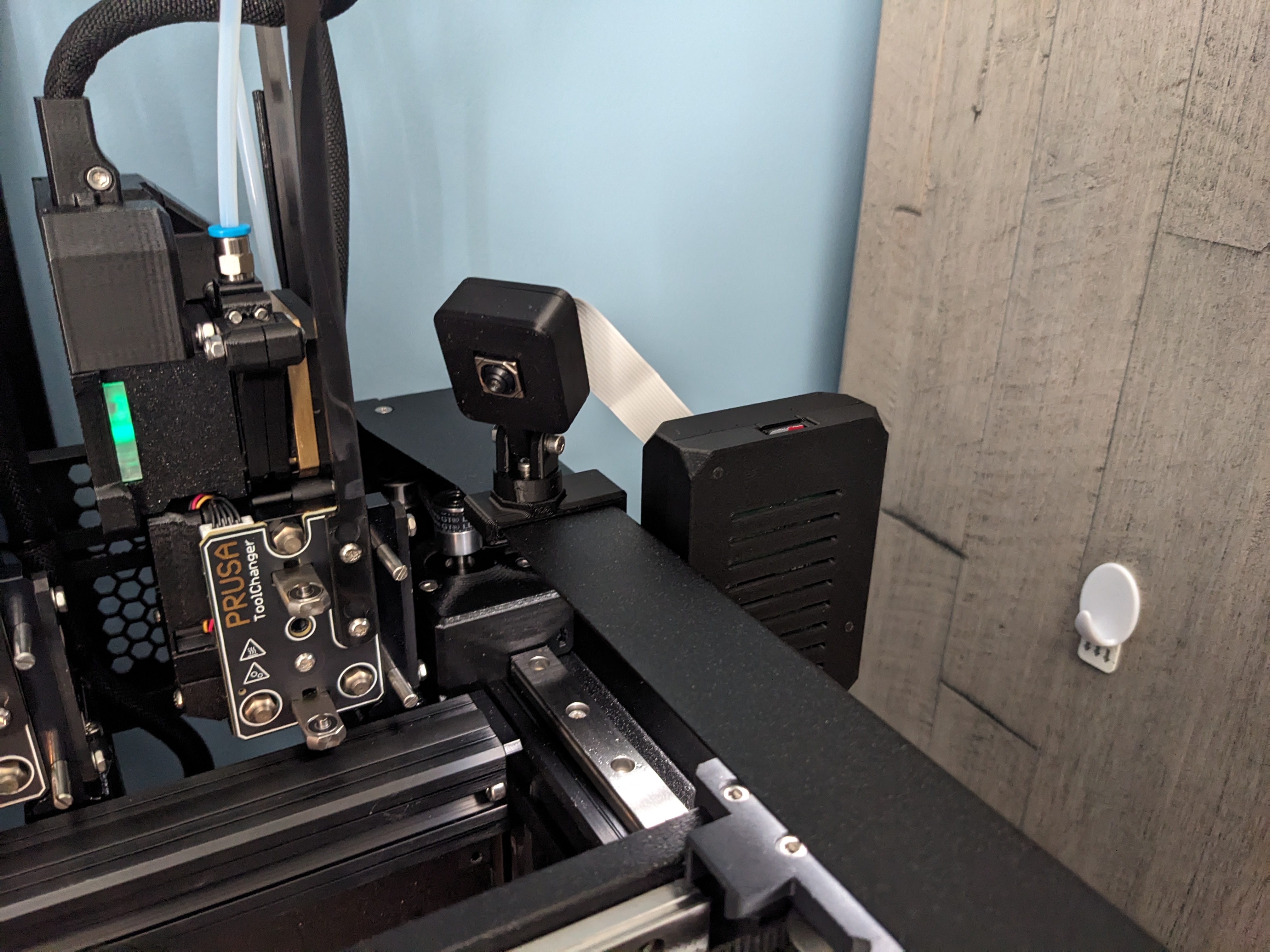

I've been using a variation of this case on the MK3 but it is for a PiCam2. When I upgraded to PiCam3's I realized the case this is based on (https://www.thingiverse.com/thing:2956323) does not work, so I remodeled it. Requires an M3x16mm…
Needed to mount my RaspiCam to my CR10 V2 so i threw together a small mount in SketchUp. You need 4 x M2 Screws to assemble it. (i used M2x6 which is perfect for the clamp, the others can be a bit shorter) Nuts should not be needed as the…
Here is another Raspberry Pi V2 camera bracket. The bracket mostly snaps together but requires two screws and 2 nuts to assemble. One M2 square nut and and screw to attach the Camera to the idler arm and one M3 hex nut and screw to hold…

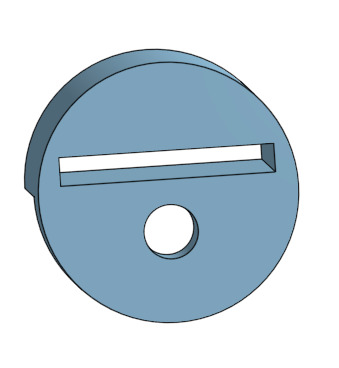

Printed on the Creality Ender 3 v3 se in pla, 10% cubic infill and 250 mm/s. For a view on top of the print bed. If you run a raspberry pi with octolaps, the best settings are “middle back”.
Mounts a Pi-Camera Module to the rear gantry extrusion. When used with a camera module 3 - wide this gives you a complete view of the print bed on a 300mm Trident. Install Mounts using hammerhead or roll-in t-nuts and M3x8. Uses M2x10…
This is essentially a remix of 3147295 that moves the PiCam closer to the Z frame and hangs the PiCam under the mount. This works with a PiCam v2 . Note: You will probably want to focus the PiCam with the nozzle in the middle of it's…
I had some trouble finding a raspberry camera case for a tripod that fits the camera module I have. So after a few tries I made my own :) Since the existing cases did not fit my module there is a good chance that the opposite is true as…
PanTilt for Raspberry pi Camera module (v1/v2) and MG90S servos remixed and edited model optional base for pca9685 included Print body A and B with supports Parts: 2x MG90S servos some extra M2 screws and bolts all the screws from the…
30 degree angle mount for PC Board style arducams and similar.
EN: I made an Raspberry Pi Case and Arm to mount a Raspberry Pi Zero 2 w with Zero Cam to my Prusa MK4. In order to get the Pi to send Pictures to PrusaConnect i used this tutorial on GitHub from cannikin/GitHub:…
Remix of ( https://www.thingiverse.com/thing:2772725 ) Made a bracket that holds the camera in place by sliding into slot instead of requiring back plate with zip tie. Made this to work with PiCam V1.3.. should work with V2 but not sure.…
Simple remix using basic screw mounts. Holds the camera just fine.
This is a remix of 2 components as well as a combination of others. Remix: Added the backplate of the "Raspberry Pi Camera Case and Mount for Mini Kossel" to the "Ender3 Flexi PiCam mount" Combination: added the cooling holed backplate to…
Designed a bracket that could hold my Pi camera to the bed and lead the ribbon cable neatly inside. I designed a arm construction that could move the camera in every place and angle. The case for the camera is a remix of some older design…
Remix from: https://www.printables.com/model/106225-modular-snap-together-raspberry-pi-2b3b3b4-case-w- This fits a 0.96" IPS display, 30x30x7mm fan, and a pi camera cable. It's a pretty tight fit though, I had to trim the dupont…

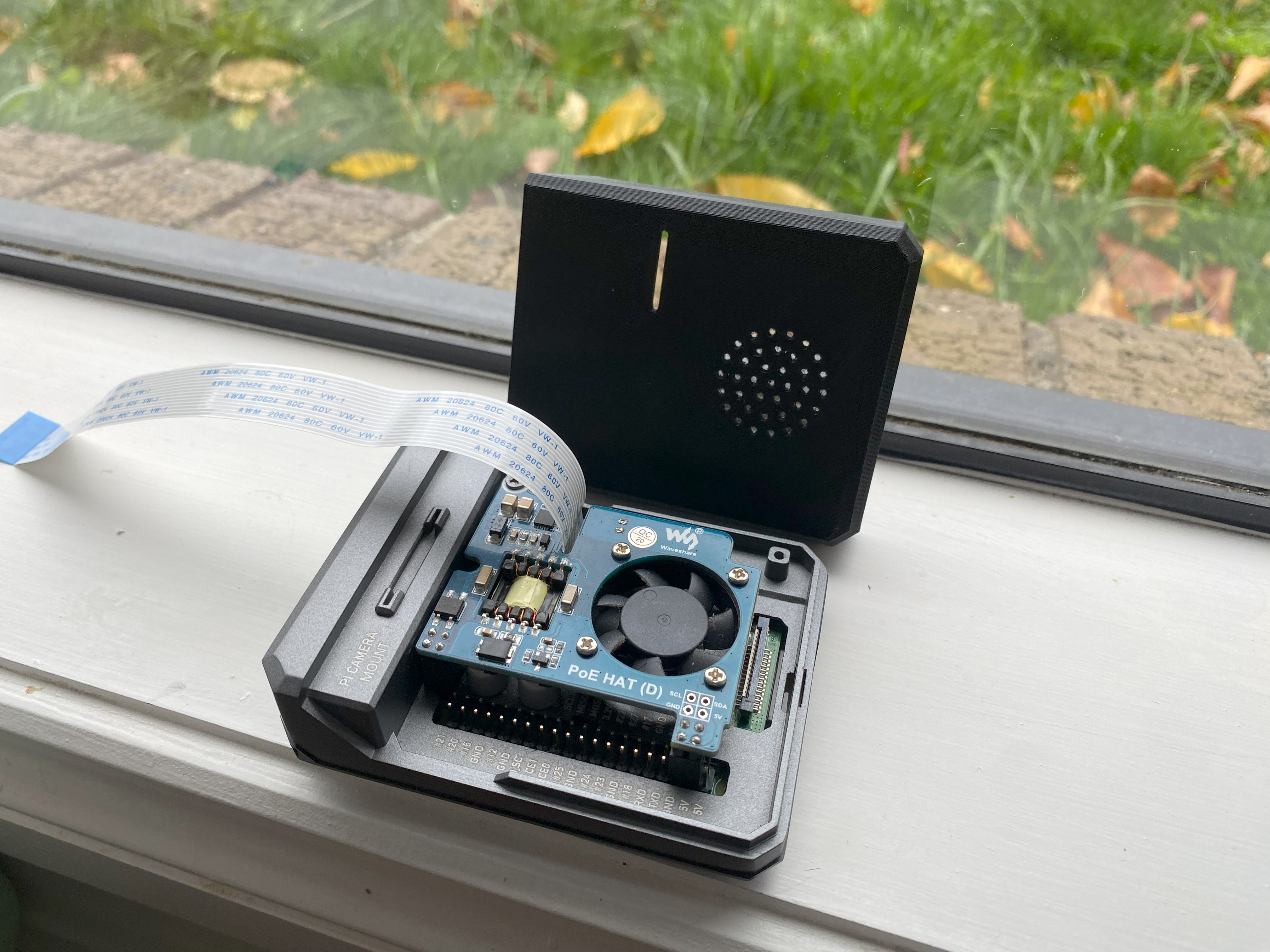

Remix of Blejdfist's design, with added fan vent. Components; Raspberry Pi v4B Argon Neo case Waveshare POE hat (D)
This piece can be used to attach m12X0.5 thread lenses to the picamera Print instructions Category: Camera Instructions Remove the original lens from the Picamera (better explained here:…
This one works pretty good as well as being out of the way. Print one of the mount, cover and wire bracket, and two shims (no supports). Install 8 3 volt clear white LEDs wired in series, this will wire to your MK3 power supply's 24…
