I started with John 's Cable Cover for Prusa MK4/MK4S/MK3 model, but that did not work well for me. The extrusion rail cover segment was oversized (overhanged the edge), and that poor neuron that had finally achieved some reprieve over…
My sister asked me to print these corners for her. I looked around and found a model on Thingiverse. That was great, but I had some trouble printing them, so I took that model and made several changes to print it reliably without support.
I wanted a horizontal mount for the SKR Mini E3 V2 to act as a secondary MCU for Tronxy X5SA Pro build. It needed to be in the front right side so it could be hooked to a display. Printed in PLA using Voron print specifications. Supports…
Durable and easy-to-print sliders designed to fit 30 x 30 mm aluminum extrusions. Perfect for smooth, adjustable movement in DIY projects or custom setups. Print with supports, ensuring a quick and hassle-free build for makers of all…
A simple spool holder made to be attached to a 3030 alumium extrusion. Which is the type of extrusion i've use for my prusa mini+ enclosure. Design is made in 2 pieces, the spool holder and a stopper that screw in the holder once the…
Needed a foot to raise my aluminum extrusion off of the floor so I designed and printed a small foot. Connect to aluminum extrusion using a single M5 bolt screwed into a t-nut. My print parameters: Printed in PETG 0.2mm layer height 15%…
A gantry plate for 3 roller wheels that fits on a 40mm wide v-slot aluminum extrusion. For a full assembly you need: 3 roller wheels with 24mm diameter 1 eccentric nut ID 5mm that fits in a 7mm hole 2 spacers ID 5mm 3 fasteners M5x28 or…
Cable clip that i design for my ASR4 sim rig from Advanced Simracing, it will fit other 1st gen Advanced Simracing rig or monitor stand. Advanced Simracing is North American therefore they use imperial 15 series extrusion (1.5in) This…
I designed this part while building the SICCO Filament Heater/Dryer DIY Project for my Prusa XL 5 Head printer. The project calls for 30x30 aluminum extrusions (black) and requires 3 way corner cubes, which are usually silver, and need to…
Remix of Draizer's shelf holder for 2020 extrusion. Instead of being inset into the 2020 frame, my board sits above the 2020 frame. This extends Draizer's design up to flush with the frame which allows 1 ¼-1 ½" screws to connect with the…
This is a cap for a 30x30mm extrusion (1.25"x1.25") that can be bolted to a perpendicular extrusion so it hangs.
These files are for making a flip-stop for use on a fence made from (Bosch) 6020 aluminium extrusion. The original was made for use with a fence on an MFT, but it would be equally applicable on a mitre saw or drill press fence. It is held…
This is yet another filament holder, but one meant to be bolted onto 20x20 extrusion or the 20mm side of 20x40 extrusion. It's very similar to my TEVO Tornado / 20x20 filament holder that clicks into place instead of using a bolt: (…
This is a really handy and fool-proof filament holder that fits on most, if not all 20x40 aluminum v-slot extrusion. It is designed to fit most spools and comes with two guides or pushers that keep the spool from creeping too far towards…
Here is my third filament spool holder I made for my TEVO Tornado! This spool holder fits securely into the 20x20 aluminum extrusion on top of the 3D printer frame and can be attached without taking apart the frame. It also includes a…
WARNING You will be working with high voltage electronics which may kill you if you don't know what you are doing! Description Took the stl for the Thinker (non SE) PSU bottom piece and worked from that: added a cutout to fit the switch…
I had been looking for a good scrap bin to put on the side of my Ender 3 V2, when I realized I could adapt the Gridfinity system to fit on 2020 extrusion. Similar ideas have been done before, but I tried to make this a well rounded…
i was modding my ender 3 like every other user and i needed some way to tension a belt for my new moving system. i was thinking of how to do it and how to make it reliable like how i added belted z and never had a problem with it and it…
A few of the frame's I've ordered have had fairly thin anodizing that was prone to picking up scratches during the build process. I came up with these temporary feet so that I could lay the printer on any of its side without my work…
This is a simple spoolholder to go inside a homecube or similar 2020 extrusion enclosure. It requires access to the bottom face of a top 2020 extrusion, and requires the side panel to lean against for structural stability. Use T-nuts or…
Keep your cables neat and secure with these snap-fit cable organizers designed specifically for 15mm aluminum extrusions . Ideal for 3D printer frames, CNC machines, or DIY rigs using small-format aluminum profiles. These clips help route…
I tested a bunch of cable clips and the model I found at https://www.thingiverse.com/thing:2613532 was my favorite. It requires some force (pliers help) to twist into place, but once there it holds firm. It's got a flexible arm so cables…
Print in PLA/PTG. The top extrusion is 100mm The small piece is 30mm The Part with the 3 holes is for adding ¼ 20 accessory thread, designed to be used with a ¼ 20 5mm insert and two m4 10m countersunk screws and T nuts.

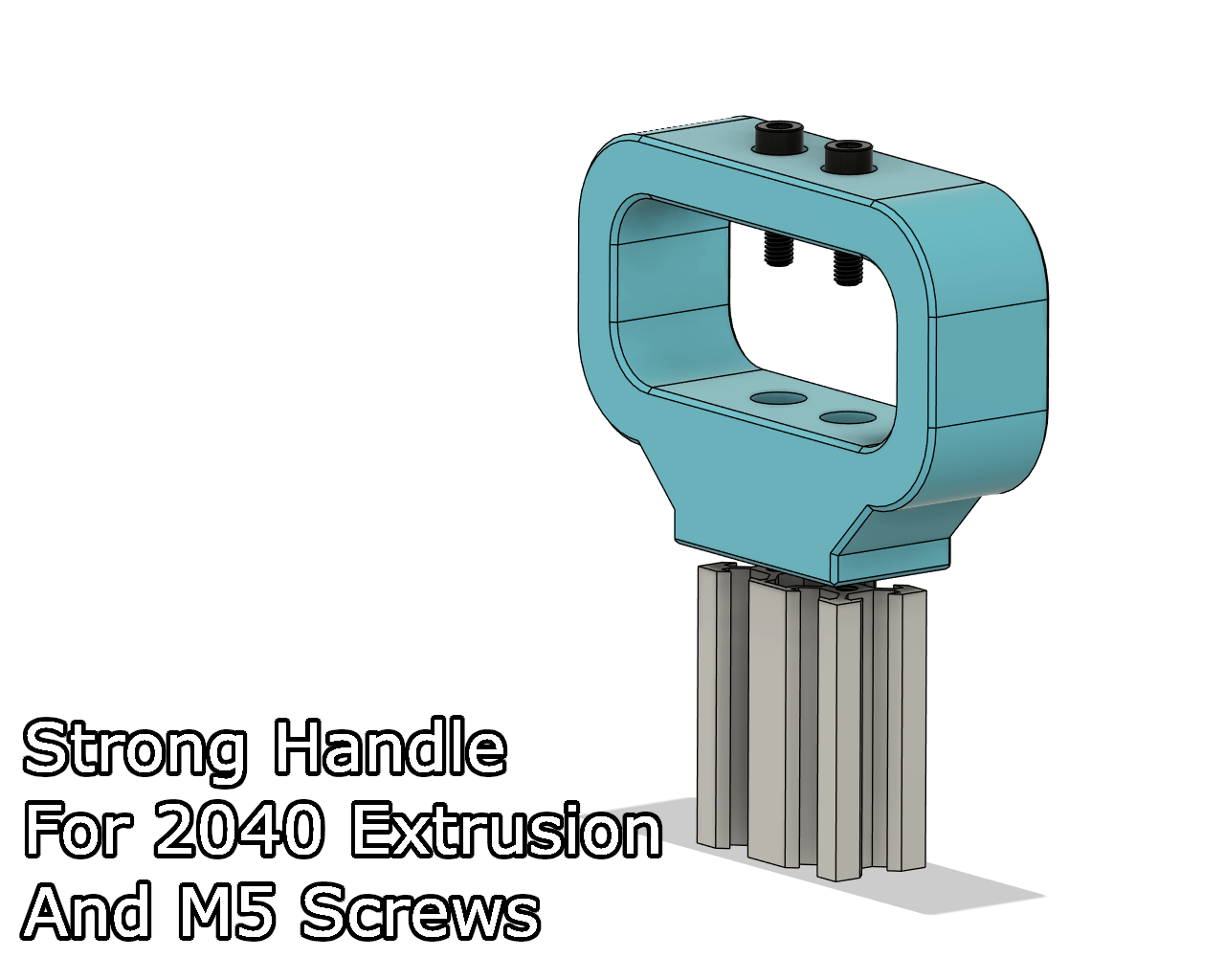

Do you have a 3D printer that uses a 2040 extrusion for the Z-Axis? Do you need a handle for it? Well, look no further! This handle is compatible with any 2040 extrusions that uses M5 screws on top. Some compatible printer examples: The…
End cap designed to fit 2020 B-type aluminium profile / extrusion with 6mm slot and 5.5 mm center hole. Added thickness is 1mm., the inside fingers are 5mm, It's a bit fiddly to put on but then it should sit pretty well. If you get a…
This is a fats and easy to use print to drill holes in the center of the v slots of the 4040 extrusions with m3-5 sizes
I bought some cheap 24v kitchen cabinet led bars (https://nl.aliexpress.com/item/1005003166484007.html) and they differ in size from the one I already had that Formbot ships. They are slimmer and do not protrude from under the 2020…
This is a 2040 extrusion mount adapter for Tapo smart cameras including C200, C210, C211, C220, C225, TC70, and TC71 . 🔹 Designed to fit 2040 aluminum profiles – tested on Anycubic Kobra 2 Neo . 🔹 Non-adjustable – simple and sturdy mount.…
20240 Aluminium extrusion profile, CNC waste board, base plate, fixture plate, machine bed, mounting plate, T-slot table 100mm in length. Overall dimensions: 240x100x20 Every coffee genuinely inspires me to create more. If you like what…
This is a modification of the original Voron trident skirt but modified for voron 2.4 with 40mm extrusion.
This is my version of an AWD DuEnder. The rails are all MGN9. When I get the chance, I will update this description with a parts list of used hardware to assemble, but most everything is an M3 bolt ranging from 5mm up to 35mm. Print…
Works with 1515 extrusions and any panel dimensions. You just need 10mm bar or pipe of any material. I used AL bar, but wood or plastic should be fine too.
Since buying extrusions can be expensive, i made some that can be 3d printed. These can be used to build 3D printers and other things that need them. I recommend you use PETG or something strong when printing. These are not exactly…
widened the bracket holes to fit better and allow it to be directly screwed into the angle bracket (such as these https://www.aliexpress.com/item/32707599936.html). Also removed the MGN slot. My frame had lots of space so the rail just…

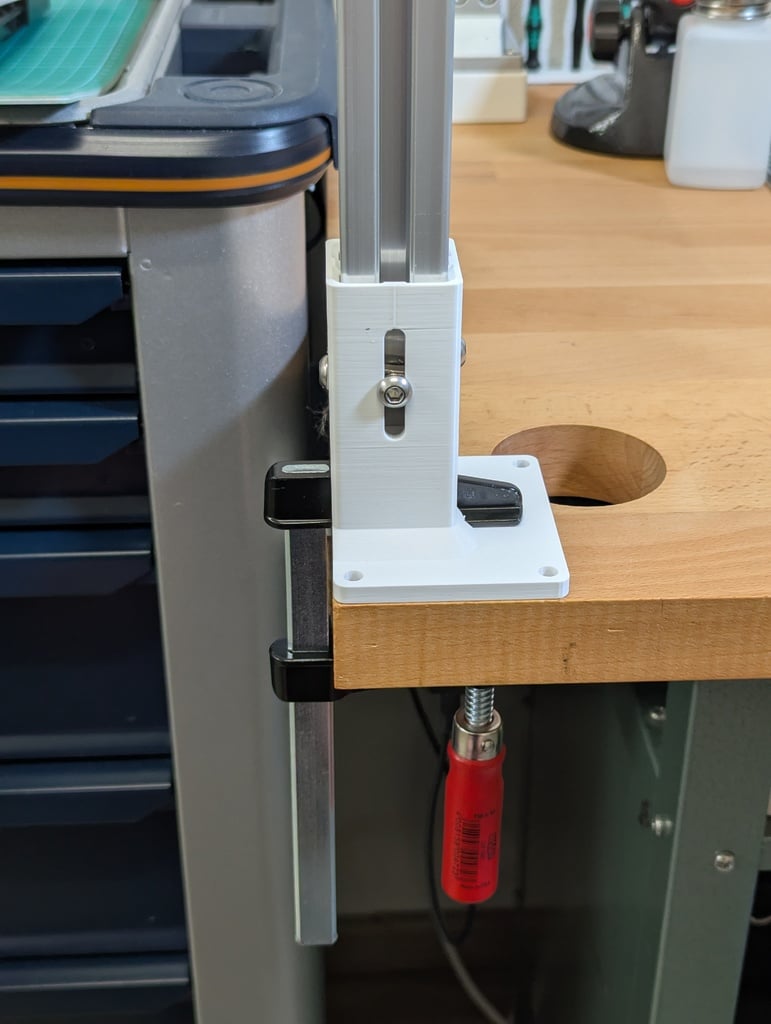

Basic Mount for 3030 Extrusion to a flat surface, such as a desk. You can either use screws or a BESSEY Die Cast Screw Clamp LM 150mm to mount it to your desk. The 3030 extrusion can be fixed to the base with T-Slot Nuts with M6x12 screws…
All Modifications have been created in Prusa Slicer. All 3MF Files are available. This mod can be used with the Tophat / Canopy for Vorons. CYD Case Mods: added 3.5mm holes (distance 30mm) to the Backplate. Voron Removable Doors (from…
These are 4040 Extrusion Mounts that are compatible with the changes I made for the Wheeled Hybrid Model below.
Add a couple of Revo Voron Nozzle Holders For Micron R1 to keep your nozzles handy. You can use the same twist pins as the R1 panel clips for this mount. Use the same settings that you used for the panel clips during the build. I printed…
A compact cable clip for fixing cables inside 1515 extrusions. The OpenScad is completely parametrizable, so it can be adjusted to fit 2020 or other extrusions as well. Suggested print settings Rafts: No Supports: No Resolution: 0.2mm…
I liked the LED mounts from LDO's 2.4 kit, and bought some 12mm 24V RGBW lights to put on all my printers for some status indication while also maintaining decent looking lighting. The original BOM is changed slightly, now needing 2x M3x6…
You just need 4 x M4 screws to attach the sides , 2x M8 countersunk screws and optionally a Pneumatic fitting for the PTFE Bowden tube.
2020 aluminum extrusion profiles are, 20mm x 20mm square T-slot. Commonly made from 6063 aluminum, for DIY projects like 3D printers, CNC machines, workbenches, and automation equipment
Update 07.02.2026: "Tight" & "Relaxed" Versions I have updated the naming convention and added a new variant based on assembly testing: Tight (Original): High-frequency wave for a firm, secure grip on wires. Relaxed (New): Wide-pitch…
Modified Z belt covers for a Voron 2.4 printer. The part these are based on were modified to allow installation with the stock voron parts couldn't fit under the Z rails and allow a cable to pass through. I made more modifications to…
This is a remix of the original Prusa MK3 spool holder, modified to be mounted in a flipped orientation. By reversing the part, loading and unloading filament spools becomes much easier and smoother. The design is adapted to fit the Ender…
As you may have noticed, the Sovol Zero has an issue where the floppy umbilical cable that goes to the toolhead falls low and prevent proper homing resulting in an errror and alot of unpleasant noises. Some simple solutions exists such as…
Very simply, I love the flat mount, but only needed it for one controller. So I cropped it. 2 versions, one full depth on the back, one shorter to save plastic/time. Be careful of direct WALL mounting the shorter one, it might not clear…
Cable management solution for 40x40 or 30x30 Aluminium (aluminum) extrusion profiles.
I found that the original model nor the remix didn't really help prevent g twisting. That could be because I am using LDO extrusions where the slots seems to be a bit wider. I also found that the wedge on the remix that goes into the…
A tool for accurately drilling holes for blind joints into 2020 / 4020 / 4040 extrusions. BOM: 1 - 4 x F695-2rs bearings (the same that are used on Voron V2 and VT machines) 4.5mm drill bit (A 5mm drill bit "works" as well but inserting a…
This model was technically never destined for uploading since i thought it was too meh, but thanks to Tobi 82 for spotting it in my Ender 3 Anti Vibration feet model, I uploaded it anyway just in case anyone else would be in need of one!…
I needed to make an enclosure for my cnc micro mill to contain dust and chips, so I grabbed some 3030 extrusion, and used some high quality double sided tape to mount 0.060" (~1.5mm) clear polycarbonate I had laying around. There are two…
Print on its side. Use recommended supports for your printer. I recommend four walls for extra rigidity. Spring Loaded M8 T-Nuts ( Amazon Affiliate link ) M8 Button Head Screws ( Amazon Affiliate link )
Mounting Info Uses M3 T‑nuts and screws (pictured with thumbscrews) Compatible with 2020/2040 extrusion profiles Mounting holes on two edges for flexible positioning Device Fit Supports devices up to 110 × 60 mm (with allowance) Device…
I modified my BeamCase SW to use an HDPlex GaN 250W unit embedded in the front panel of the case, and I made this 3D-printed makerbeam replacement to get the case length down to 225mm total length (reduction of 95mm) by using 205mm long…
Because I like to overcomplicate make stuff it didn't seem good enough to stick one of those panels straight to the side of my printer. So I made a 3d printed part to hold it in place and at an angle. Can be printed with -whatever-…
I had an issue that I use BSB extrusion for building my printer with MGN9 rail. That extrusion has grooves that do not allow stable level mounting, so I designed an insert that can hold the rail straight. Step file included. I printed…
I was looking for an extrusion rail-mounted hook and came across the model by ToyBear. I needed support, so I added a couple of organics, which did the trick. You may need to do the same if needed by your printer.
i do an x version for cross profile mount
Parts to attach a stylus and a trim router to the end of MiniTec 45x45 extrusion Instructions I needed to mount a stylus and a router motor onto two arms made from MiniTec 45x45 T-slot extrusion. I printed these in PLA but ABS would work…
Spool holder for 3030 extrusions - extendable with the original Prusa spool holder rod - For example, to deposit a second spool for 2-color printing or to move the spool to a more central unwinding position - see pictures.
Není to nosná část slouží pouze k podržení nízké M8 matičky na svém místě.
This magnetic corners allow me to remove and put the plexiglass pannels without hassle. This was made for 2,2mm plexiglass and 12mm diameter round magnets (2mm depth). Mind each printer will print with different tolerances. I print them…
CZ Profil 3030 má širokou drážku a samotná matice M6 jí může projít, takže spoj není dostatečně opřený a může se vymačkávat. Proto používám nízkou matici M8 jako opěrnou „podložku“: v drážce dobře sedí, zvětší dosedací plochu a zajistí…
10mm channel negative space added so 10mm LEDs can slide into the channel securely without the adhesive.
RPI Cluster Mount – 1515‑Extrusion A compact, low‑profile bracket system that lets you mount up to 10 Raspberry Pi boards on a pair of standard 1515 × 300 mm aluminum extrusions. The design consists of two printed “feet” (stands) and the…
Simple, with all the work done by @sulli18 and all I've done is create a joiner using the 16mm end caps. It wouldn't take much to create a 10mm version, should it be needed. When printed, make sure all supports created are removed, so…
NOTE: This is not a build instruction or ready made files. This is simply some tips and helpful resources if you plan on buliding a pedestal. You will enocunter problems and you will have to solve them yourself, definitvely not a beginner…
I took the 4040‑extrusion screw‑mount section from the Ender 3 Pro Y/Z tensioner and merged it with the anti‑crossthreading horizontal‑printing screw mechanism from Thompson Studios’ remix. The 4040 screw hole and mounting geometry were…

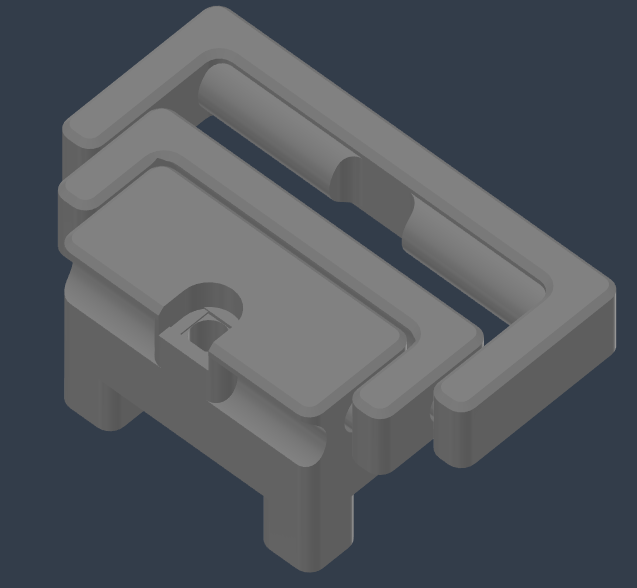

Converted the original into STEP format for the 3.5 and 5.5 no-logo latches. These are the standard voron BOM sizes.
I have different magnets so I made a new one. Solidworks file included.

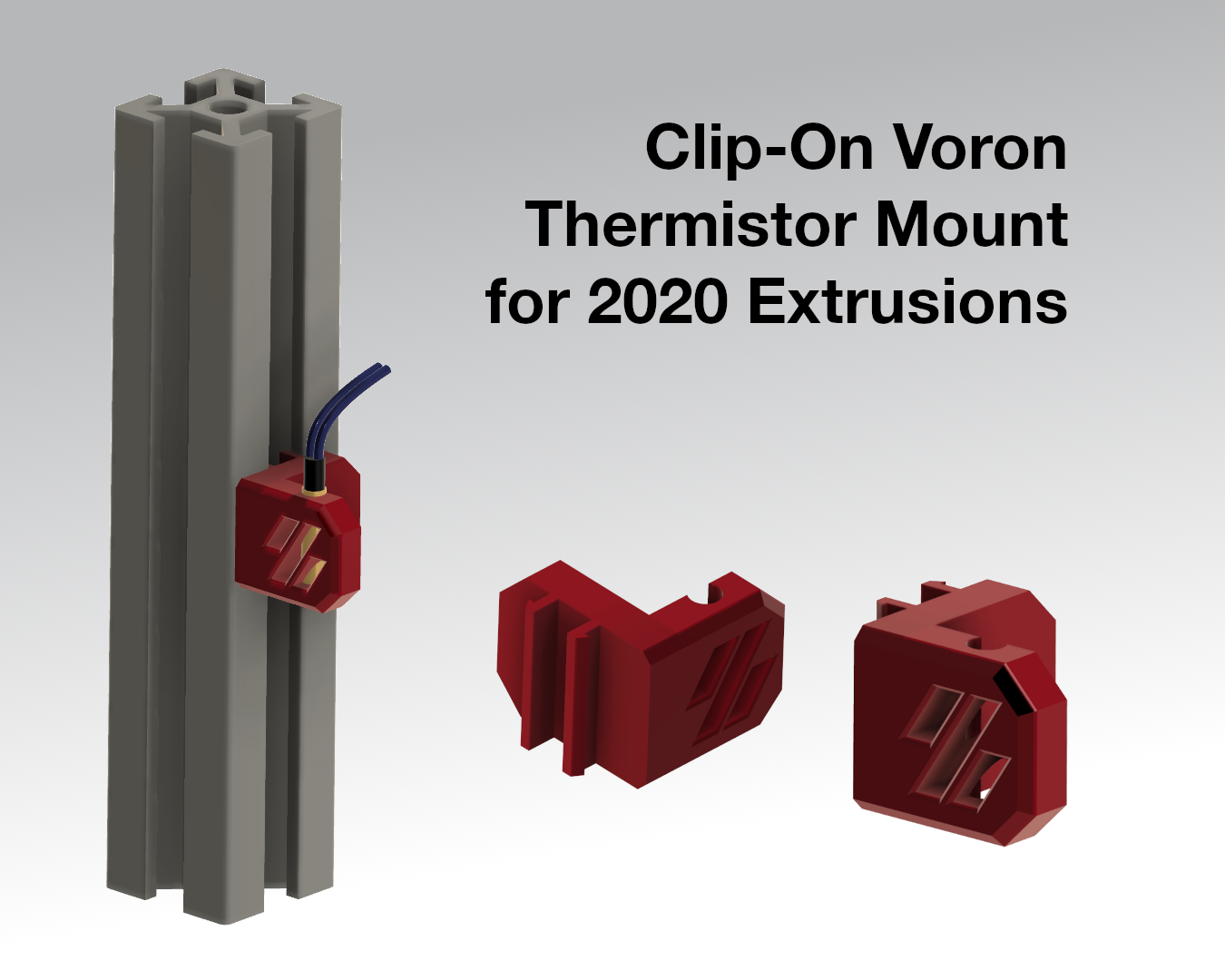

This is a clip-on thermistor mount for a Voron chamber designed for 2020 aluminum extrusion . Suited for thermistors with 3mm diameter. Unlike the original mount, this version clips directly onto the extrusion and does not require screws,…
Motivation I wanted a nice looking and hidden camera mount for my C920 . So I made my own. Parts and BOM You'll need the camera and 2x m3 8mm or (2x 10mm?) BHCS screws and 2x m3 T-nuts. Printing Print as provided. Please use support for…
I created this remix because I really like self-locking nuts, and while I was at it, I wanted to make the part more ‘support-free’. I printed it in PCTG (but I don’t think there’ll be any issues with PETG either). Layer height: 0.2 mm.…
unattended prints will be juged_Extrusion 2/2/2 walls 100% infill 0.28layer Hight
Nice mount for attaching your Logitech RS H shifter to 4080 aluminum extrusion.
Aluminum extrusion wall bracket to organise aluminium extrusion (multiples of 20mm)

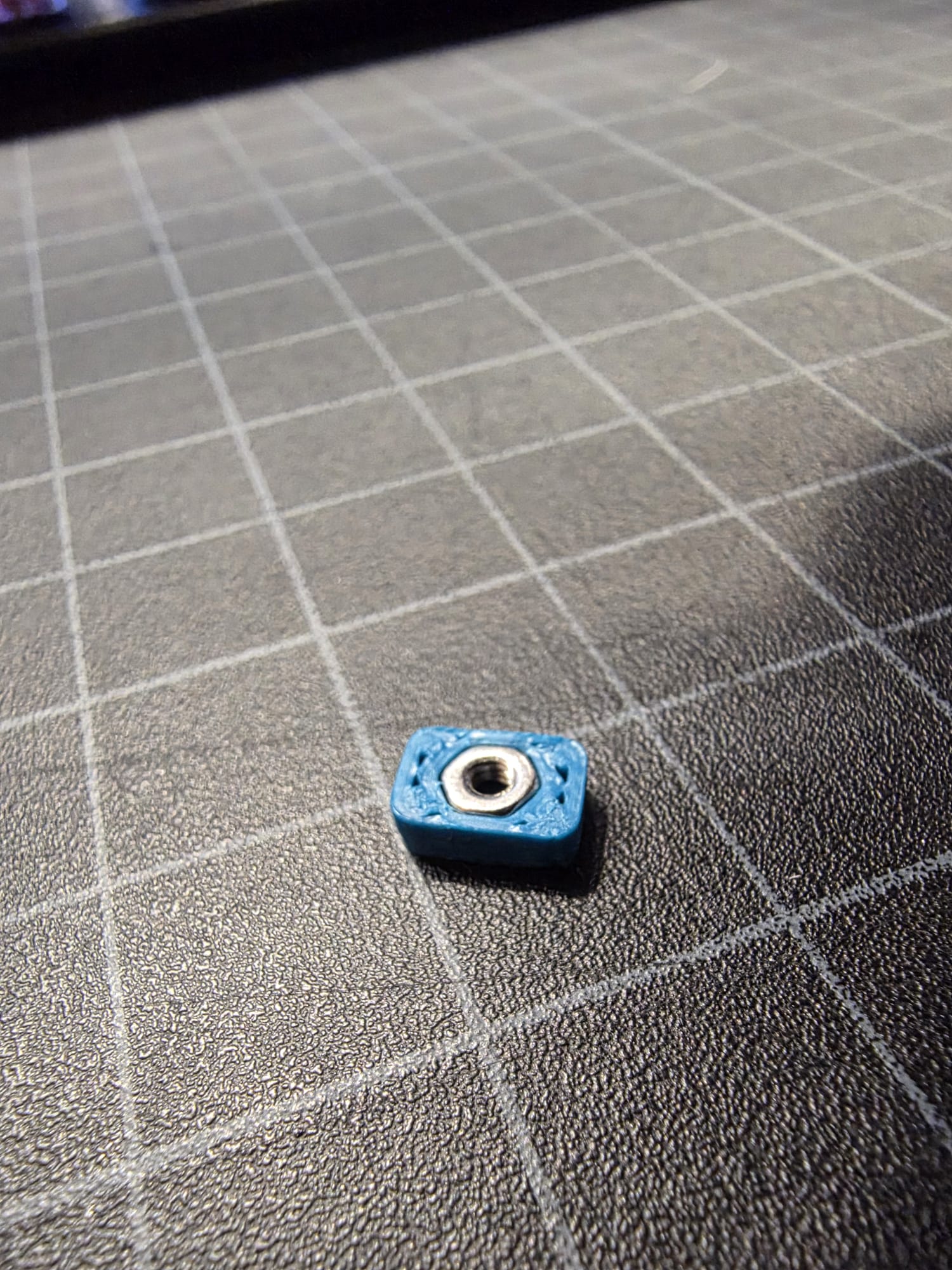

The M2 T-nut designs here were too hard to print, I decided to make my own that would be easier to print for 1515 extrusions. Tested this with Makerbeam XL 1515, LDO, Formbot and DLLPDF extrusions. Snug fit on DLLPDF and Makerbeam, the…
Mouse pad used for aluminum extrusion/profile sim rigs
A phone mount for running Octo4a on the Ender 5 Plus. Designed for a Samsung Galaxy Note 9 with case (11.5mm thick, 81mm tall in landscape). Clips onto the 2020 aluminium extrusion using my spring clip base . If your phone has different…
warning this 3d printer is nuclear powered_Extrusion 2/2/2 walls 100% infill 0.28layer Hight
This version of my Full Frontal Gantry XY hjoiners are designed to be SLM printed and are for use in my Rat Rig V-Core 3 and 3.1 hybrid upgrade kit that can be found at the following link:…
Requires: 3x m3 nuts 1x m3x6 or m3x8 bolt (BHCS) 2x m3x15 bolts or longer (mine are 16mm in the pictures) Print on end. No supports needed! Tested at 0.2mm layer height, without a brim, but failed prints are likely without one. The extra…
Mounting solution to attach a Framework 16 laptop to 1010 series aluminum extrusion. Designed to hold the laptop so that the hinge is at the top when closed. All six input modules are accessible when docked. Laptop can also be stored with…
Modified the original model to use two 2020 or 2040 aluminum extrusions 350mm in length. STEP file is included to remix extrusion length if needed. Also made it a little shallower to save on filament. I had some rubber adhesive strips I…
I wanted to mount my tools for the Bondtech INDX toolchanger at the top, like the Stealthchanger and Tapchanger toolchangers do. Because I want a nice unobstructed view of the work-piece being made. Also this gives better access to the…
A simple holder for your daylight on a stick LED strips to mount on a 3030 aluminium extrusion. When using in an enclosure it should be printed in a temperature resistant material such as ABS or ASA. Currently mounted in RatRig Vcore 4.
A bracket for combining multiple 2020 extrusions at 90°. Fits 2x M5 fasteners at 8mm length with nuts. Compatible with:
Print using ABS/ASA when used inside a heated chamber. Print 2x 3mm keys from…
Had extra 300mm extrusions, put them to good use.
Needed a mount to allow routing my Toolhead USB cable behind the belts of my monolith gantry, inside the printer. came up with this, dual mount one at the top one at the bottom! BOM: 4x voron m3 heatset 4x M3x10 SHCS 2x M3x14 SHCS 2x M3…
My project was an Ender3, and an Ender3 v2. One of them came with larger rubber feet with dimensions approximately of 39x19.6x12mm. Additionally, I didn't want to cut the threaded rods. I used the Duender Z Motor Spacer found here:…
I just bought the cheaped webcam off aliexpress and it came with this weird clip on mechanisms, all you have to do if you got a similar one, is take the mechanism off and the webcam is only attached via a single plastic screw through it.…
This is a snap-in-place parametric dust cover for extrusion channels. I have included photos of these on my Voron 3d printer, but this can be used on any extrusions of this geometry type. There are two models included: one that has a…
This is a simple cable clip for 30mm Alu extrusion (8mm slot). No tools or screws needed, just twist it in and secure your cable with a zip tie. No Supports needed (laying on its side). I made multiple sizes for different cables. Here you…
This simple model mounds a UVC industrial camera onto a 2020 aluminium extrusion at the back of your printer. The rack has a hole for you to put your wire through it. Required hardware: 1x UVC camera module…
According to the Micron R1 CAD, the distance from the front of the bed to the back of the extrusion should be 23 mm. Photo courtesy of @xx_maverick_xx on Discord
